Quick Start Guide

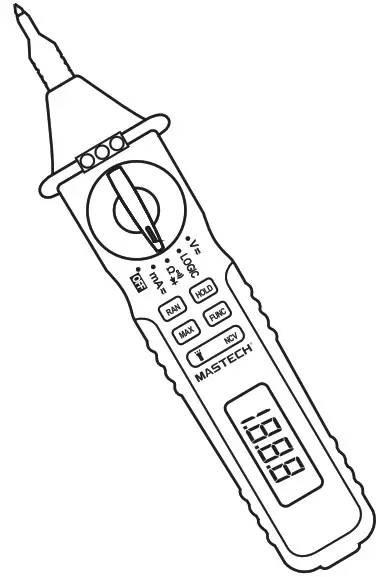

MS8223A
Pen-type Digital Multimeter

SKU Number: MS8223ACBGLO
CAT III 600V
1 YEAR LIMITED WARRANTY

700019294 June 2021 Rev. 1
Specifications are subject to change without notification.

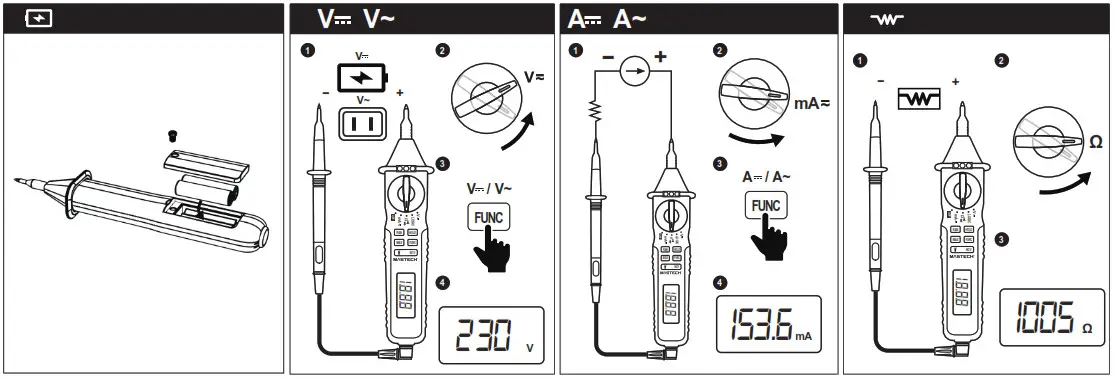

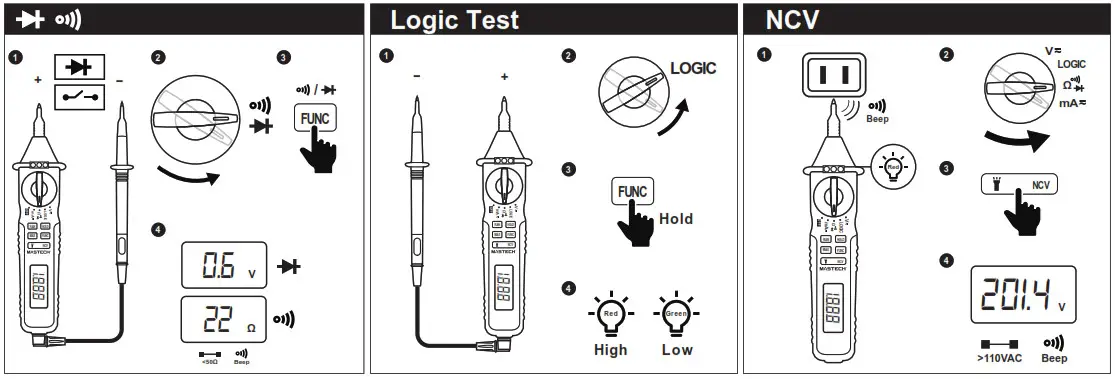

The special attention should be paid when using the test and measurement instrument because the improper usage may cause electric shock and damage the equipment.

Use proper measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
Examine the measuring test leads (if present) before use. Any element of which the insulation is deteriorated (even partially), replace them with proper functional test leads.
Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test
Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.

Contents hide

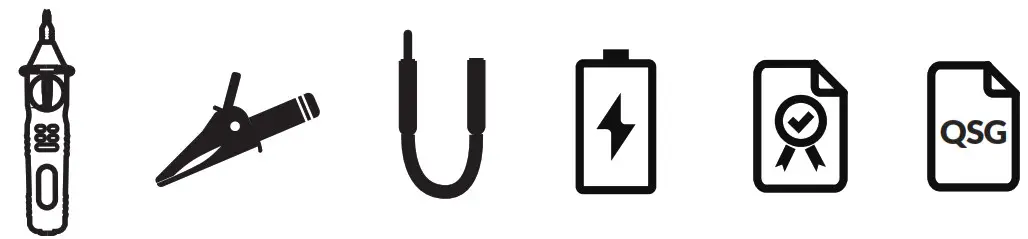

1 Contents

2 Specifications

3 Documents / Resources

4 Related Posts

Specifications

Range	Resolution	Accuracy
4V/40V/400V/600V	0.1mV/1mV/10mV/0.1V/1V	±(1.2%+5)
400mV/4V/40V/400V/600V	1mV/10mV/0.1V/1V	±(0.5%+3)
400μA/4000μA/40mA/400mA/10A	0.1μA/1μA/0.01mA/0.1mA/0.01A	±(1.2%+5) ±(2.5%+10)
400μA/4000μA/40mA/400mA/10A	0.1μA/1μA/0.01mA/0.1mA/0.01A	±(1.0%+5) ±(2.0%+10)
400Ω/4kΩ/40kΩ 400kΩ/4MΩ/40MΩ	0.1Ω/1Ω/10Ω 0.1kΩ/1kΩ/10kΩ	±(0.8%+5) ±(0.8%+5)
5nF/50nF/500nF 5μF/50μF/100μF	1pF/10pF/0.1nF 1nA/10nA/0.1μA	±(3.0%+5) ±(3.0%+5)
100Hz/1000Hz/10kHz	0.01Hz/0.1Hz/1Hz	±(1.5%+5)
0.1%~99%	0.10%	±(2.0%+5)
-20℃~1000℃/-4℉~1832℉	1℃/1℉	±(3.0%+3)
