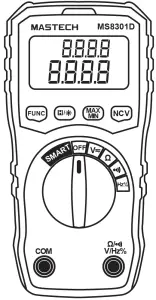

MASTECH MS8301D Digital Multimeter
SKU Number: MS8301DCBGLO
Quick Start Guide
The special attention should be paid when using the test and measurement instrument because the improper usage may cause electric shock and damage the equipment.
- Use proper measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
- Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
- When handling the test probes and crocodile clips, keep your fingers behind the physical guard.

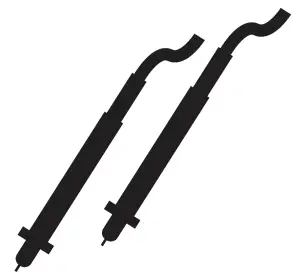

- Examine the measuring test leads (if present) before use. Any element of which the insulation is deteriorated (even partially), replace them with proper functional test leads.
- Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
- Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test

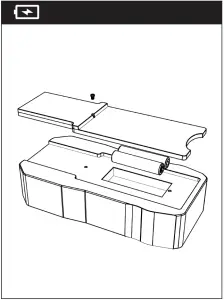

- Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.
Contents
 |  |  |
 |  |
Specifications
| Range | Resolution | Accuracy | |

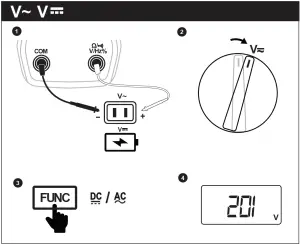

V~ | 6V/60V/600V | 0.01V/0.1V/1V | ±(0.8%+5) |
V⎓ | 6V/60V/600V | 0.01V/0.1V/1V | ±(0.5%+3) |

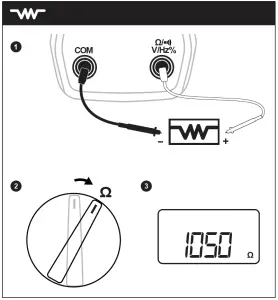

R | 2kΩ/20kΩ/200kΩ/2MΩ10MΩ | 0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ0.01MΩ | ±(0.8%+3) ±(1.0%+5) |

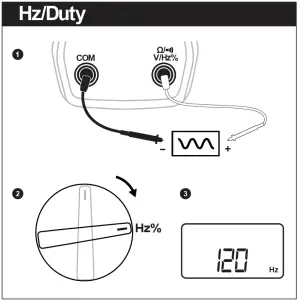

Hz | 60Hz/600Hz/3kHz | 0.1Hz/1Hz/10Hz | ±(1.0%+5) |
Hz% | 10%∼90% | 1% | ±2.0% |
