Mastech Ms8229 Digital Multimeter User Guide

Quick Start Guide
MS8229
Digital Multimeter

The special attention should be paid when using the test and measurement instrument because the improper usage may cause electric shock and damage the equipment.

• Use proper measurement category (CAT), voltage, and amperage-rated probes, test leads, and adapters for the measurement.
• Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
• When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
• Examine the measuring test leads (if present) before use. Any element of which the insulation is deteriorated (even partially), replace them with proper functional test leads.
• Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
• Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test
• Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.

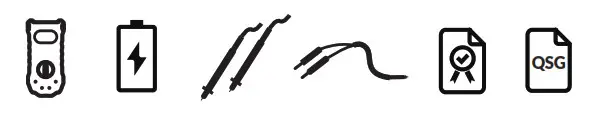

Contents

Specifications

	Range	Resolution	Accuracy
	400mV/4V/40V/400V600V	0.1mV/1mV/10mV/0.1V 1V	±(0.8%+3) ±(1.0%+3)
	400mV/4V/40V/400V/600V	0.1mV/1mV/10mV/0.1V/1V	±(0.7%+2
	400μA/4000μA/40mA/400mA 4A/10A	0.1μA/1μA/10μA/0.1mA 1mA/10mA	±(1.5%+5) ±(3.0%+10)
	400μA/4000μA/40mA/400mA4A/10A	0.1μA/1μA/10μA/0.1mA 1mA/10mA	±(1.2%+3) ±(2.0%+10)
	400Ω/4kΩ/40kΩ/400kΩ/4MΩ40MΩ	0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ 10kΩ	±(1.2%+2) ±(2.0%+5)
	40nF/400nF/4μF/40μF/100μF	0.01nF/0.1nF/1nF/10nF/0.1μF	±(3.0%+3)
	10Hz 100Hz/1000Hz/10kHz 100kHz/200kHz >200kHz	0.001Hz 0.01Hz/0.1Hz/1Hz 10Hz/0.1kHz 0.1kHz	±(2.0%+5) ±(1.5%+5) ±(2.0%+5) Reference
	0.1%~99.9%	0.1%	±(3.0%)
	-20℃~0℃ 1℃~400℃ 401℃ ~1000℃ -4℉~32℉ 33℉~752℉ 753℉~1832℉	1℃ 1℃ 1℃ 1℉ 1℉ 1℉	±(5.0%+3) ±(1.0%+2) ±(2.0%+0) ±(5.0%+6) ±(1.0%+4) ±(2.0%+0)
	40dB~100dB	0.1dB	±(3.5%)
	4000Lux/40000Lux	1 Lux/10 Lux	±(5.0%+10)

SKU Number: MS8229CBGLO

http://www.mastech-group.com/support.php?n=0
CAT III 600V
1 YEAR LIMITED WARRANTY

700019295 May 2021 Rev. 1 Specifications are subject to change without notification.
