Mastech Ms8211d Pen-type Digital Multimeter User Guide

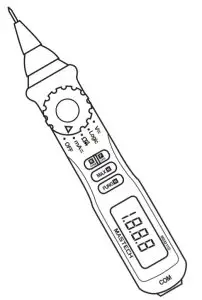

MS8211D Pen-type Digital Multimeter
User Guide

CAT II 600V
1 YEAR
LIMITED WARRANTY

700019290 May 2021 Rev. 1
Specifications are subject to change without notification.

Special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.

• Use proper measurement category (CAT), voltage, and amperage-rated probes, test leads, and adapters for the measurement.
• Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
• When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
• Examine the measuring test leads (if present) before use. Any element of which the insulation deteriorates (even partially), replace them with proper functional test leads.
• Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
• Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test

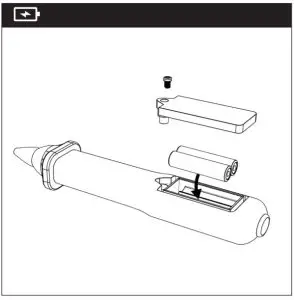

• Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed,  battery leakage can damage the device.

Contents

Specifications

	Range	Resolution	Accuracy
	200mV/2V/20V/200V 600V	0.1mV/1mV/20mV/0.1V 1V	±(0.8%+3) ±(1.0%+3)
	200mV/2V/20V/200V/600V	0.1mV/1mV/20mV/0.1V/1V	±(0.7%+2)

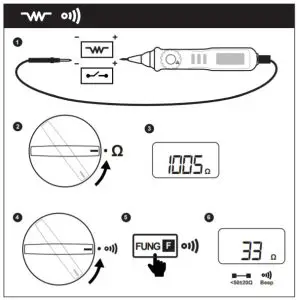

	200Ω 2kΩ/20kΩ/200kΩ/2MΩ 20MΩ	0.1Ω 1Ω/10Ω/0.1kΩ/1kΩ 0.01ΜΩ	±(1.0%+3) ±(1.0%+1) ±(1.0%+5)

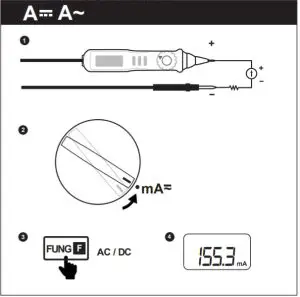

	20mA/200mA	20μA/0.1mA	±(1.5%+3)
	20mA/200mA	20μA/0.1mA	±(2.0%+3)

SKU Number: MS8211DCBGLOhttp://www.mastech-group.com/support.php?n=0
