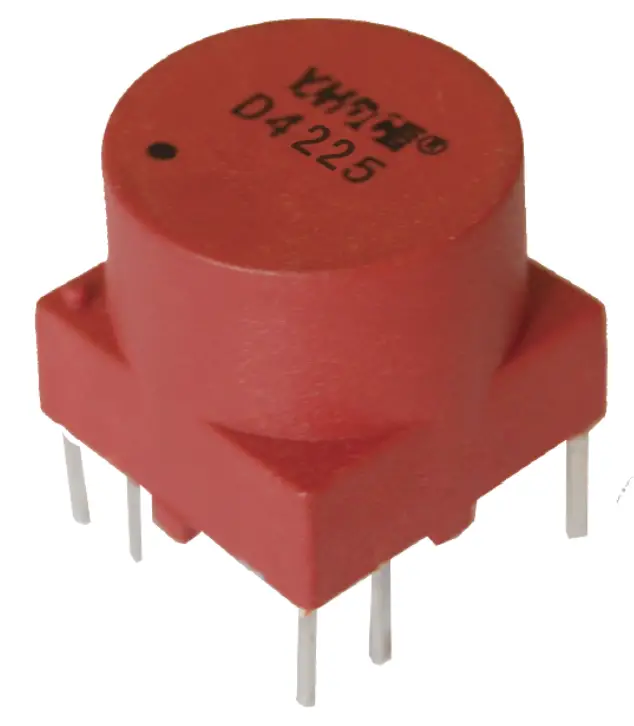

YHDC D4225-101 Driver Transformer
characteristics
It is used to drive IGBT,MOS pipe and transmit high- frequency signal isolation.
Technical indicators
Installation method：PCB
Flame resistance：UL94-V0
Operating temperature：-40℃～+85℃
Storage temperature：：-40℃～+85℃
Frequency range：1KHz～50KHz
Dielectric strength：4.5KV 50Hz 10s
Electrical parameters
| Vout microsecond integral | 1000 | µv s |
| Pulse width (D=1:2) | 67 | µs |
| Ratio | 1 : 1 | |
| Input amplitude | 15 | V |
| Output amplitude | 13 | V |
| Load impedance | 20 | Q |
| Leading edge time | ≤0. 5 | [is |
| Main circuit operating voltage | 500 | V |
| Weight | g |

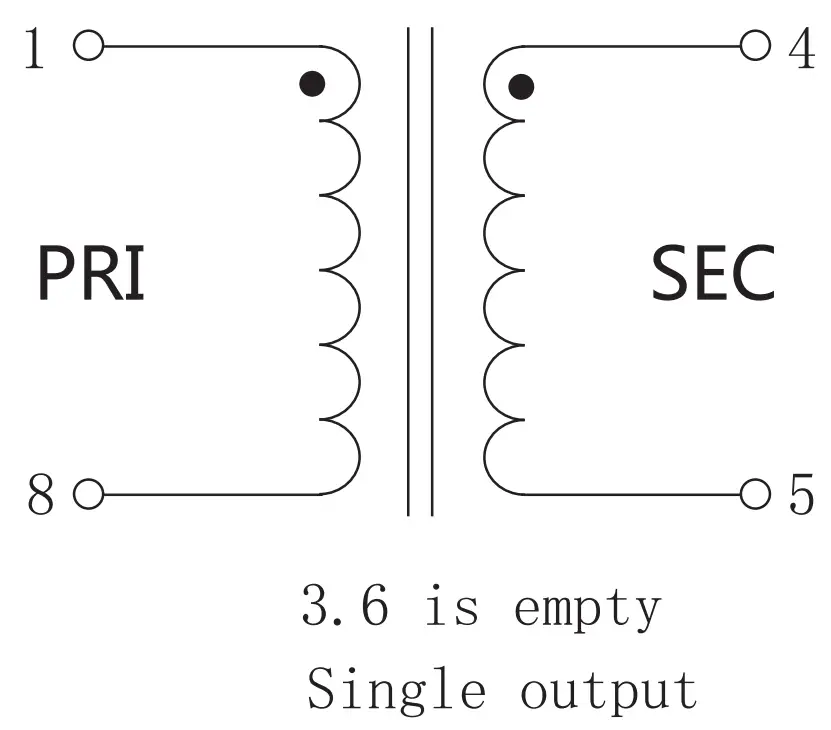

Connection diagram

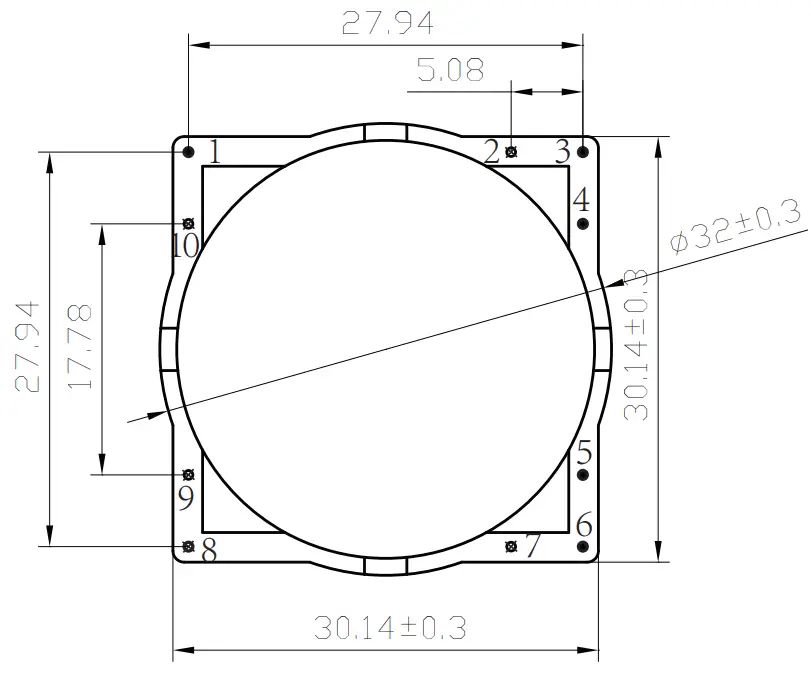

Dimensions (in mm)
Bottom View
Side View
