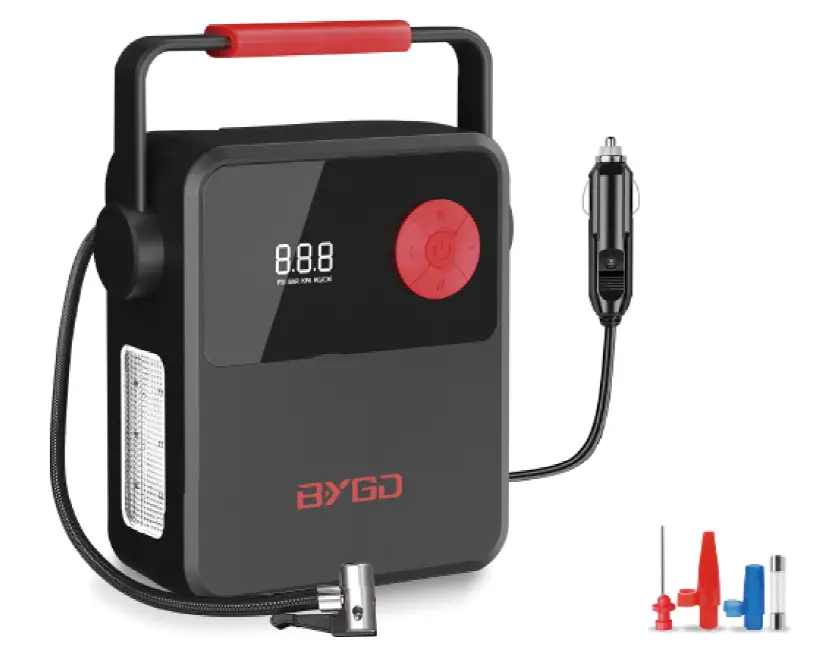

BYGD HY-AC-1766 Automobile Air Compressor

PROTECTION FUNCTION

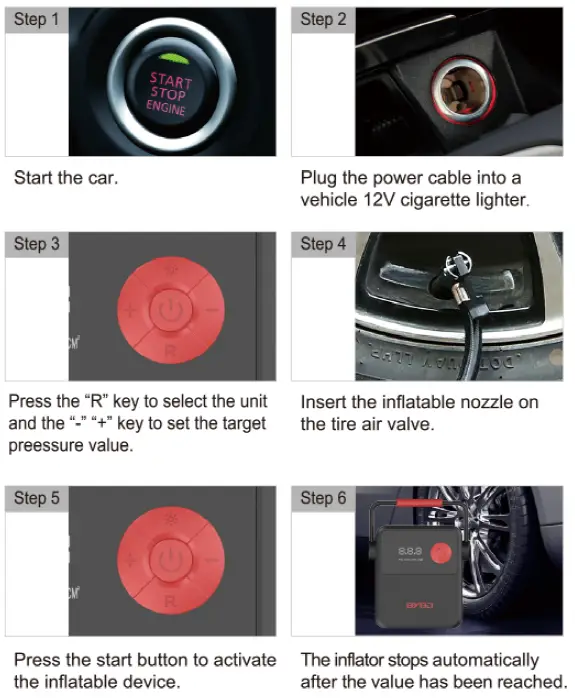

OPERATING INSTRUCTIONS

1. Start the car.
2. Plug the power cable into a vehicle 12V cigarette lighter.
3. Press the “R” key to select the unit and the”.”•+• key to set the target preessure value.
4. Insert the inflatable nozzle on the tire air valve .
5. Press the start button to activate the inflatable device.
6. The inflator stops automatically after the value has been reached .

SAFETY INSTRUCTIONS

ATTENTION: Below you will find all the explanations with numeric reference to the icons at the front of these safety instructions:

1. This fitting should only be installed indoors.
2. WEEE 2012/19/EU.
3. The product is not suitable for use under dust and moisture. 04 -Ambient temperature: -1 0 – 40’C
4. This item inflates a midsize car tire in 3-5 minutes.
5. Display Units: PSI, KPA, BAR, KG/CM.

CAUTION:

1. DO NOT use the inflator device continuously for more than 10 minutes. Allow the unit to cool between use Press”+””.” After setting up the pressure, you need to wait for the screen to flicker for 3 times, then press the power switch, otherwise the machine will not start.
2. DO NOT use with 11 OV- If you want to use the air compressor at home you should buy a AC to DC power adapter 11 OV to 12V .
3. DO NOT leave inflator unattended.

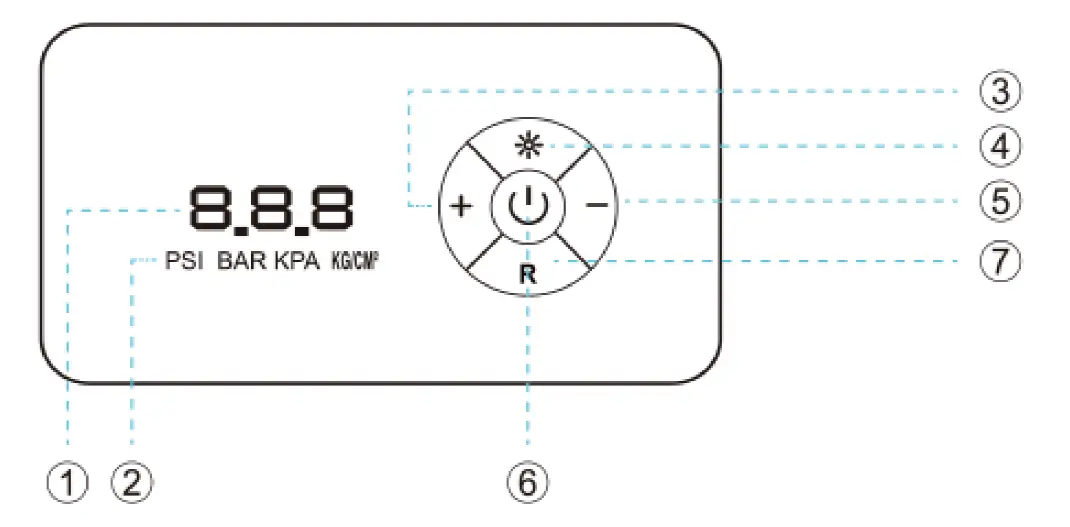

PRODUCT PARAMETERS

1. Pressure display
2. Unit Display
3.  “+” button
4. Light switch
5. “-“button
6.  Unit Display
7. Unit change button

INFLATOR DOES NOT START?

1. Possible cause – Fuse in 12 Volt adaptor blown Solution – Replace the fuse in the adapter Possible cause – Pressure setting may be below the actual pressure.
2. Solution -Adjust pressure setting pointer to a higher setting 1.

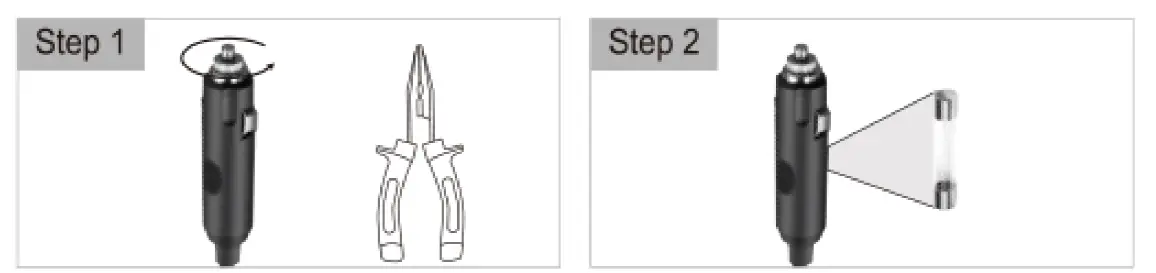

   Unscrew the top of the plug using a pliers.
   Replaceable broker fuse,insert the new fuse.

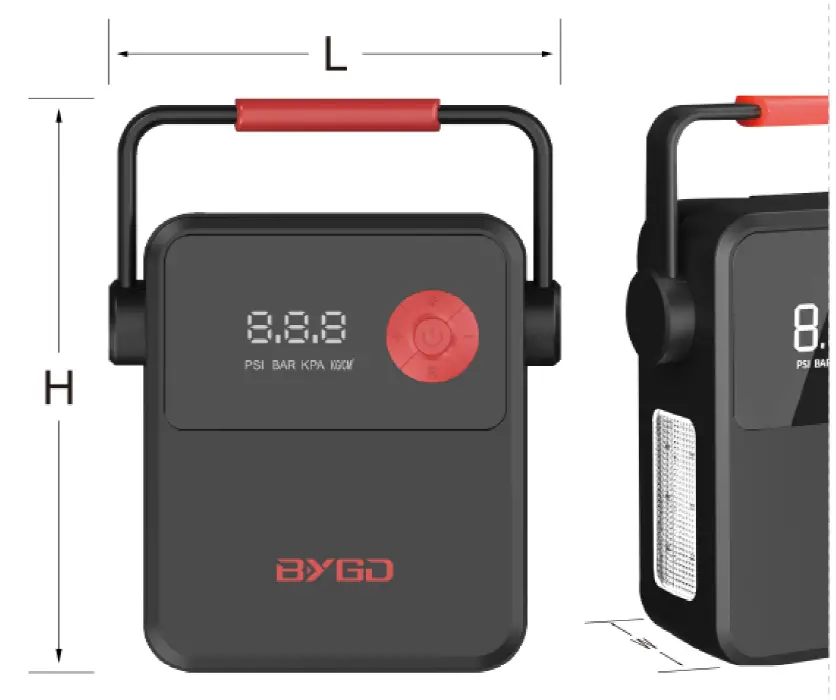

SPECIFICATION
