GREENFIELD™

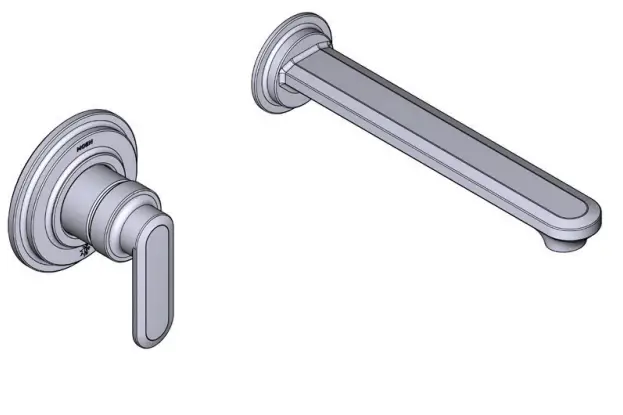

ONE-HANDLE WALLMOUNT TUB FILLER
MODELS: WT621 Series
VALVES: WMV130 Series
DESCRIPTION
- Metal construction with various finishes identified by suffix
- Separate handle trim and spout to accommodate installation flexibility
- 10”Ultrathin tub spout allows for a longer distance between the wall and the tub
- 4.5” sleek and compact handle trim escutcheon
- Trim Kit includes Handle Trim, Tub Spout, and Cartridge
- Hot and cold indicators
OPERATION
- Lever style handle with temperature indicator on the escutcheon
- Variable volume control handle is lifted in a 0 to 25 degree arc
- Temperature operates through an 110 degree arc of handle rotation (full cold to full hot)
- Adjustable temperature limit stop to control maximum hot water temperature Flow
FLOW
- Tub Faucet is designed to deliver 8 GPM/min (30.28 L/min) at 60psi
- Note: Installation that is inconsistent with Moen recommendations may degrade flow rate
CARTRIDGE
- 1215 Ceramic Disk High Flow Volume Control Cartridge
- Non-Pressure balancing cartridge – only intended for tub filler applic• Non-metallic/non-ferrous and plastic material
- Not compatible with back to back installations
STANDARDS
- Third party certified to ASME A112.18.1/CSA B125.1, and all applicable requirements referenced therein
- ADA
for lever handles
for lever handlesWARRANTY
- Lifetime limited warranty against leaks, drips and finish defects to the original homeowner
- 10 year limited warranty when used in a multifamily installation
- 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
SPECIFICATIONS

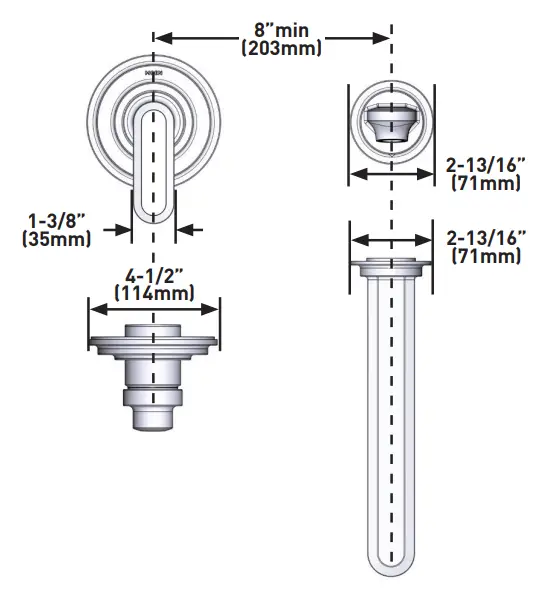

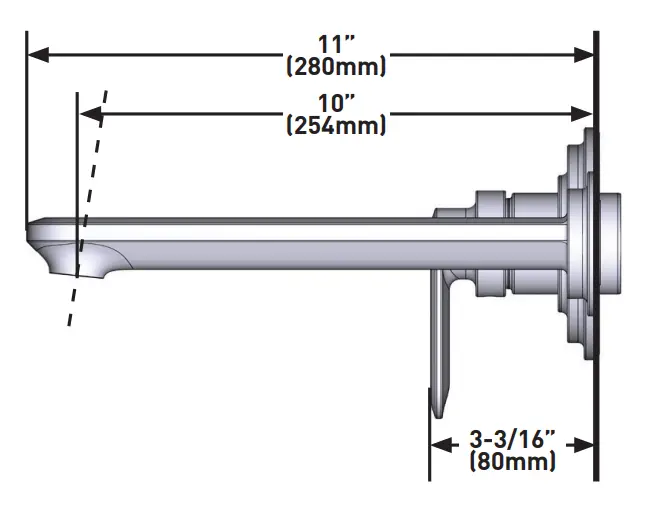

CRITICAL DIMENSIONS DO NOT SCALE
