Moen Ins12052 Tub Filler Spout Installation Guide

MOEN INS12052 Tub Filler Spout

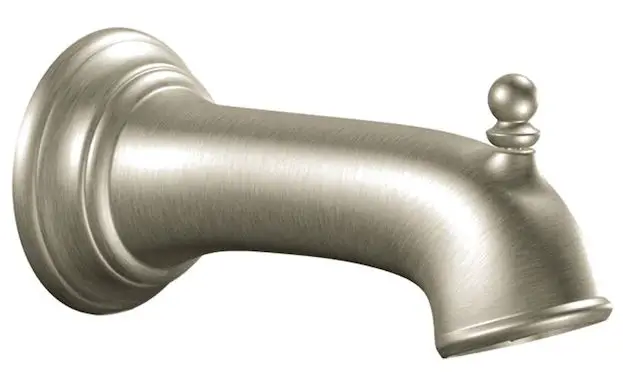

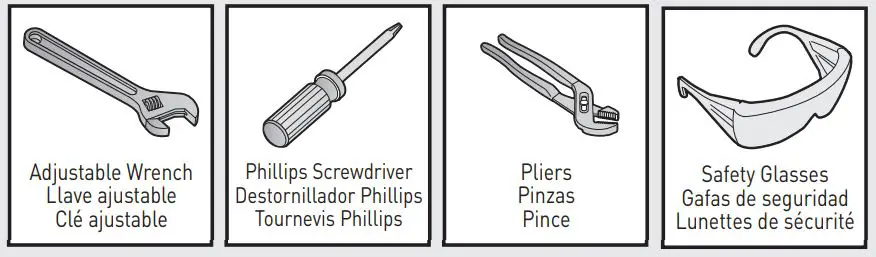

HELPFUL TOOLS

For safety and ease of faucet replacement, Moen recommends the use of these helpful tools.

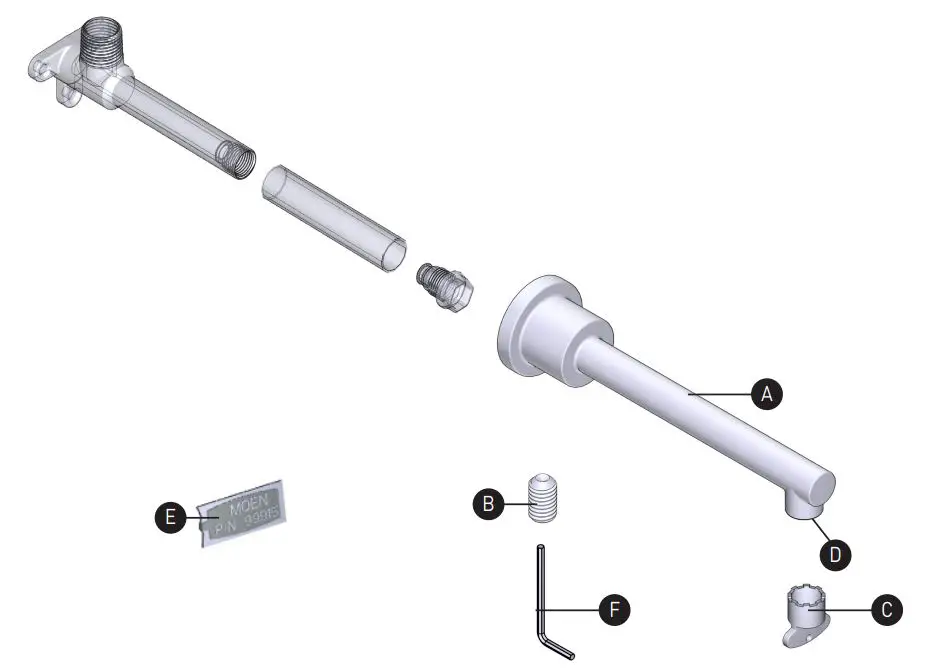

Parts List

• A. Tub Spout
• B. Set Screw
• C. Aerator Tool *
• D. Stream Straightener * (comes pre-installed)
• E. Grease Pack
• F. Hex Wrench(3/32”)

INSTALLATION

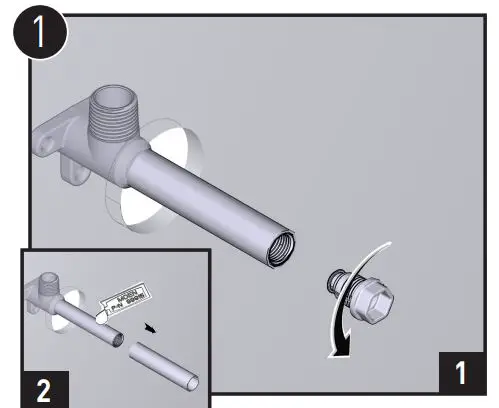

1.  Remove flush plug.
2.  Remove protective sleeve , and apply grease (E).

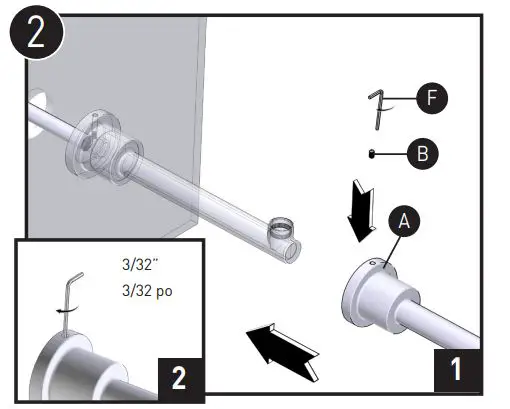

1.  Install tub spout (A) upside down onto pipe.
2.  Barely tighten tub spout set (B) screw with 3/32” hex wrench (F).

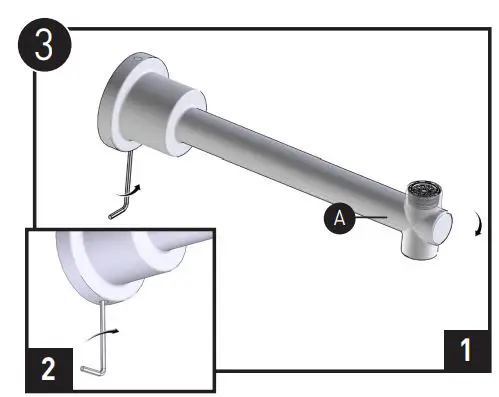

1.  Rotate tub spout (A) to the proper position, with the spout opening facing down.
2.  Secure spout by tightening tub spout set screw.

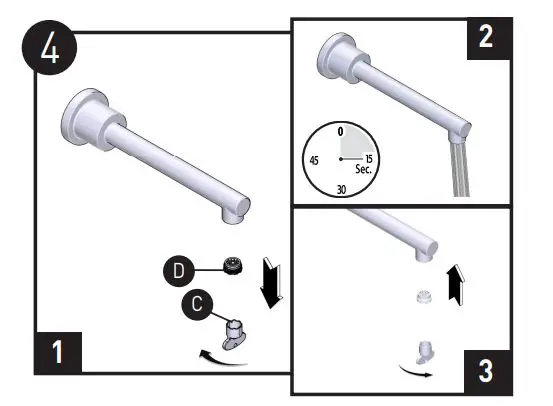

1.  Remove stream straightener (D) with tool (C) for flushing.
2.  Turn on hot and cold water and flush any debris for 15 seconds. Turn off hot and cold water
3.  Re-insert stream straightener into spout and tighten with aerator tool
