Pablo Nivel Pendant And Flush Instruction Manual

Pablo Nivel Pendant and Flush Instruction Manual

NFO@PABLODESICNSCOM
INFO@PABLODES CNS.EU

888 MARIN ST
SAN FRANC SCO CA
94124

PABLODESIGNS.COM
PABLODESIGNS.EU

[email protected]
888 MARIN STREET
SAN FRANCISCO CA
94124
PABLODESIGNS.COM

NIVÉL

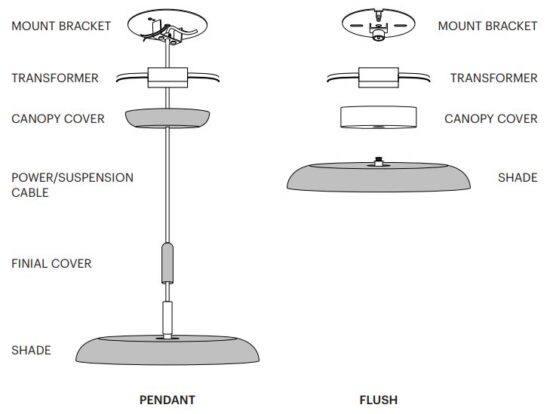

ASSEMBLY

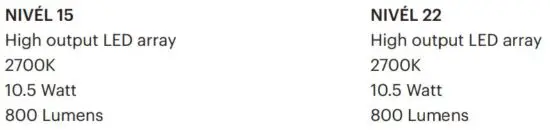

SPECIFICATIONS

NIVÉL PENDANT

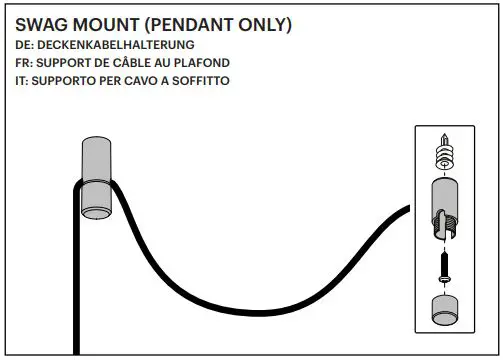

ASSEMBLY

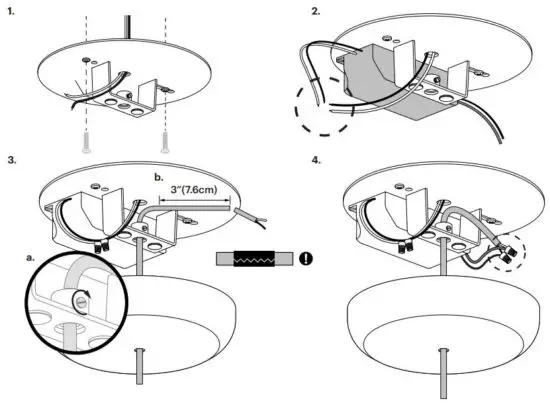

1. SECURE MOUNTING PLATE TO JBOX OR CEILING.
2. SECURE TRANSFORMER TO PLATE USING PROVIDED TAPE. WIRE TRANSFORMER TO BUILDING WHITE TO WHITEBLACK TO BLACK
3. A PASS CORD THROUGH CANOPY AND STRAIN RELIEF. SET LAMP HEIGHT BY TIGHTENING THE SET SCREW.
   B CUT CORD TO LENGTH: WRAP CABLE IN ELECTRICAL TAPE BEFORE CUTTING TO PREVENT FABRIC SLEEVE FROM
   FRAYING NOTE! INCLUDE AN ADDITIONAL 3 INCHES 7.6CM FOR WIRING
4. WIRE LAMP TO TRANSFORMER RED TO WHITEBLACK TO BLACK

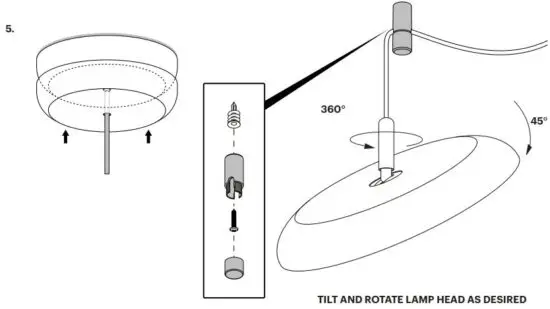

5. SECURE CANOPY TO MOUNTING PLATE.

NIVÉL FLUSH

ASSEMBLY

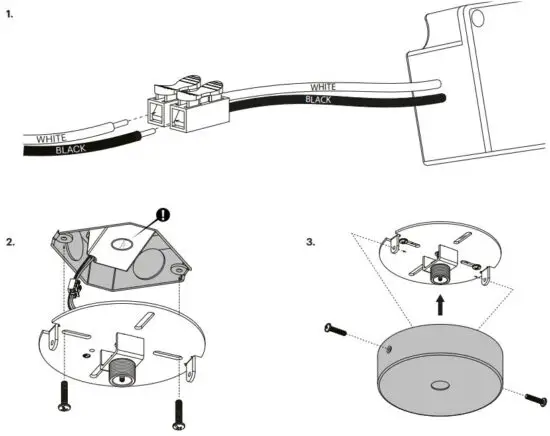

1. WIRE BUILDING TO TRANSFORMER WHITE TO WHITEBLACK TO BLACK
2. WIRE TRANSFORMER TO MOUNT BRACKET ASSEBLY RED TO REDBLACK TO BLACK. PLACE TRANSFORMER INTO
   JBOX AND SECURE MOUNT BRACKET USING SCREWS PROVIDED.
3. SECURE CANOPY COVER TO MOUNT BRACKET USING 2 SCREWS PROVIDED.

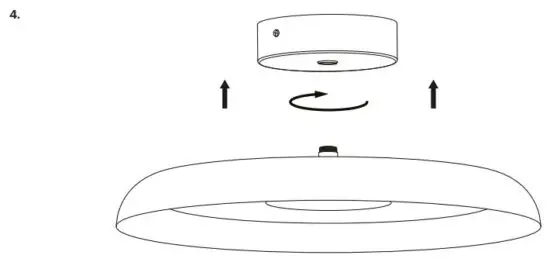

4. THREAD LAMP ASSEMBLY ON TO CANOPY ASSEMBLY.

Read More About This Manual & Download PDF:
