Pablo NIVÉL Pendant Illumination User Guide
CONTENTS
- SHADE

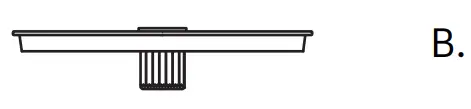

- LIGHT MODULE SUBASSEMBLY

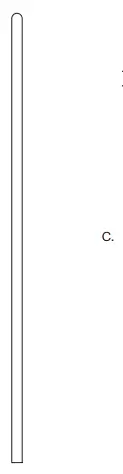

- POST
- BASE

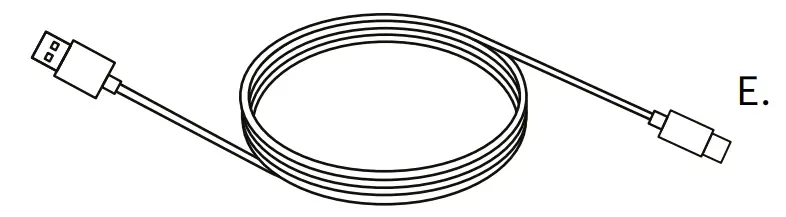

- USB-A TO USB-C CHARGE CABLE

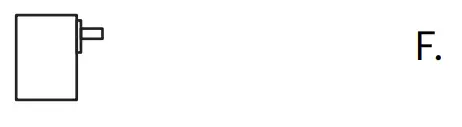

- 10W POWER PLUG (5V/2A)

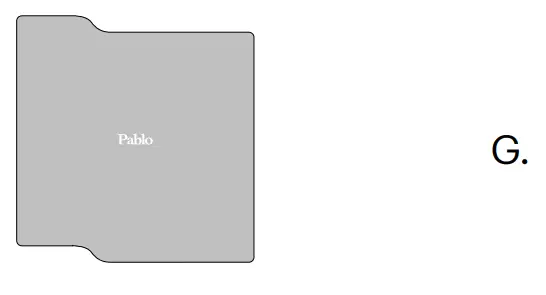

- POLISHING CLOTH

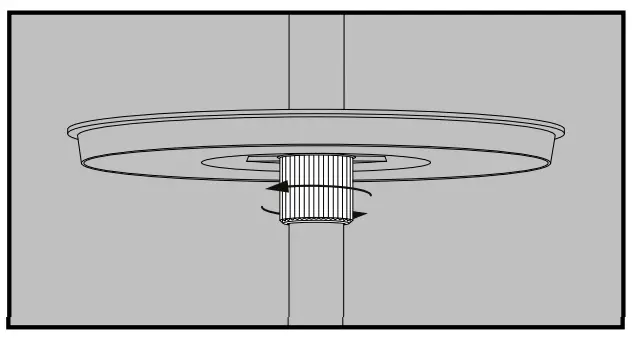

ASSEMBLY
REMOVE ALL COMPONENTS FROM INDIVIDUAL PACKAGING AND JOIN IN ORDER DEMONSTRATED HERE. LOOSEN COLLAR TO MOVE MODULE UP/DOWN POST. TIGHTEN COLLAR TO SECURE POSITION ON POST.

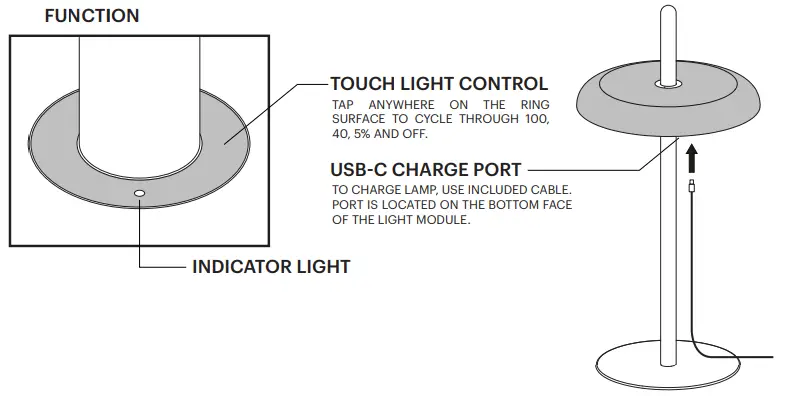

FUNCTION
| NOT CHARGING | CHARGING | ||
| BATTERY | INDICATOR | BATT. LEVEL | INDICATOR |
| 100-20% | AMBER | 100-90% | AMBER SOLID |
| 19-0% | RED | 89-20% | AMBER PULSE |
| 19-0% | RED PULSE | ||
