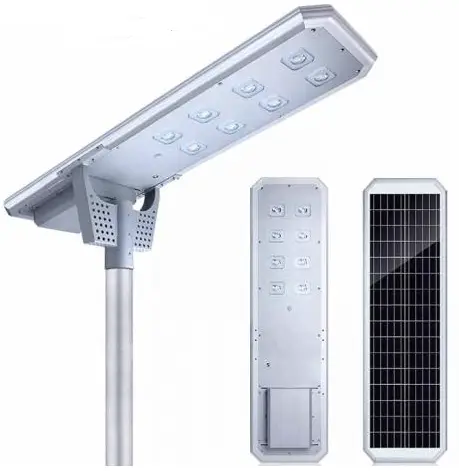

Felicity solar ZL-SSL-A P2 Series All in one Solar Street Light

INTEGRATED SOLAR STREET LIGHT INTRODUCTION

1. Integrated design and source, high capacity LiFePO4 lithium battery, high energy, and long life, light weights, green and environmental protection, do not produce any harmful substances.
2. Philips LED chip with high light efficiency which can reach 180LM/W，and whole lamp light efficiency can reach 160LM/W at least
3. All series use PWM controller with high efficiency
4. Design with high efficiency solar cell (＞22%)
5. Convenient installation and maintenance, no need of cable installation or special light pole, functional components modular design, installation and maintenance, convenient and quick replacement.

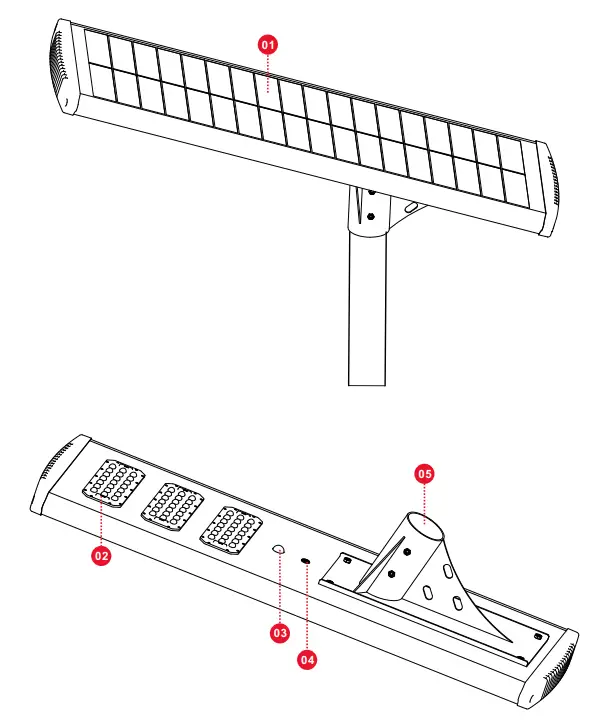

Part description

1. Solar panel
2. LED light
3. Body induction
4. Switch
5. Tailstock

The performance parameters

Model		P2-40W	P2-60W	P2-80W	Note
Solar module		55W (Mono)	60W (Mono)	80W (Mono)
High capacity lithium battery		Built-in 260WH	Built-in 320WH	Built-in 400WH
luminous flux (All light pattern)		4800lm	7200lm	9600lm
Working Mode		Normal mode(default):4H100% 4H50% 4H25% Induction mode(optional): All night Induction: 100% no induction: 20%			OEM according to the quantity
Solar panel charge time		8H strong sunlight
Working	TimeAll light pattern	≥ 12 hours
	Raining days backup	3 days
Color temperature		6500K
Induction angle		120°
Light pole diameter		76 mm
Storage temperature		0-55℃
Operating humidity		≤ 90％RH
Working temperature	Charge temperature	0-55℃
	Discharge temperature	-10℃-60℃
Ingress Protection		Ip65
Recommend Installation height		3-5m	3-6m	5-7m
Product Package dimensions		1040*406*168mm	1151*406*168mm	1451*406*168mm	2PCS/CTN
Product Gross weight		19.2KG	23.1 KG	28.8KG	2PCS/CTN
Tailstock Package dimensions		330*247*208mm	470*247*208mm		2PCS/CTN
Tailstock Gross weight		5.5KG	6.9KG		2PCS/CTN
Light distribution curve

INSTALLATION INSTRUCTIONS

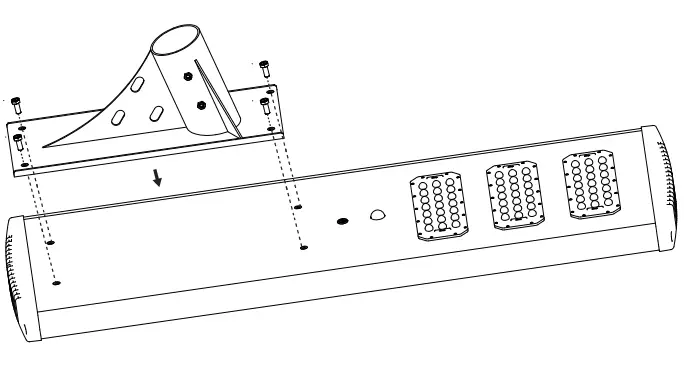

The tailstock installation
Use the screws to fix the bracket on the lamp.

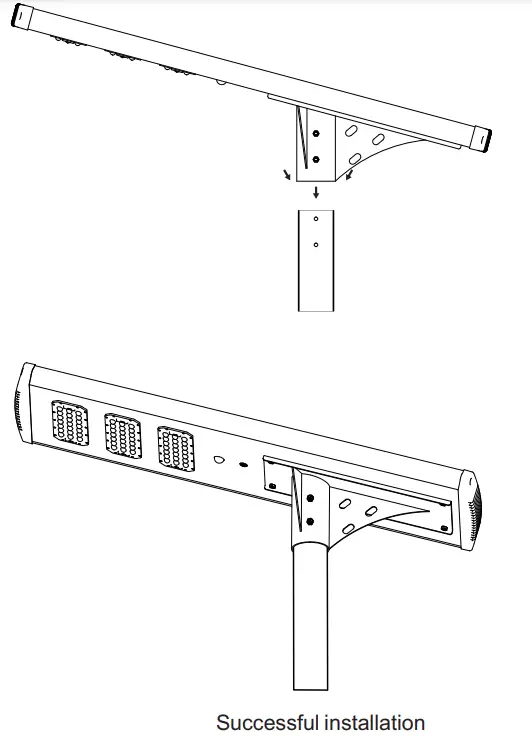

Light pole installed
Use the screws to fix the lamp on the post

1. Integrated solar street lights can’t work without sunshine, Please choose suitable product model according to the sunlight intensity of the installed area or amount of solar radiation, and choose product model according to the actual lighting needs ;In the area where the sun is not enough or long-time continuous rainy day, the working time of the solar light will be reduced, this lamp design is mainly based on African average illumination time;

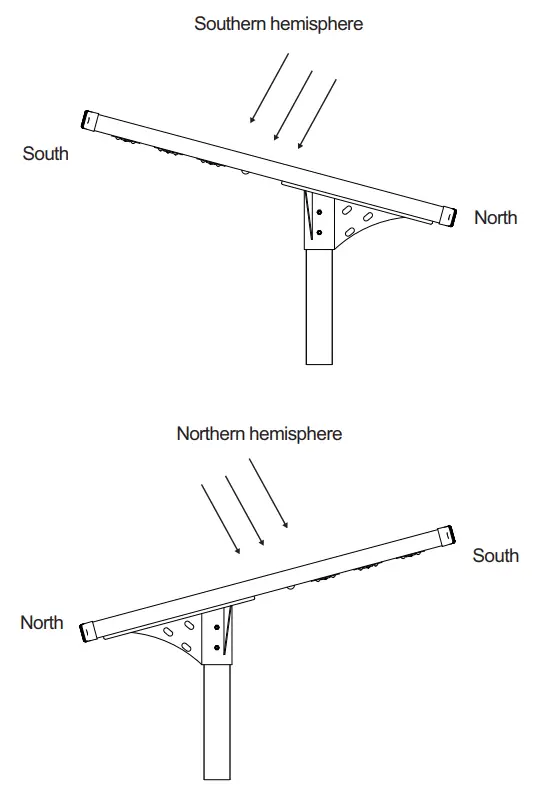

2. If install this product in the northern hemisphere, make solar panels as possible towards the south, in order to get maximum light energy; If it is in the southern hemisphere, installing solar panels towards the north. At the same time to avoid the shadow of houses, trees and other obstructions which will reduce the efficiency of the solar panel and shorten its work time.

Warranty and after-service

This product from the date of delivery, not artificial damage warranty for 36 months.
