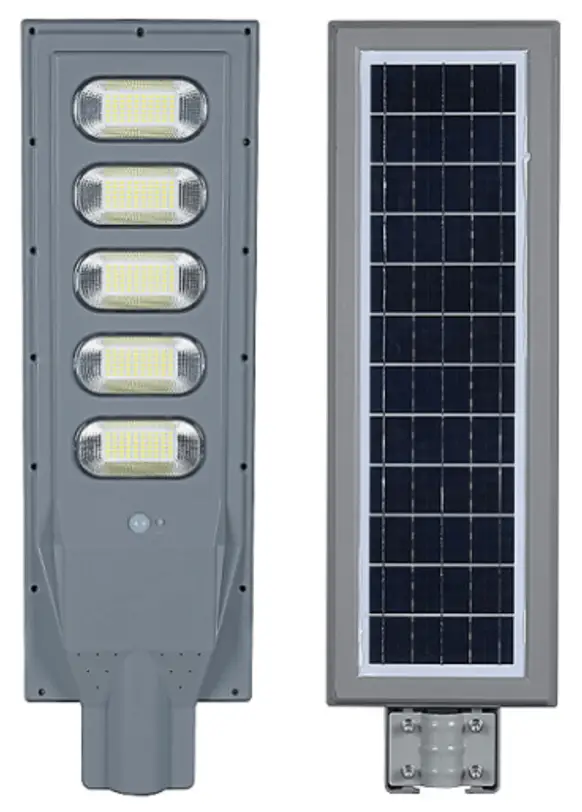

TELRAN 410003 150W Solar LED Street Light User Guide

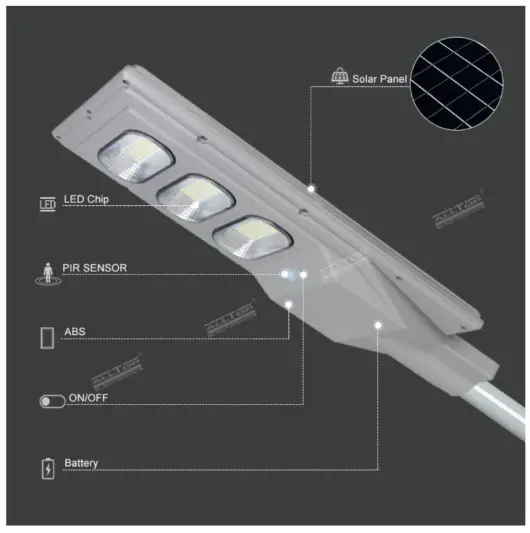

The features of this solar street light is an ALL-IN-ONE design. The light engine and battery and solar panel are built right into the LED fixture. No need for a power source which eliminates the need for wiring and trenching.
- Fully programmable via solar controller and photo control
- Built-in battery and solar controller
- Advanced new LiFePO4 battery lasts at least 2000 charge cycles and will last three nights with one day charge

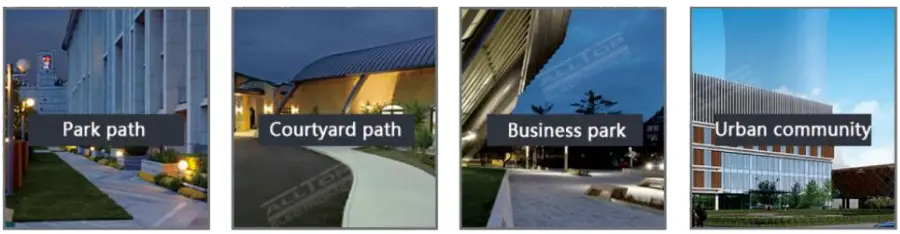

- Perfect for street, parks, parking lots, school campuses, etc.
- Dimensions (L x W x H): 150W 838*250*65mm
Product Specification
LED Type: 300Pcs 5730LED
Battery Type: LiFePO4 3.2V 36AH
Solar Panel Type: Polycrystalline 6V 22W
LED Lumen: 160LM/W
Color Temperature: 3000K – 6500K
LED Lifespan: 50000H
Sensing Method: PIR Detection
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃-70℃
IP Rating: IP65
Product Size: 838*250*65mm
Lamp Body Outer Box Size: 860*305*275mm; 4Pcs/Box

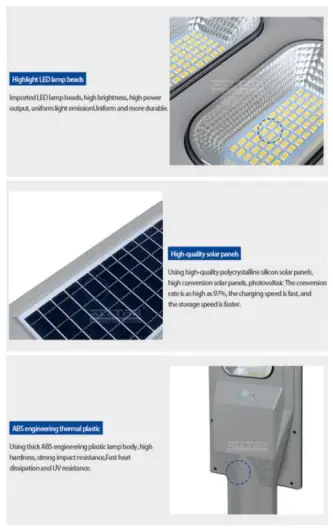

Product Details
HUMAIN INDUCTION

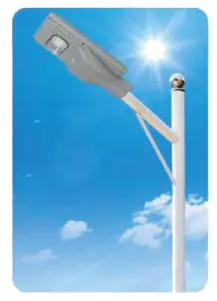

Highlight
Automatic charging during the day

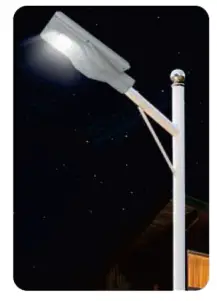

Long life
Automatically lit at night

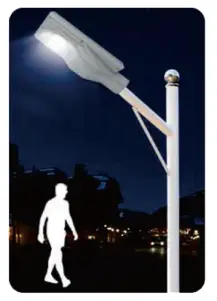

Human induction
People come, full brightness People Leave, 30% brightness

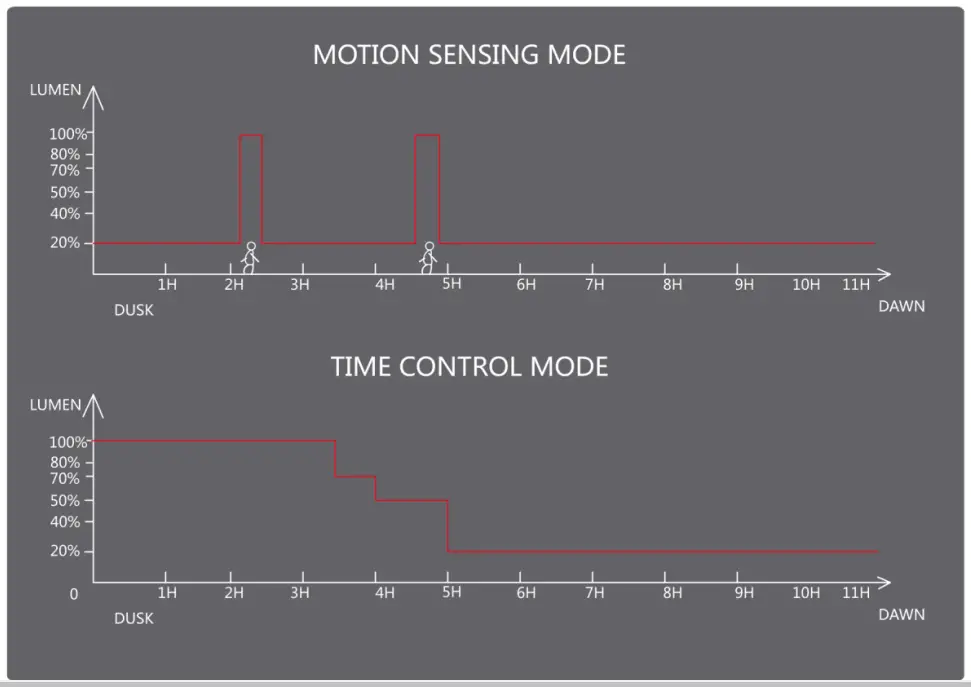

NOW THE LIGHT WORKS
SELECT OPERATING MODE VIA REMOTE

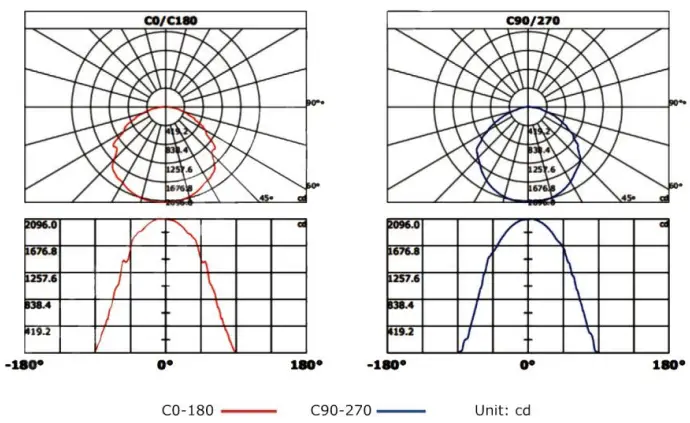

PHOTOMETRICS
LX-DISTANCE DIAGRAM

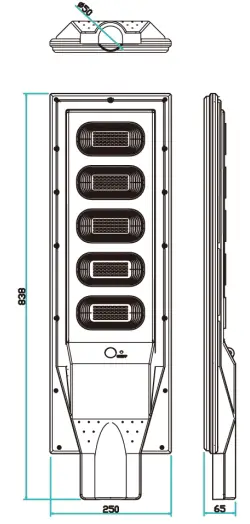

Installation dimension

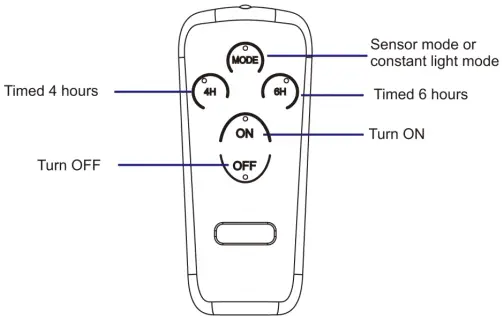

Instructions for use of remote control (optional)

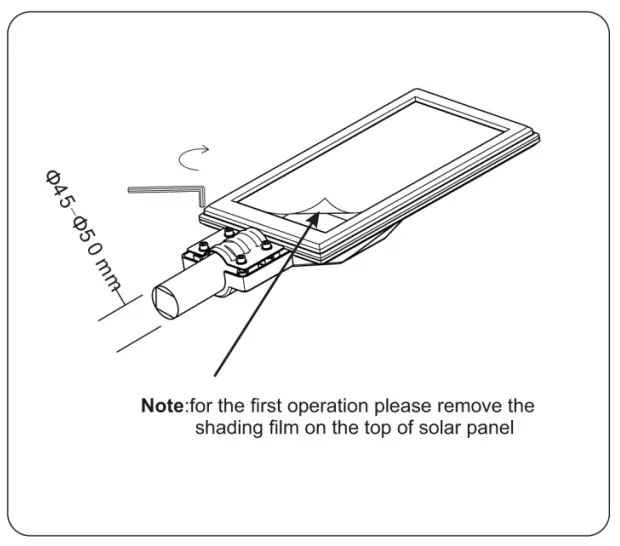

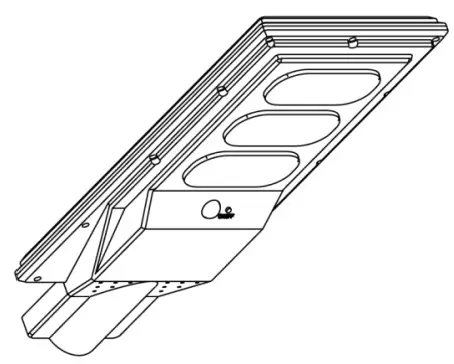

Installation Guide
Tips:
- Installation direction of the solar panel is 5-10 degrees south to west, an angle of 35 degrees with the horizontal place
- Please install the solar panel in the sun direction to avoid affecting the power generation efficiency.
- Please ensure the installation is stable.

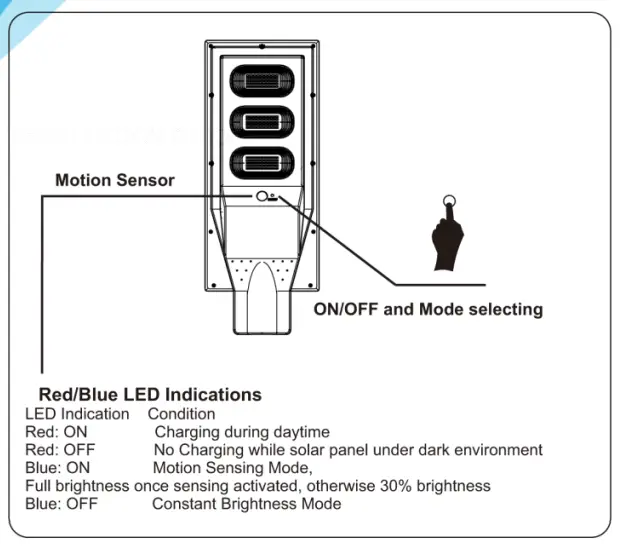

Operational Approach
- Press the switch once. The lamp flashes once and works at motion sensor mode;
- Press again. The lamp flashes twice and works at constant brightness mode;
- Long pressing the switch to turn off the lamp.
Battery Specification
| Design Life | 6-8 years | 6-8 years | 6-8 years | 6-8 years | 6-8 years |
| Nominal Voltage | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V |
| Nominal capacity | 12Ah | 18Ah | 24Ah | 30Ah | 36Ah |
| Self-Discharge | |||||
| 3% of capacity declined per month at 20°C(average) | |||||
| Operation Temperature Range | |||||
| Discharge | -20rv60°C | -20rv60°C | -20rv60°C | -20rv60°C | -20rv60°C |
| Charge | -10,-60°C | -10,-60°C | -10,-60°C | -10,-60°C | -10,-60°C |
| Storage | -20″60°C | -20″60°C | -20″60°C | -20″60°C | -20″60°C |
| Max. Discharge Current 77°F(25°C) | 1200A(5s) | 1200A(5s) | 1200A(5s) | 1200A(5s) | 1200A(5s) |
| Short Circuit Current | 3000A | 3000A | 3000A | 3000A | 3000A |
Battery Guarantee of QUALITY
Battery Cells
High-end battery cells keep every cell’s voltage, resistance, capacity, discharging always in sync
Battery Protector
High precision IC keep performance more stable protect over load, over charge, over discharge, short circuit, over voltage, over current keep battery pack always safe and long life span
Precision Welding Machine
Fully automatic precision welding machine can ensure that every battery can be welded firmly to prevent the danger of short circuit or power failure
Aging Test Machine
every battery pack need to thorough charging and discharging test by the aging test machine to keep 100% qualified

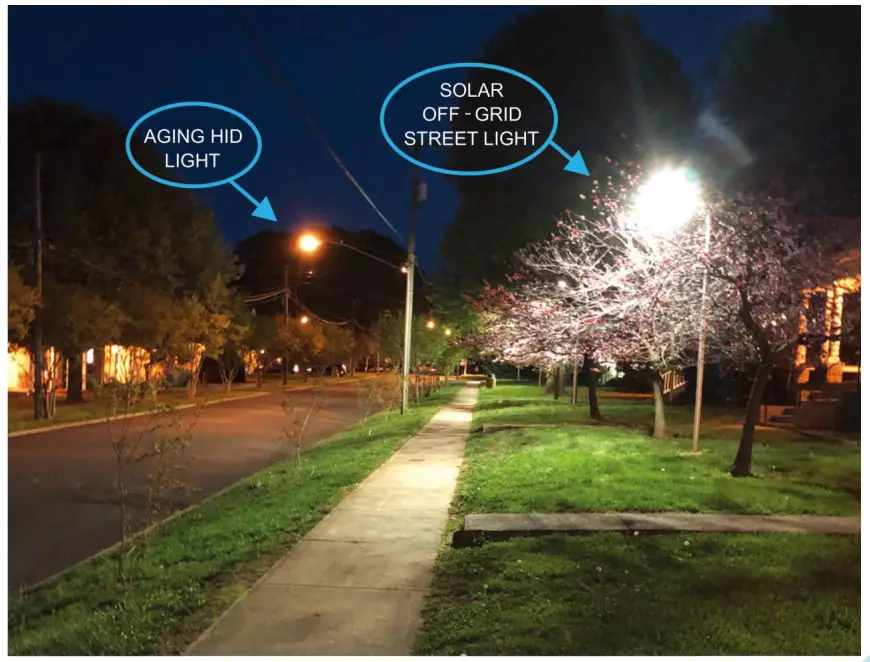

PROJECT SUCCESS CASE
