INTEGRATED SOLAR STREET LIGHT INTRODUCTION
- Integrated design and source, high capacity LiFePO4 lithium battery, high energy, long life, light weights, green and environmental protection, do not produce any harmful substances.
- Philips LED chip with high light efficiency which can reach
- 180LM/W and whole lamp light efficiency can reach
- 160LM/W at least
- All series use intelligent controllers which can increase
- 15%-30% charge efficiency
- 1.4 Design with high efficiency solar cell (＞22%)
- 1.5 Convenient installation and maintenance, no need for cable installation or special light pole, functional components modular design, installation and maintenance, convenient and quick replacement.

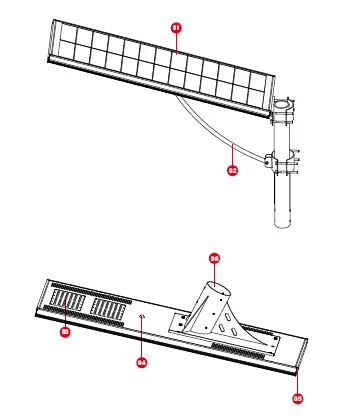

Part description
- Solar panel
- Support bracket
- LED light
- Body induction
- Switch
- Tailstock
The performance parameters
| Model | A3-30W | A3-40W | A3-60W-P | A3-60W | A3-100W | A3-150W | Note | |
| Solar module | 55W (Mono) | 65W (Mono) | 105W (Mono) | 105W (Mono) | 145W(Mono) | 190W(Mono) | ||
| High capacity lithium battery | Built-in 260WH | Built-in 350WH | Built-in 405WH | Built-in 532WH | Built-in 888WH | Built-in 1240WH | ||
| luminous flux (All light pattern) | 4800lm | 6400lm | 8100lm | 9600lm | 16000lm | 24000lm | ||
| Working Mode | Normal mode(default): 4H100% 4H50% 4H25% | OEM according to the quantity | ||||||
| Solar panel charge time | 8H strong sunlight | |||||||
| Working | TimeAll light pattern | ≥ 12 hours | ||||||
| Raining days backup | 3 days | |||||||
| Color temperature | 6500K | |||||||
| Induction angle | 120° | |||||||
| Light pole diameter | 76 – 114mm | 114mm | ||||||
| Storage temperature | 0-55℃ | |||||||
| Operating humidity | ≤ 90％RH | |||||||
| Working temperature | Charge temperature | 0-55℃ | ||||||
| Discharge temperature | -10℃-60℃ | |||||||
| Ingress Protection | IP65 | |||||||
| Support bracket | Yes | Yes | No | No | No | No | ||
| Recommend Installation height | 3-5m | 3-6m | 5-7m | 5-7m | 6-9m | 7-10m | ||
| Product Package dimensions | 1015*375*145mm | 1155*375*145mm | 1315*535*170mm | 1315*535*170mm | 1585*535*150mm | 1815*615*150mm | 2PCS/CTN | |
| Product Gross weight | 20.9KG | 23.2KG | 36KG | 36KG | 45.8KG | 52.2KG | 2PCS/CTN | |
| Tailstock Package dimensions | 420*125*160mm | 517*312*268mm | 610*385*260mm | 2PCS/CTN | ||||
| Tailstock Gross weight | 11.5KG | 13.6 KG | 15.0 KG | 2PCS/CTN | ||||
|
Light distribution curve |
| |||||||
INSTALLATION INSTRUCTIONS

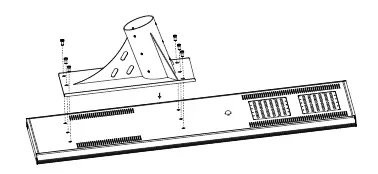

The tailstock installation
Use the screws to fix the bracket on the lamp

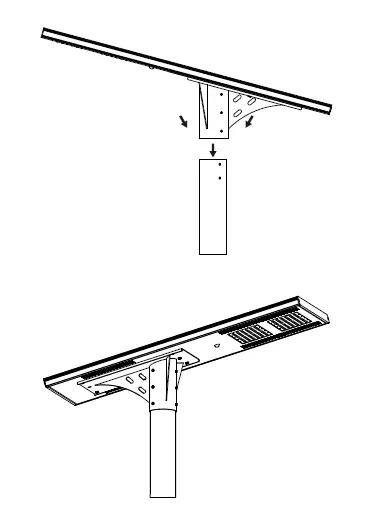

Light pole installed
Use the screws to fix the lamp on the post

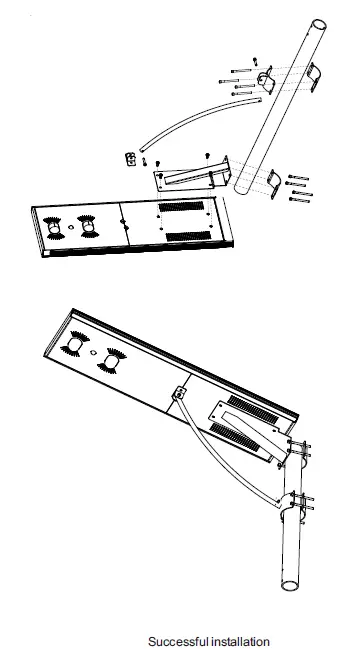

Bracket installation
Use the screws to fix the bracket on the bracket and pole
- Integrated solar street lights can’t work without sunshine, Please choose a suitable product model according to the sunlight intensity of the installed area or amount of solar radiation, and choose a product model according to the actual lighting needs;In the area where the sun is not enough or long-time continuous rainy day, the working time of the solar light will be reduced, this lamp design is mainly based on African average illumination time;
- If installing this product in the northern hemisphere, make solar panels as possible towards the south, in order to get maximum light energy; If it is in the southern hemisphere, install solar panels towards the north. At the same time to avoid the shadow of houses, trees and other obstructions which will reduce the efficiency of the solar panel and shorten its work time.
Warranty and after-service
This product is from the date of delivery, with no artificial damage warranty for 36 months.
