Oatey 12 Inch Extension Tube Instruction Manual

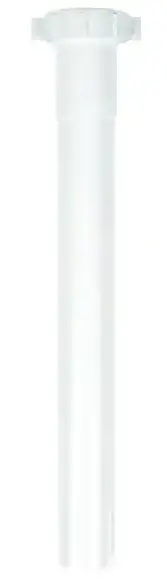

Oatey 12 Inch Extension Tube

INSTRUCTION

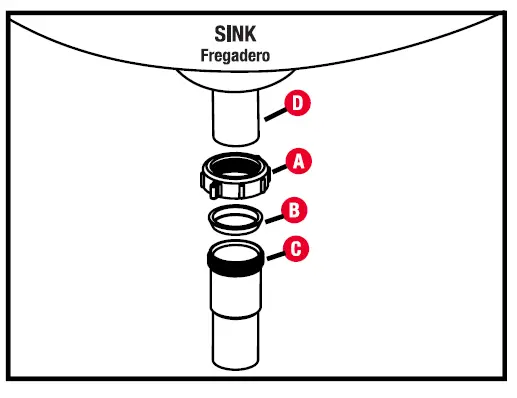

1. Measure and cut extension tube (C) to required length.
2. Position nut (A) then washer (B) on tailpiece (D) (Use reducer washer if tailpiece (D) is 1-1/4 in.)
3. Slip tailpiece (D) into top of extension tube (C).
4. Position nut (A) then washer (B) on extension tube (C).

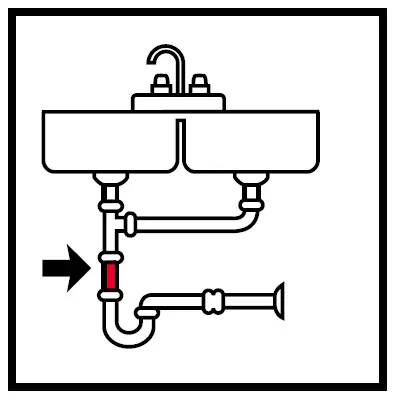

5. Connect end of extension tube (C) to drain.
6. Tighten all nuts (A). CHECK FOR LEAKS
