ATX OTC18T DEL Overhead Tube Crane Instruction Manual

X-RAY EQUIPMENT

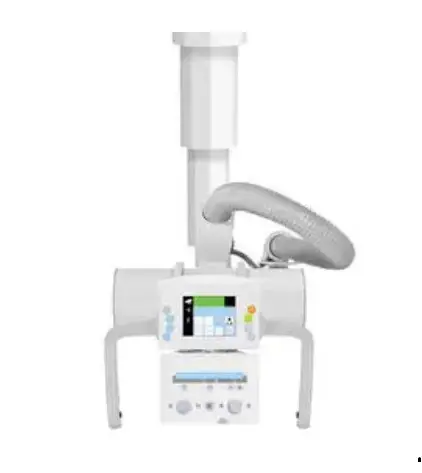

DEL OVERHEAD TUBE CRANE

The OTC tube crane highlights an advanced, technologist-friendly 10.4″ touchscreen console providing seamless system integration by displaying tube angulation, SID values, and generator control options.
Color-coded movement identification buttons provide optimal precision when setting up views.
Peaceful and effortless movements are controlled by an electromagnetic braking system enabling fast and secure readjustments of the tube head. Its five-tier telescoping column delivers
exceptional vertical movement of 71” (180 cm), capable of performing complete head-to-toe radiographic procedures including upright weight bearing and recumbent table top exams.

The OTC Tube Crane comes in 3 different models:
OTC18T
OTC18M
OTC12
Read More
CODE N/A
Categories: X-Ray Components, X-Ray Equipment
Tags: crane, DEL, OTC, overhead, Overhead tube crane, tube, xray

CPI CMP200 X-RAY GENERATOR

The CMP 200® generator series offers advanced high quality radiographic capabilities with unmatched performance and reliability resulting in the lowest cost of ownership over the product lifetime.
This generator is suitable for film and CR-based radiographic systems and features leading edge computer-based controls to minimize patient dose and maximize image quality while demonstrating excellent reproducibility with user-friendly operator controls.

MAIN FEATURES

Output power levels 32, 40, and 50 kW
Output voltage of 125 kV or 150 kV
Smaller, modular design
Constant dose output with kV and mA regulation during exposures
User-friendly controls and configuration
Large LCD panel for APR and technique display
Programmed for APR operation with manual override of technical factors
Extensive self-diagnostics with operator messages
Time, mA and mAs selections according to IEC standards

ATX has factory trained personnel to advise, install and maintain CPI generators. Generators can be retrofitted into your existing bucky room or included into a new facility. CM Series Gen
