QUADRA-FIRE QV36DB-A 36-Inch Gas Fireplace

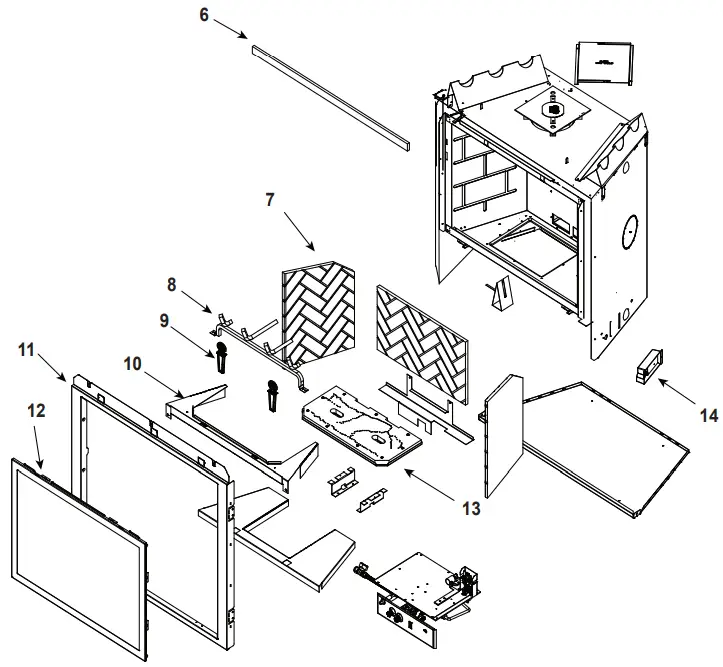

Log Set Assembly
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | ||||||
| Log Set Assembly | LOGS-2018 | Y | |||||||
| 1 | Log 1 | No longer available, Must order complete assembly | SRV2018-701 | ||||||
| 2 | Log 2 | SRV385-736 | |||||||
| 3 | Log 3 | SRV278-704 | |||||||
| 4 | Log 4 | SRV2018-704 | |||||||
| 5 | Log 5 | SRV780-707 | |||||||
| 6 | Non Combustible board | 385-401 | |||||||
| 7 | Refractory Kit (Sold as set only) | BRICK-292 | |||||||
| 8 | Log Grate | SRV2018-001 | |||||||
| 9 | Andirons, Cast | SRV434-0450 | |||||||
| 10 | Base Refractory NG, LP | 2018-100 | |||||||
| 11 | Surround | No longer available | 2026-108 | ||||||
| 12 | Glass Door Assembly | GLA-6TRXI | Y | ||||||
| 13 | Burner | 2018-005 | Y | ||||||
| 14 | Junction Box | SRV4021-013 | Y |

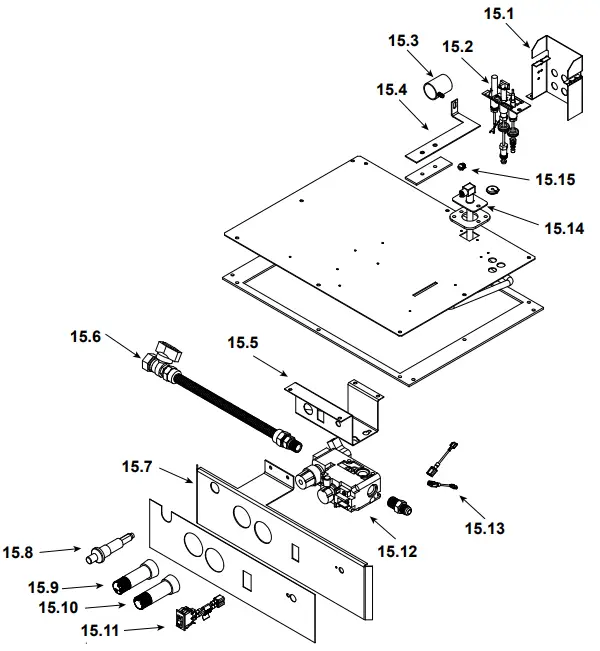

#15 Valve Assembly
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| 15.1 | Pilot Bracket | 2018-107 | ||
| 15.2 | Pilot Assembly NG | 2103-010 | Y | |
| Pilot Assembly LP | 2103-011 | Y | ||
| Pilot Tube | SRV485-301 | Y | ||
| Thermocouple | 446-511 | Y | ||
| Thermopile | 2103-512 | Y | ||
| 15.3 | Shutter Assembly | 319-316A | Y | |
| 15.4 | Shutter Bracket Assembly | 2026-017 | Y | |
| 15.5 | Valve Bracket | No longer available | 550-169 | |
| 15.6 | Flex Ball Valve Assembly | SRV302-320 | Y | |
| 15.7 | Control Panel | No longer available | 295-119 | |
| 15.8 | Piezo Ignitor | 291-513 | Y | |
| 15.9 | Pilot Control Knob | No longer available | 571-530 | |
| 15.10 | Flame Control Knob | No longer available | 571-531 | |
| 15.11 | ON/OFF Rocker Switch | 060-521A | Y | |
| 15.12 | Valve NG | 060-522 | Y | |
| Valve LP | 060-523 | Y | ||
| 15.13 | Wire Assembly | 049-552A | Y | |
| 15.14 | Flexible Gas Connector | 383-302A | Y | |
| 15.15 | Orifice NG (3.1 MM) | 582-8310 | Y | |
| Orifice LP ( 1.8 MM) | 582-818 | Y |
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| Gasket Assembly | SRV385-402A | |||
| Includes: Vent, Seal Cap, Burner Neck, Shutter | ||||
| Bracket, and Valve Plate Gaskets | ||||
| Glass Latch Assembly | 386-122A | Y | ||
| Lava Rock Bag | 4021-297 | |||
| Mesh | Mesh -6000 | Y | ||
| Mineral Wool | 050-721 | |||
| Touch Up Paint | TUP-GBK-12 |
| Conversion Kit NG | No longer available | NGK-2018 | ||
| Conversion Kit LP | No longer available | LPK-2018 | ||
| Regulator NG | SRV060-518 | Y | ||
| Regulator LP | 060-519 | Y | ||
| Pilot Orifice NG | SRV446-505 | Y | ||
| Pilot Orifice LP | SRV446-517 | Y |
