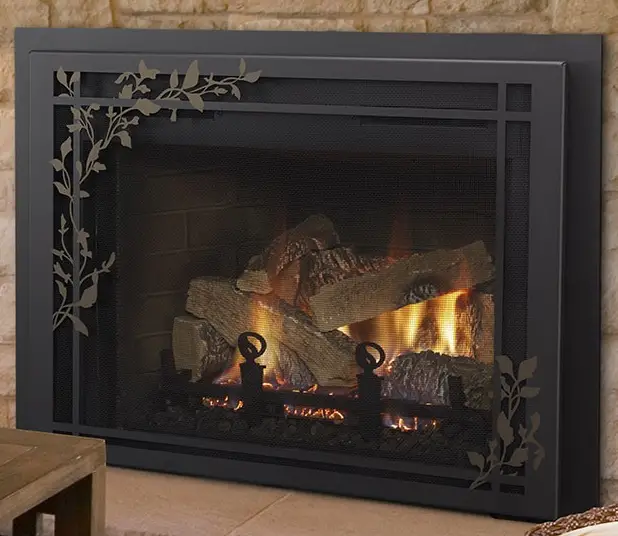

QUADRA-FIRE QFI30 FireBrick Gas Fireplace Inserts

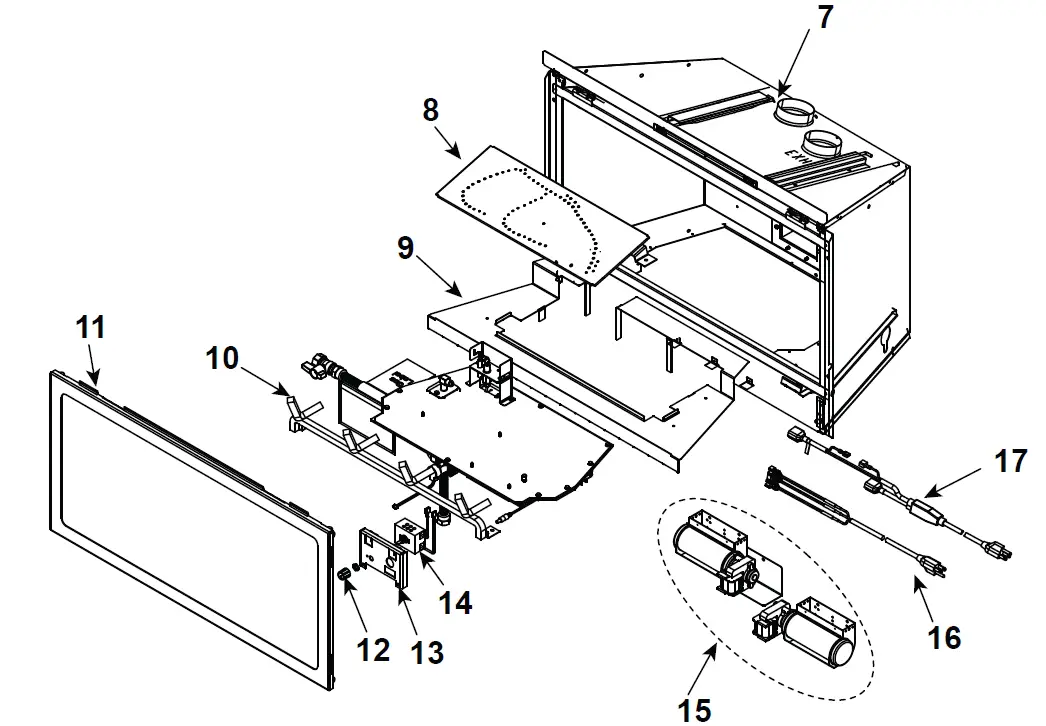

Assembly

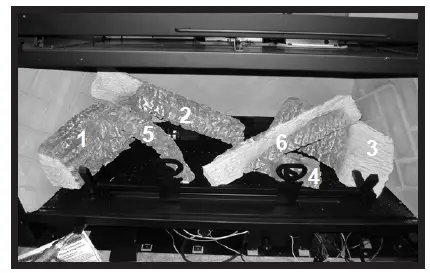

Log Set Assembly

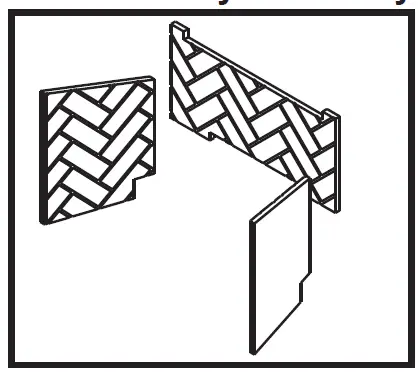

18 Refractory Assembly
IMPORTANT: THIS IS DATED INFORMATION.
Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | ||
| Log Assembly | LOGS-QFI30 | Y | |||
| 1 | Log 1 | No longer available, Must order complete assembly | SRV2227-703 | ||
| 2 | Log 2 | SRV2227-702 | |||
| 3 | Log 3 | SRV2227-701 | |||
| 4 | Log 4 | SRV2227-705 | |||
| 5 | Log 5 | SRV2227-706 | |||
| 6 | Log 6 | SRV2227-704 | |||
| 7 | Termination Plate Assembly | 2206-012 | |||
| Flex Pipe Handle | 438-351 | ||||
| Gasket | 2206-401 | ||||
| 8 | *Burner Assembly | Call Tech Service with Serial number | |||
| 9 | Base Pan | SRV2206-106-BK | |||
| 10 | Grate Assembly | No longer available | 2221-016 | ||
| Grate with no Andirons | SRV2221-017 | ||||
| 11 | Glass Door Assembly | GLA-2206 | Y | ||
| 12 | Rheostat Knob | SRV100-512 | Y | ||
| 13 | Control Panel | SRV2205-129-BK | |||
| 14 | On/Off Rheostat | 2206-800 | Y | ||
| 15 | Blower Assembly | GFK-210-C | |||
| 16 | Power Cord Assembly | 2206-068 | Y | ||
| 17 | Cord Assembly | 2201-017 | Y | ||
| 18 | Refractory Assembly (sold as set only) | BRICK-QI30 | |||

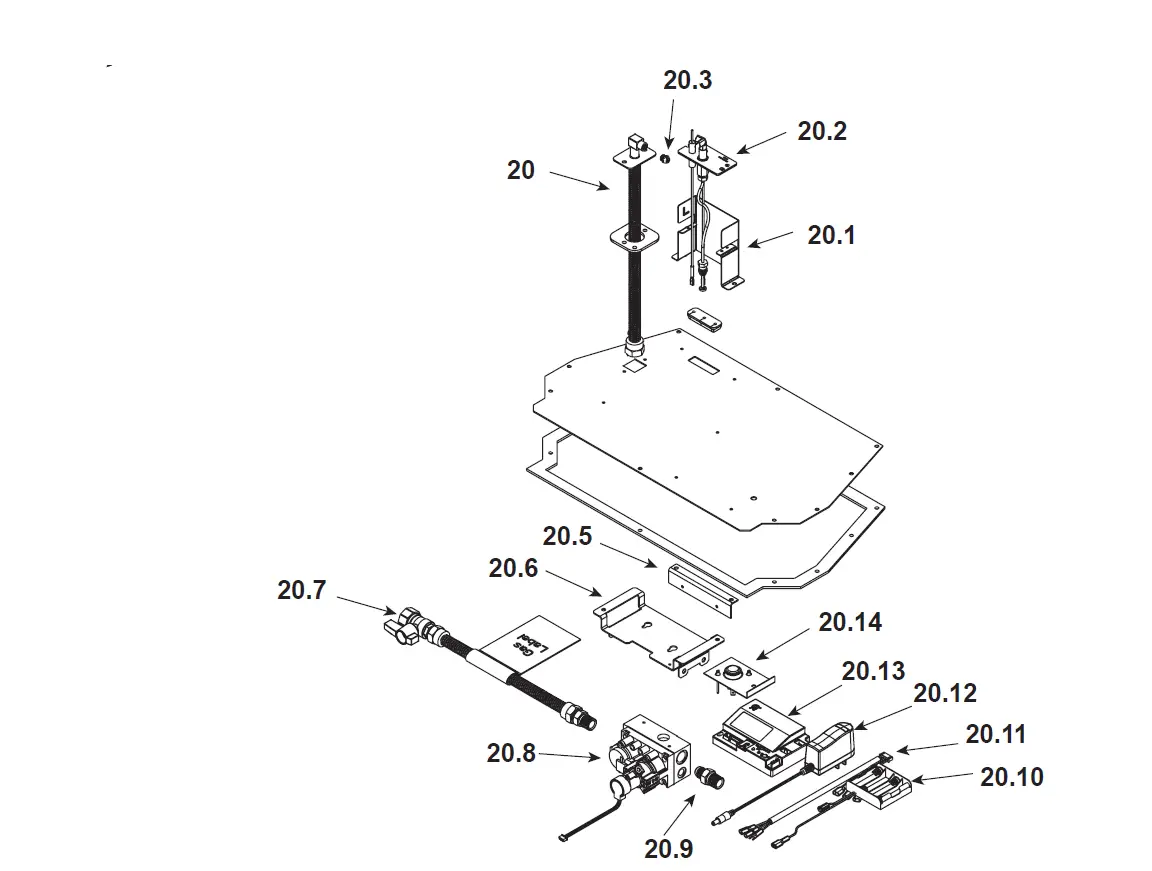

Valve Assembly
IMPORTANT: THIS IS DATED INFORMATION.
Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| ITEM | DESCRIPTION | COMMENTS | PART NUMBER | |
| 20.1 | *Pilot Bracket | Call Tech Service with Serial number | ||
| 20.2 | *Pilot Assembly NG | Call Tech Service with Serial number | ||
| *Pilot Assembly LP | ||||
| 20.3 | Orifice NG (#35C) | SRV582-835 | Y | |
| Orifice LP (#51C) | SRV582-851 | Y | ||
| 20.4 | 18” Flex Gas Connector | 530-302A | Y | |
| 20.5 | Control Bracket Panel | SRV2205-128 | ||
| 20.6 | Valve Bracket | SRV2205-146 | ||
| 20.7 | Flex Ball Valve Assembly | SRV302-320 | Y | |
| 20.8 | Valve NG | SRV2166-302 | Y | |
| Valve LP | 2166-303 | Y | ||
| 20.9 | Brass Connector | Pkg of 5 | 303-315/5 | Y |
| 20.10 | Battery Pack** | SRV2166-323 | Y | |
| 20.11 | Wire Harness | 2166-304 | Y | |
| 20.12 | Power Supply | SRV2326-131 | Y | |
| 20.13 | Module | 2166-347 | Y | |
| 20.14 | Thermostat Assembly | SRV046-018A | Y | |
Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 1A fuse, 3/4” long
IMPORTANT: THIS IS DATED INFORMATION.
Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
| Gasket Assembly | 2206-080 | |||
| Includes Air Passage, Valve Plate, Exhaust Bottom, Exhaust Top, and Burner Neck Gaskets | ||||
| Glass Clip Support Assembly, Bottom | Qty 2 req | 2155-045 | Y | |
| Glass Latch Assembly, Top | Qty 2 req | 339-121A | Y | |
| Lava Rock | 4021-296 | |||
| Mineral Wool | 050-721 | |||
| EMC Filter | 2201-198 | |||
| *Conversion Kit NG | Call Tech Service with Serial number | |||
| *Conversion Kit LP | ||||
| *Pilot Orifice NG | Call Tech Service with Serial number | |||
| *Pilot Orifice LP | ||||
| Regulator NG | NGK-DXV-50 | Y | ||
| Regulator LP | SRVLPK-DXV-50 | Y | ||
