SERVICE MANUAL EBE-200VMB
VERSION 0.3

Contents hide

1 EBE-200VMB Suspended Load Shot Blasting Machine

2 Maintenance log

3 Documents / Resources

3.1 References

4 Related Posts

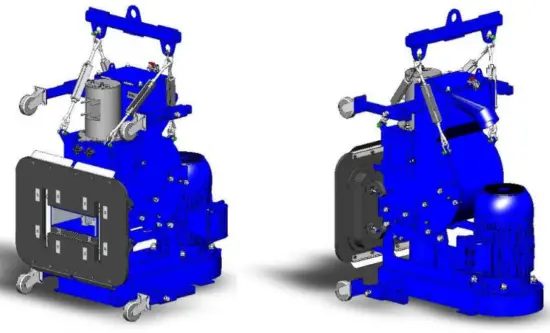

EBE-200VMB Suspended Load Shot Blasting Machine

THE INNOVATORS IN SURFACE PREPARATION

Maintenance log

Date	Findings	Repair / Cleaning	Test on	By*

Fig. 01

Item	Blastrac PN	HQV PN	Description	Qty.
1	E12215	5.35E+08	Blast housing	1
2	E12242	5.35E+08	Liner press strip	2
3	E12217	5.34E+08	Rebound liner	1
4	E12241	5.35E+08	Filling plate	1
5	E12219	5.35E+08	Rebound liner cover plate	1
6	E12218	5.34E+08	Sideliner	2
7	E12235	5.35E+08	Bearing unit bracket	2
8	E00642	5.34E+08	Bearing unit	1
9	E12234	5.35E+08	Motor bracket	1

Fig. 02

Item	Blastrac PN	HQV PN	Description	Remarks	Qty.
1	E10441	5.35E+08	Air slide		1
2	B20536K	5.31E+08	Tune-up kit		1
3	B20397	5.34E+08	Hub		1
4	B20295	5.33E+08	Felt seal		1
5	1084	5.34E+08	Clamp		1
6	E10431	5.35E+08	Locker		1
7	E12221	5.35E+08	Top cover		1
8	BE0004	5.33E+08	M10 washer		1
9	BE0714	–	M10x35 hex. Socket head cap	12.9	1

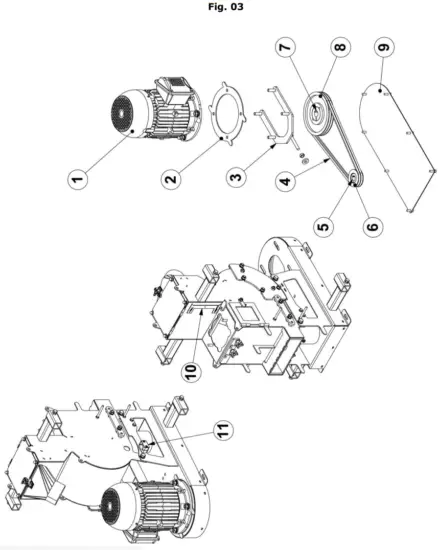

Fig. 03

Item	Blastrac PN	HQV PN	Description	Qty.
1	E06118-IE3	5.34E+08	Blast motor	1
2	E10437	5.35E+08	Fill up plate	1
3	E10436	5.35E+08	Tension plate	1
4 (50Hz)	E01938	5.35E+08	V- belt	2
(60Hz)	E06131	5.34E+08	V-belt	2
5	E10439	–	Taper lock bush	1
6	976659	5.34E+08	Pulley	1
7 (50Hz)	E10438	–	Taper lock bush	1
8 (50Hz)	E06160	5.34E+08	Pulley	1
(60Hz)	E12037	5.34E+08	Pulley	1
9	E10440	5.35E+08	Belt cover	1
10	E10443	5.35E+08	Indication plate	1
11	999-9155	5.33E+08	Cable clamp	1

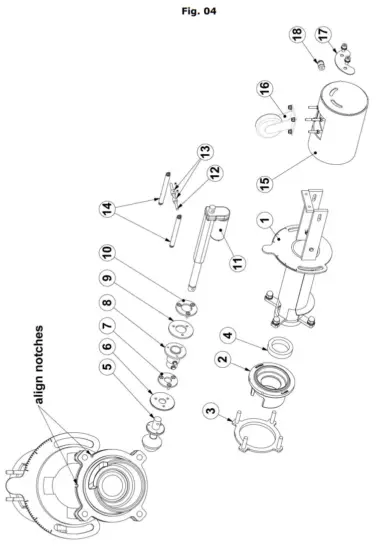

Fig. 04

Item	Blastrac PN	HQV PN	Description	Qty.
1	E10445	5.35E+08	Shot valve housing	1
2	B20536K	5.31E+08	Tune-up kit	1
3	E10444	5.35E+08	Cage clamp ring	1
4	E10447	–	Valve seal	1
5	E10448	–	Conical valve	1
6	E10449	–	Rubber seal washer	1
7	E10450	5.35E+08	Seal washer plate	1
8	E10451	–	Connection bush	1
9	E10452	–	Rubber seal washer top	1
10	E10453	5.35E+08	Seal washer plate top	1
11	E01646	5.35E+08	Linear actuator	1
12	E10454	5.35E+08	Actuator pin	1
13	E10455	5.35E+08	Distance bush	2
14	E10388	5.33E+08	Tension spring	2
15	E10456	5.35E+08	Actuator cover	1
16	E07343	5.35E+08	Castor (only for 3 wheel version)	1
17	E10457	5.35E+08	Dust plate	1
18	E00405	5.34E+08	Cable gland	1

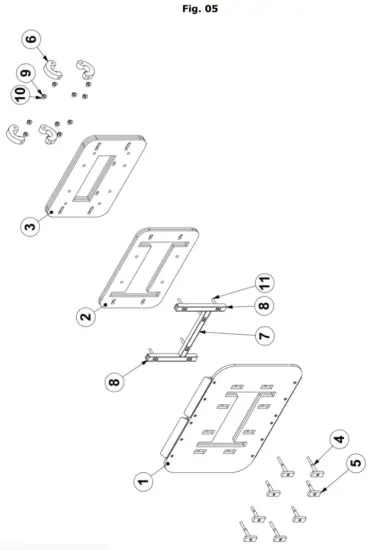

Fig. 05

Item	Blastrac PN	HQV PN	Description	Qty.
1	E12223	5.35E+08	Mouth seal front plate complete with angle strips	1
2	E12227	5.35E+08	Mouth seal magnet plate	2
3	E12228	5.35E+08	Mouth seal backplate	3
4	E10466	5.35E+08	Mouth seal bolt long	4
5	E10467	5.35E+08	Mouth seal bolt short	4
6	E09288	5.31E+08	Rubber spring	4
7	E12229	–	Magnet	1
8	969763	5.35E+08	Magnet	2
9	BE0048	5.34E+08	M8 lock nut	14
10	BE0313	–	M8 washer	10

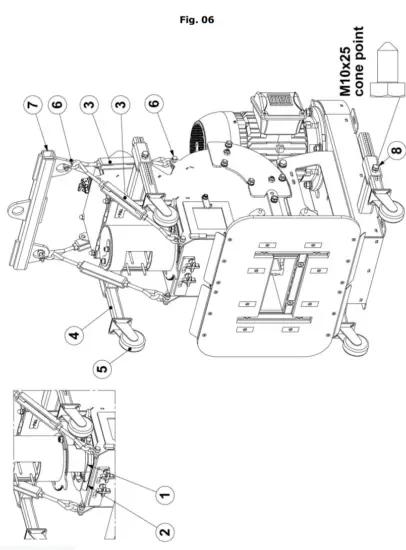

Fig. 06

Item	Blastrac PN	HQV PN	Description	Qty.
1	E12122	5.35E+08	Fill up plate 2mm	1
2	E12275	5.35E+08	Fill up plate 1mm	4
3	E10474	–	Turnbuckle	4
4	E12231	5.35E+08	Wheel support	4
5	E07343	5.35E+08	Caster wheel	4
6	E10475	–	Bow shackle	6
7	E10472	5.35E+08	Hoist beam	1
8	BE0039-C	–	M10x25 cone point	2
9
