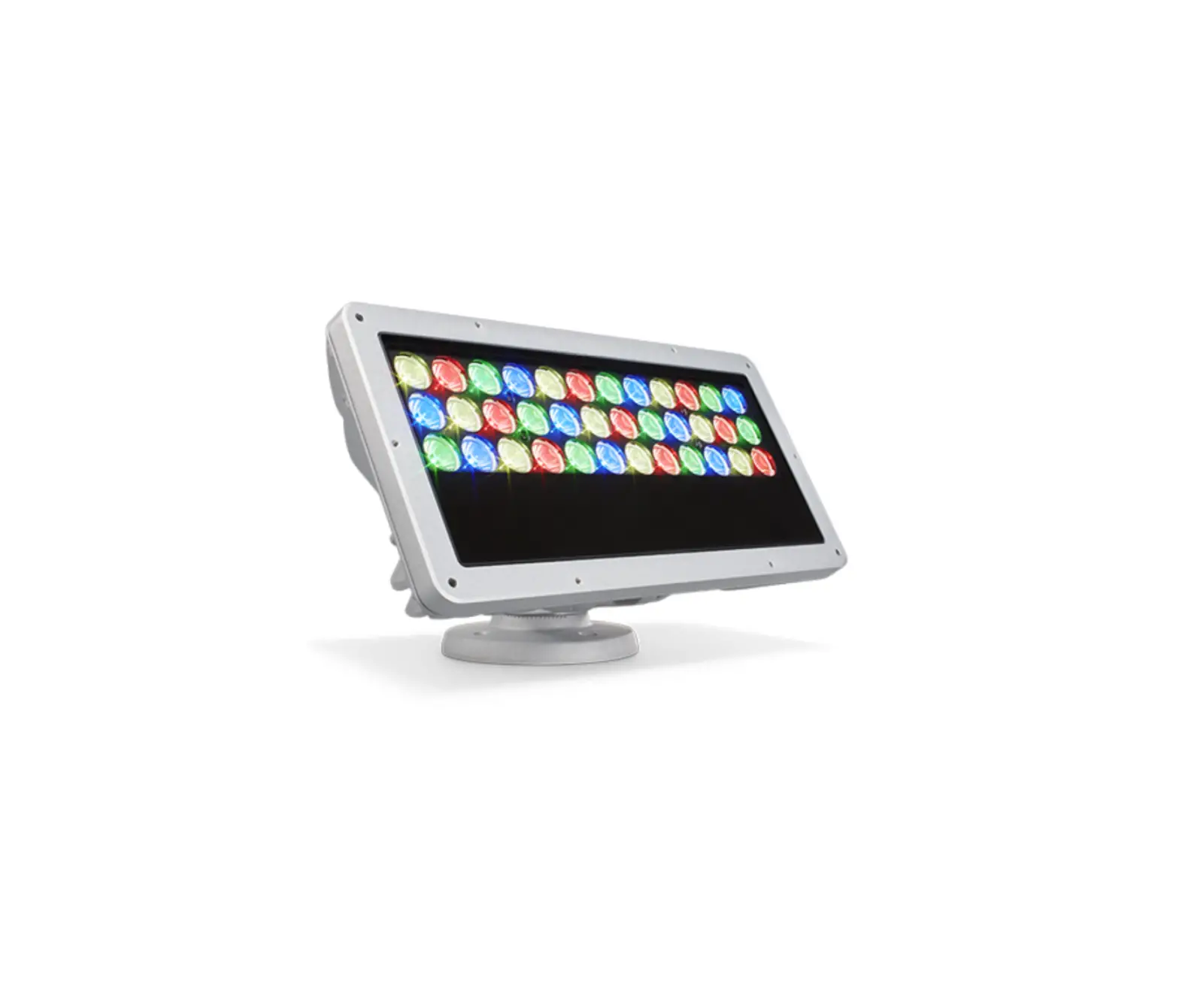

Blast Power core gen5, eW high-performance LED luminaires provide a high-intensity wash of white light with simplified installation. Blast Power core gen5 offers a range of accessories that allow for customizable beam angles for floodlighting, spotlighting, wall washing, and grazing, along with the efficiency and cost effectiveness of Power core technology in a rugged die-cast aluminium housing.

Expands customization with a wide range of new accessory options. In addition to the native 6° lens, five different spread lenses can customize the luminaire to produce 20°, 40°, 60°, 80°, and 10° x 40° (asymmetric) beam angles. Three housing color choices (black, gray, and white)—plus the option to add or combine a louver, rock guard, full glare shield, and half glare shield—create new aesthetic possibilities for designers and architects.
Meets ASTM B117 standard for > 1,500 hours of corrosion resistance and ANSI C136.31-2010 standard with a 3G vibration rating.
Improves durability with new flat lens that prevents water from pooling into the luminaire, keeping the LEDs protected and secure over the course of a luminaire’s lifetime.
Integrates patented Power core technology that controls power output to luminaires directly from line voltage – rapidly, efficiently, and accurately. The Color Kinetics Data Enabler Pro merges line voltage with control dataand delivers them to luminaires over a single standard cable, dramatically simplifying installation and lowering total system cost.
The Color Kinetics Data Enabler Pro merges line voltage with control data and delivers them to luminaires over a single standard cable, dramatically simplifying installation and lowering total system cost.
Universal power input range of 100 to 277 VAC.
Precision Dimming—Smooth dimming down to 1% with optional Data Enabler Pro and digital control interface.
Works seamlessly with the complete Color Kinetics line of controllers, including ColorDial Pro, iPlayer 3, and Light System Manager – as well as third-party controllers.
For detailed product information, please refer to the Blast Product Guide at https://www.colorkinetics.com/global/products/essentialwhite/blastpowercre-gen5-ew

Specifications

Due to continuous improvements and innovations, specifications may change without notice.

Output

Color Temperature	3000 K
Beam Angle	80°
Lumens †	2,658
Efficacy (lm/W)	57.5
CRIZ	81.7

Electrical

Input Voltage	100 to 277 VAC, auto-ranging, 50/60 Hz
Power Consumption (Maximum at full output, steady state)	50/60 Hz 46.2 W
Power Factor Surge Limits ¶	0.9 @ 120 VAC, 0.85 @ 277 VAC 2 kV maximum differential (L to N) 4 kV maximum common (L to Gnd or N to Gnd)
For additional Surge Protection Requirements for LED Lighting Systems, please refer to www.colorkinetics.com/KB/surge-protection.

Control

Dimmer ‡

ON/OFF; precision dimming by 4 conductor cable & Data Enabler Pro

Remote Monitoring & Management Works with Interact Landmark

Lumen Maintenance

Threshold §	Ambient Temperature	Reported ¶¶	Calculated ¶¶
L go	25 °C 50 vc	>44,202 >44.202	>44,202 >44.202
L 70	25°C	>60,000	>100,000
	50 °cl	>60,000	>100,000
L so	25°C 50 °C		>100,000 >100,000

Physical

Dimensions (Height X Width X Depth)	183.7 x 337.8 x 171.2 mm (7.2 x 13.2 x 6.74 in)
Weight	3.9 kg(8.2 lb)
Effective Projected Area (EPA)	0.068 m2 (0.73 ft2) (Luminaire olus Full Glare Shield)
Housing Material	Die-cast aluminium, black powder-coated finish
Lens Clear tempered glass
Luminaire Connections	1.8 m (6 ft) unified power/data cable
Temperature Ranges -40 to 50 °C (-40 to 122 °Fl Operating -20 to 50 °c (-4 to 122 °F) Startup -40 to 80 °C (-40 to 176 °F) Storage
Vibration Resistance Complies with ANSI C136.31, 3G
Mechanical Impact	IK10
CorrosionResista nce Complies with ASTM 8117 standard for > 1,500 hours
Humiditv	O to 95%. non -condensin1=
Thermal Protection enabled For additional Thermal Protection information, please refer to https://colorkinetics.helodocs.io/article/sh301ducix
Luminaire Run Lengths
To calculate luminaire run lengths and total power consumption for your specific installation, download the Configuration Calculator from www.colorkinetics.com/support/install_tool/

Certification and Safety

Approbation	BIS
Environment	Dry/Damp/Wet Location, IP66

* Correlated color temperature (CCT) complies with ANSI C78.377-2008 for the chromaticity of solid state lighting products.
* Correlated color temperature (CCT) complies with ANSI C78.377-2008 for the chromaticity of solid state lighting products.
† Blast Powercore gen5, eW 4000 K lumen output measurements comply with IES LM-79-08 testing procedures. All 3000 K measurements are estimated based on Blast Powercore gen5, eW 4000 K measurements.
‡ Refer to https://colorkinetics.helpdocs.io/article/to07h0er3f for more information about dimming.
§ Lxx = xx% lumen maintenance (when light output drops below xx% of initial output). All values are given at B10, or the median value where 90% of the LED population is better than the reported or calculated lumen maintenance measurement.
¶ Minimum surge limits per IEC 61547, tested in accordance with IEC 61000-4-5.
†† When mounting to a junction box, the Color Kinetics wiring compartment accessory must be used to maintain a 3G vibration rating.
¶¶ Lumen maintenance figures are based on lifetime prediction graphs supplied by LED source manufacturers. Whenever possible, figures use measurements that comply with IES LM-80-08 testing procedures. In accordance with TM-21-11, Repeported values represent the interpolated value based on six times the LM-80-08 total test duration (in hours). Calculated values represent time durations that exceed six times the total test duration.
2 Blast Powercore gen5, eW, 3000 K, 100 – 277 VAC, 80° spread lens, Black housing, BIS Specification Sheet

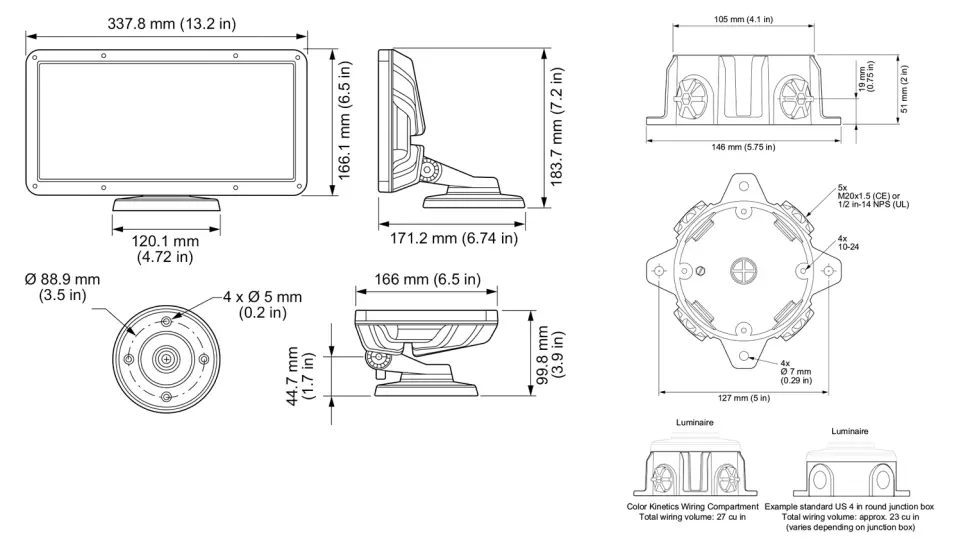

Dimensions

Photometrics 3000 K, 80° spread lens

Photometric data is based on test results from an independent NIST traceable testing lab. IES data is available at www.colorkinetics.com/global/support/ies.

Beam Angle	80°
LED	3000 K
Lumens	2,658.0
Efficacy (lm/W)	57.5

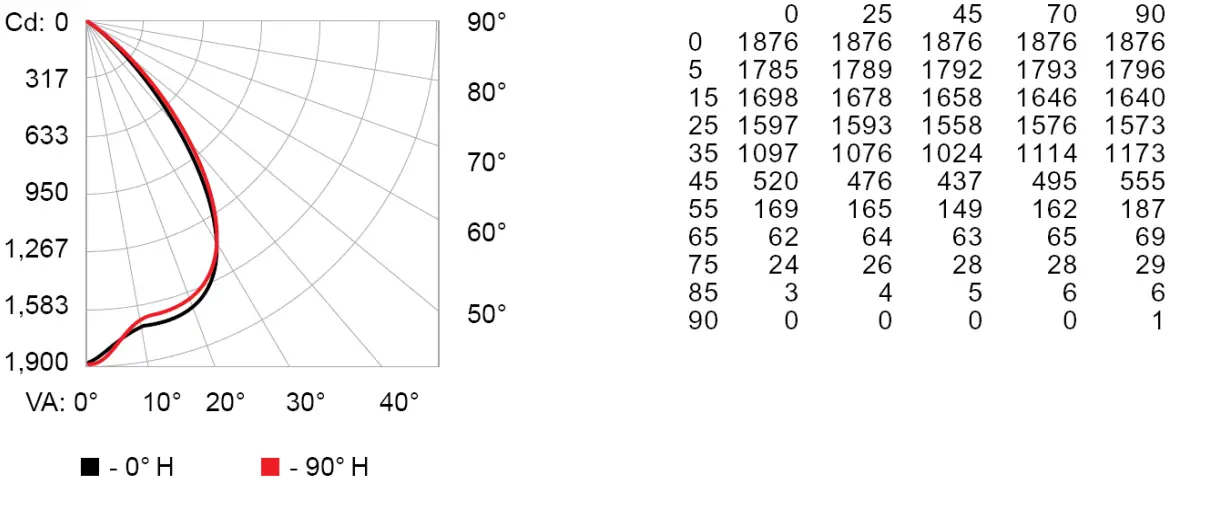

Polar Candela Distribution

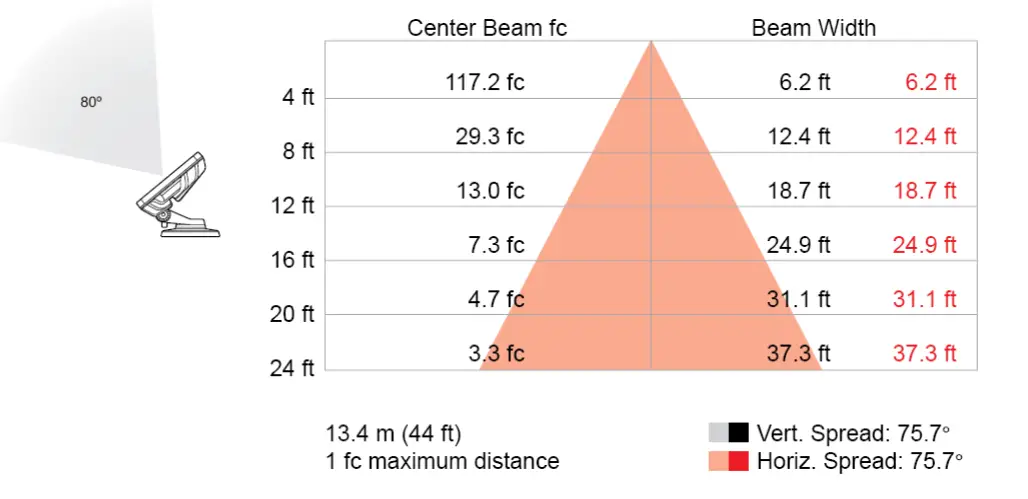

Illuminance at Distance

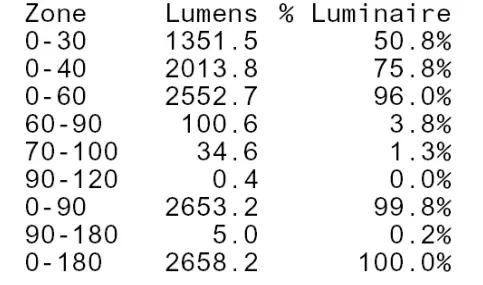

Zonal lumen

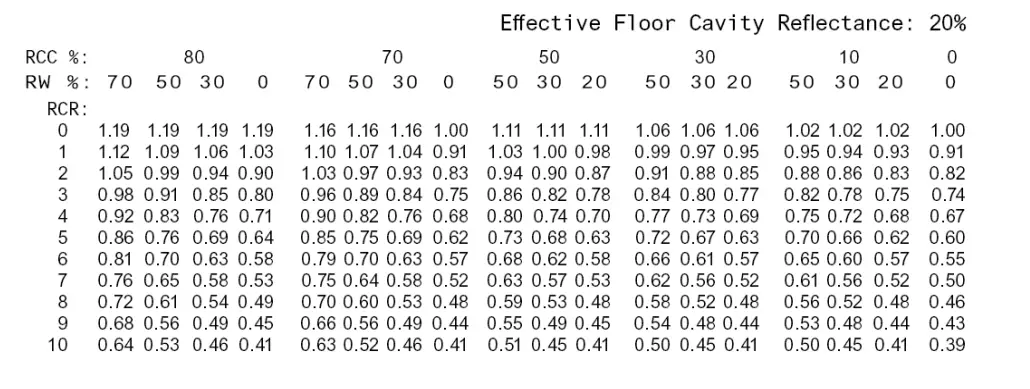

Coefficients of Utilization – Zonal cavity Method

Luminaire and Accessories

Luminaire	Item Number	Item 12NC
Blast Powercore gens, eW, 3000 K, 100 – 277 VAC, Black housing Lumina ire only. Values in this specification sheet represent bot h the luminaire and spread lens combined. Soread lens available below in Associated Part.	523-000110-40	912400137723
Associated Parts
80° Spread lens Trim Ring required for mounting. Must be ordered separately.	120 -000185 -11	912400130347
Accessories
Trim Ring, Black	120-000185-01	912400130337
Louver, Black	120-000185-05	912400130341
Rock Guard, Black	120-000185-07	912400130343
Half Glare Shield, Black	120-000185-14	912400130350
Full Glare Shield, Black	120-000185-03	912400130339
Wiring Compartment UUcUL, Black	106-000011-30	910503704 147
Wiring Comoartment CE, Black	106-000011-40	910503703275
Architectural Mountine Arm, for use with Blast, Graze, Graze Comoact, Burst Architectural, and Vava Flood. Short, erav	120-000206-00	912400136642
Architectural Mounting Arm, for use with Blast, Graze, Graze Comoact, Burst Architectural, and Vava Flood. Medium, grav	120-000206-01	912400136643
Architectural Mounting Arm, for use with Blast, Graze, Graze Compact, Burst Architectural, and Vaya Flood. Long, gray	120-000206-02	912400136644
Power Supplies
Data Enabler Pro (required to digitally dim unit), 3/4 in / 1/2 in NPT (U.S. trade size conduit)	106-000004-00	910503701210
Data Enabler Pro (required to digitally dim unit), PG21/PG13 (metric size conduit)	106-000004-01	910503701211
