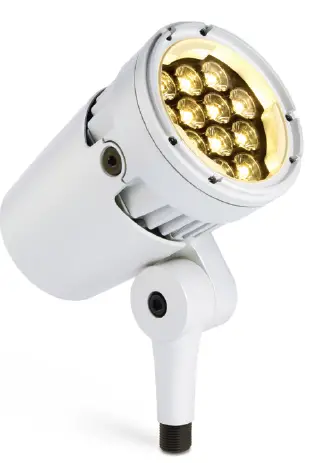

COLOR KINETICS 523-000059-12 Burst Compact Powercore

Installation Instructions

Before installing this product, please visit the product page at www.colorkinetics.com for the latest version of the installation instructions. Due to continuous improvements and innovations, installation instructions may change without notice.

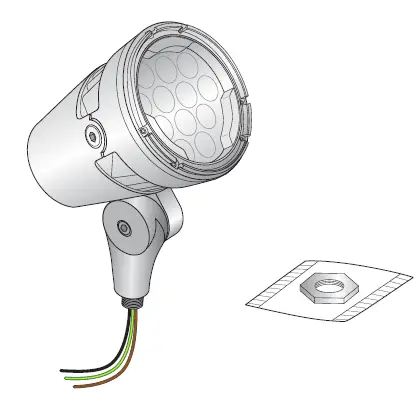

Confirm all components received.

Make sure power is OFF Verify the electrical plan and all necessary surge protection requirements.

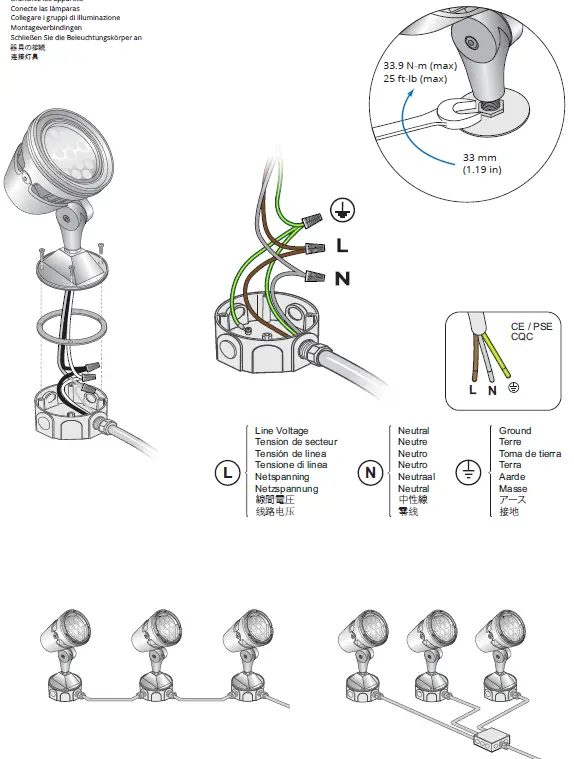

Connect luminaires

Secure connections and covers

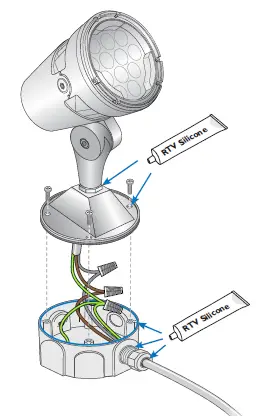

For wet or damp locations, seal all points of entry to prevent water infiltration. Use RTV silicone and weatherproof junction boxes.

Turn the power ON

Burst Compact Powercore, Landscape, eW, eColor Installation Instructions

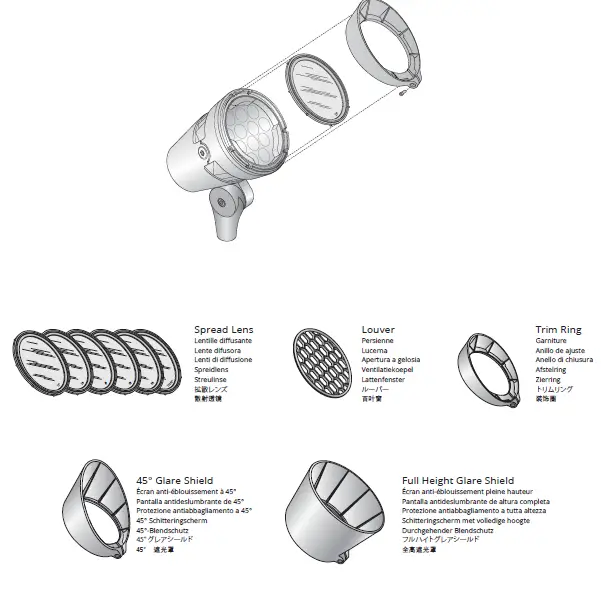

Attach accessories

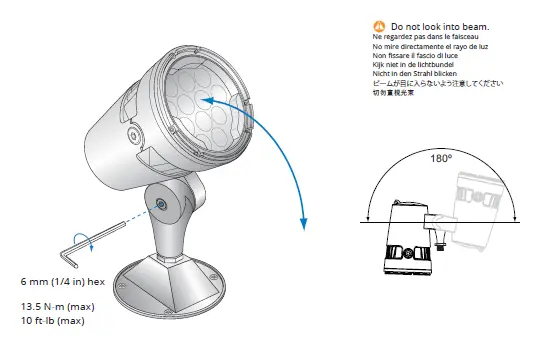

Aim luminaires

Attach safety cable

Safety cable minimum requirements

• Material: 304 or 316 stainless steel
• Size: 4 mm (5/32 in) nominal diameter Minimum break load must be greater than 2,400 lb (1,089 kg)
