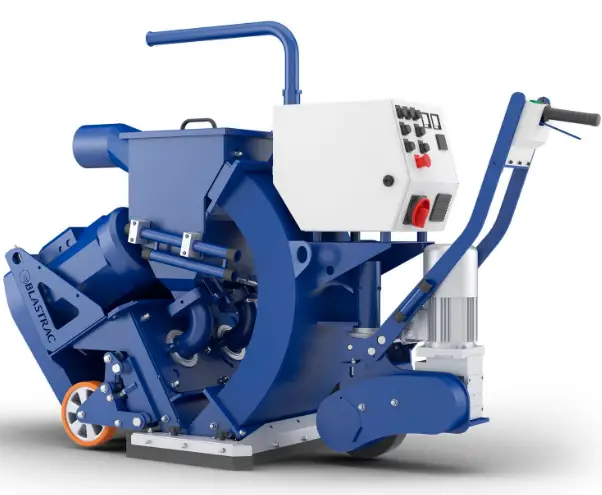

BLASTRAC 2-48DS Shot Blaster

Product Information

The Service Manual 2-48DS Version 3.2 is a manual for the maintenance and repair of a Blastrac shot blaster machine. The manual contains information on the initial inspection, recurring inspections, and maintenance logs. It also includes a list of spare parts with their corresponding part numbers and descriptions.

Product Usage Instructions

Before initial operation, inspect the machine thoroughly and record the findings in the inspection comments section of the manual. Include the date of initial operation, serial number, and year of manufacture.
Recurring inspections should be performed regularly and logged in the maintenance log section of the manual. Record the date and hour counter reading, findings, repairs/cleaning performed, and test results. These inspections should be carried out by a competent person.
Refer to the spare parts list in Fig. 01-05 to identify the part number and description of any needed replacement parts.
Contact Blastrac or HQV for spare parts and provide the part number from the spare parts list.

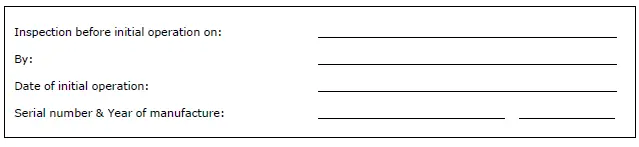

Inspection comments

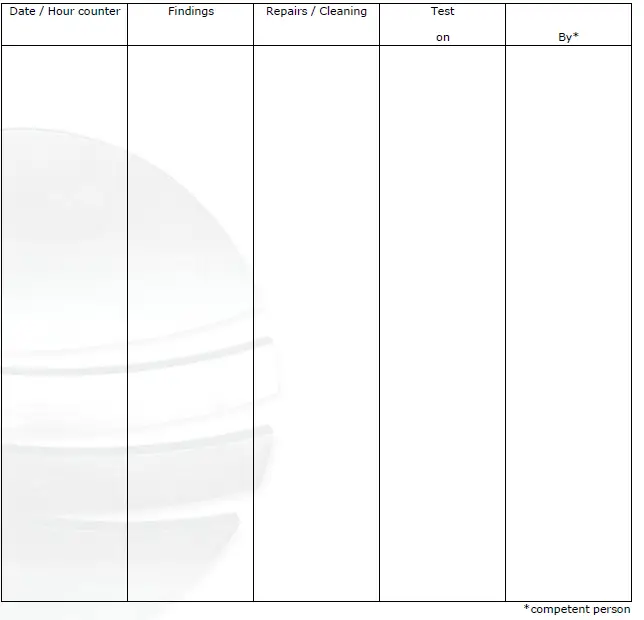

Recurring inspections / maintenance log

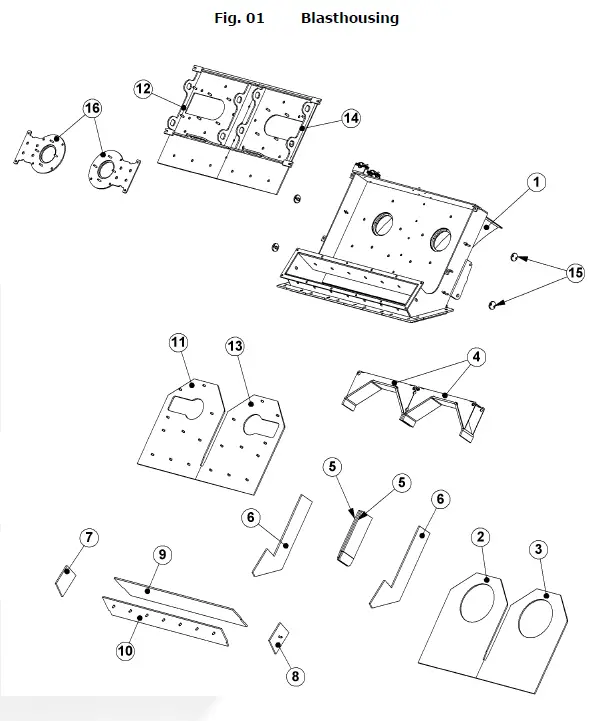

Spare parts

Item	Blastrac PN	HQV PN	Description	Qty.
1	E02211	535109601	Blast housing 2-48DS	1
2	E02311	533278801	Rear liner 500 LH	1
3	E02312	533276701	Rear liner 500 RH	1
4	E02223	533232501	Top liner	2
5	E02224	533227301	Inner liner	2
6	E02225	533223401	Side liner	2
7	E02220	533379101	Rebound side liner LH	1
8	E02221	533355701	Rebound side liner RH	1
9	E02222	533294701	Rebound top liner	1
10	E02219	533329801	Rebound bottom liner	1
11	E07145	533295801	Front liner LH	1
12	E07147	533539601	Front cover LH	1
13	E07146	533356601	Front liner RH	1
14	E07148	533739201	Front cover RH	1
15	RB100A-25	–	Liner fixing block	4
16	E08551	533589301	Cage mount plate	2

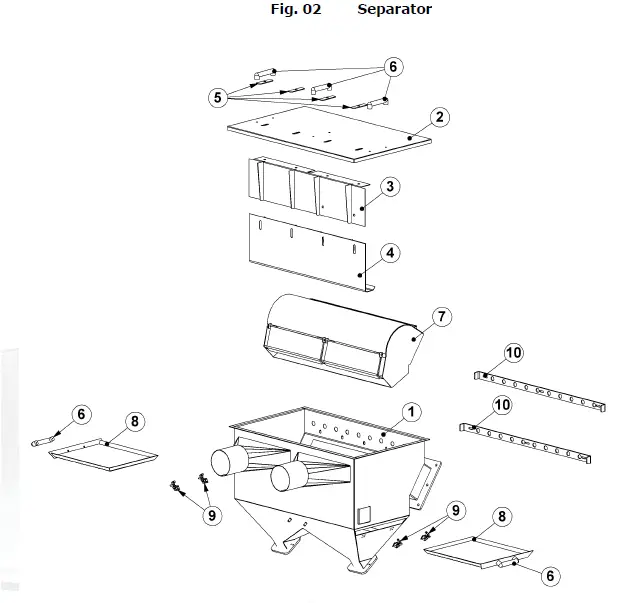

Item	Blastrac PN	HQV PN	Description	Qty.
1	E02236	533117801	Separator 2-48DS	1
2	E02237	533322501	Cover plate	1
3	E02238	533420301	Horizontal adjuster	1
4	E02239	533375801	Vertical adjuster	1
5	E02240	533252701	Top fix plate	4
6	970385	533170201	Mount plate	5
7	E02226	533152101	Deflector	1
8	E02241	533256101	Separator tray	2
9	001084	534391301	Clamp	4
10	E02321	533338401	Airflow adjuster	2

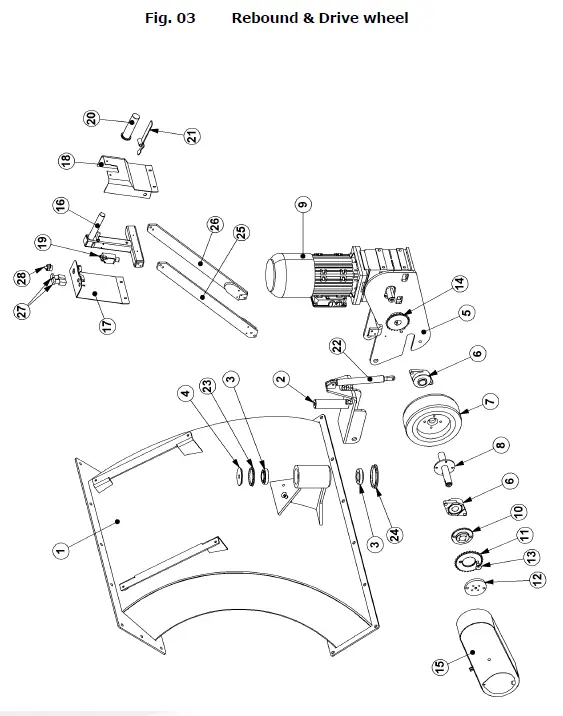

Item	Blastrac PN	HQV PN	Description	Qty.
1	E02235	535232901	Rebound plenum	1
2	E02229	535251901	Swivel bracket	1
3	E02253	534313001	Tapered roller bearing	2
4	E02232	534314501	Bearing cover plate	1
5	E02230	535166601	Drive wheel bracket	1
6	976682	531474201	Bearing	2
7	476405	534907101	Traction wheel	1
8	978362	534528801	Drive Wheel shaft	1
9	E02251	534524301	Drive wheel motor	1
10	488551	534642001	Rear retainer hub	1
11	477631	534640601	Idler sprocket	1
12	E20282	546615201	SPROCKET SHOTBLASTER	1
13	478198	533256401	quick release pin	1
14	E02320	534529901	Drive motor sprocket	1
15	E02227	535148201	Chain guard	1
16	E02228	535247701	Steering handle	1
17	E02260	535152601	Control box top plate	1
18	E02259	535152301	Control box	1
19	454796	534668101	Limit switch	1
20	453290	534612901	Handle grip	1
21	E02327	535251701	Switch lever	1
22	E02256	534775001	Pression gas spring	1
23	E02335	534929601	V-ring seal	1
24	E02336	534929701	V-ring seal	1
25	E02318	535242201	Side frame LH	1
26	E02319	535242301	Side frame RH	1
27	E00867	533850701	switch	2
28	E00866	533613001	Potentiometer	1

Item	Blastrac PN	HQV PN	Description	Qty.
1	E02243	534385001	Castor bracket lever	2
2	E02242	535231801	Real castor bracket	2
3	E02244	535202101	Lever	4
4	E02339	534364101	Bracket lever pin	8
5	E02340	534664101	Lever pin	4
6	E02341	534636201	Housing pin	4
7	E02270	534942001	Wheel pin	2
8	E02342	534424901	Cylinder pin	4
9	E02247	533336501	Idler wheel	4
10	E02337	534775101	Gas spring 4000N	4

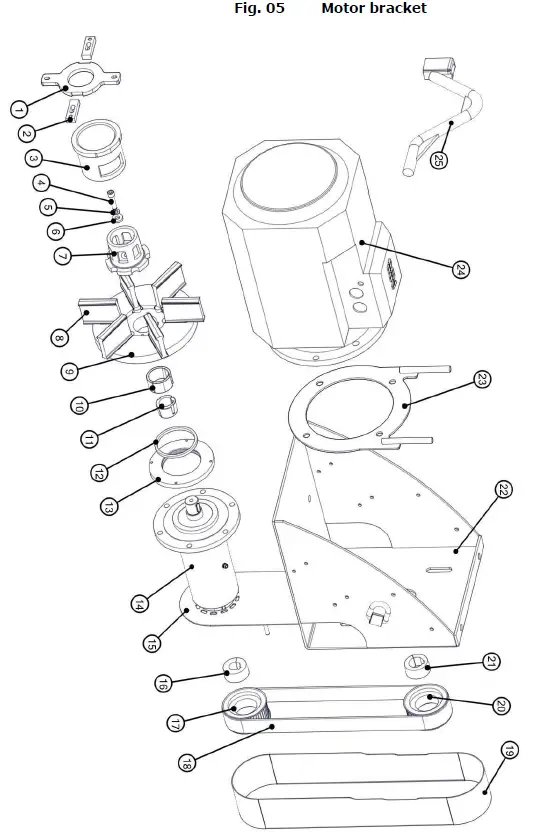

Item	Blastrac PN	HQV PN	Description		Qty.
1	E02317	533367901	Cage clamp plate		2
2	493966	534379901	Cage clamp		4
3	500-1010	533147101	Control cage		2
4	BE0665	534624901	M12x50 Hax sockethead cap		2
5		–	M12 Spring lock washer		2
6	BE0042	533836901	M12 Heavy Washer		2
7	600-1015	533264301	Impeller		2
8	500-1005	533440901	Blades (set of 6)		2
9	500-1025	534340401	Blastwheel		2
10	222-2265	533017101	Taper lock adapter		2
11	E00718	533259701	Taper lock		2
12	E02314	533211201	Felt seal		2
13	E02313	533299901	Felt seal ring		2
14	E00793	533665801	Bearing unit 2-45DE		2
15	E02234	535104601	Belt guard bottom plate		2
16	RB165/5	534892201	Taper lock		2
17	E02036	533222501	Pulley (60Hz machine)	60Hz	2
17	RB165/4	533287601	Pulley (50Hz machine)	50HZ	2
18	E02019	533430001	HTD belt		2
19	E02233	534321801	Belt guard		2
20	RB165/2	533287501	Pulley		2
21	E02018	533089001	Taper lock		2
22	E02216	535212901	Motor bracket		2
23	E02009	533334901	Blast motor fill-up plate		2
24	E02006	534330501	Blast motor		2
25	E08553	535108901	Blade removal tool		1

Item	Blastrac PN	HQV PN	Description	Qty.
1	RB117	531457301	Magnet	5
2	RB118A	531457401	Magnet	2
3	E02254	533332701	Front & rear brush	1
4	E02331	533225201	Side brush	2
5	E02328	535179901	Flow bar	1
6	E02329	533294801	Rear seal rubber	1
7	E02330	534295601	Airflow adjuster	1

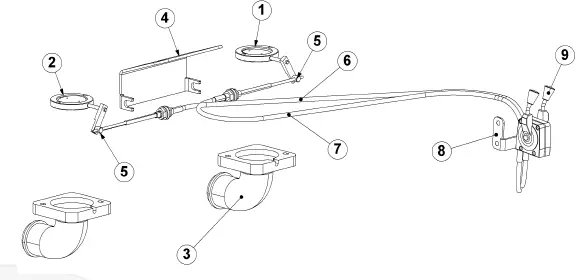

Item	Blastrac PN	HQV PN	Description	Qty.
1	B21295	533406601	Magnetic valve assy	1
2	B21295R	533437701	Magnetic valve assy	1
3	970192	533910601	Feed spout	2
4	E02261	534410001	Control cable bracket	1
5	B20521	534028801	Pivot	2
6	E01524	533215401	Control cable	1
7	E02263	533352001	Control cable	1
8	E02258	535152901	Cable control unit plate	1
9	B20519	533839501	Cable control unit	2
