Assembly

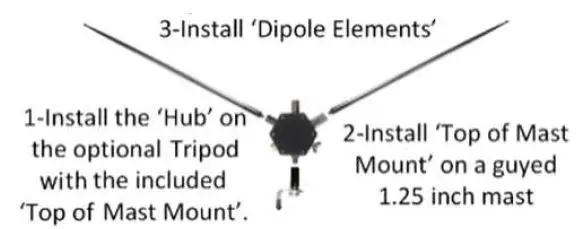

Dipole Assembly

1. Install the ‘Hub’ on the optional Tripod with the included Top of Mast Mount’.
2. Install Top of Mast Mount’ on a guyed 1.25 inch mast
3. Install’Dipole Elements

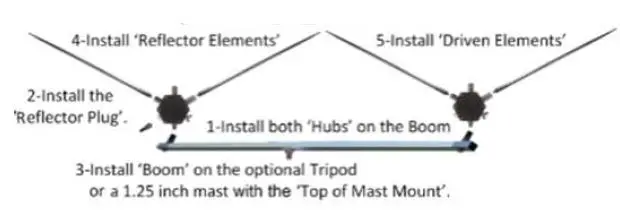

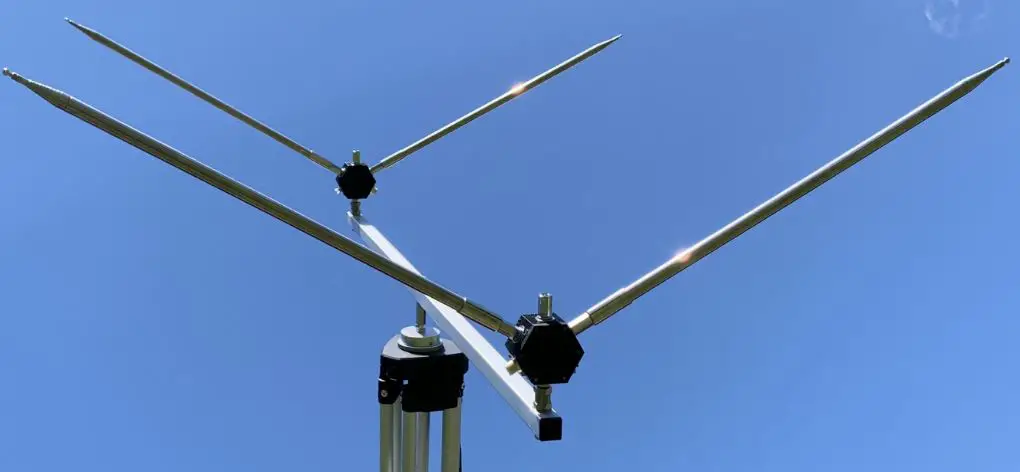

Yagi Assembly

1. Install both ‘Hubs on the Boom
2. Install the Reflector Plug’.
3. Install Boom’ on the optional Tripod or a 1.25 inch mast with the Top of Mast Mount’.
4. Install Reflector Elements
5. Install ‘Driven Elements

Vertical Assembly

1. Install the ‘Hub’ on the optional Tripod or the included Top of Mast Mount’.
2. Install Top of Mast Mount’ on a guyed 1.25 inch mast
3. Install Vertical Element
4. Install Counterpoise Element’

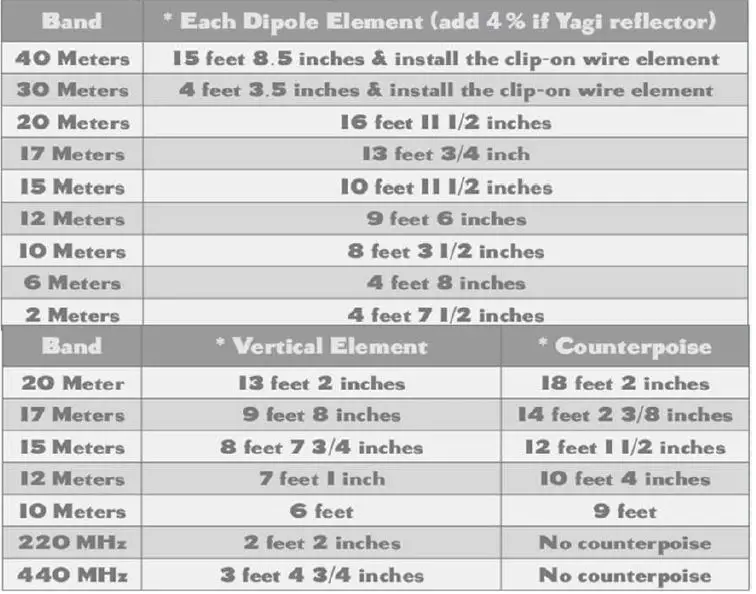

Adjust element length to tune for the lowest SWR

The deployed length of the elements can vary based upon ground conditions.
