CHASSIS MRC Foody 25.3 Cage Kit with
Backhaul Instructions

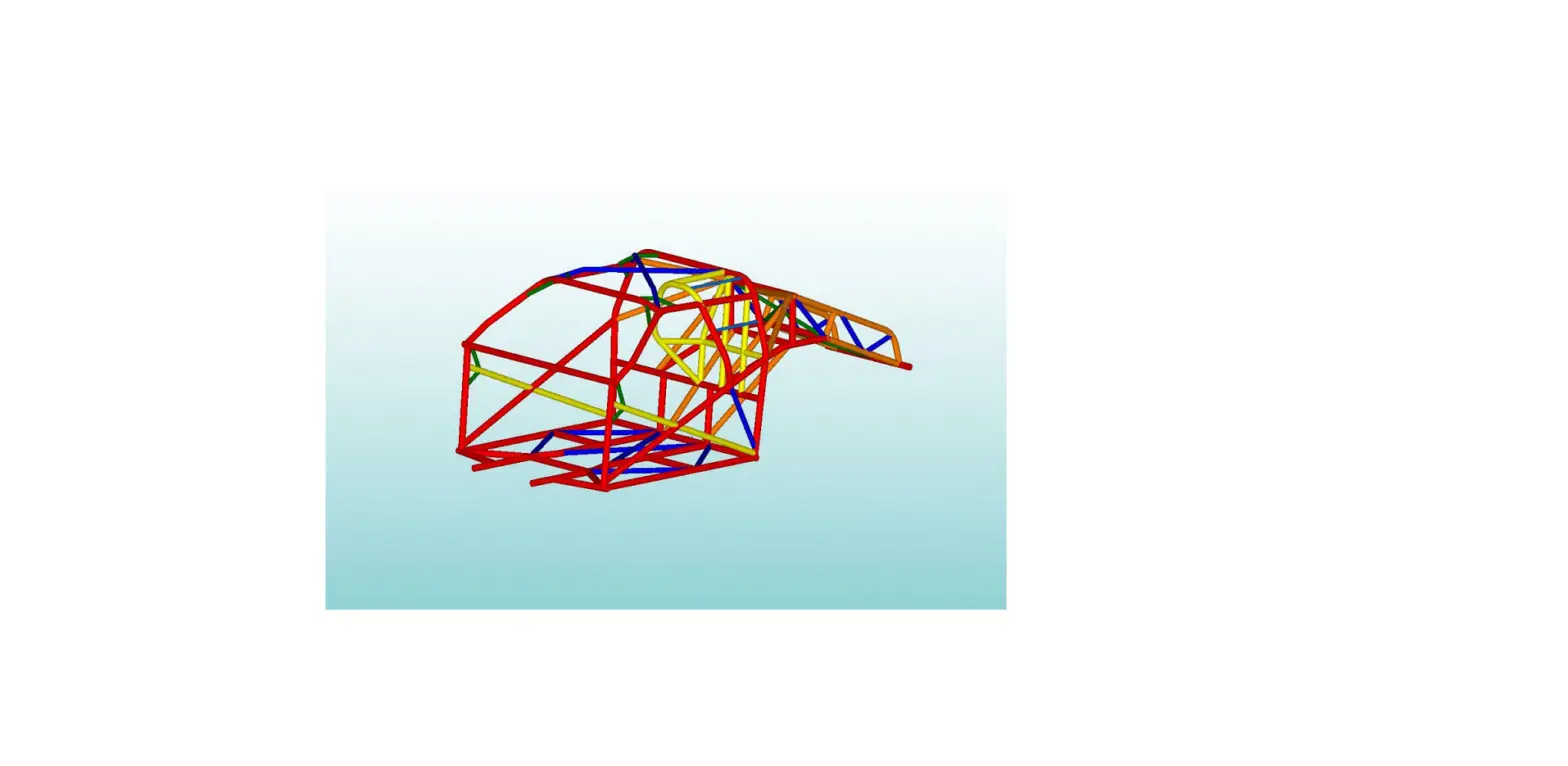

MRC Foody 25.3 Cage Kit W/ Backhaul
Thank you for choosing MRC for your cage kit!
We hope we made this as painless as possible.

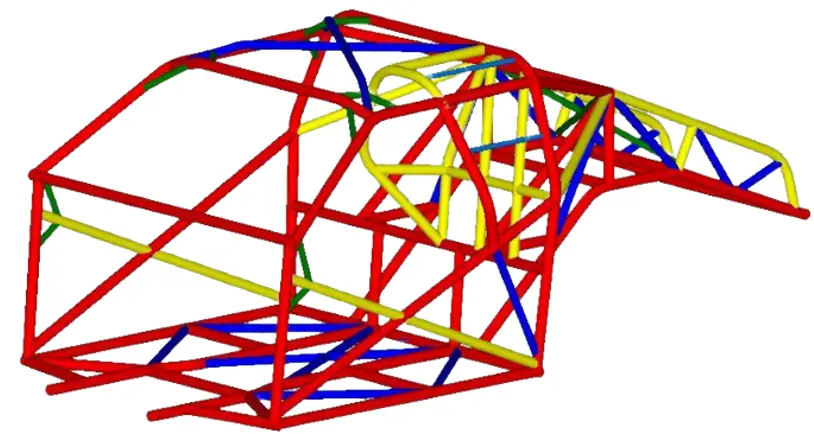

MRC Foody 25.3 Cage Kit with Backhaul
If there are any questions this sheet doesn’t cover, please contact us by phone, Email or Facebook Messenger.
We Strongly advise getting a copy of the 25.3 SFI book to refer to for bar locations.
This guide is to be a supplement to common roll cage installation techniques.
We are providing you with some measurements to help you set the bars where they need to go to fit other bars. All measurements are not provided.
Make sure the car is level, front to back and side to side.
Please Make sure all tubes are accounted for when you receive the pallet. MRC is not responsible for missing tubes after 48 hours from the time of delivery.
| Part Name | Die | Material | Cut length | ||
| 2a | 1.625 6.5 | 1.625 0.083 | 59 3/16 | ||
| 2a | 1.625 6.5 | 1.625 0.083 | 59 3/16 | ||
| Main Hoop | 1.625 6.5 | 1.625 0.083 | 126 1/4 | ||
| 12A | 1.625 6.5 | 1.625 0.083 | 55 3/16 | ||
| 12B | 1.625 6.5 | 1.625 0.083 | 55 3/16 | ||
| 13 | 1.625 6.5 | 1.625 0.083 | 44 1/4 | ||
| 40A | 1.625 6.5 | 1.625 0.083 | 24 1/16 | ||
| 2B | 1.625 6.5 | 1.625 0.083 | 46 1/4 | ||
| 2b | 1.625 6.5 | 1.625 0.083 | 46 1/4 | ||
| 6C | 1.625 0.083 | 22 3/4 | |||
| 6B | 1.625 0.083 | 18 | |||
| 6A | 1.625 0.083 | 18 | |||
| 7A | 1.625 0.083 | 49 5/8 | |||
| 9 | 1.625 0.083 | 18 15/16 | |||
| 7b | 1.625 0.083 | 49 5/8 | |||
| 9P | 1.625 0.083 | 18 15/16 | |||
| 12a Cont | 1.625 0.083 | 27 1/2 | |||
| 12B cont | 1.625 0.083 | 27 1/2 | |||
| 15 | 1.625 0.083 | 54 3/8 | |||
| 18 | 1.625 0.083 | 16 1/8 | |||
| 18 | 1.625 0.083 | 16 1/8 | |||
| 11 | 1.625 0.083 | 56 1/4 | |||
| 39 | 1.625 0.083 | 19 3/16 | |||
| 39 | 1.625 0.083 | 19 3/16 | |||
| 16B | 1.625 0.083 | 56 9/16 | |||
| 16A | 1.625 0.083 | 56 9/16 | |||
| Straight 41 | 1.625 0.083 | 27 1/2 | |||
| Straight 42 | 1.625 0.083 | 27 1/2 | |||
| Straight 43 | 1.625 0.083 | 32 | |||
| Straight 44 | 1.625 0.083 | 32 | |||
| Straight 45 | 1.625 0.083 | 15 | |||
| Straight 46 | 1.625 0.083 | 15 | |||
| Straight 47 | 1.625 0.083 | 31 1/2 | |||
| Straight 48 | 1.625 0.083 | 25 5/16 | |||
| Straight 49 | 1.625 0.083 | 25 5/16 | |||
| Straight 58 | 1.625 0.083 | 25 11/16 | |||
| Straight 59 | 1.625 0.083 | 25 11/16 | |||
| Straight 60 | 1.625 0.083 | 16 5/16 | |||
| Straight 60(Mirrored) | 1.625 0.083 | 16 5/16 | |||
| Straight 68 | 1.625 0.083 | 27 | |||
| #1 | 1.625 0.083 | 54 1/4 | |||
| 42A | 1.500 6.5 | 1.500 0.065 | 34 | ||
| 41B | 1.500 6.5 | 1.500 0.065 | 53 1/2 | ||
| Part 183 | 1.500 6.5 | 1.500 0.065 | 44 3/8 | ||
| Part 183 (Mirrored) | 1.500 6.5 | 1.500 0.065 | 44 3/8 | ||
| 45A | 1.500 0.065 | 28 7/8 | |||
| 45B | 1.500 0.065 | 28 13/16 | |||
| 47C | 1.500 0.065 | 9 5/8 | |||
| 47B | 1.500 0.065 | 9 | |||
| 47C | 1.500 0.065 | 9 5/8 | |||
| 47D | 1.500 0.065 | 13 9/16 | |||
| 41A | 1.500 0.065 | 19 1/2 | |||
| 16B Upper | 1.500 0.065 | 24 1/2 | |||
| 16B Lower | 1.500 0.065 | 29 1/4 | |||
| 17B upper | 1.500 0.065 | 24 1/2 | |||
| 17B lower | 1.500 0.065 | 29 1/4 | |||
| Straight 50 | 1.500 0.065 | 8 15/16 | |||
| Straight 50(Mirrored) | 1.500 0.065 | 8 15/16 | |||
| Straight 66 | 1.500 0.065 | 29 3/4 | |||
| Straight 66(Mirrored) | 1.500 0.065 | 29 3/4 | |||
| 37 | 1.250 5.5 | 1.250 0.058 | 44 7/8 | ||
| 37 | 1.250 5.5 | 1.250 0.058 | 30 5/8 | ||
| 37 | 1.250 5.5 | 1.250 0.058 | 23 15/16 | ||
| 8B | 1.250 0.058 | 27 5/16 | |||
| 8B Rear | 1.250 0.058 | 26 5/8 | |||
| 8A Rear | 1.250 0.058 | 26 5/8 | |||
| 8A | 1.250 0.058 | 27 5/16 | |||
| 40D | 1.250 0.058 | 21 5/16 | |||
| Straight 51 | 1.250 0.058 | 19 15/16 | |||
| Straight 52 | 1.250 0.058 | 14 7/16 | |||
| Straight 53 | 1.250 0.058 | 10 11/16 | |||
| Straight 53(Mirrored) | 1.250 0.058 | 10 11/16 | |||
| Straight 52(Mirrored) | 1.250 0.058 | 14 7/16 | |||
| Straight 51(Mirrored) | 1.250 0.058 | 19 15/16 | |||
| Straight 61 | 1.250 0.058 | 23 3/8 | |||
| Straight 61(Mirrored) | 1.250 0.058 | 23 3/8 | |||
| 4C | 1.250 0.058 | 19 3/4 | |||
| 4C | 1.250 0.058 | 37 7/16 | |||
| 4C | 1.250 0.058 | 19 3/4 | |||
| 34 Rear | 1.00 0.058 | 8 3/4 | |||
| 34 Front | 1.00 0.058 | 10 1/8 | |||
| 34 Front | 1.00 0.058 | 10 1/8 | |||
| Straight 64 | 1.00 0.058 | 32 3/16 | |||
| Straight 65 | 1.00 0.058 | 32 3/16 | |||
| 34 | 1.00 0.058 | 7 7/8 | |||
| 34 | 1.00 0.058 | 7 1/8 | |||
| 34 | 1.00 0.058 | 7 1/16 | |||
| 34 | 1.00 0.058 | 7 13/16 | |||
| 34 | 1.00 0.058 | 7 5/16 | |||
| 34 | 1.00 0.058 | 8 3/16 | |||
| 33 lower | 1.00 0.058 | 7 11/16 | |||
| 33 | 1.00 0.058 | 9 15/16 | |||
| 33 | 1.00 0.058 | 9 15/16 | |||
| 33 lower | 1.00 0.058 | 7 11/16 | |||
| 50 | 1.000 3.0 | .75 0.049 | 17 3/4 | ||
| 49 | .75 0.049 | 19 7/16 | |||
| 46 | .75 0.049 | 16 15/16 | |||

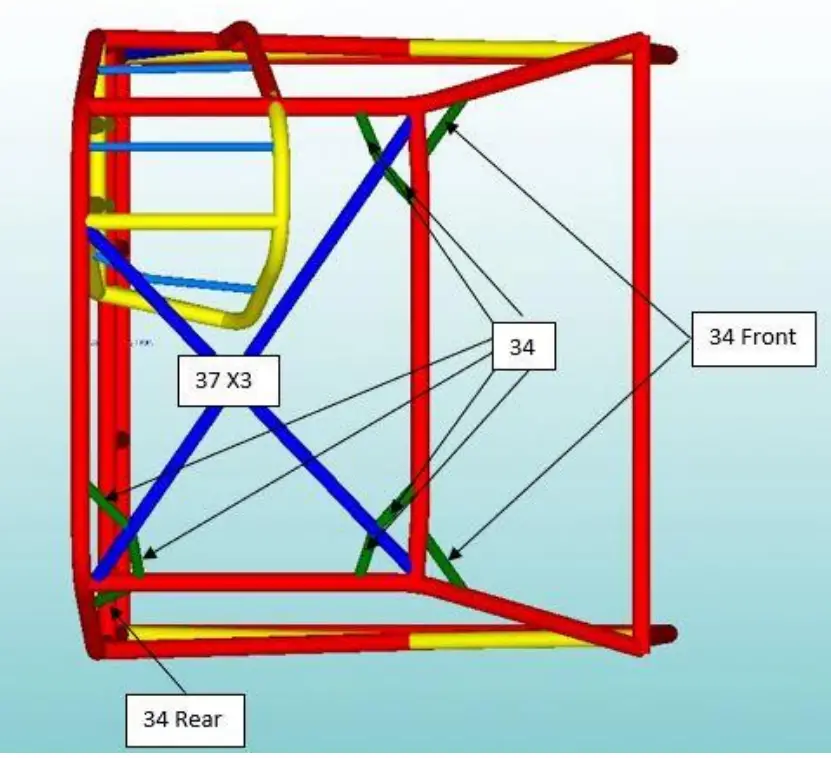

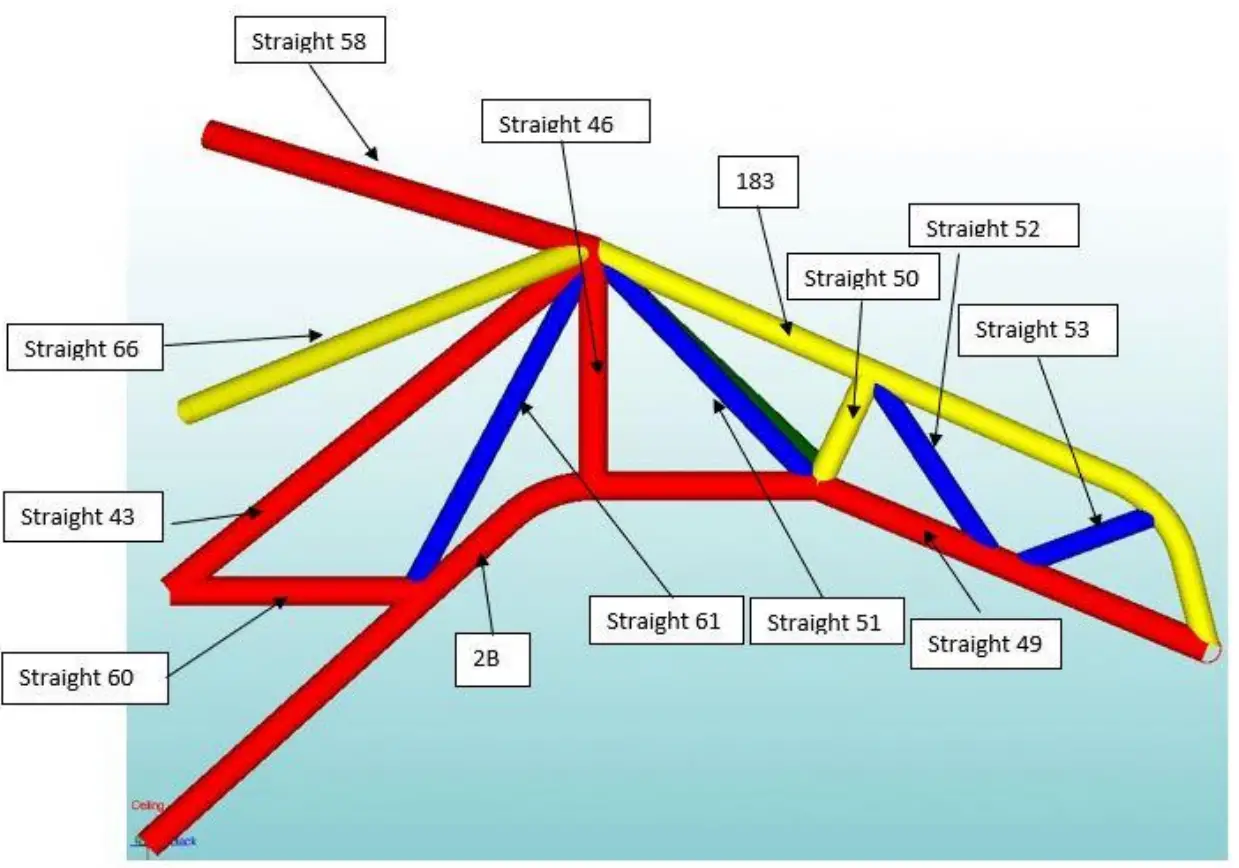

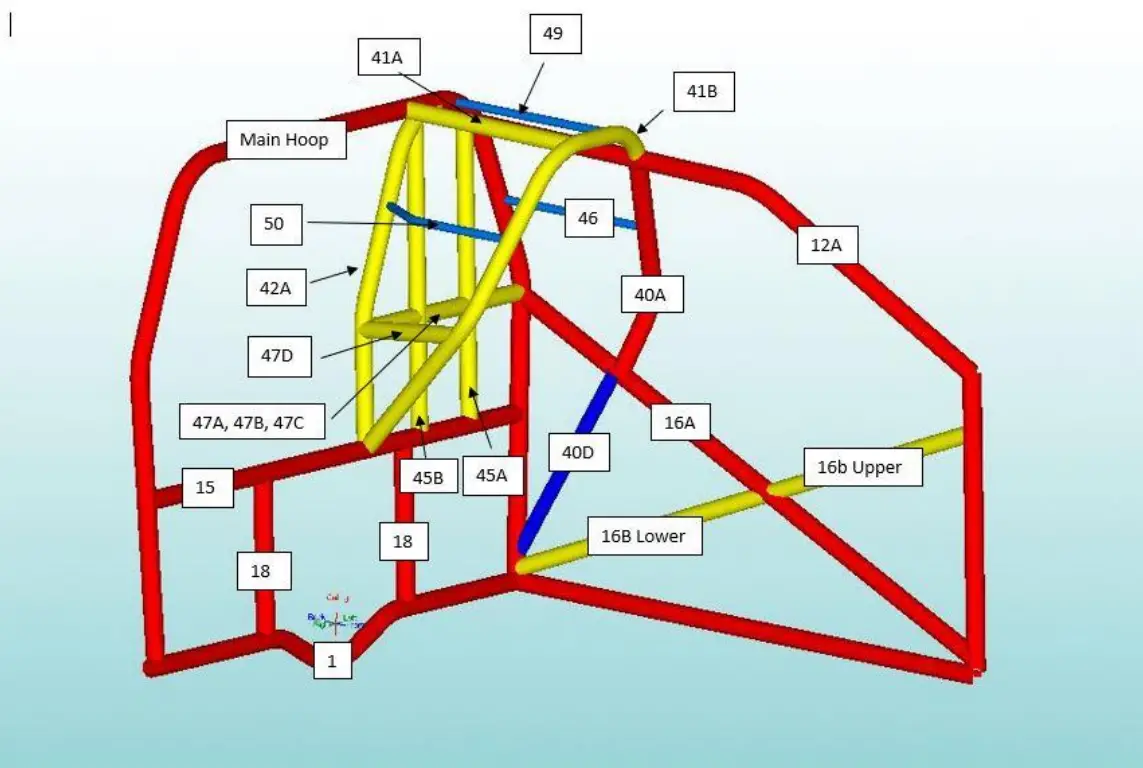

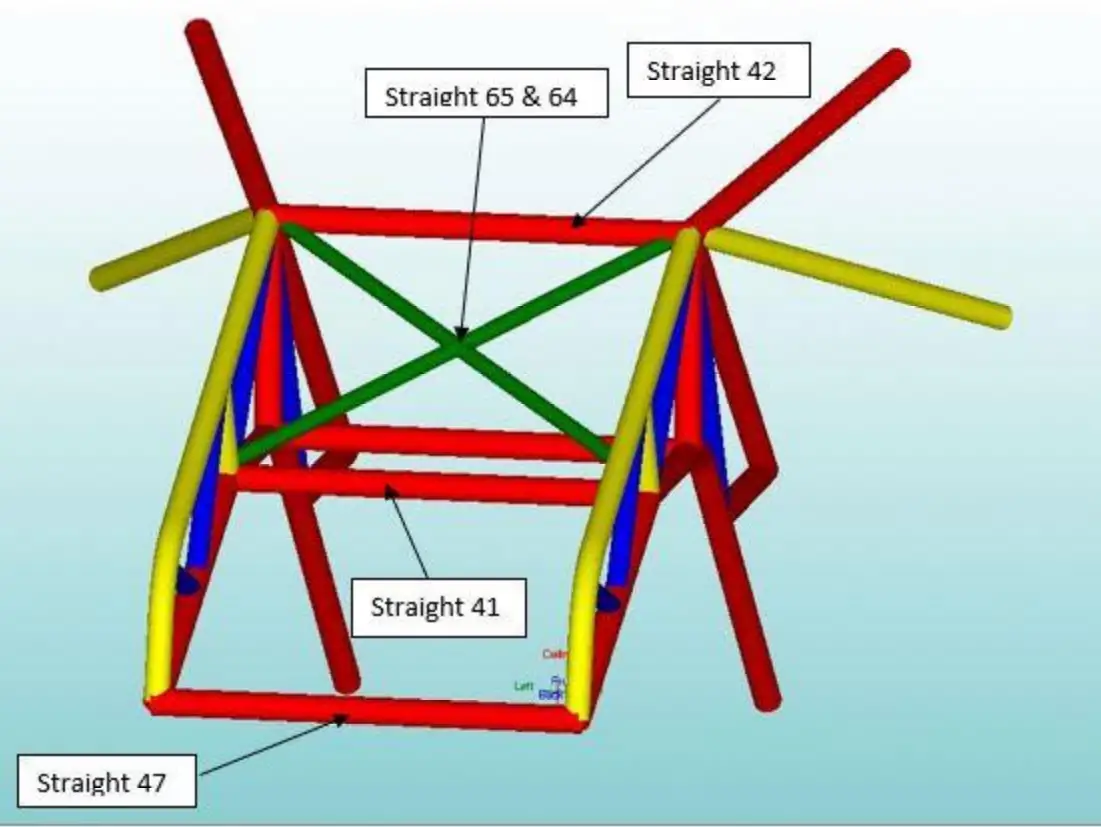

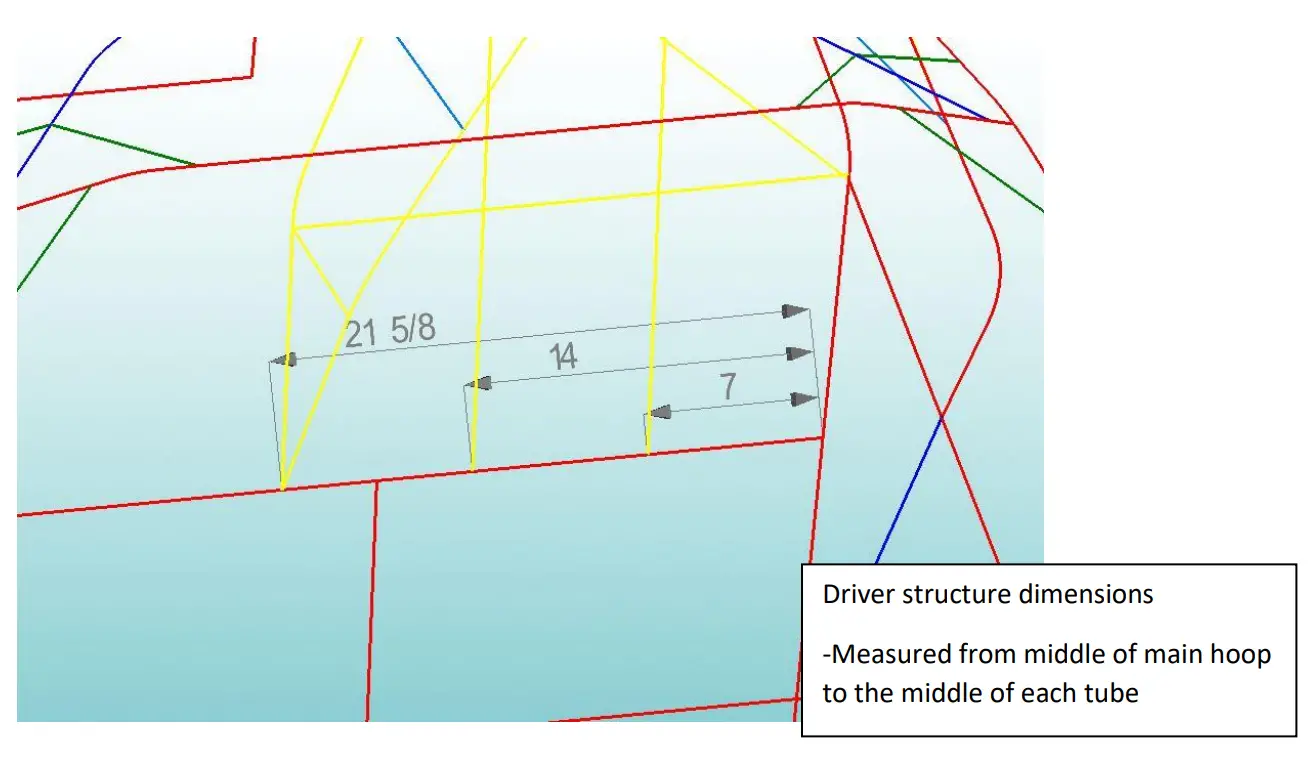

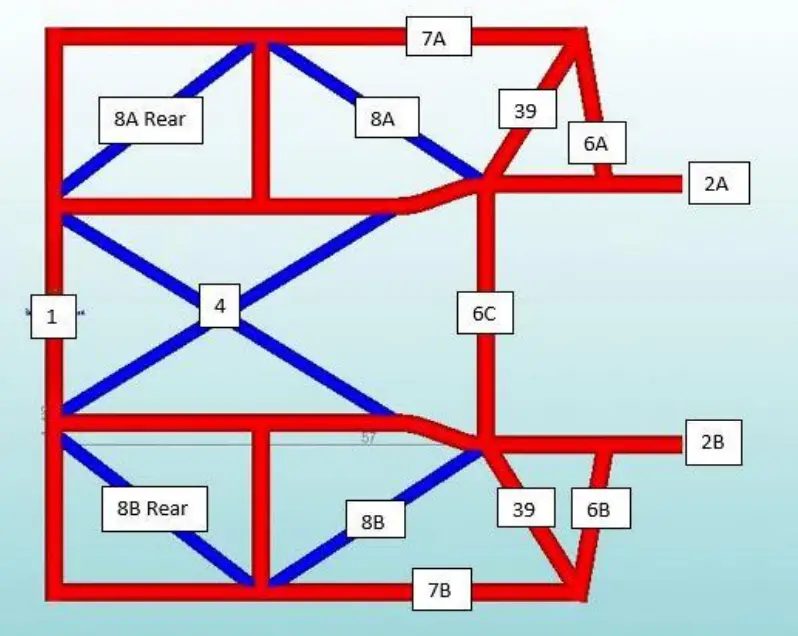

Setting the #1 Bar is very critical to the rest of the cage.
-From the middle of the Factory seat belt mount to the middle of the #1 Bar is 7”
-The plates are flush with the bottom of the pinch weld

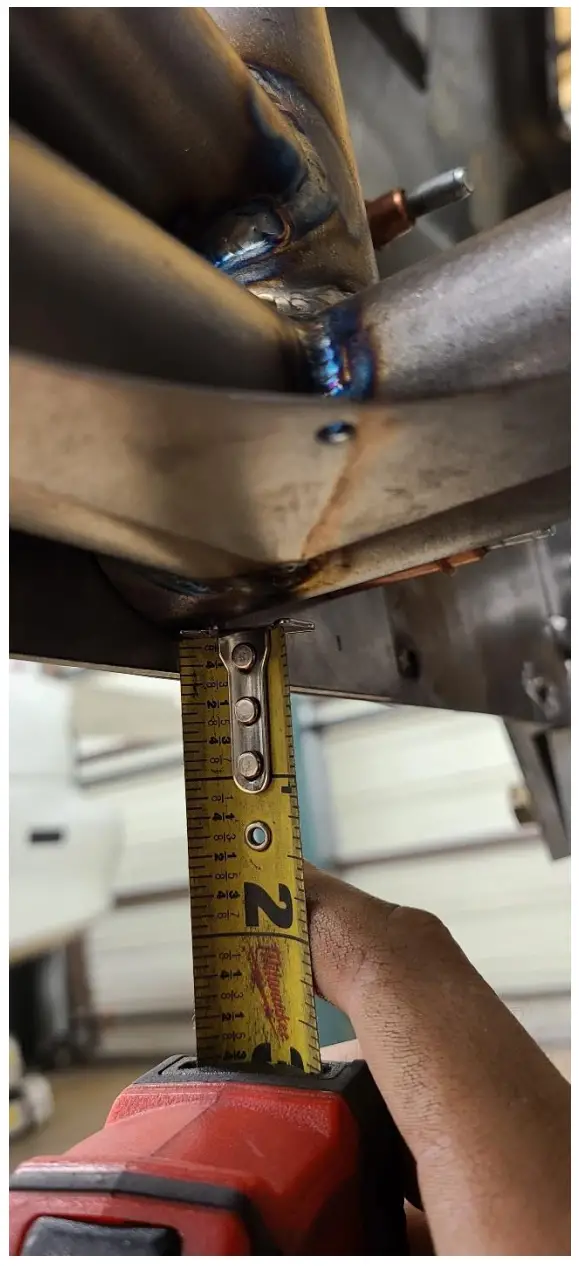

-The bottom of the #1 bar is a 1/4 inch above the bottom Of the plate and pinch weld.

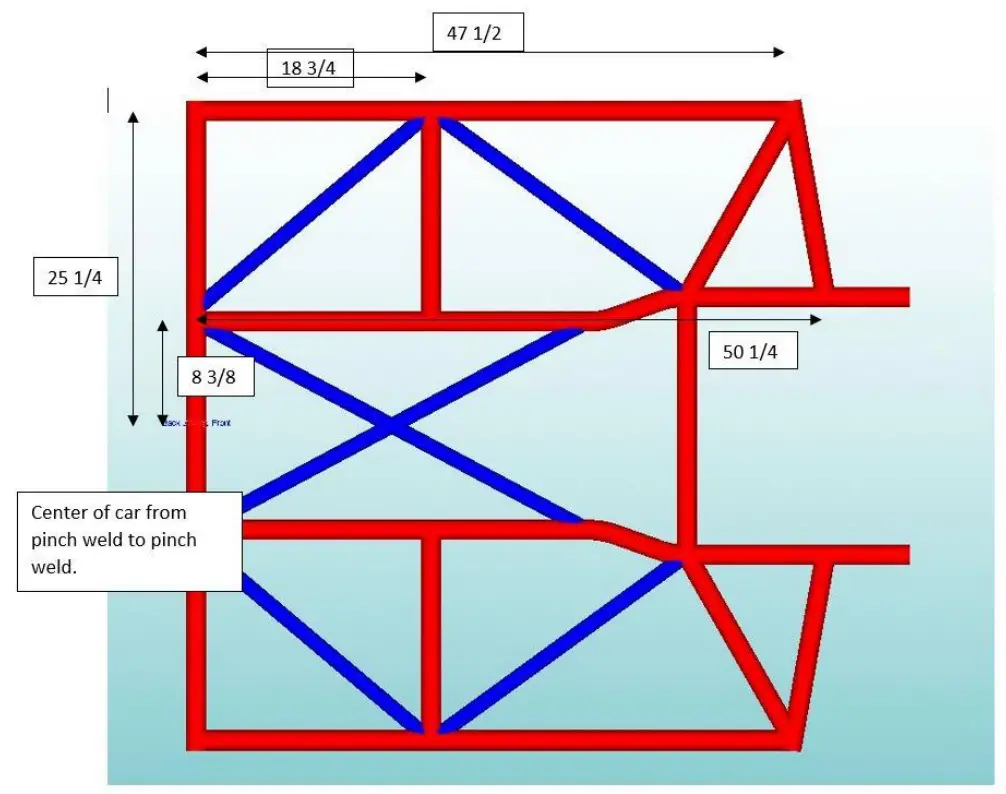

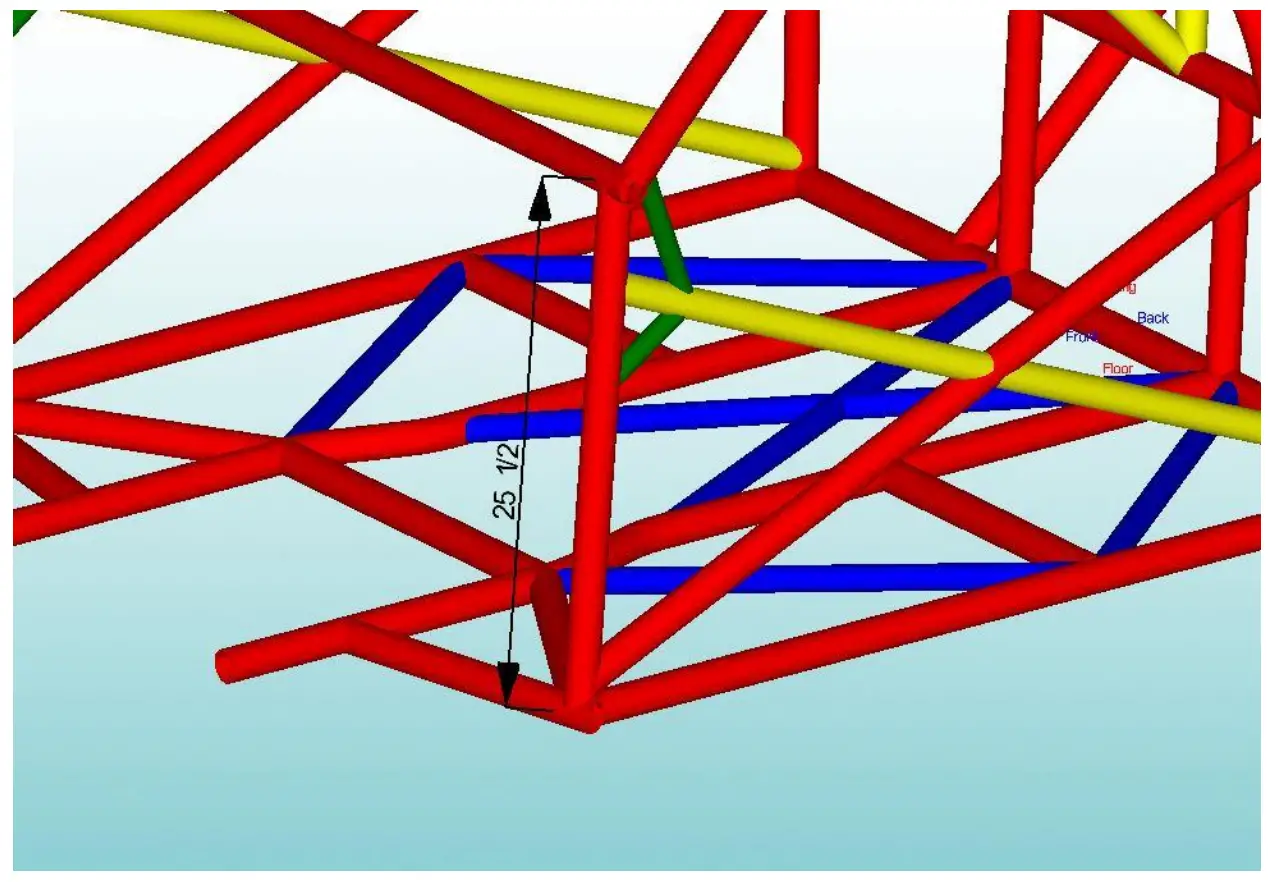

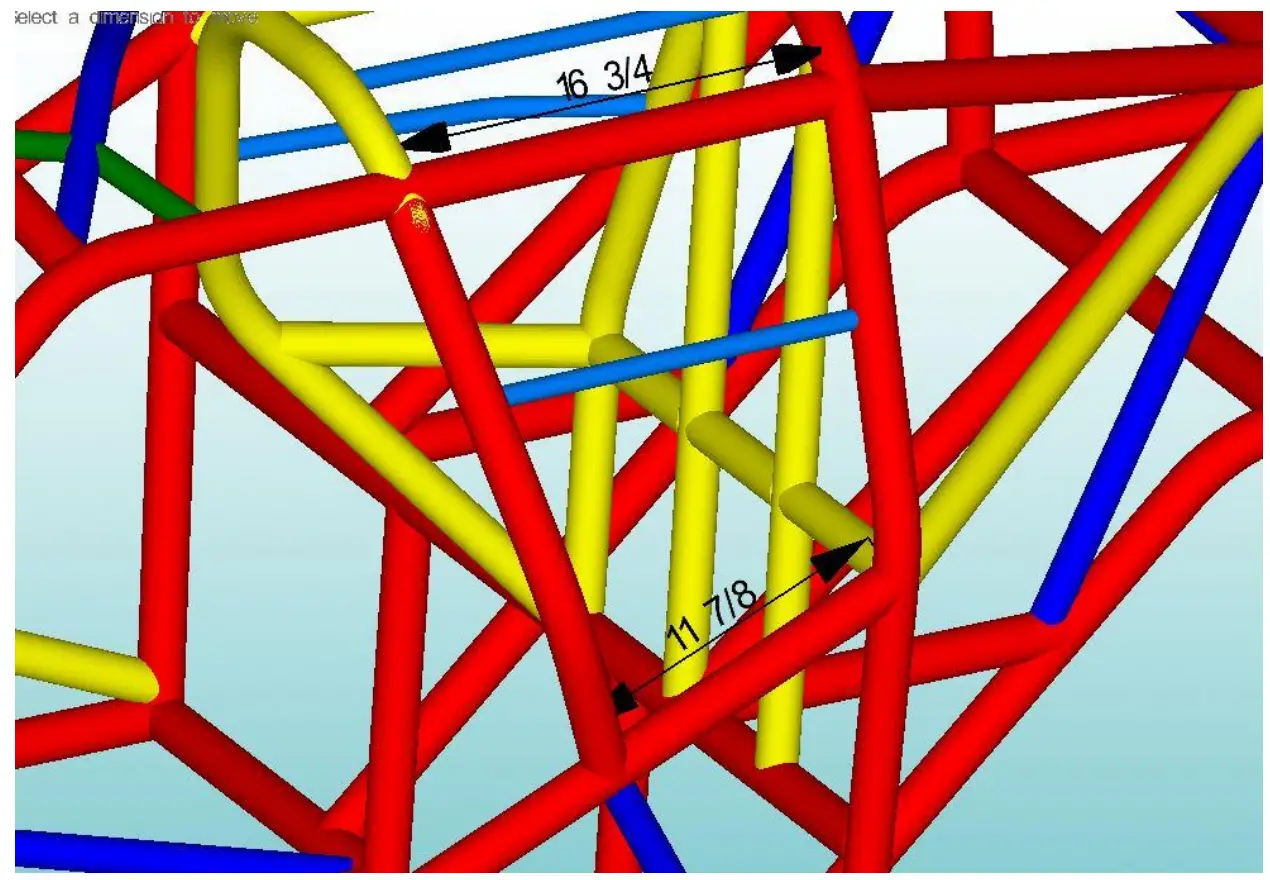

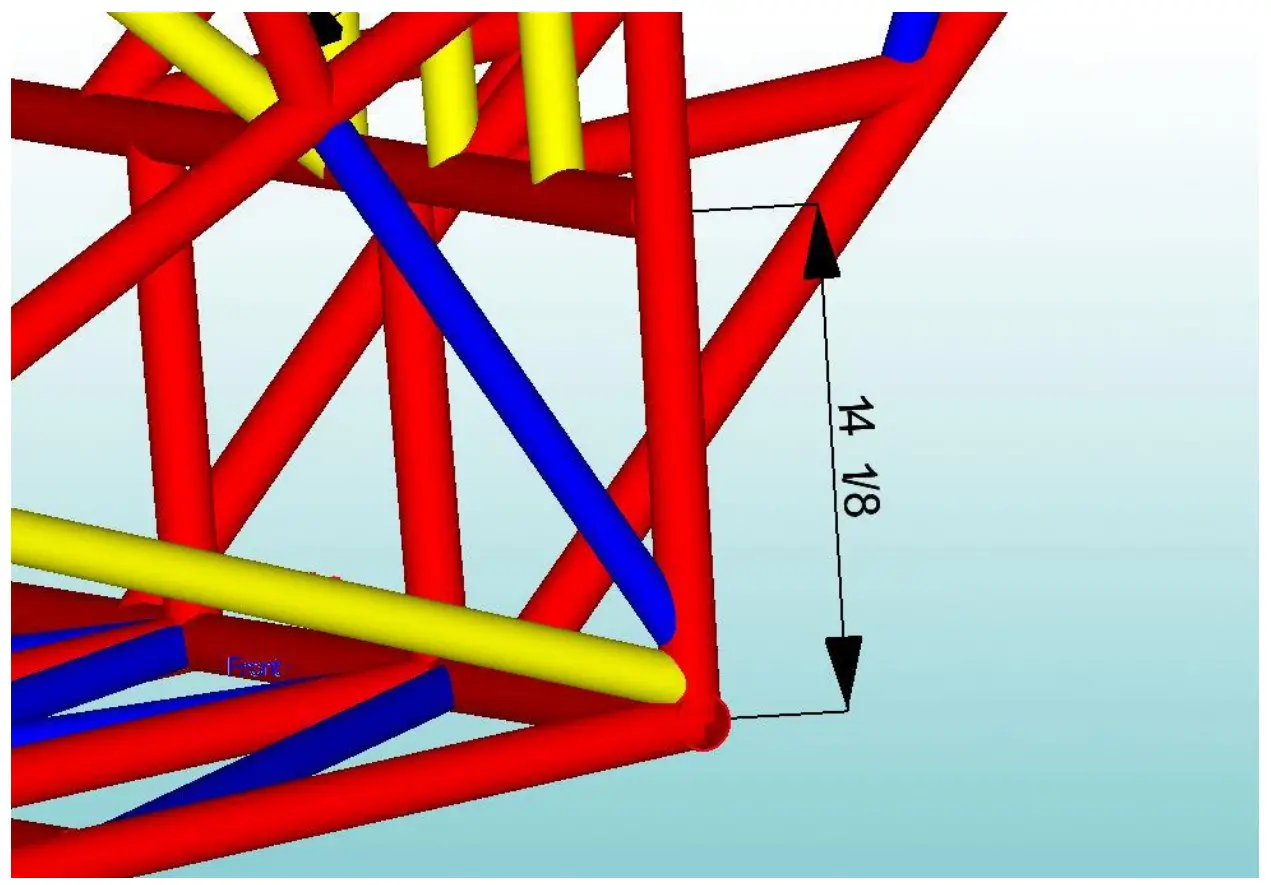

-The below dimensions are to the middle of the tube.
-These are the most critical dimensions and should be followed strictly to ensure a proper fit.
This covers most critical dimensions. If there is anymore you need or want to double check. Please feel free to reach out to us.
