MOORE RACE CHASSIS MRC S197 Cage Kit
We Strongly advise getting a copy of the 25.3 SFI book to refer to for bar locations.
This guide is to be a supplement to common roll cage installation techniques. We are providing you with some measurements to help you set the bars where they need to go to fit other bars. All measurements are not provided. Make sure the car is level, front to back and side to side
Please Make sure all tubes are accounted for when you receive the pallet. MRC is not responsible for missing tubes after 48 hours from the time of delivery

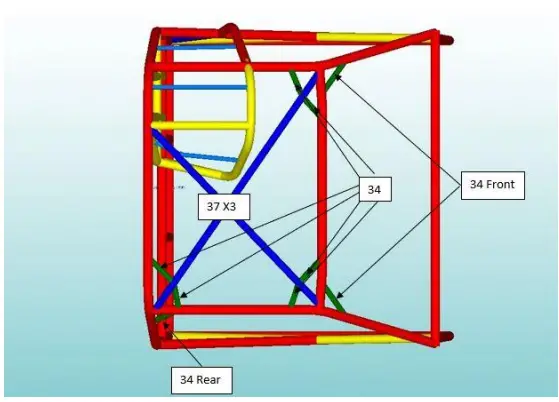

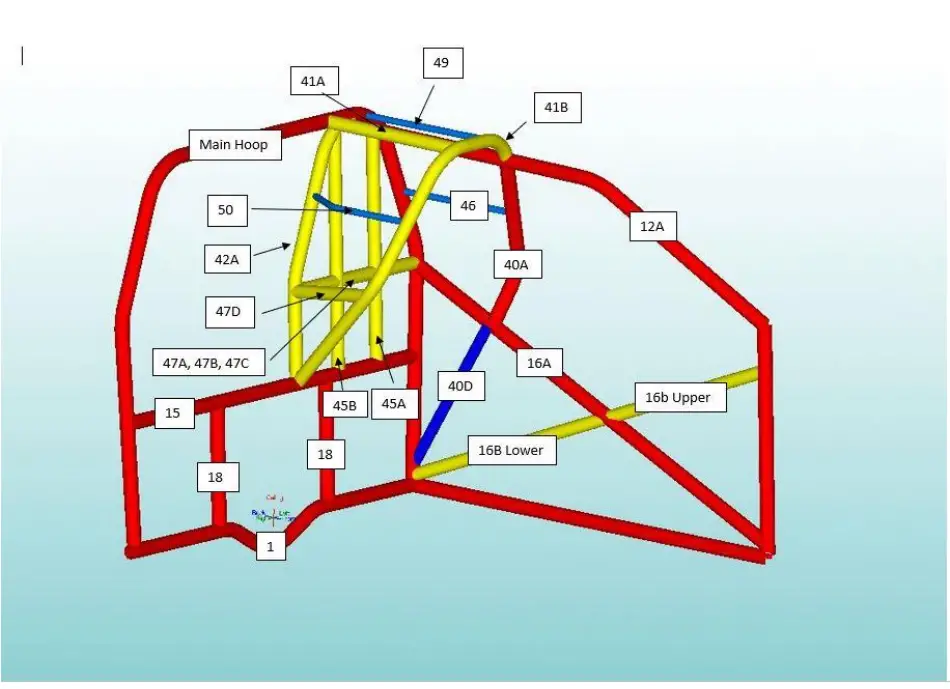

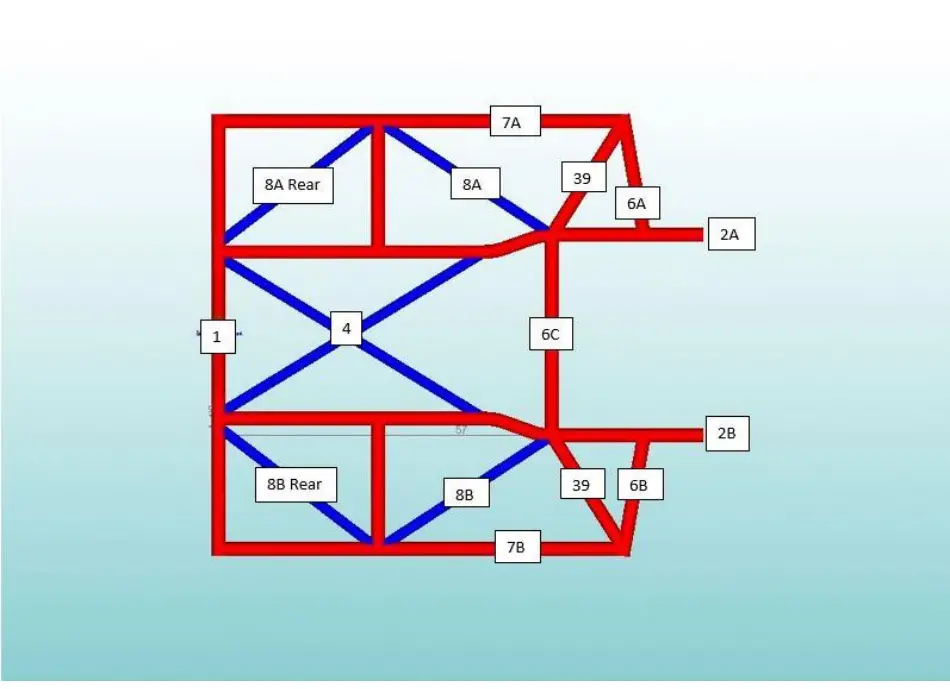

| Part Name | Die | Material | Length |
| 46 | 75 0.049 | 18 7/16 | |
| 50 | 1.0003.0 | 75 0.049 | 21 7/16 |
| 49 | 75 0.049 | 22 7/8 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| Gusset | 1.00 0.058 | 10 | |
| 4C | 1.250 0.058 | 16 1/4 | |
| 4C | 1.250 0.058 | 16 9/16 | |
| 40D | 1.250 0.058 | 20 5/8 | |
| 37 Rear | 1.500 6.5 | 1.250 0.058 | 23 1/4 |
| 8B | 1.250 0.058 | 23 9/16 | |
| 8A | 1.250 0.058 | 23 9/16 | |
| 8B Rear | 1.250 0.058 | 29 1/8 | |
| 8A Rear | 1.250 0.058 | 29 1/8 | |
| 4C | 1.250 5.5 | 1.250 0.058 | 30 3/4 |
| 37 Rear | 1.500 6.5 | 1.250 0.058 | 33 1/8 |
| 37 | 1.5006.5 | 1.250 0.058 | 46 3/4 |
| 47B | 1.500 0.065 | 9 | |
| 47C | 1.500 0.065 | 9 5/8 | |
| 47A | 1.500 0.065 | 9 13/16 | |
| 47D | 1.500 0.065 | 15 | |
| 41A | 1.500 0.065 | 22 7/8 | |
| 16B Upper | 1.500 0.065 | 26 7/16 | |
| 17B Upper | 1.500 0.065 | 26 7/16 | |
| 45A | 1.500 0.065 | 26 5/8 | |
| 45B | 1.500 0.065 | 27 5/16 | |
| 16B Lower | 1.500 0.065 | 28 3/16 | |
| 17B Lower | 1.500 0.065 | 28 3/16 | |
| 42A | 1.500 6.5 | 1.500 0.065 | 32 11/16 |
| 41B | 1.5006.5 | 1.500 0.065 | 47 13/16 |
| Forward Strut | 1.500 6.5 | 1.500 0.065 | 72 5/16 |
| Forward Strut | 1.500 6.5 | 1.500 0.065 | 72 5/16 |
| Tube front bar | 1.500 6.5 | 1.500 0.065 | 81 7/8 |
| 6A | 1.625 0.083 | 18 15/16 | |
| 6B | 1.625 0.083 | 18 15/16 | |
| 18 | 1.625 6.5 | 1.625 0.083 | 20 1/4 |
| 18 | 1.6256.5 | 1.625 0.083 | 20 1/4 |
| 6C | 1.625 0.083 | 21 | |
| 9 | 1.625 0.083 | 21 3/16 | |
| 9B | 1.625 0.083 | 21 3/16 | |
| 39 | 1.625 0.083 | 21 15/16 | |
| 39 | 1.625 0.083 | 2115/16 | |
| 40A | 1.6256.5 | 1.625 0.083 | 23 3/8 |
| 12B Cont | 1.625 0.083 | 30 7/8 | |
| 12A Cont | 1.625 0.083 | 30 7/8 | |
| 51B | 1.625 0.083 | 36 13/16 | |
| 51B | 1.625 0.083 | 3613/16 | |
| 13 | 1.6256.5 | 1.625 0.083 | 44 1/2 |
| 7A | 1.625 0.083 | 49 | |
| 7B | 1.625 0.083 | 49 | |
| 15 | 1.625 0.083 | 54 5/8 | |
| #1 | 1.625 6.5 | 1.625 0.083 | 55 1/8 |
| 11 | 1.625 0.083 | 55 3/8 | |
| 16A | 1.625 0.083 | 57 1/8 | |
| 16B | 1.625 0.083 | 57 1/8 | |
| 2A | 1.625 6.5 | 1.625 0.083 | 57 3/8 |
| 2A | 1.625 6.5 | 1.625 0.083 | 57 3/8 |
| 12B | 1.6256.5 | 1.625 0.083 | 59 1/2 |
| 12A | 1.6256.5 | 1.625 0.083 | 59 1/2 |
| Main Hoop | 1.6256.5 | 1.625 0.083 | 132 1/16 |
OVERVIEWS
Main hoop lean back is 5 degrees.

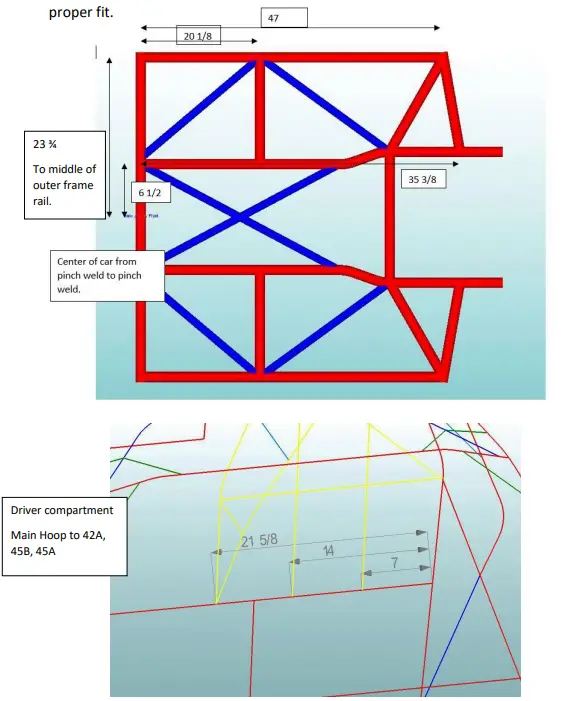

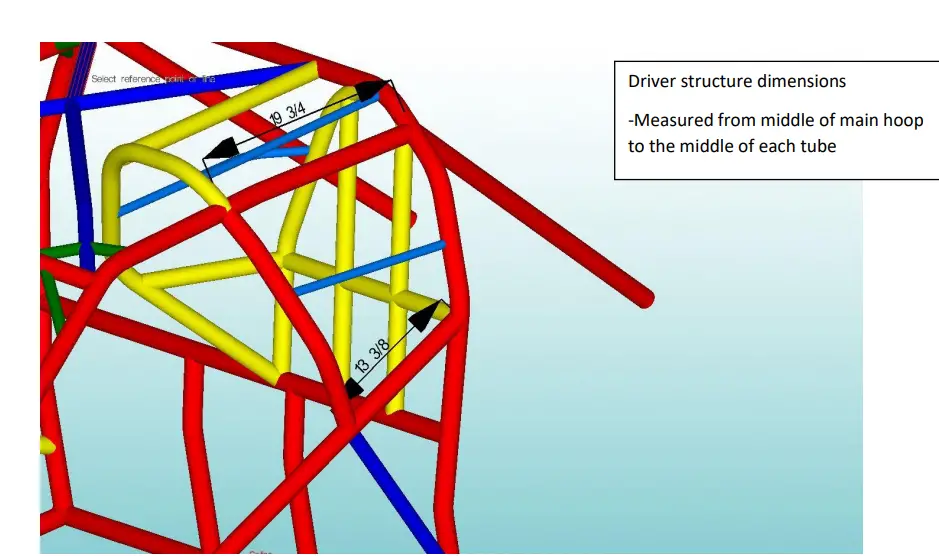

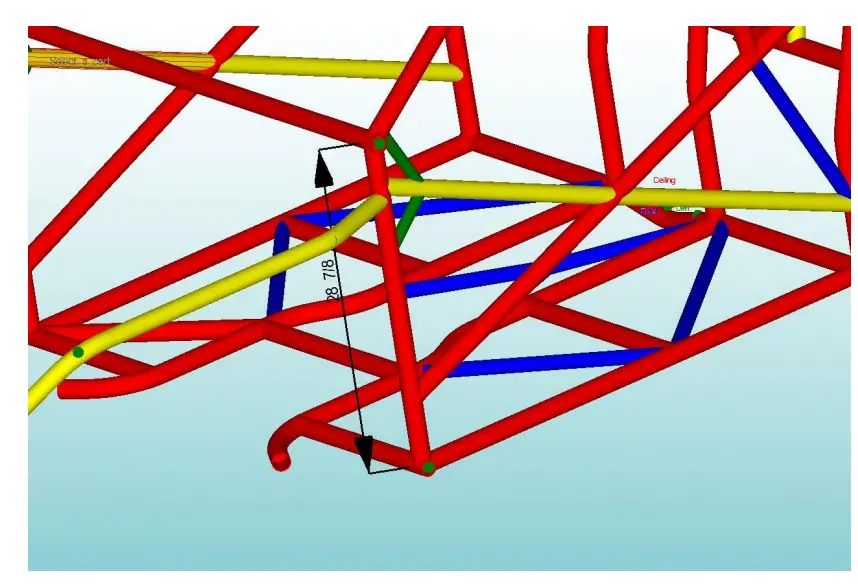

-The below dimensions are to the middle of the tube.
-These are the most critical dimensions and should be followed strictly to ensure a proper fit.
This covers most critical dimensions. If there is anymore you need or want to double check. Please feel free to reach out to us.
Warranty: There is no warranty stated or implied due to unusual stresses placed on race cars and components because we have no control over how they are maintained and used. Moore Race Chassis and fabrication LLC accepts no liability for failures of racing products manufactured or sold by MRC. The customer accepts all risks involved with racing and hazards thereof, MRC makes no claims nor does it intend for it’s products to be used on street driven vehicles.

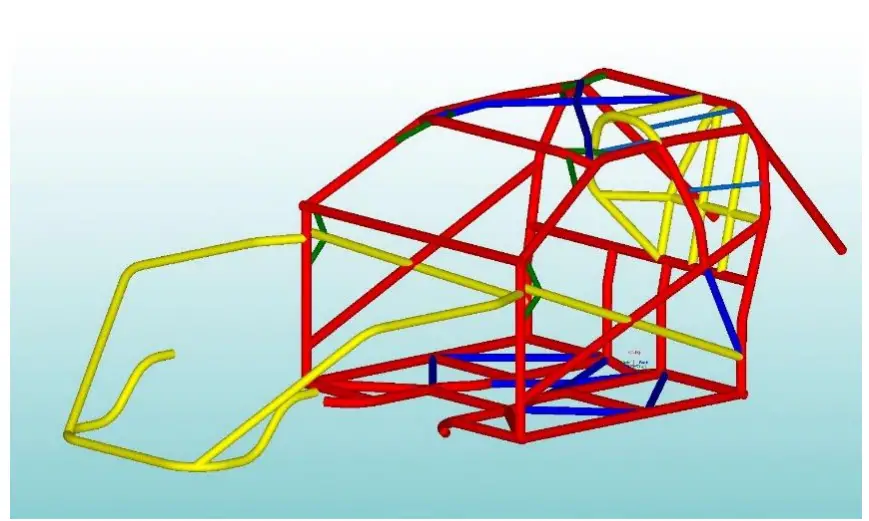

MRC S197 25.3 Cage Kit with standard down bars
Thank you for choosing MRC for your cage kit!
We hope we made this as painless as possible.
If there are any questions this sheet doesn’t cover, please contact us by phone, Email or Facebook Messenger.
Phone – (636) 791 1541
Email – [email protected]
