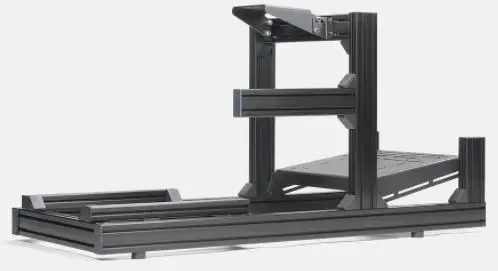

Sim-lab Slc001 Gt1-evo Racing Cockpit Instruction Manual (+ PDF)

Contents hide

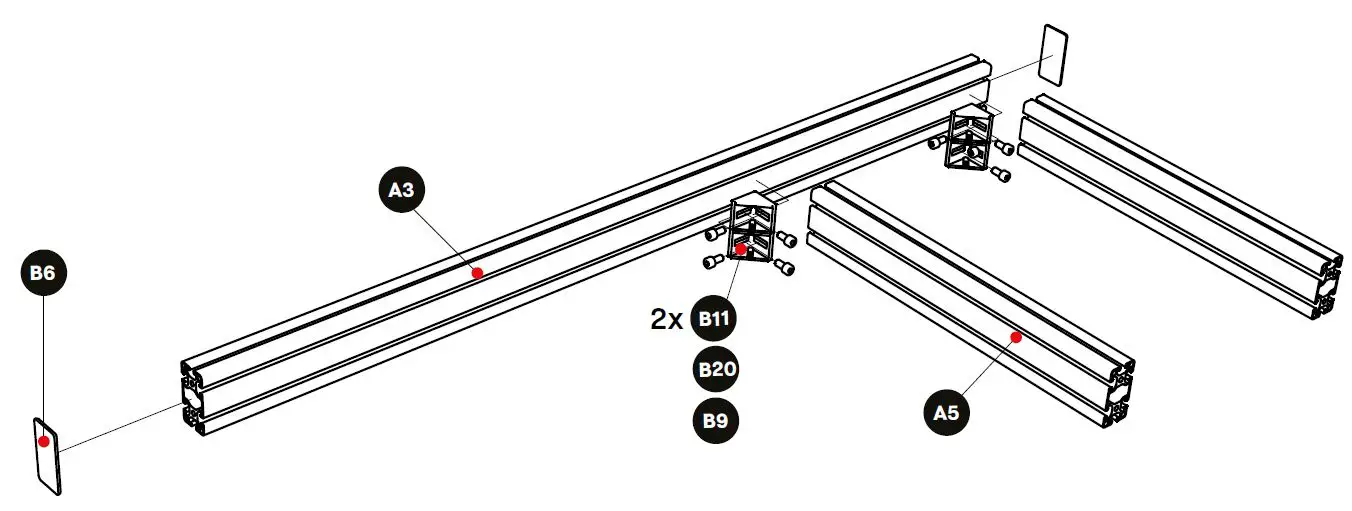

STEP 1: Attach cross memer profiles to the base

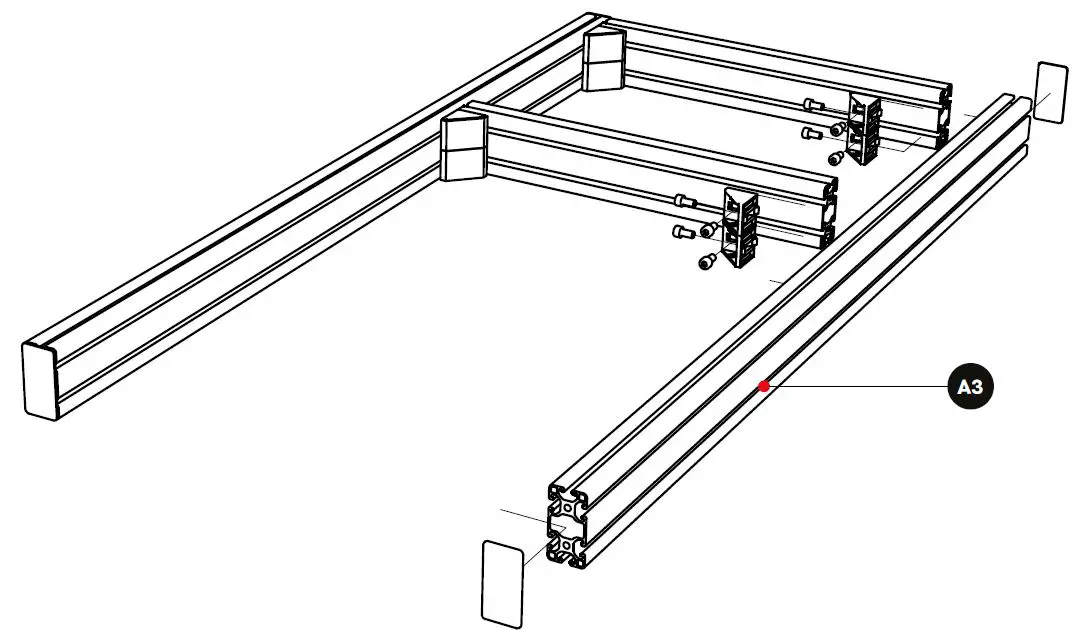

STEP 2: Attach second base profile to the assembly.

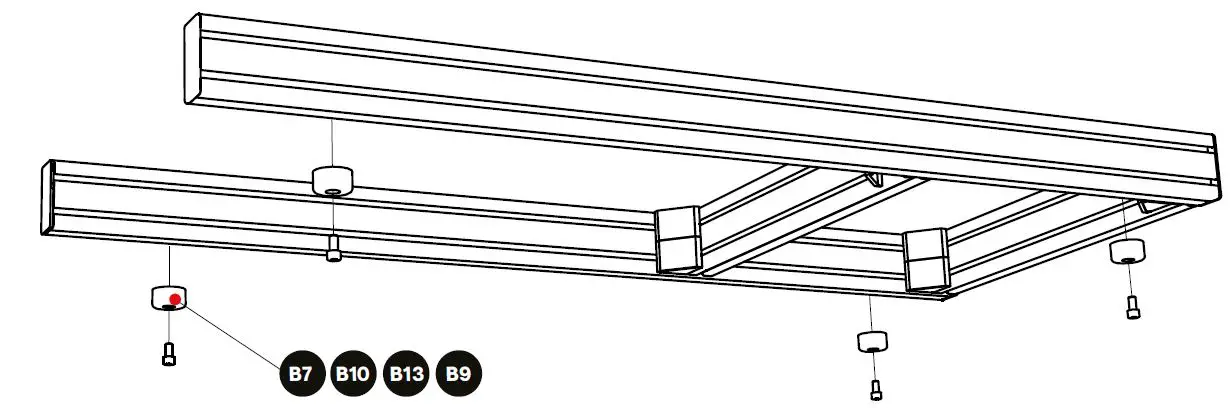

STEP 3: Once the base frame is assembled, attach the rubber feet to the ottom

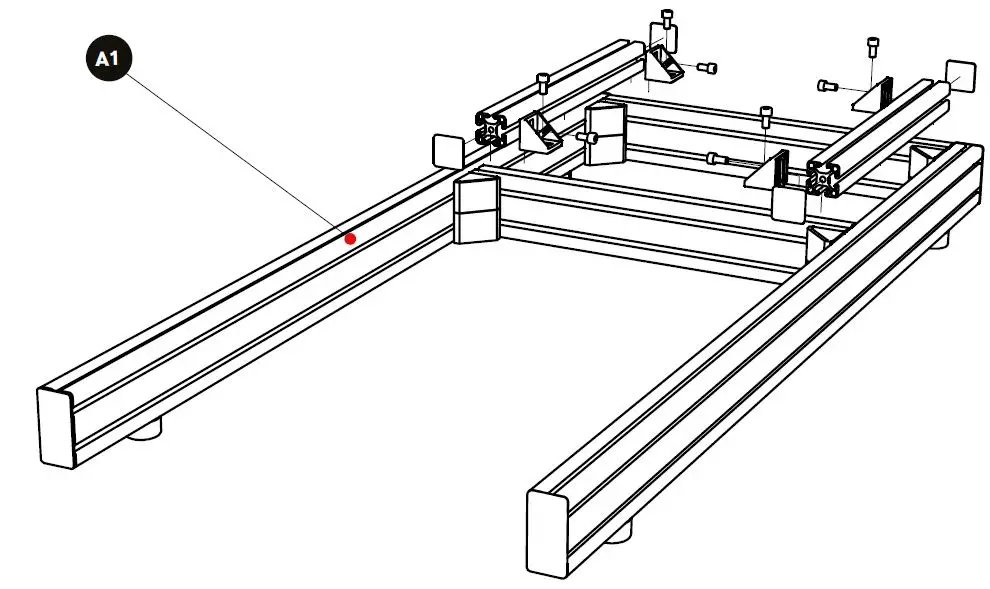

STEP 4: Add seat rail profiles

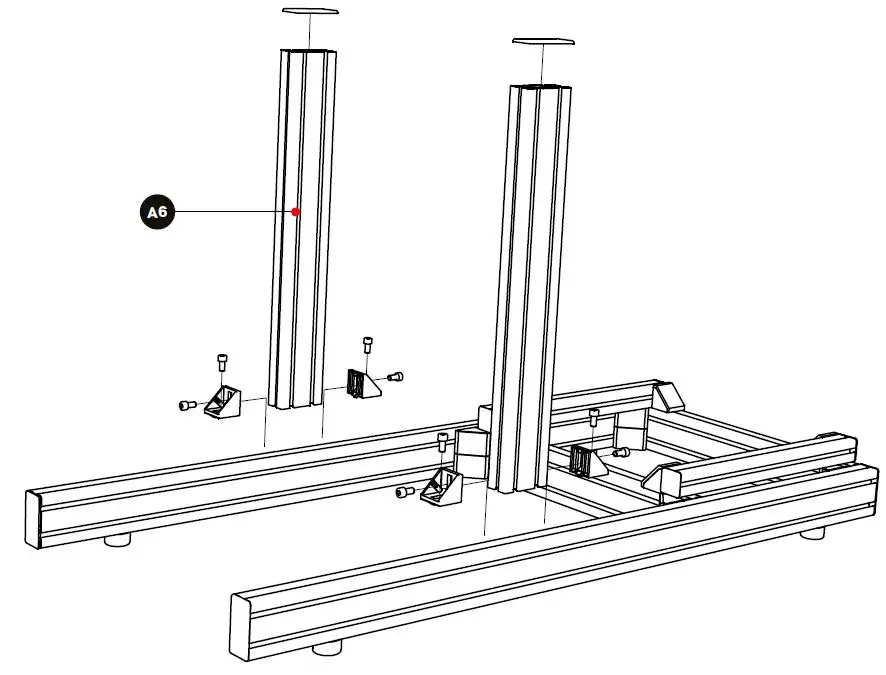

STEP 5: Attach the uprights

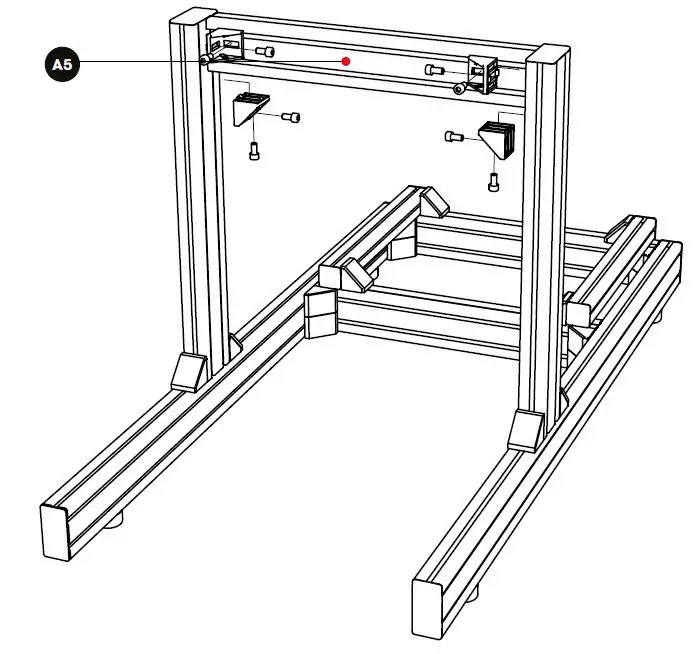

STEP 6: Attach the wheeldeck holder profile

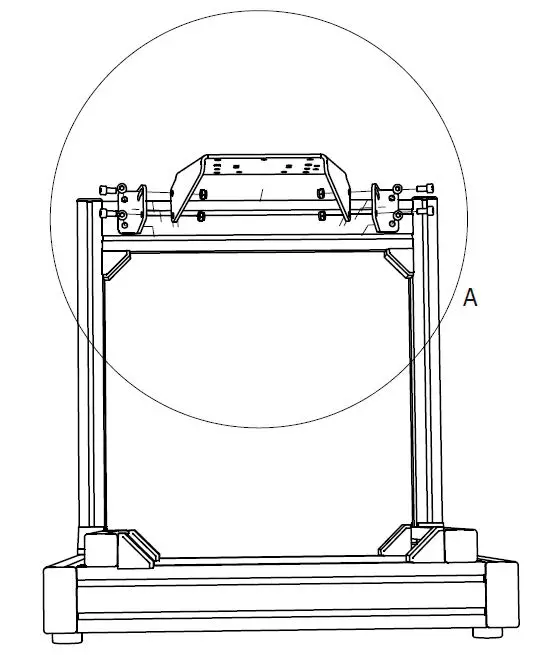

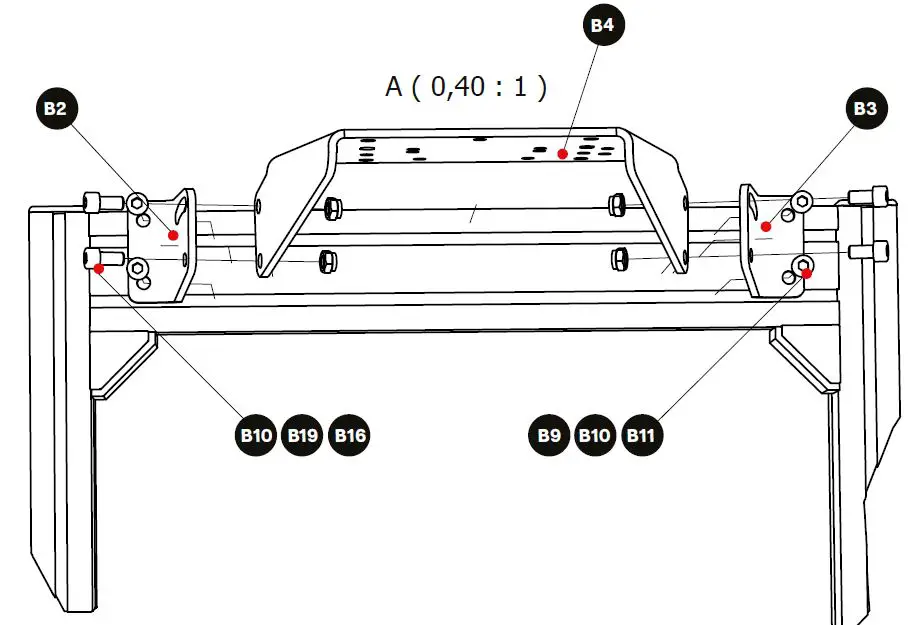

STEP 7: Attach the wheeldeck to the profile

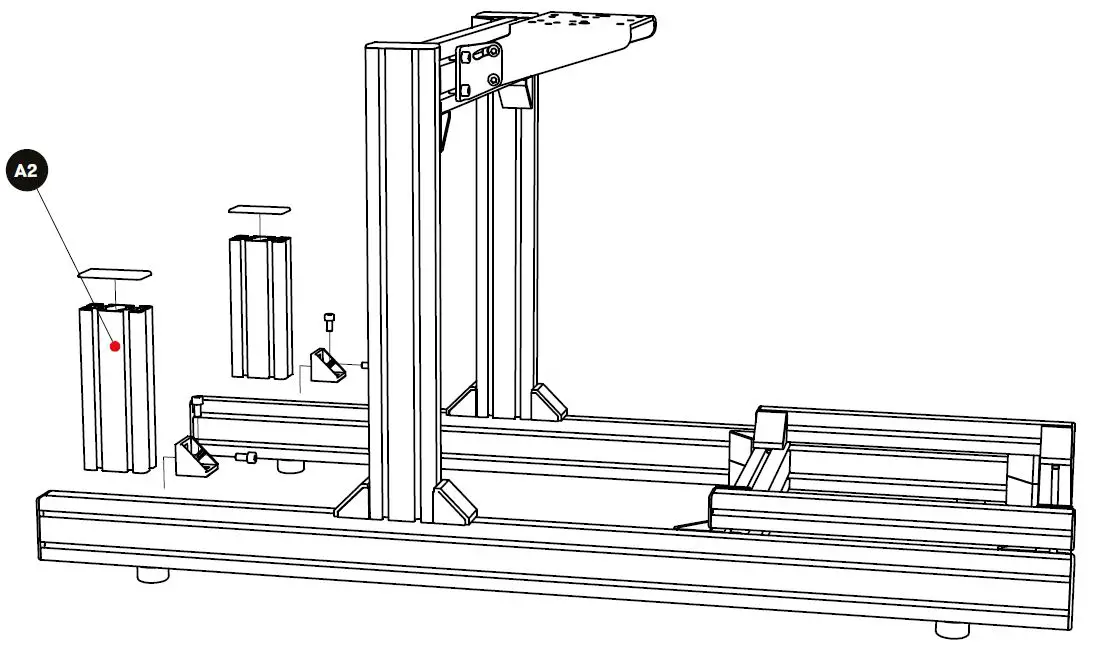

STEP 8: Attach the pedal upright profiles

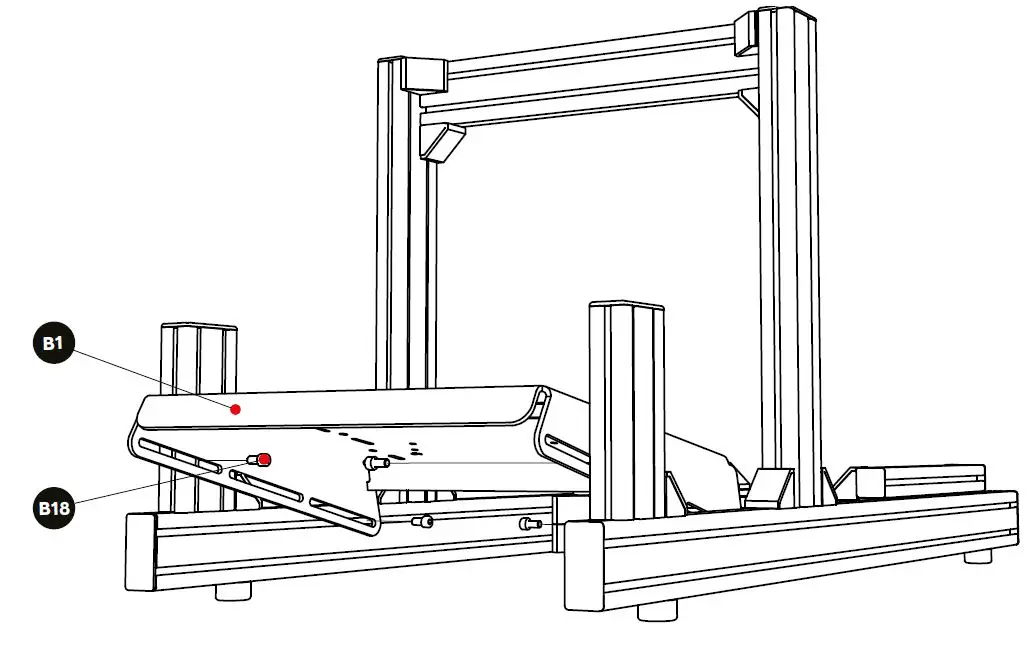

STEP 9: Attach the pedal deck bracket

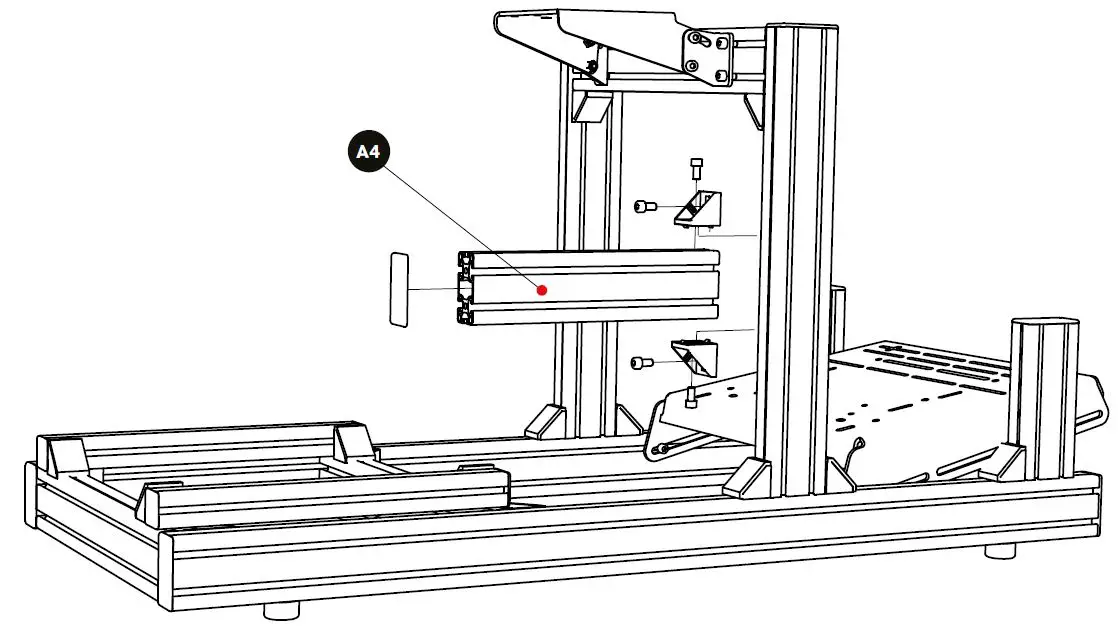

STEP 10: Attach the side mount

B2	GT1 EVO wheeldeck pivot plate (LEFT)	1	Units
B3	GT1 EVO wheeldeck pivot plate (RIGHT)	1	Units
B4	GT1 EVO wheeldeck plate	1	Units
B5	End cap profile (40x40L)	4	Units
B6	End cap profile (40x80L)	9	Units
B7	Rubber feet	4	Units

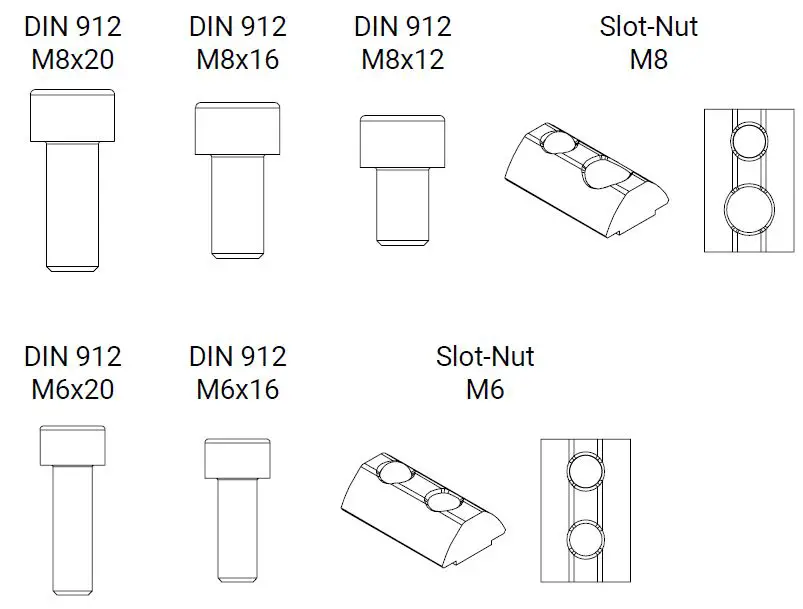

B8	Slot 8 nut (M6)	12	Units	Bag HW 20.A
B9	Slot 8 nut (M8)	75	Units	Bag HW 20.B
B10	Washer (Black steel, M8, Plain black)	12	Units	Bag HW 20.D
B11	Bolt – DIN 912 (Black steel, 16mm, M8)	72	Units	Bag HW 20.C
B12	Bolt – DIN 912 (Black steel, 16mm, M6)	10	Units	Bag HW 20.D
B13	Bolt – DIN 912 (Black steel, 20mm, M6)	20	Units	Bag HW 20.D

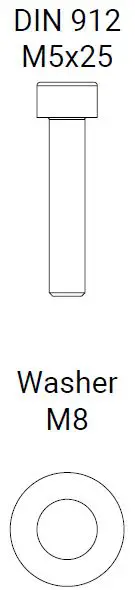

B14	Bolt – DIN 912 (Black steel, 25mm, M5)	12	Units	Bag HW 20.D
B15	Bolt – DIN 912 (Black steel, 12mm, M8)	4	Units	Bag HW 20.D
B16	Bolt – DIN 912 (Black steel, 20mm, M8)	8	Units	Bag HW 20.D

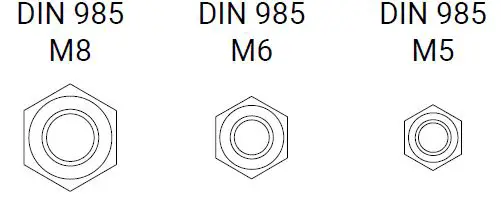

B17	Nut (M5, DIN 985 locknut, Galvanised)	12	Units	Bag HW 20.D
B18	Nut (M6, DIN 985 locknut, Galvanised)	12	Units	Bag HW 20.D
B19	Nut (M8, DIN 985 locknut, Galvanised)	8	Units	Bag HW 20.D
B20	Corner bracket + cover cap	28	Units
