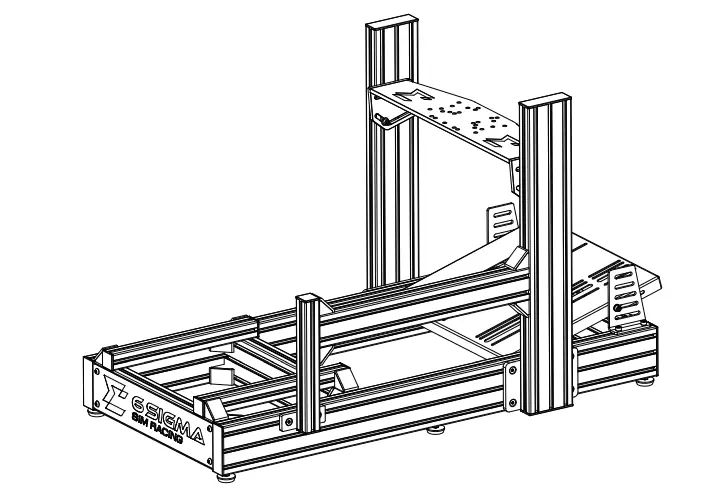

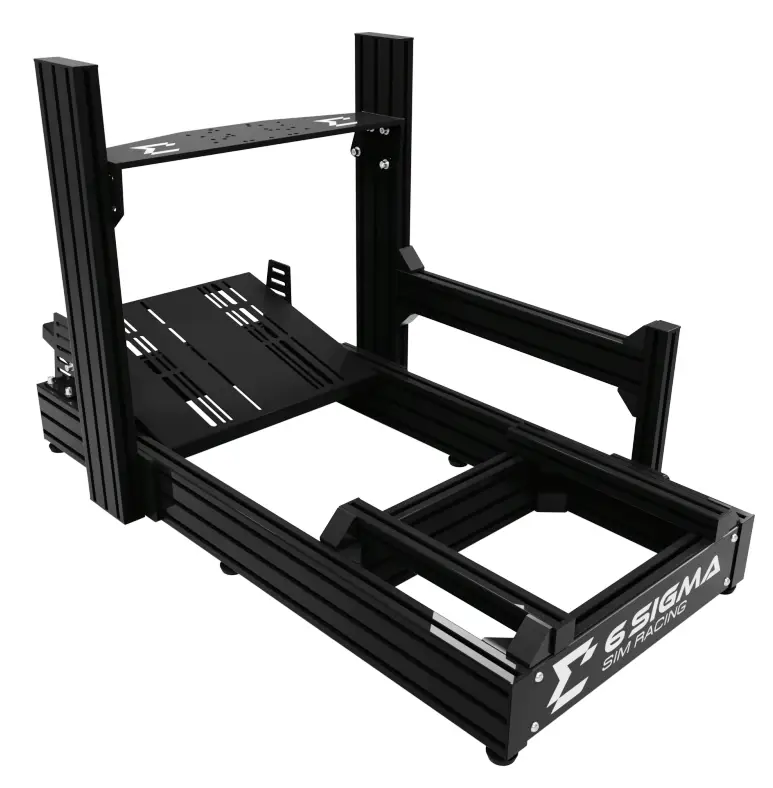

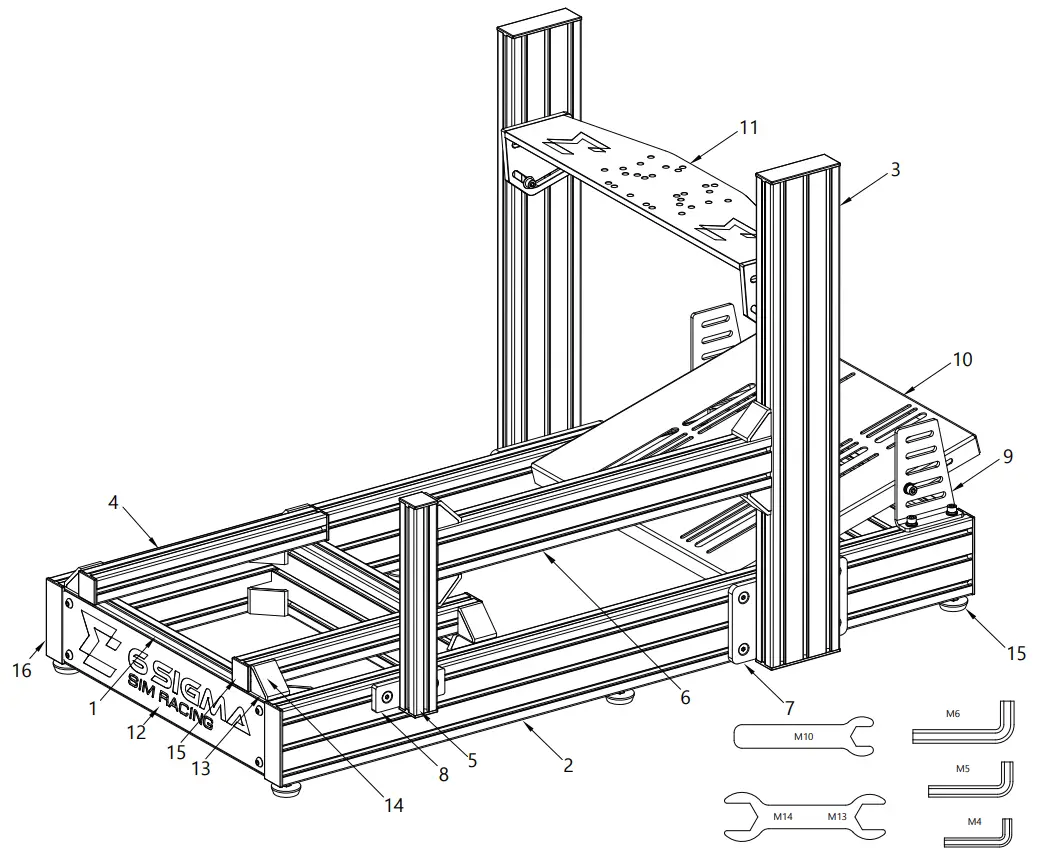

6 SIGMA 6S-120 Sim Racing Chassis

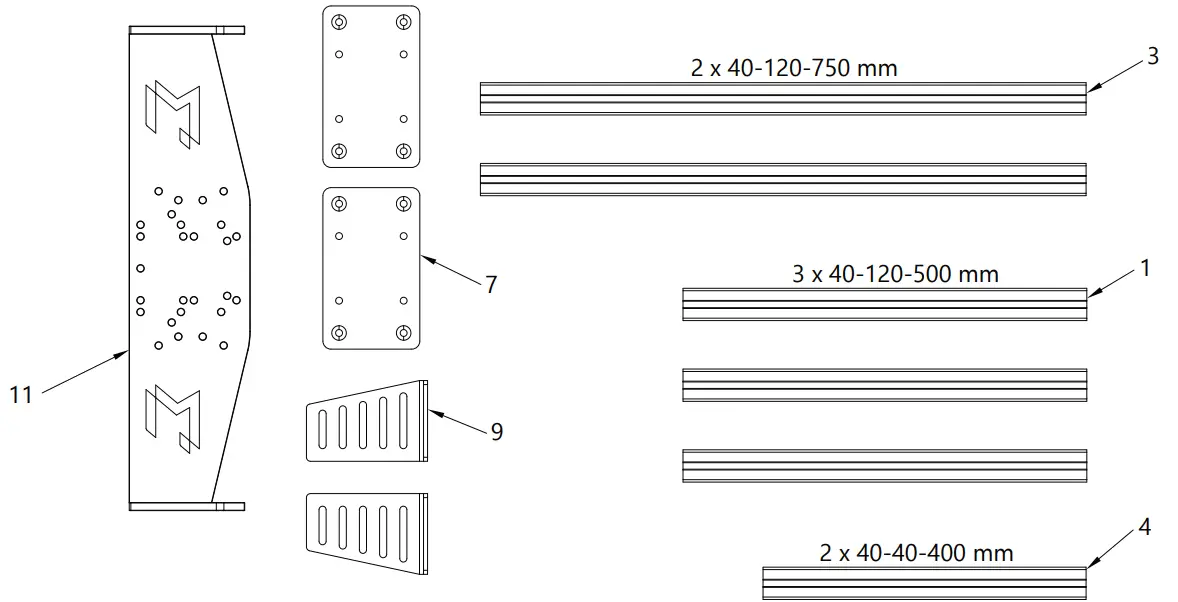

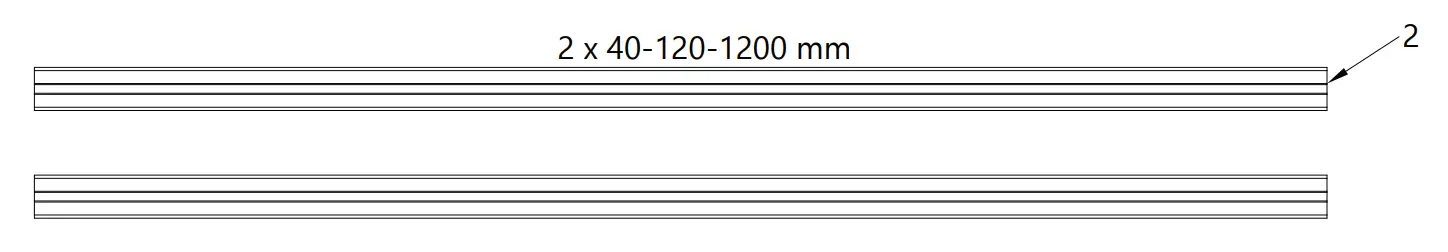

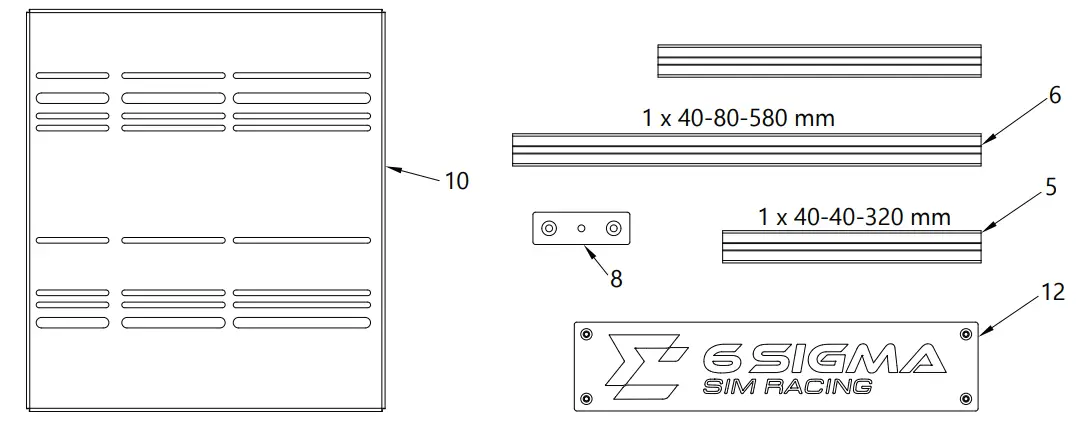

PARTS
- 2-M8 NUT
- 4-M8x12
- 48-M8x16
- 6-M8x20
- 19-M8x20

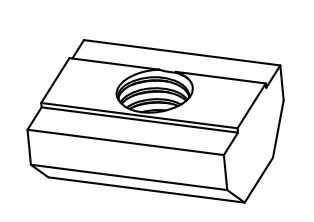

- 83-M8 T-NUT

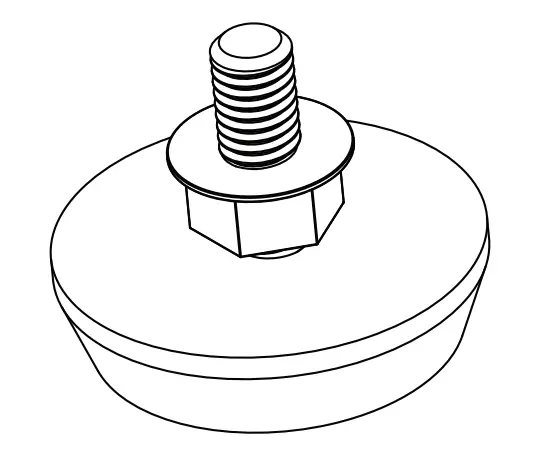

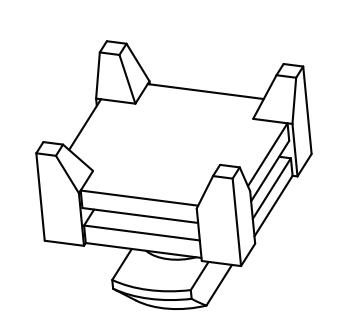

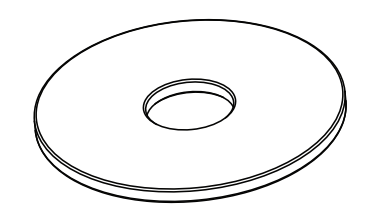

- 6-FOOT PAD
- 10-TIE DOWN

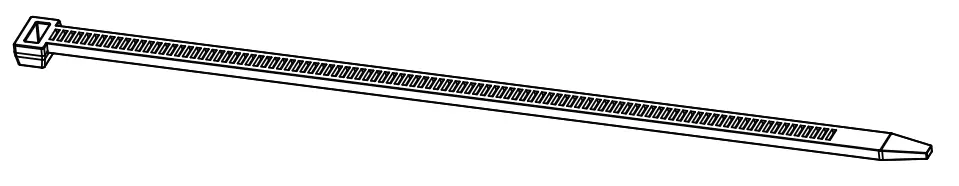

- 10-CABLE TIE

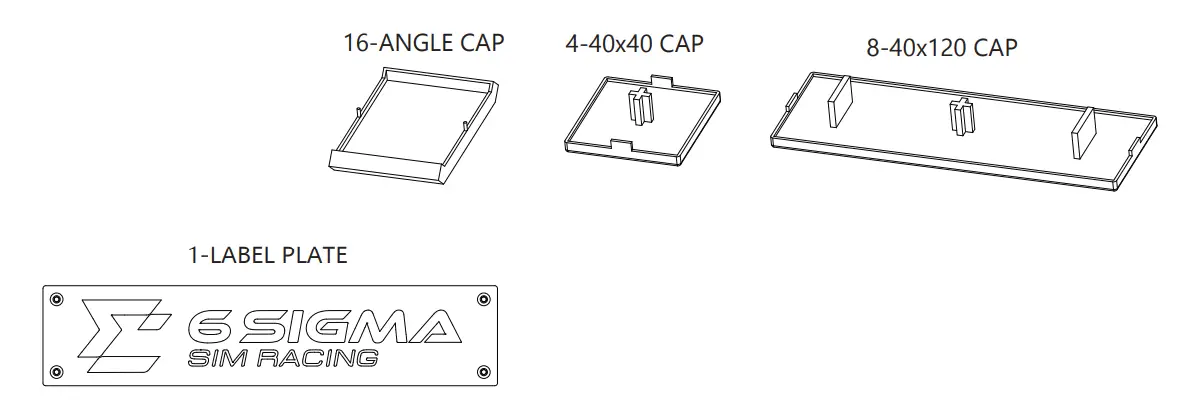

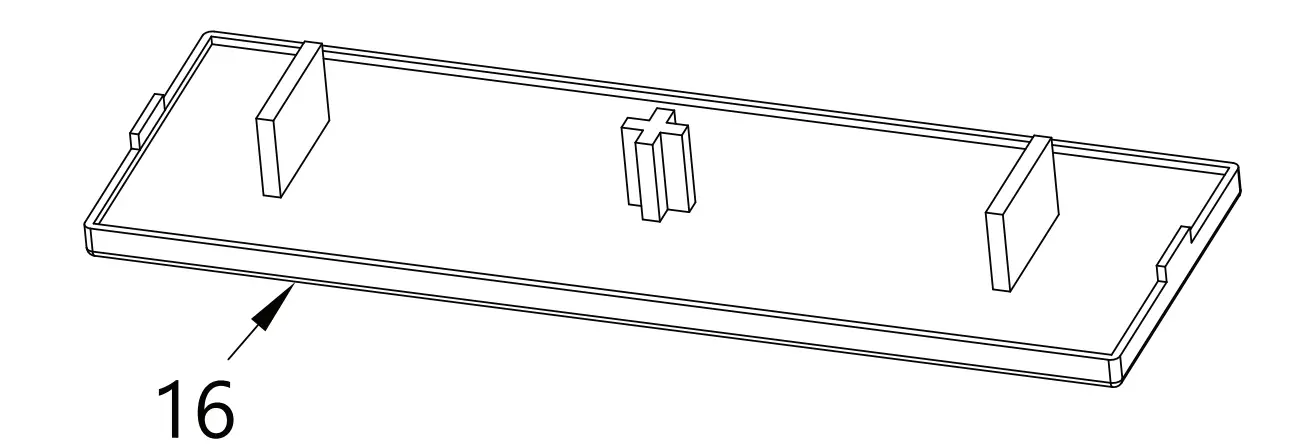

- 8-40×120 CAP

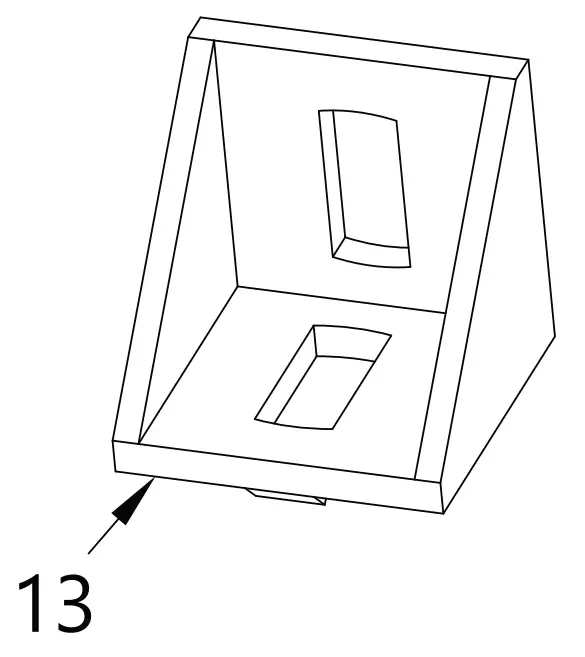

- 20-40×40 ANGLE

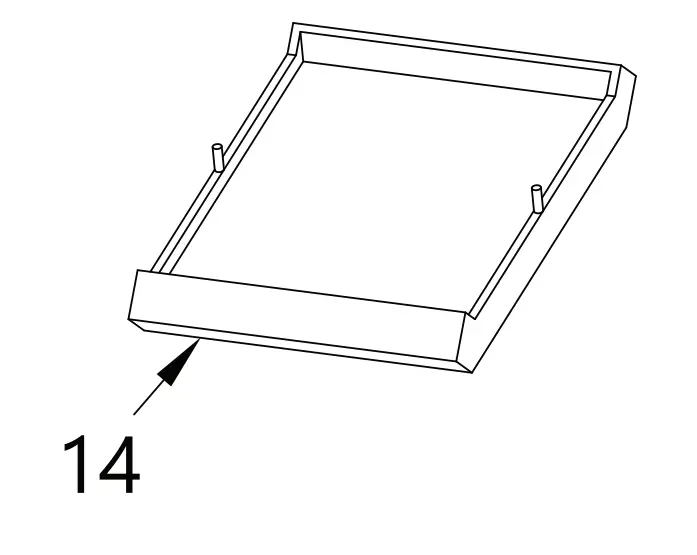

- 20-ANGLE CAP

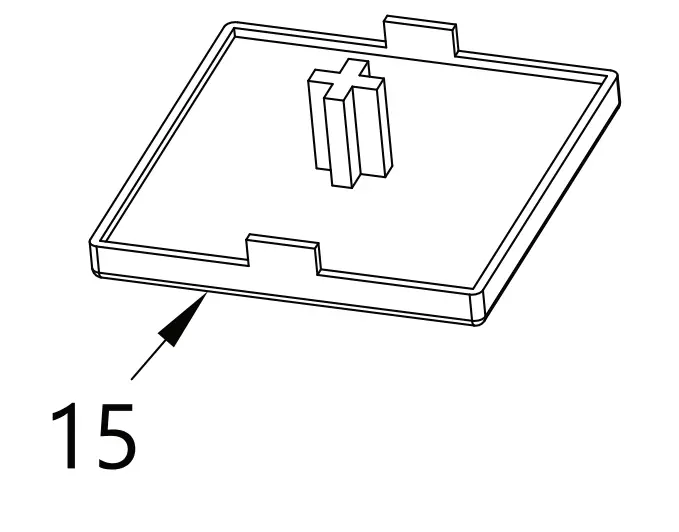

- 6-40×40 CAP
- 8-8×20
- 4-8×30
- 6-M6 NUT
- 4-M6x12
- 12-M6x16
- 6-M6x20
NOTES
Safety First
Be mindful of any sharp edges. Use safety goggles whenever removing tabs from angle brackets.
Protect From Scratches
Hard surfaces can damage the surfaces of the aluminum extrusions.
Use a towel or blanket when assembing on hard surfaces to protect the finishes.

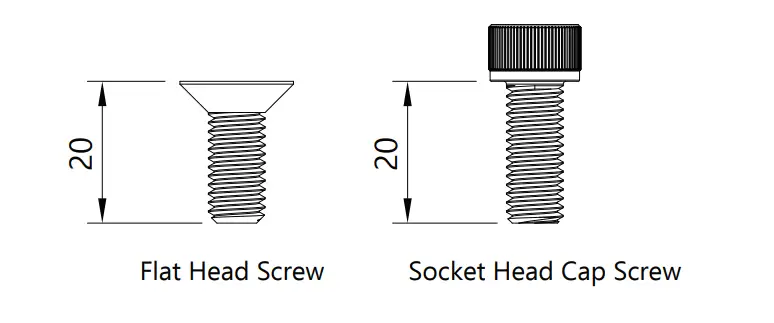

How to measure screws
Flat head screws are measured based on their overall length.

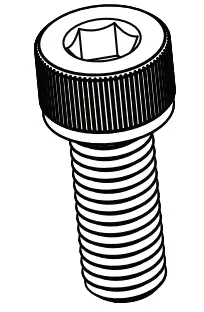

Socket head cap screws are measured based on the length under the head of the screw.
Metric Conversions
25.4 mm = 1″
16 mm = 5/8″
20 mm = 25/32″

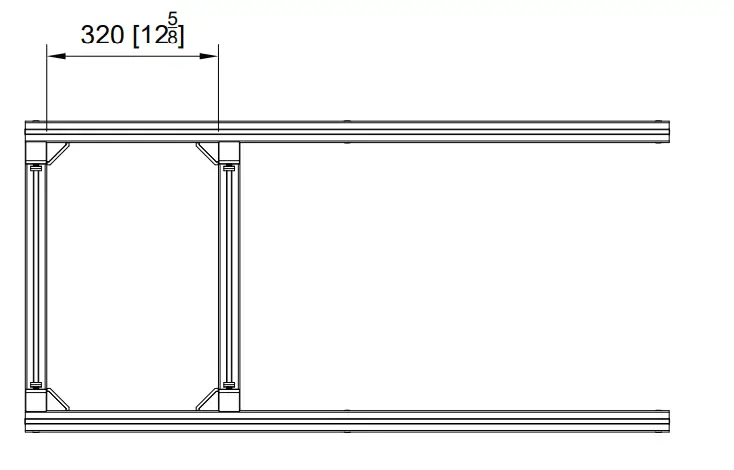

320 mm = 12 5/8″
400 mm = 15 3/4″
500 mm = 19 11/16″
580 mm = 22 13/16″
750 mm = 29 17/32″
1200 mm = 47 1/4″

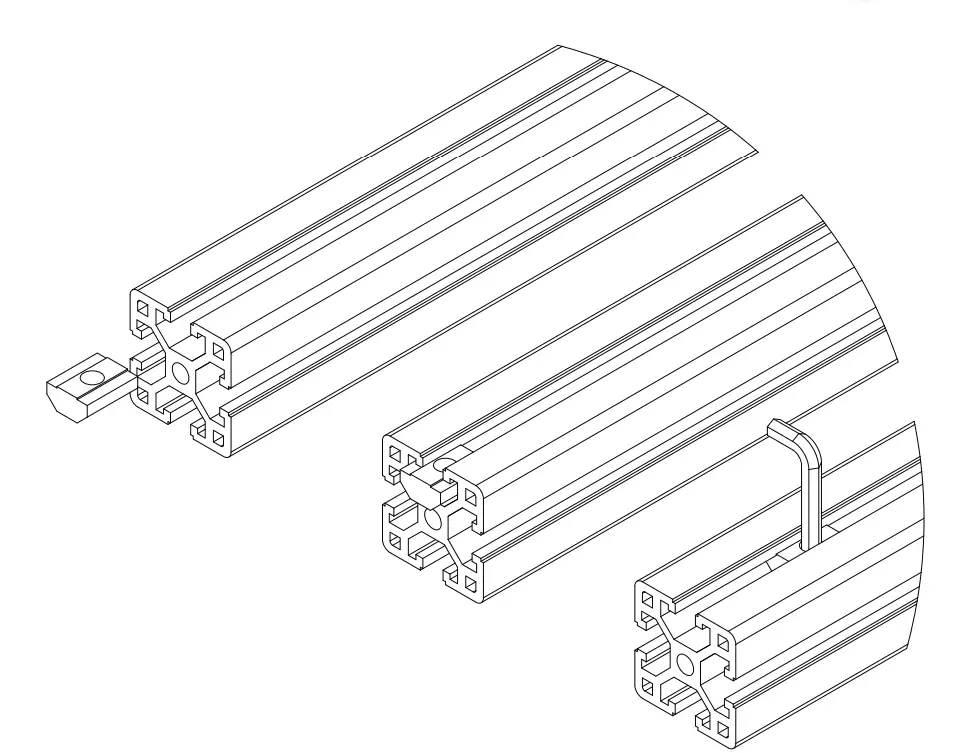

T-Nut Installation
Be mindful of the order of installation and plan out the insertion of T-nuts.

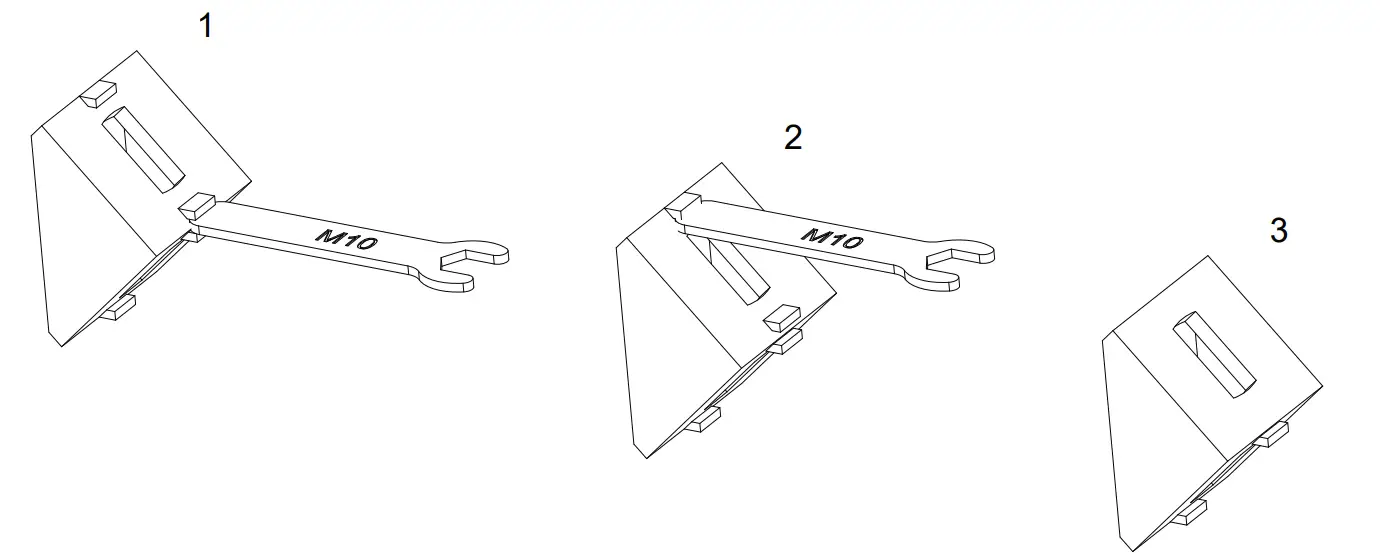

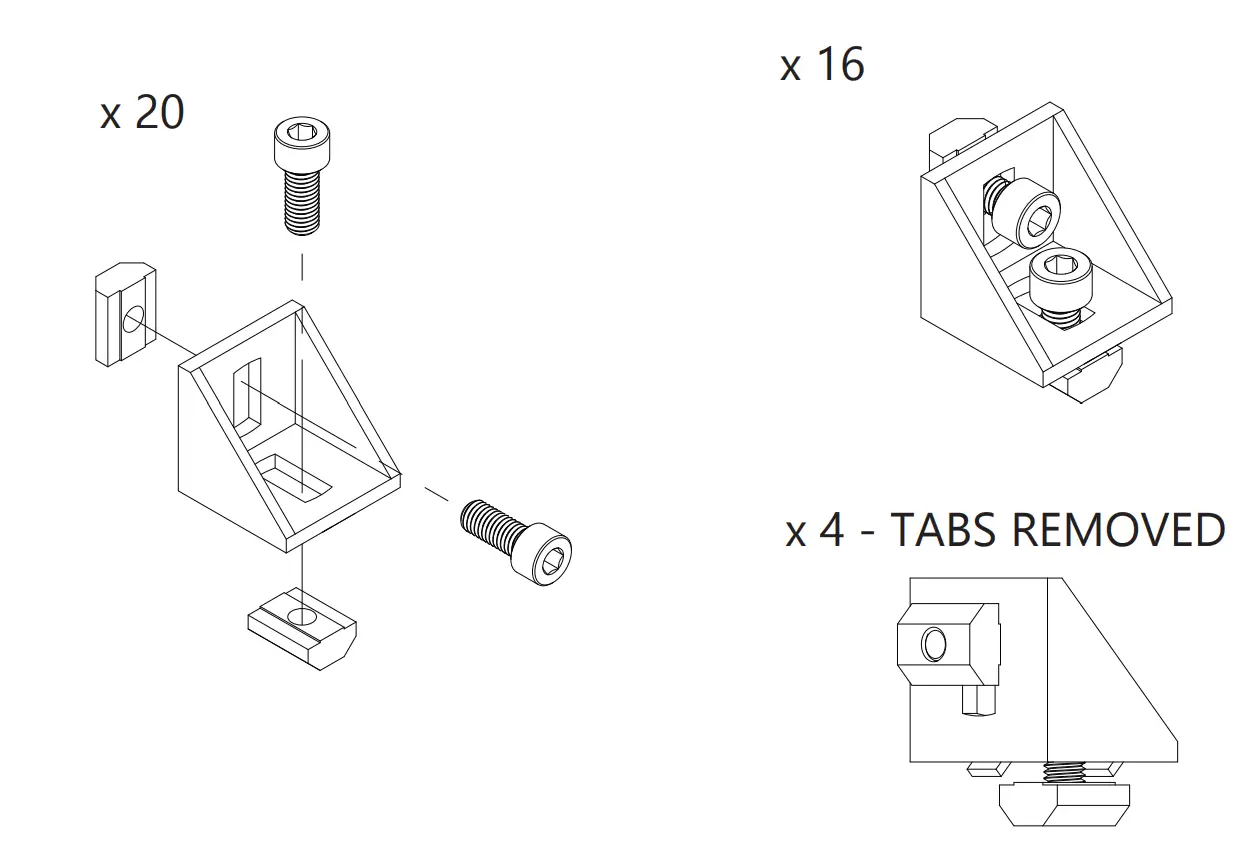

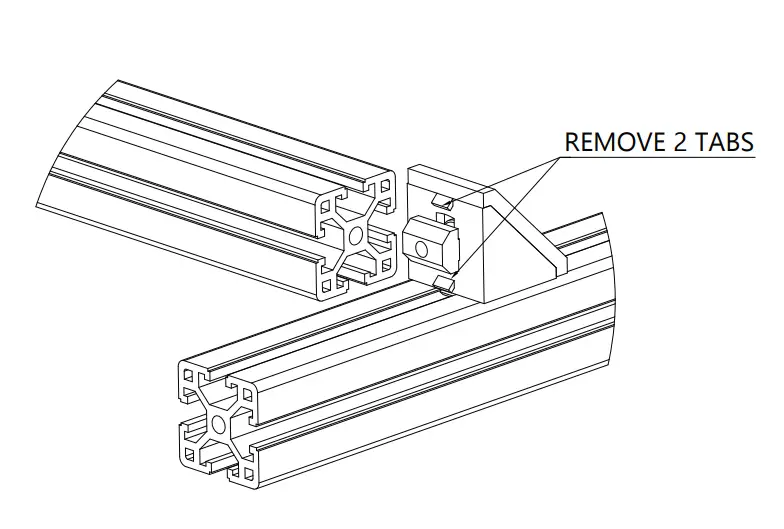

Alignment Tab Removal
Tabs on brackets may need to be removed if they interfere with the installation of an extrusion as shown to the right. 2 – tabs need to be removed from 4 brackets

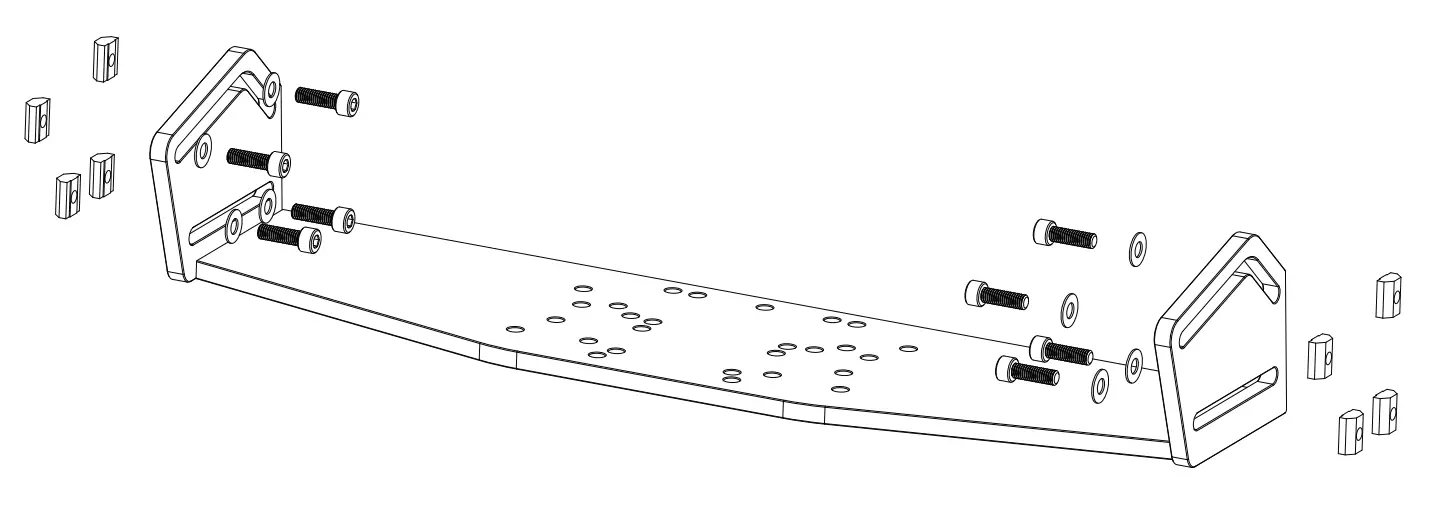

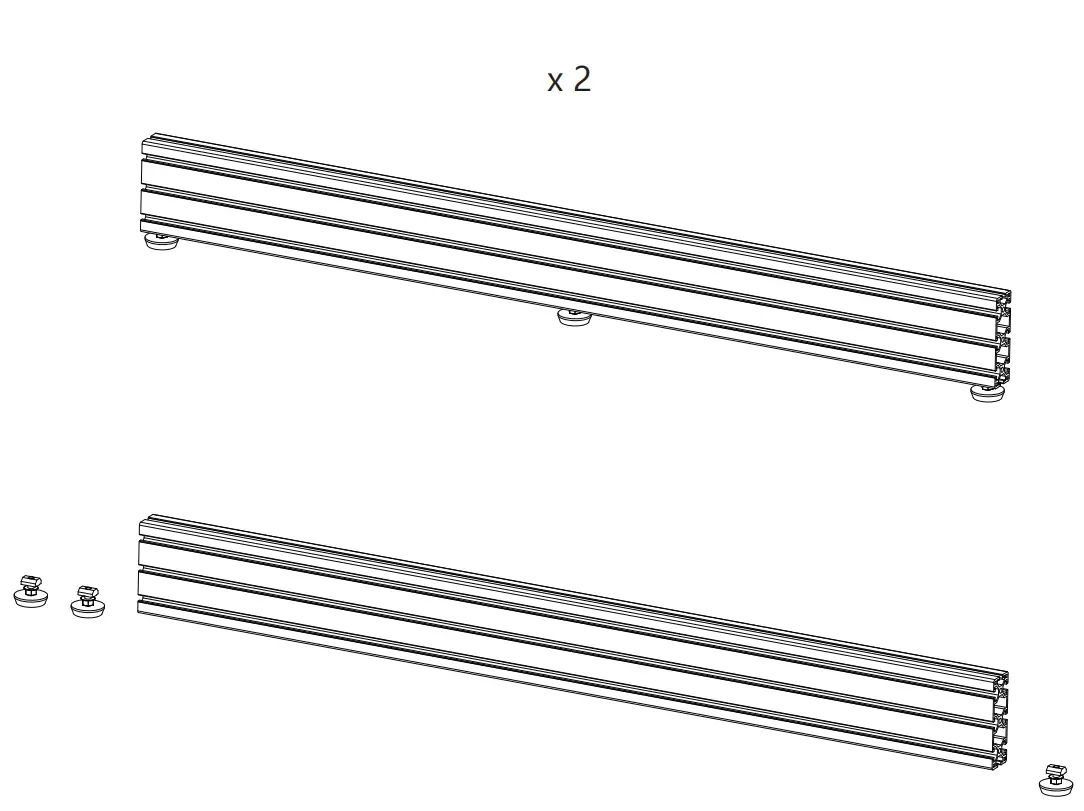

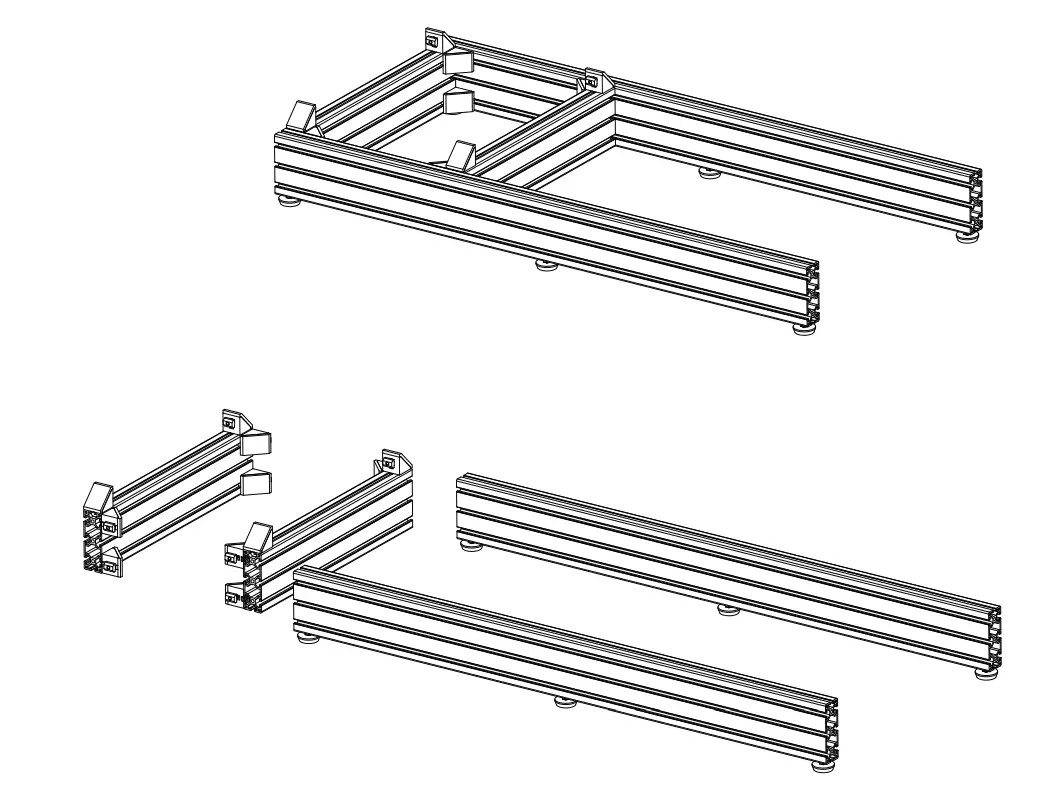

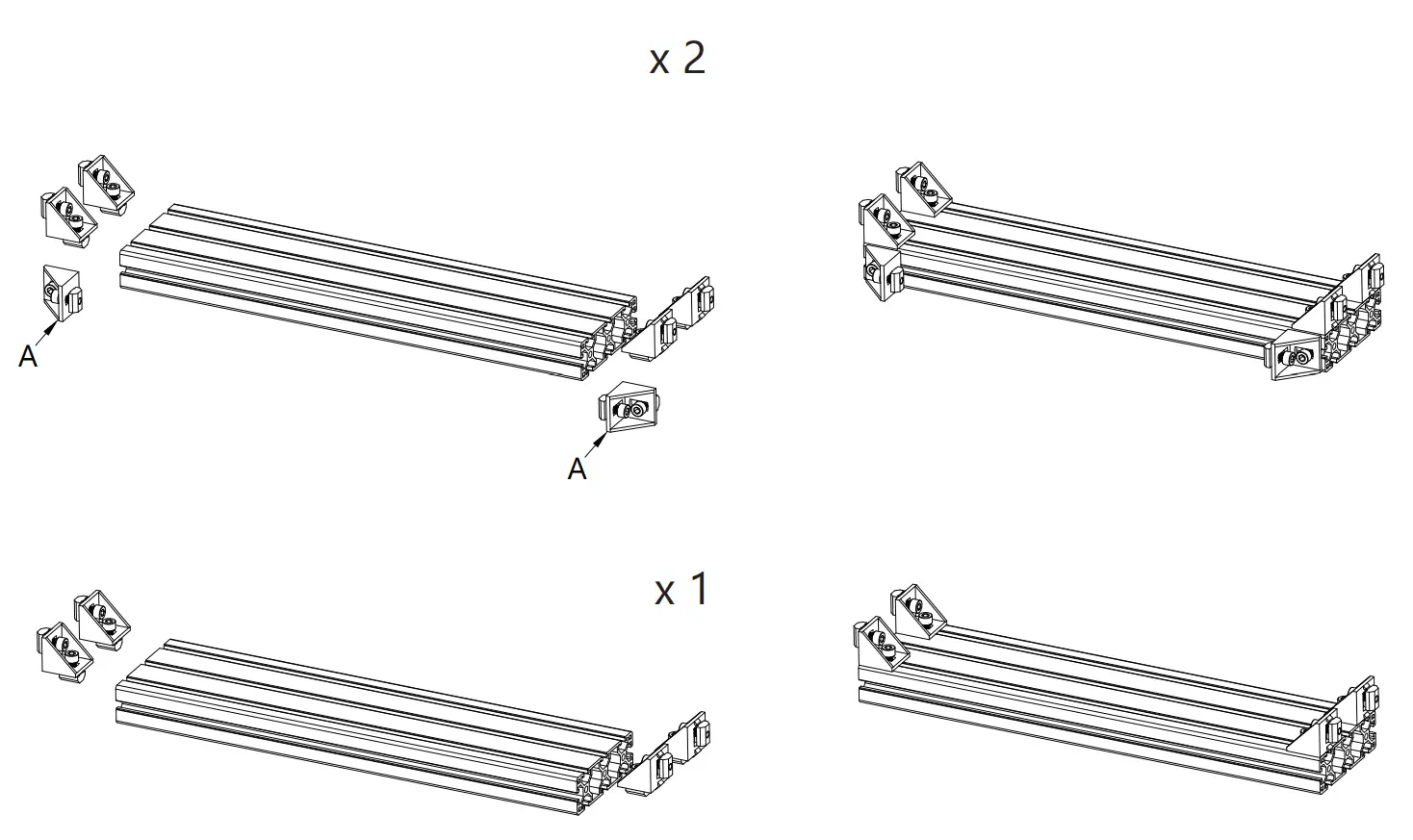

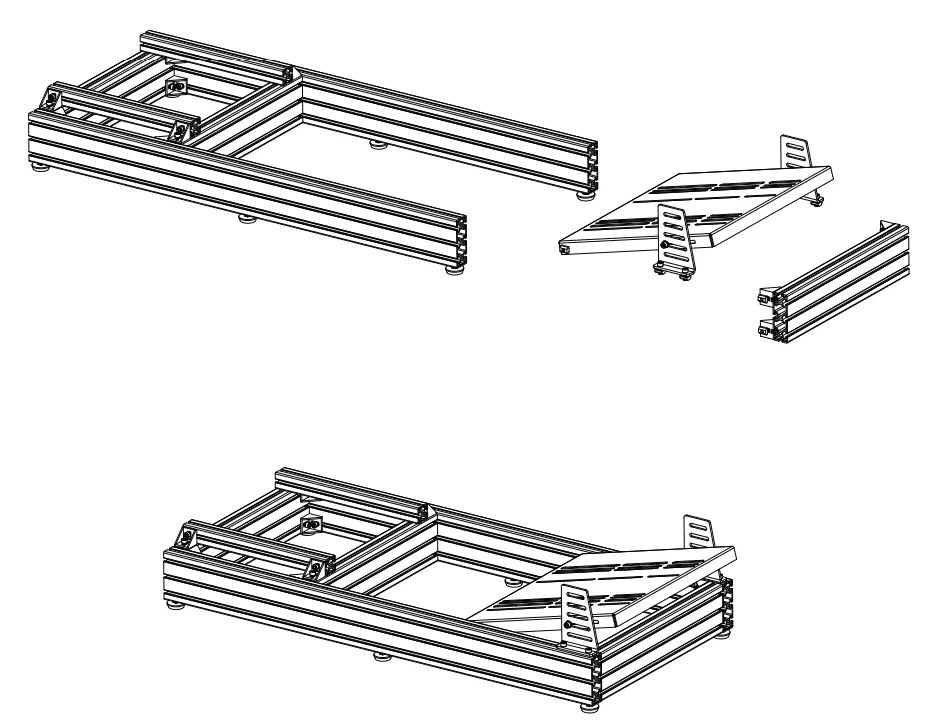

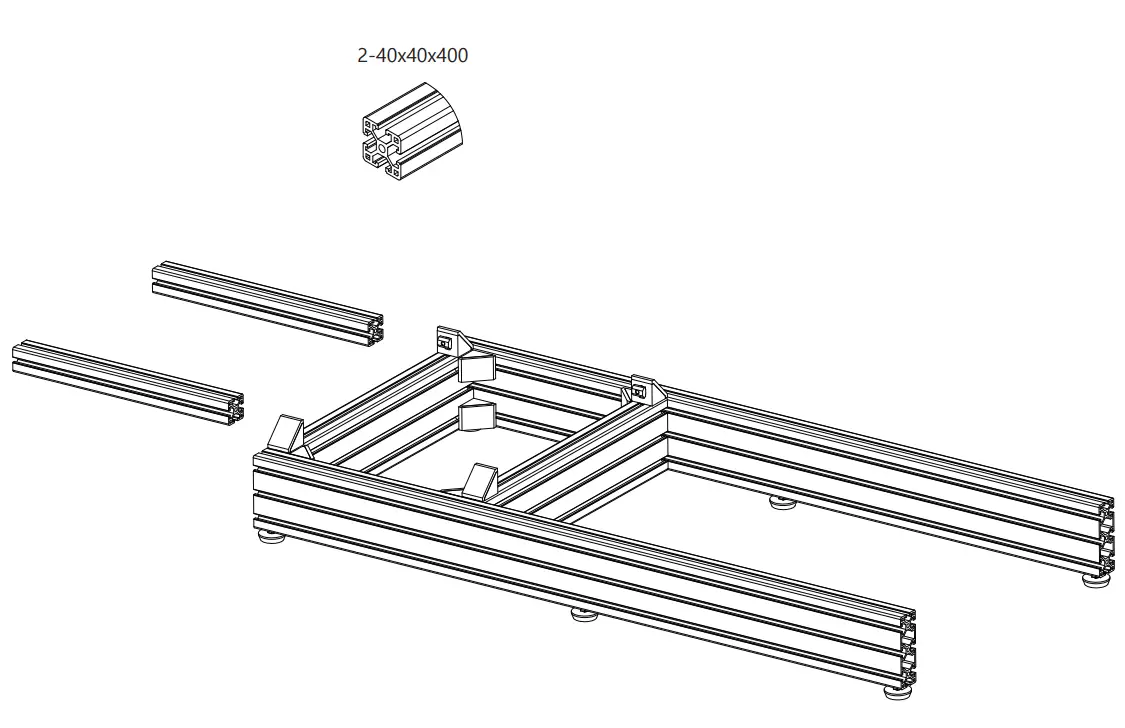

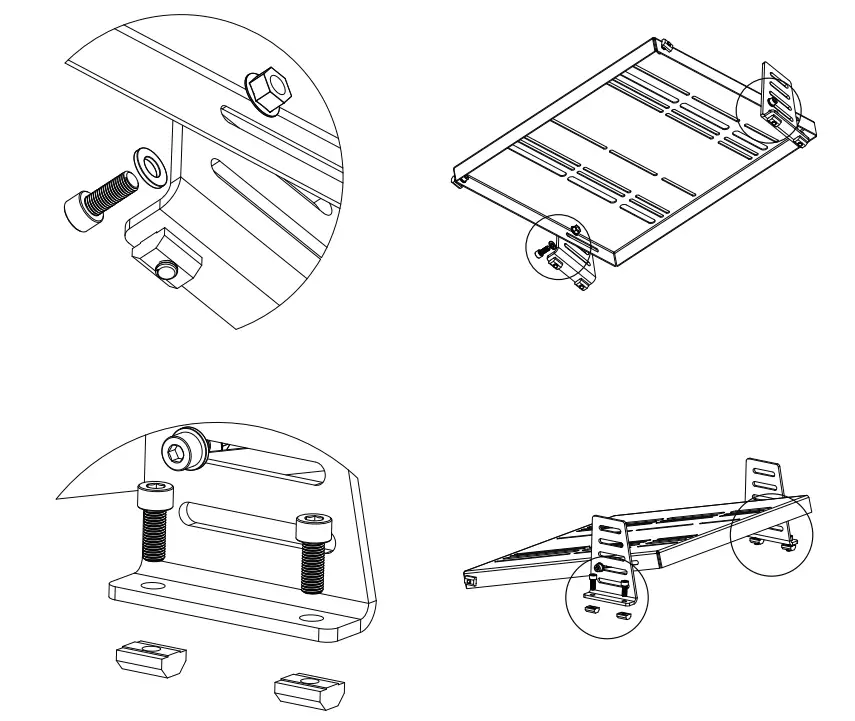

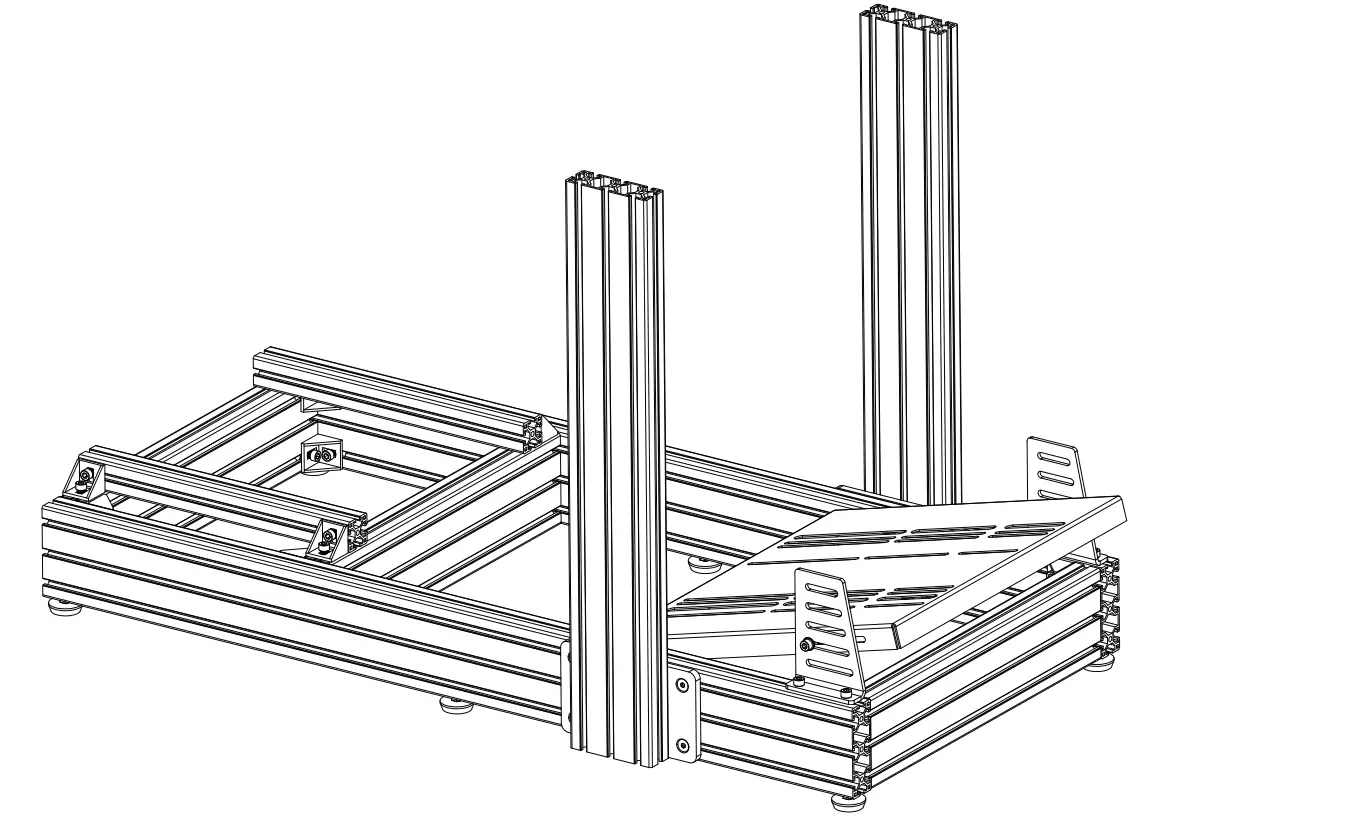

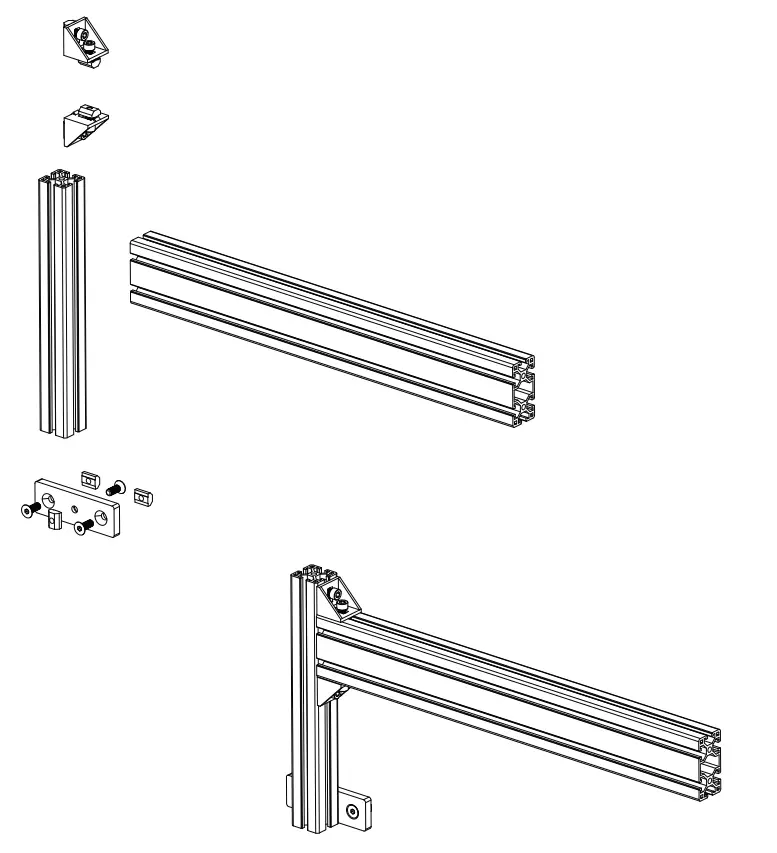

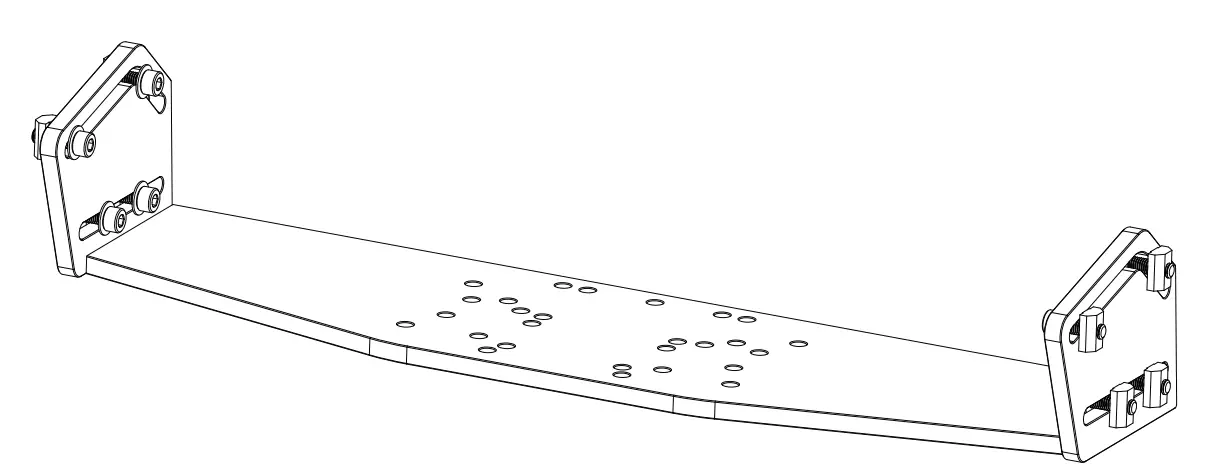

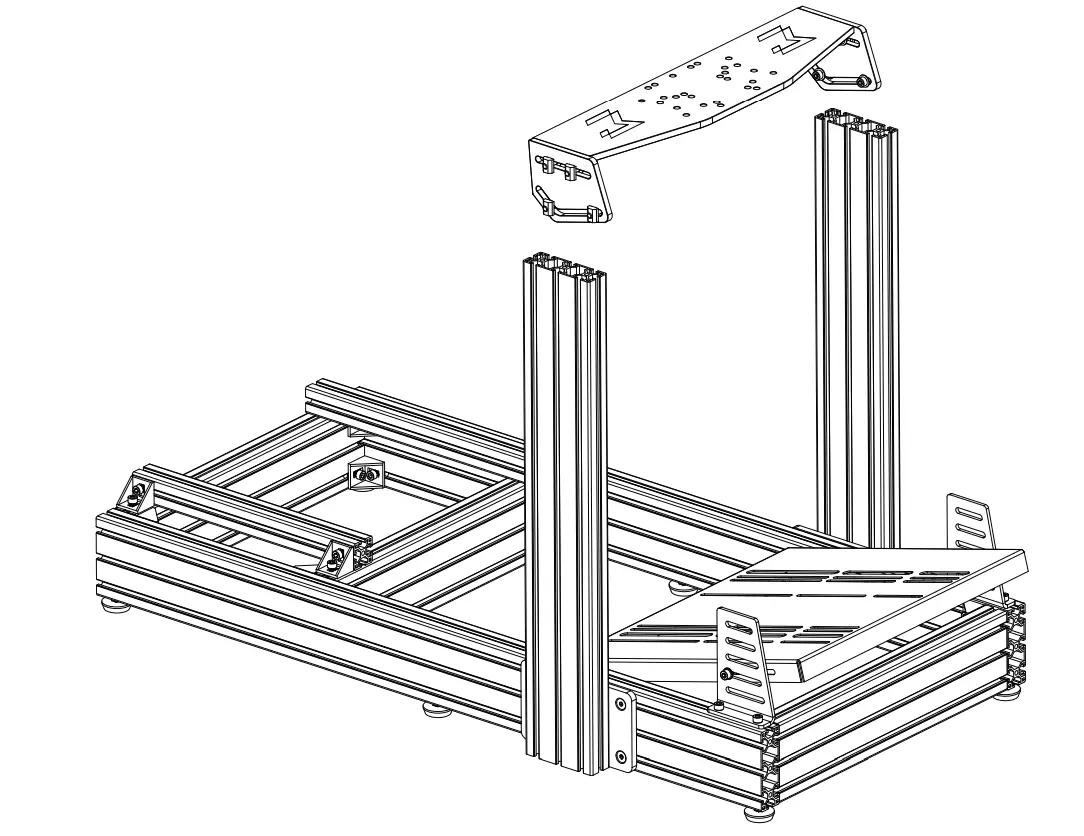

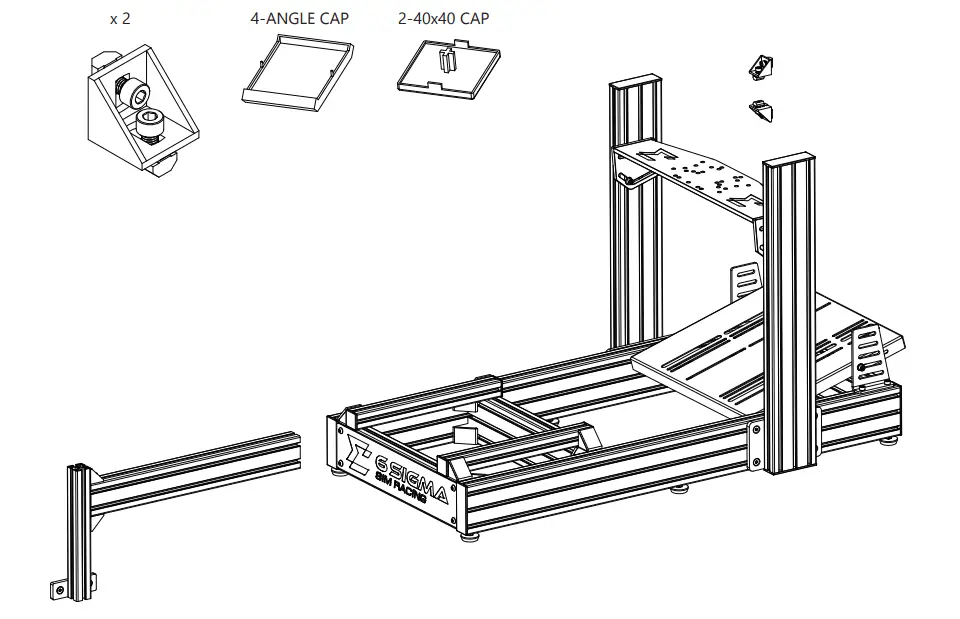

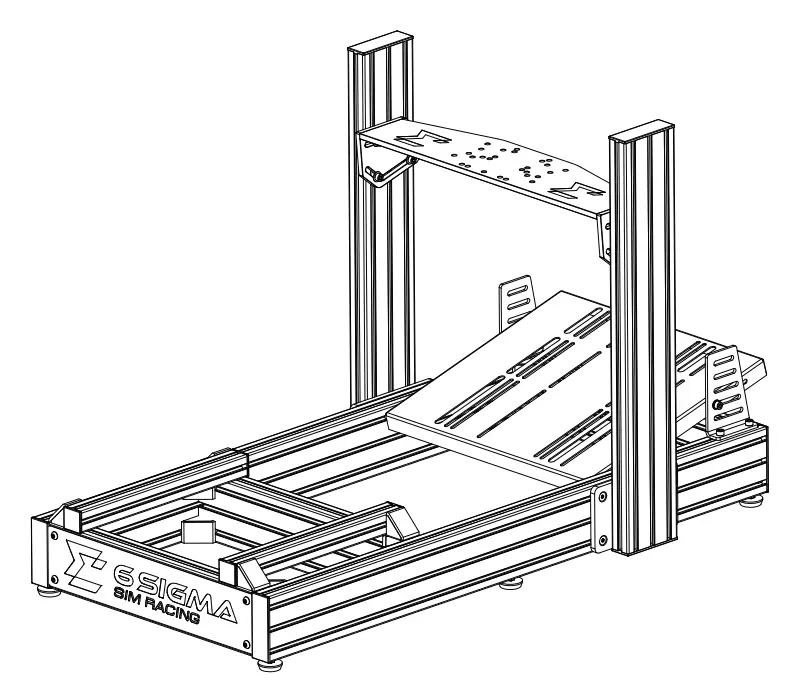

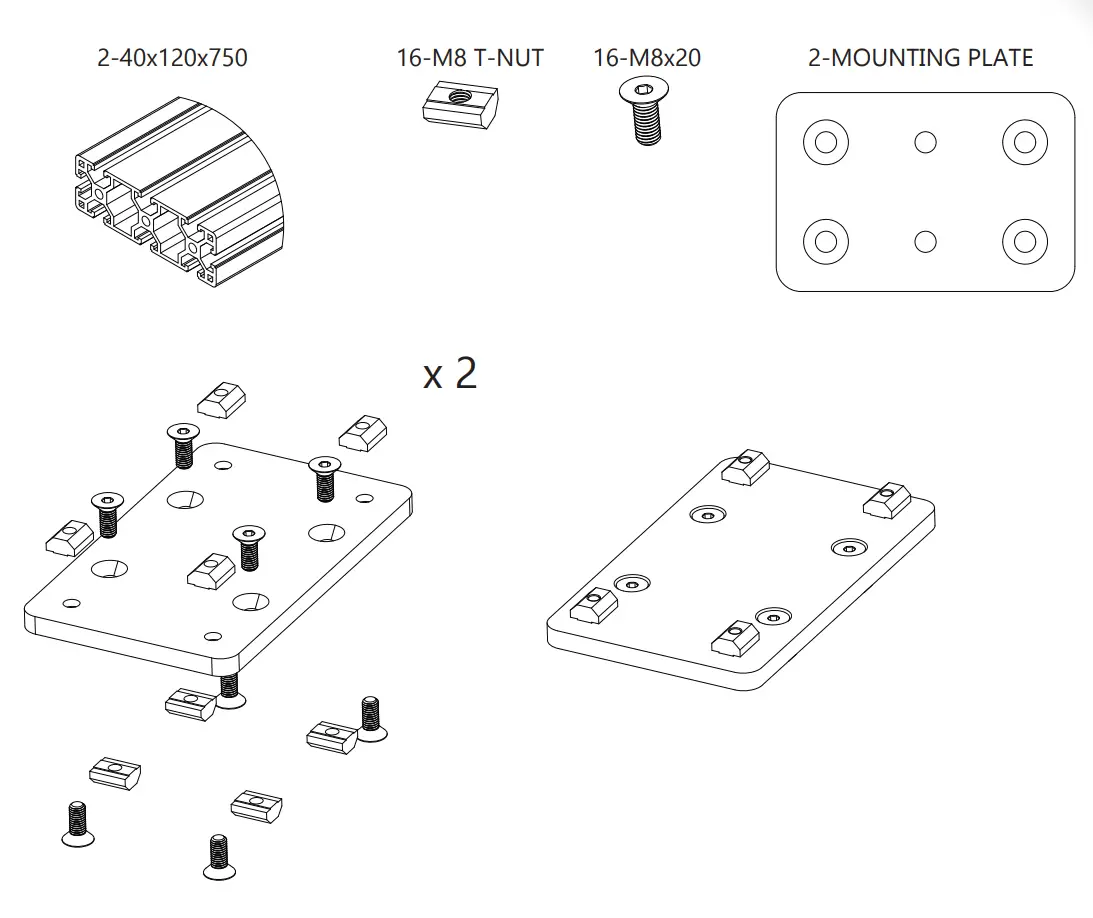

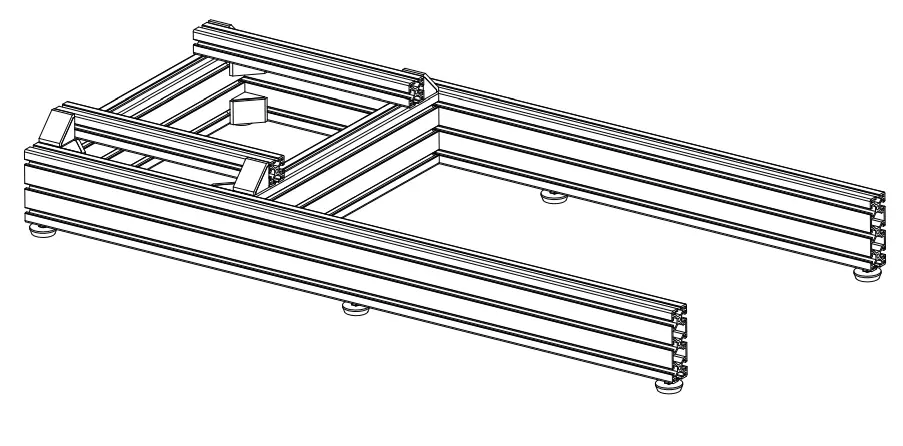

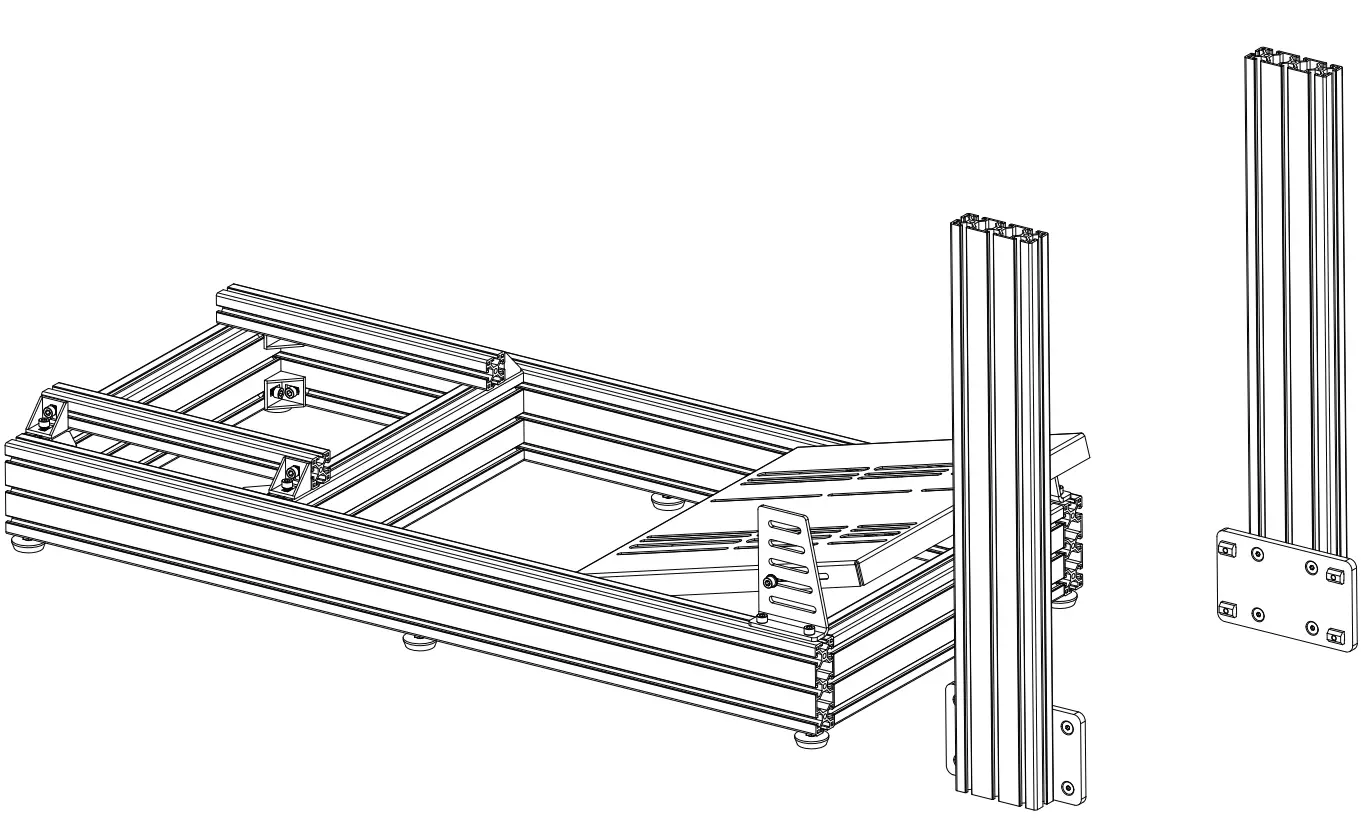

ASSEMBLY INSTRUCTIONS

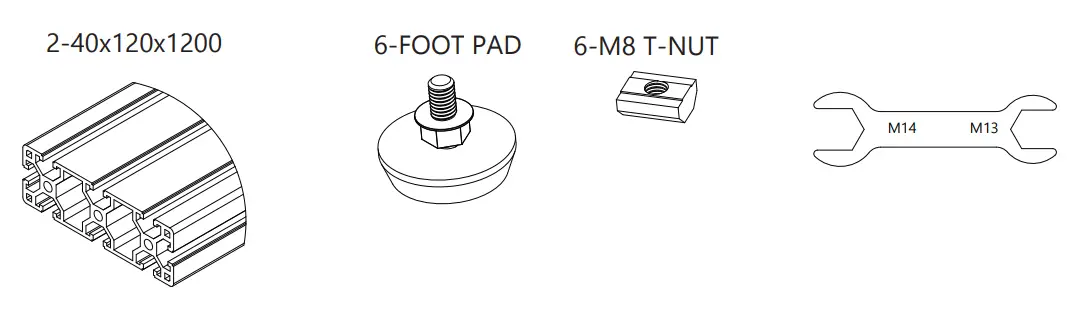

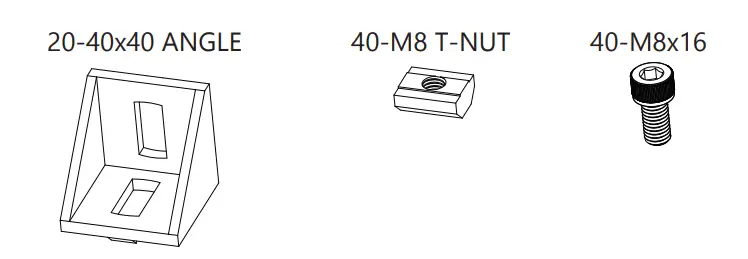

STEP 1
NOTE:
Leave screws loose enough to slide the T-Nuts into the aluminum extrusion profiles.
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
STEP 7
STEP 8
STEP 9
STEP 10
STEP 11
STEP 12

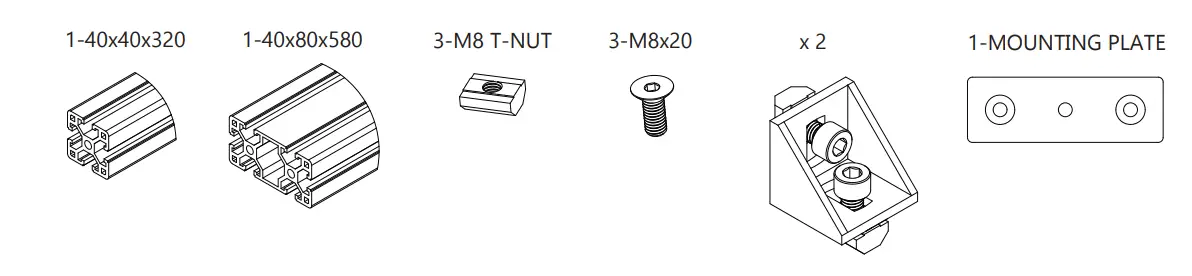

SHIFTER MOUNT KIT
CUSTOMERS SUPPORT
Need help? Email: [email protected]
Toll-free: 1-888-608-6161
