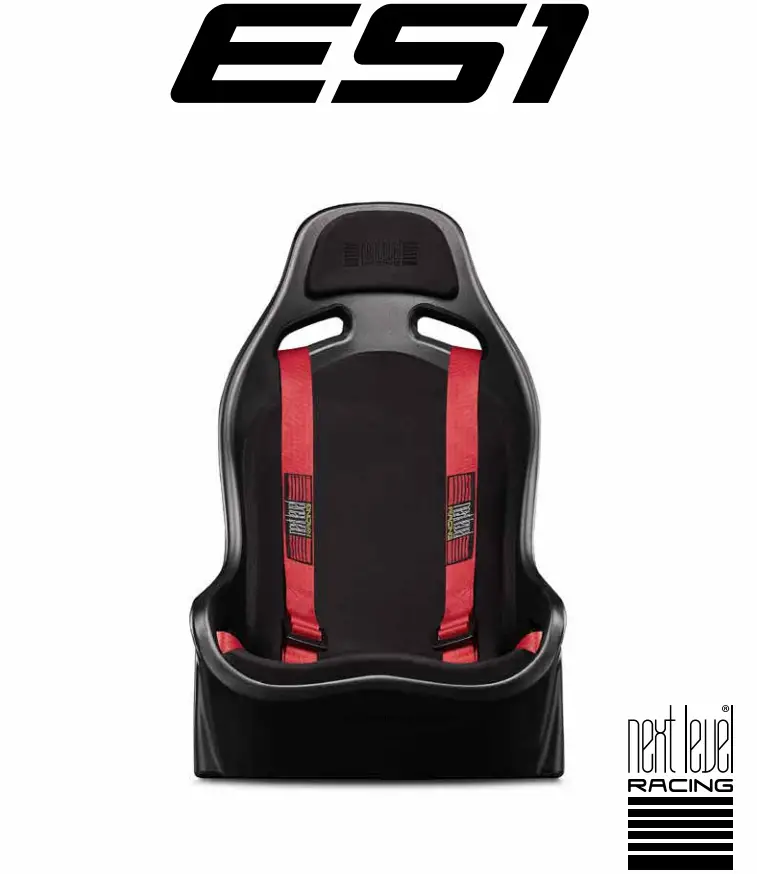

next level RACING ES1 Sim Racing Seat Instruction Manual
TAKE RACING TO THE NEXT LEVEL ®
YOUR RACING JOURNEY STARTS HERE
We know you’re eager to start flying! Take your time with the instructions and follow this guide to assemble your product. You’ll be setting yourself up for success with following the instruction booklet to fully optimize your product.
PRE-RACE CHECKS
WARNING
- Please do not use power tools for assembly as over tightening can damage your seat and hardware.
- Make sure all mounting points are aligned correctly to avoid twisting your seat or frame.
If you require any support with
your product please contact our friendly team at:
[email protected]

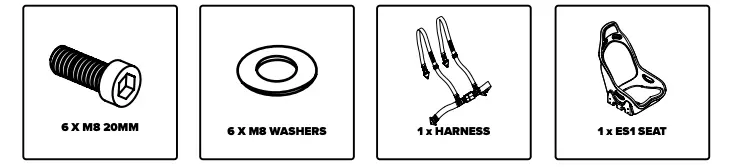

IN THE BOX

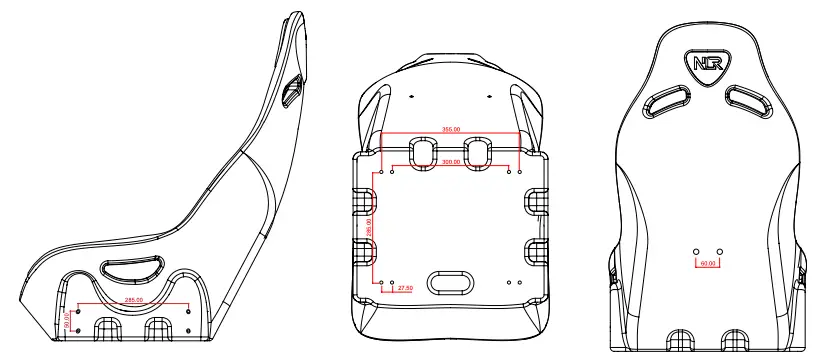

SEAT MOUNTING HOLE PATTERN/DIMENSIONS
See below mounting hole patters and dimensions for the ES1 seat. Useful of you need to bottom mount your seat or mount your seat in an unconventional way.

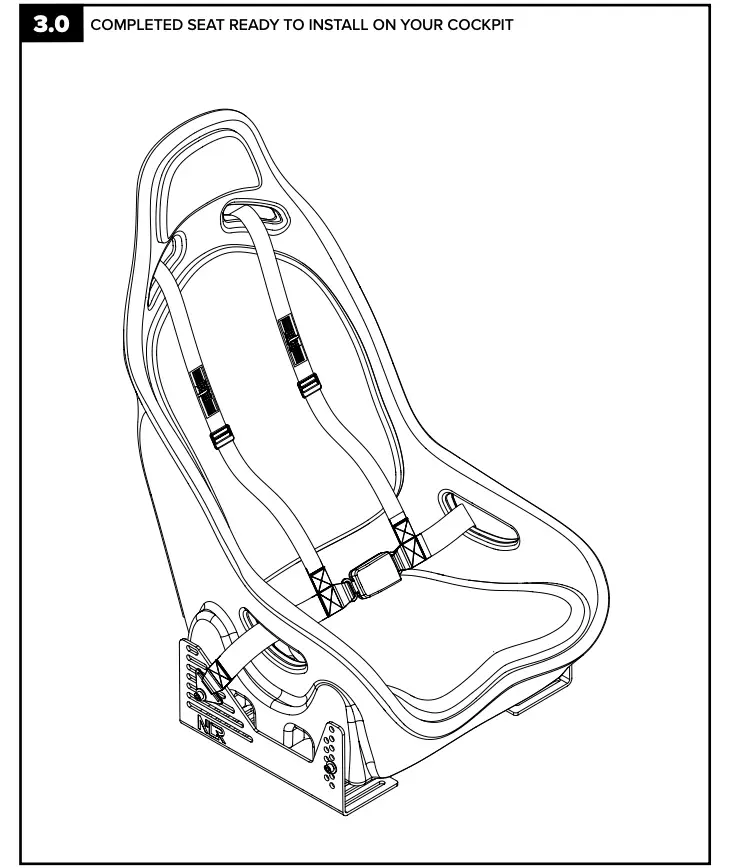

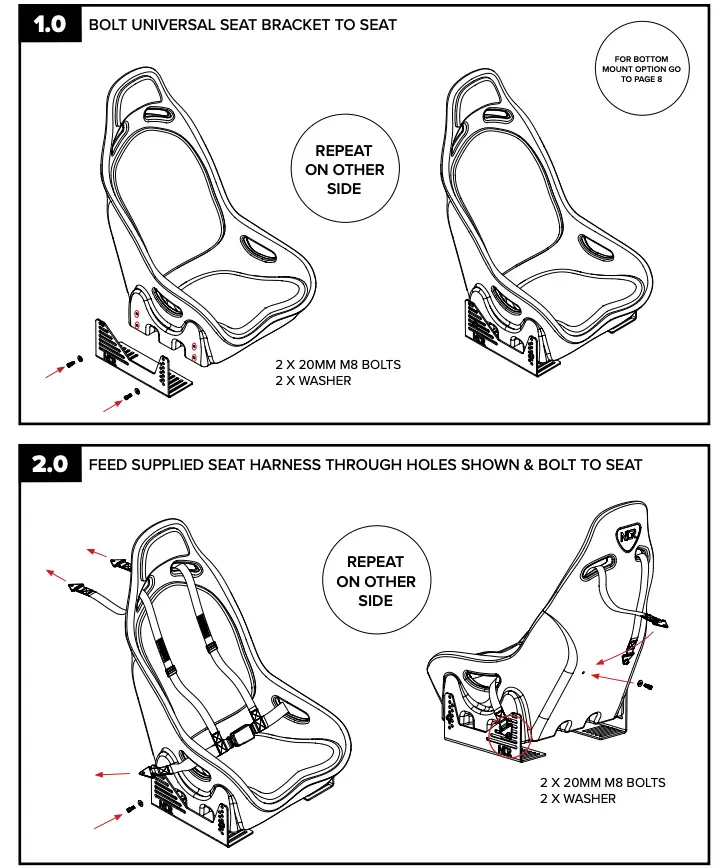

FOR SET UP WITH UNIVERSAL SEAT BRACKET

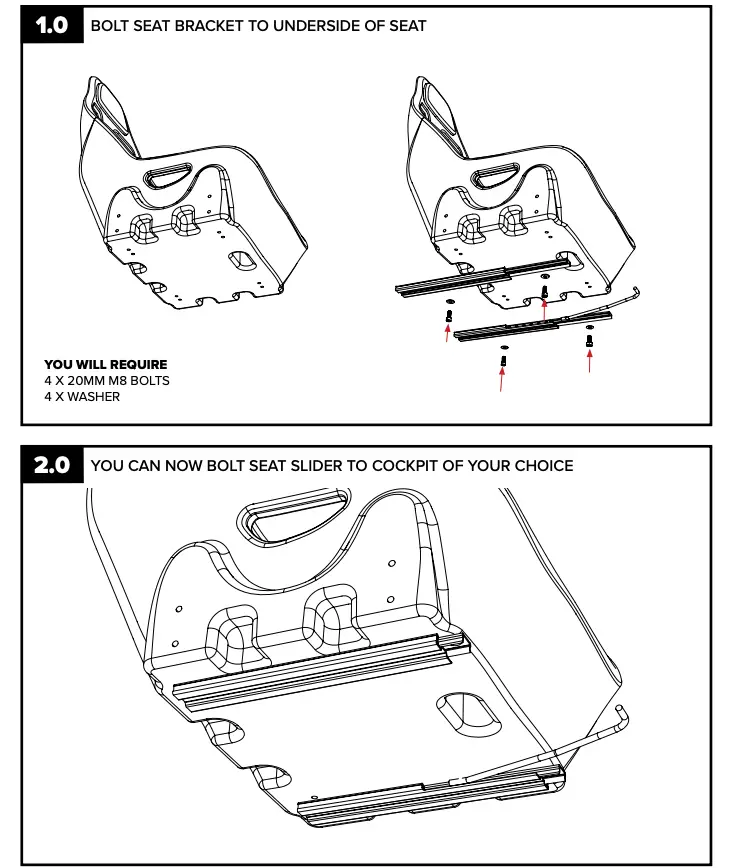

TO MOUNT YOUR OWN SEAT RAILS SEE BELOW
WARNING
Please do not use power tools for assembly as over tightening can damage your seat and hardware.
Make sure all mounting points are aligned correctly to avoid twisting your seat or frame.
ASSISTANCE
If you require further support with your product please contact our friendly team at: [email protected]
