Nextlevel Matte Black Simulator Cockpit Instruction Manual (+ PDF)

Contents hide

1 nextlevel Matte Black Simulator Cockpit Instruction Manual

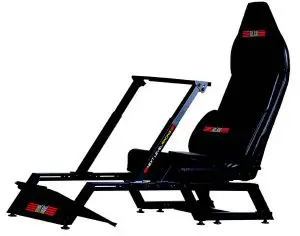

nextlevel Matte Black Simulator Cockpit Instruction Manual

If you require any support with your product or have an issue, please contact our friendly team at: [email protected] for a prompt response.

Thank-you for purchasing a

WARNING

Please do not use power tools for assembly as over tightening can damage your frame.
During assembly please be sure to have a washer positioned at the front of every bolt as pictured below.

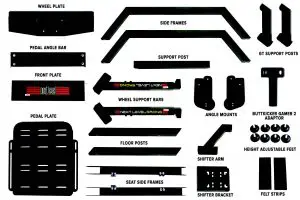

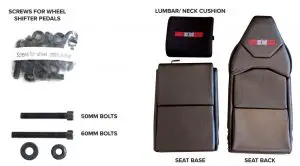

What’s In The Box:

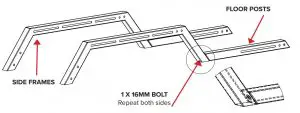

Step 1: FRAME ASSEMBLY

Step 2:

Step 3:

1 X 50MM BOLT.
Repeat both sides.

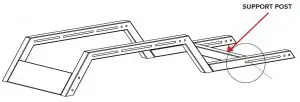

Install SUPPORT POST on third hole from front for GT and last hole for Formula

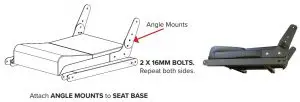

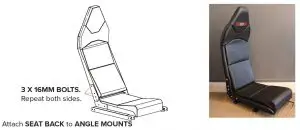

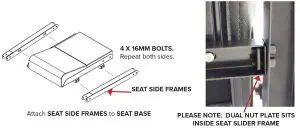

Step 4: SEAT ASSEMBLY

Step 5:

Step 6:

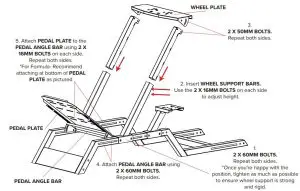

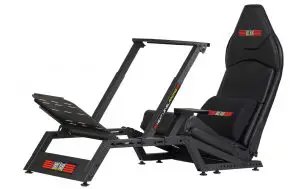

Step 7: Formula ASSEMBLY

WARNING

DO NOT OVER TIGHTEN 2 X 60MM BOLTS FOR PEDAL PLATE OR YOU CAN DAMAGE YOUR FRAME

Step 8: Formula ATTACHING SEAT

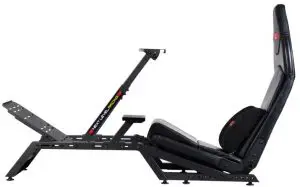

Step 9: Formula TIPS

PEDAL ANGLE BAR: This determines the distance of your pedals. If you are a shorter user attach closer to the seat. Opposite for taller users.
In Formula position, for extra comfort you may find the LUMBAR SUPPORT CUSHION provided suitable to use for your neck or head.

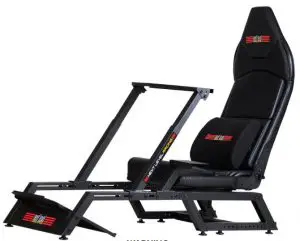

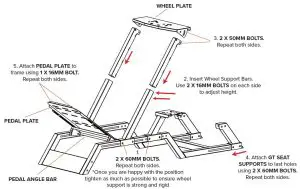

Step 10: GT ASSEMBLY

WARNING

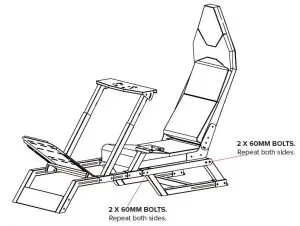

DO NOT OVER TIGHTEN 2 X 60MM BOLTS FOR PEDAL PLATE OR YOU CAN DAMAGE YOUR FRAME

Step 11: GT SEAT ASSEMBLY

Step 12: GT TIPS

In GT position for extra comfort you may find the LUMBAR SUPPORT CUSHION provided suitable to use for your higher back or shoulders.
Many GT users prefer pedals in Formula style position meaning no need to change pedal position.

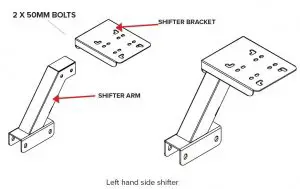

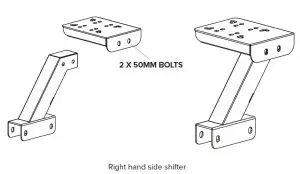

Step 13: GEAR SHIFTER ASSEMBLY

Step 14:

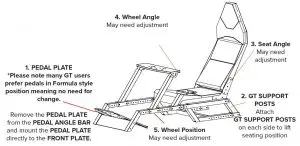

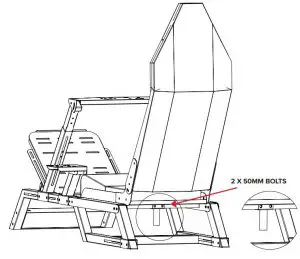

Step 15: BUTTKICKER® GAMER 2 ADAPTOR

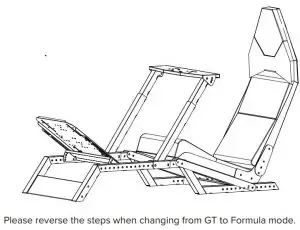

Step 16: CHANGING FROM Formula TO GT

Step 17: CHANGING FROM GT TO Formula

Step 18 (OPTIONAL):

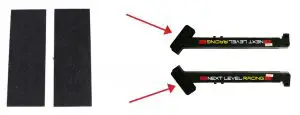

For maximum rigidity over adjustability, install optional FELT STRIPS in WHEEL SUPPORT BARS. This means sliding holes in frame won’t be effective to change position

Step 19:
