FDF RaceShop V2 350Z Regular Mantis Kit Installation Guide
Assembly instruction

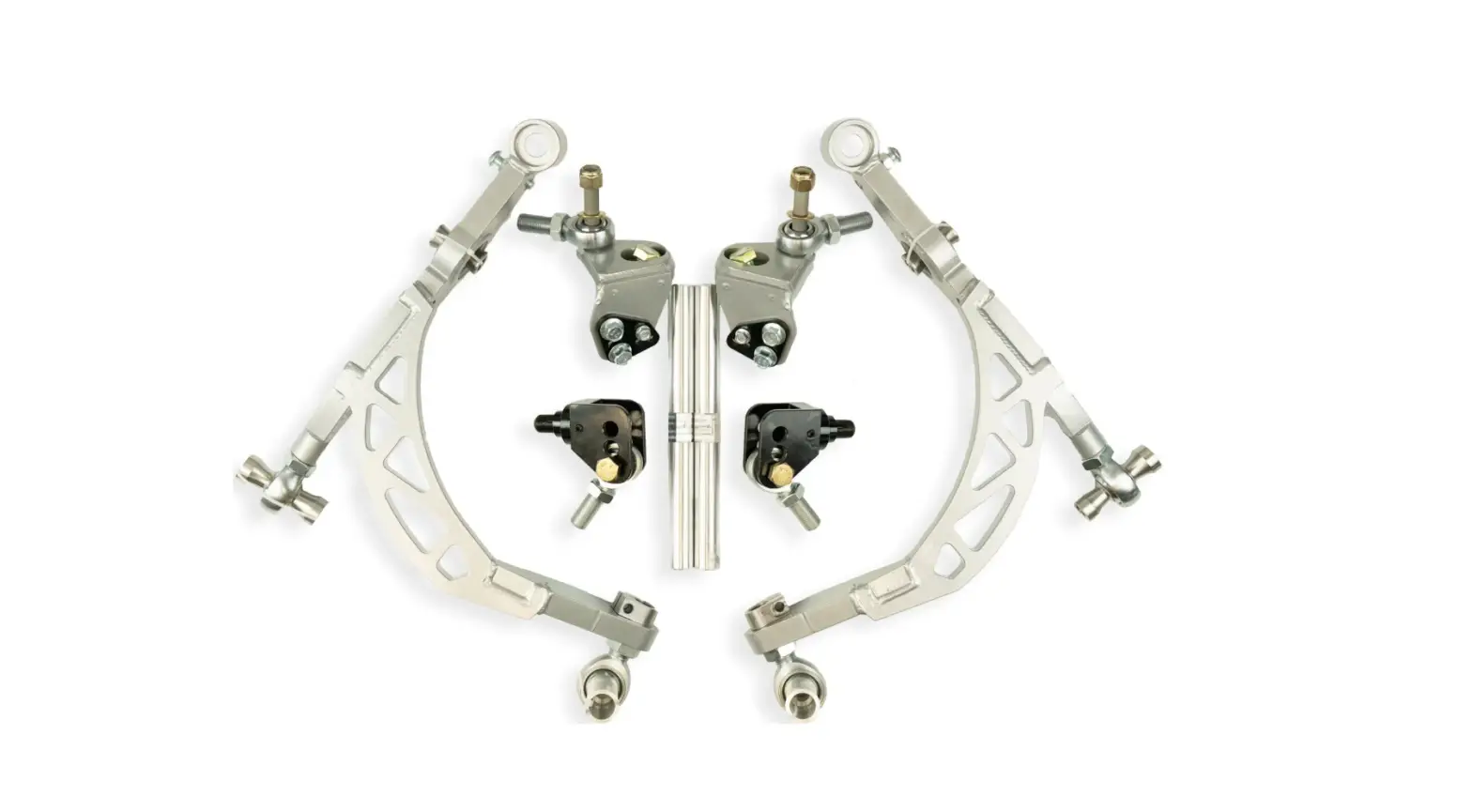

Fully Assembled view of the 350z mantis kit is shown for the left side of the car
- Upper Control Arm
- Lower control arm
- Tierod Assembly
Bolt check regularly, take note of the orientation of all the components in this view.
do not exceed the rod ends adjustments, each rod end should have a minimum of 1 to 1.5x the diameter of the joint. (example, a ¾-16 rod end needs to have approx. .75-1.125” inside of the arm at a minimum, this is 12-18 threads)
(knuckle adaptor) may require some removal of material on the knuckle, remove material until the adaptor sits flat. Adjust the Ackerman using the 3 positions available (+2, 0, -2)
Offset Rack spacer, if the steering rack is in the factory position, the rack spacer is designed to move the inner tierod forward 32mm. (the other 2 holes are only for if the rack is relocated) use red locktite on the rack bolt and torque to factory spec.
Alignment Recommendations
Caster- 8.5 + or – .5
Camber -5 + or -1.0
Toe 0-1/8th out
Wheel size recommendation
18×9 +10 offset (close to this size will work well)
For Racing Use only
Not For Road Use
Support
Must be installed by a licensed professional
[email protected]
+1(613)243-8859
