ROMA F35
ROMA F35 Frame Assembly Diagram
Roma F35 is a Roma F series 3.5inch compact design with an integrated base plate design, which not only increases the stability of the flight but also greatly increases the installation space of the electronic equipment for the Frame. The head of the frame is made of 7075 magnesium-aluminum alloy, which supports a maximum lens width of 20mm, and is equipped with 3D printed parts for a 20mm/19mm camera. The installation hole position of the equipment tower is M3 (20mm*20mm) equipped with M3 to M2 CNC aluminum parts. There are two sets of M3 (30.5mm*30.5mm) to meet the installation requirements of various equipment towers. Side injection protection parts, while improving the appearance, are more suitable for beginners to protect the product. Optional accessories for the full-size DJI FPV have also been developed to meet players’ requirements for high-definition picture quality.
Product Specifications
| Frame Shape: Type H Bottom Plate Thickness: 3mm Bore Diameter of Snap Ring: ø6.2mm Recommended Lipo: 4S-6S | 6.2mm Motor to Motor: 158mm Arm Thickness: 3mm Max Stack Height: 25mm Motor Size: 20-22 Series motor |
| Frame Net Weight: 70g Am Width: 9.2~12mm Supported Prop Size: 3.5 inch FC Stack Mount: 20×20(M2/M3)/30.5×30.5 (M3) | Camera Spacing:19mm/20mm Top Plate Thickness: 2mm Motor Hole Distance: 12mm(M2)/16mm(M3) |

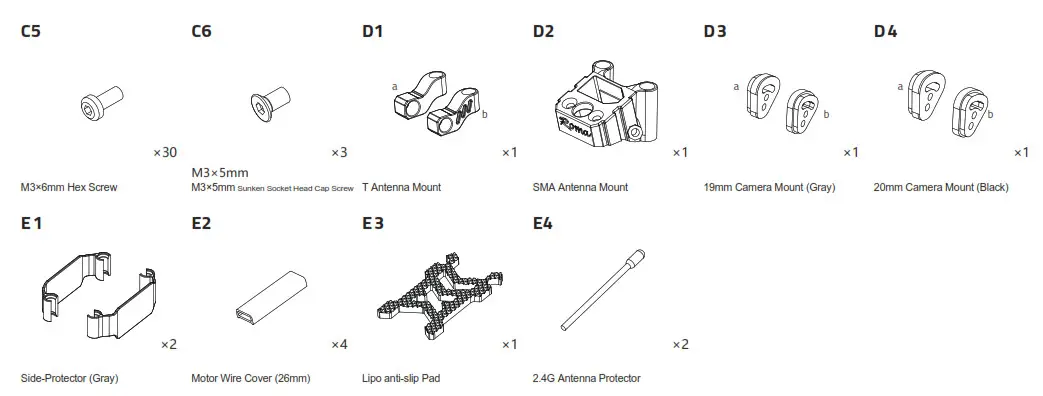

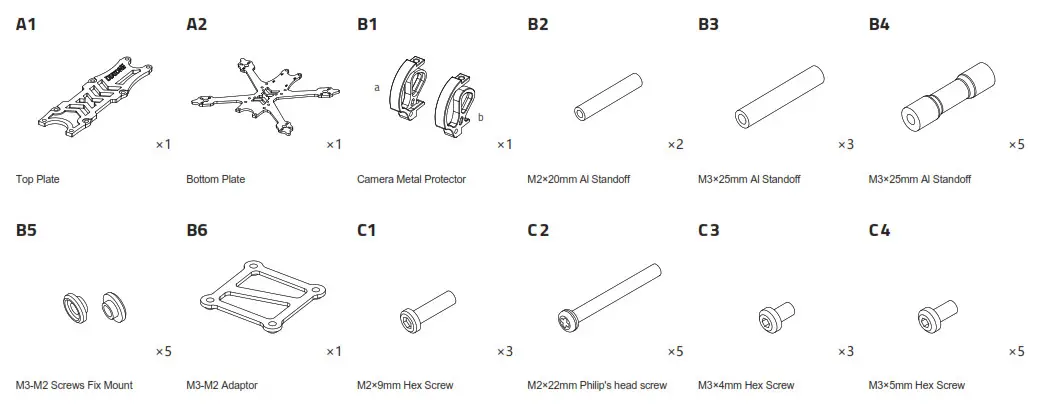

Parts list

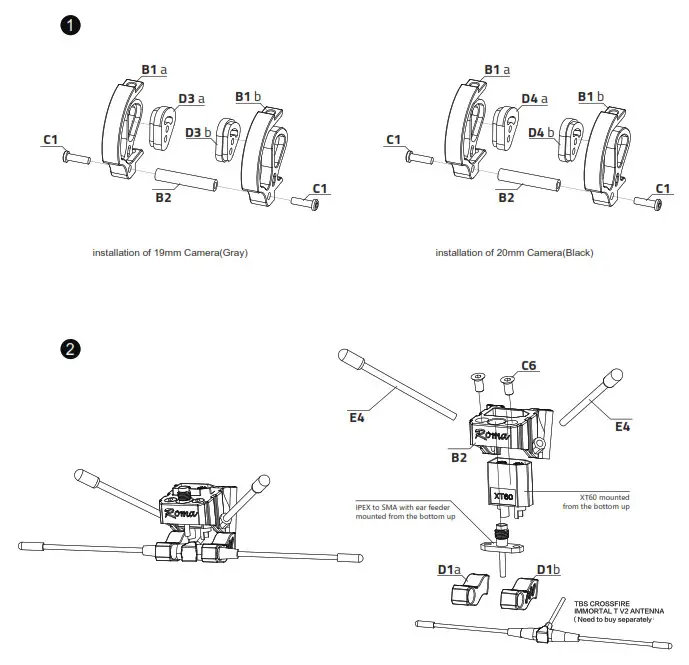

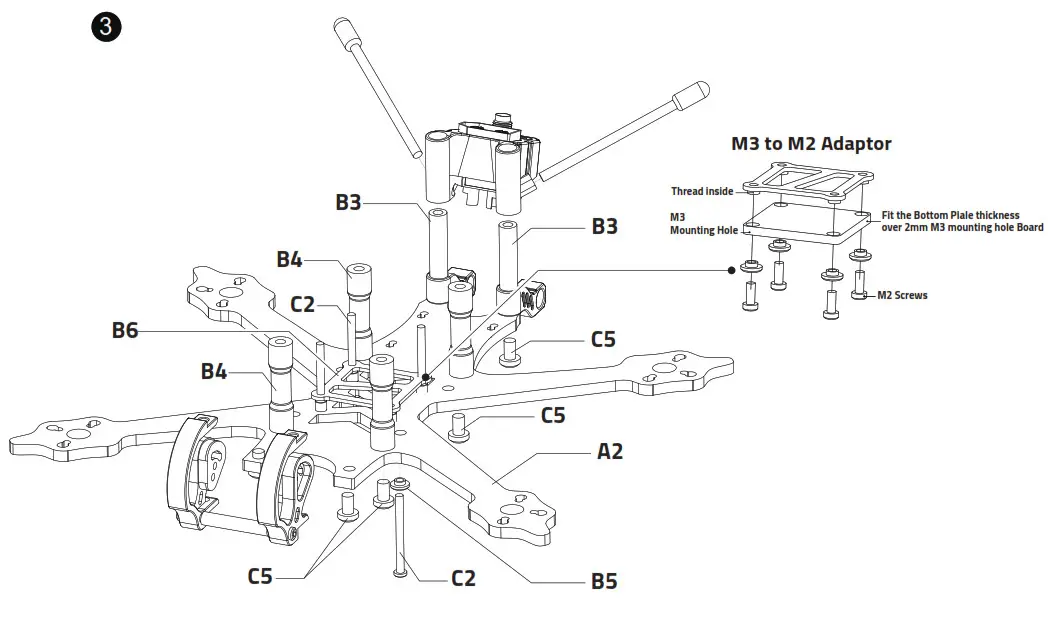

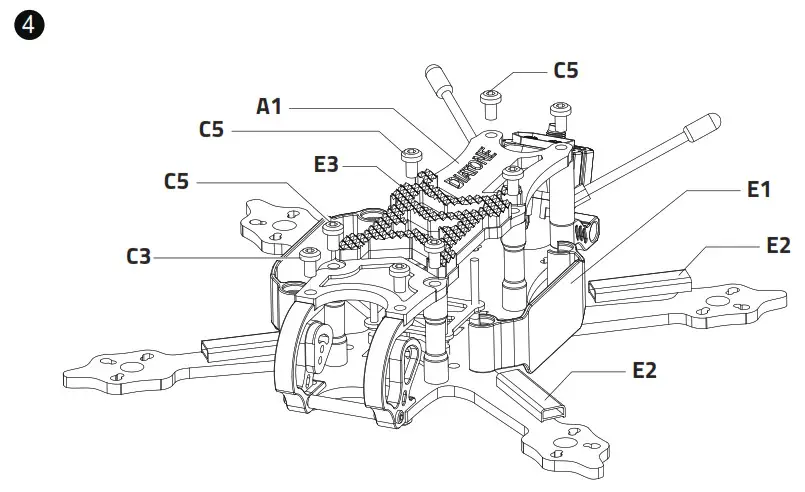

Assembly Guide
For more information, please refer to the Diatone official website
