Metal Roof Panel Estimating
| SLOPE | SLOPE FACTOR | HIP / VALLEY MULTIPLIER | SLOPE | SLOPE FACTOR | HIP / VALLEY MULTIPLIER |
| 1:12 | 1.0035 | 1.4167 | 7:12 | 1.1577 | 1.5298 |
| 2:12 | 1.0136 | 1.4240 | 8:12 | 1.2019 | 1.5635 |
| 3:12 | 1.0308 | 1.4362 | 9:12 | 1.2500 | 1.6008 |
| 4:12 | 1.0541 | 1.4530 | 10:12 | 1.3017 | 1.6415 |
| 5:12 | 1.0833 | 1.4743 | 11:12 | 1.3566 | 1.6853 |
| 6:12 | 1.1180 | 1.5000 | 12:12 | 1.4142 | 1.7320 |

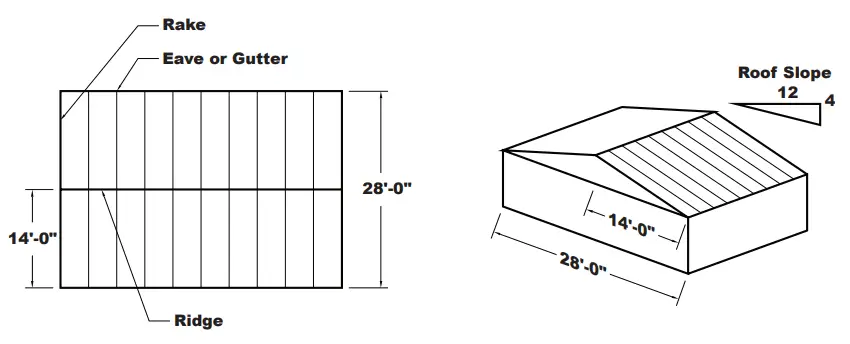

Example #1 – Determining Sloped Panel Lengths
- Your building is 28 wide with a 4:12 Roof Slope To determine the sloped panel lengths for each side:
FLAT PANEL LENGTH (L) x SLOPE FACTOR = SLOPED PANEL LENGTH (S) 14′-0″ x 1.0541 (4:12 slope) = 14.7574′ or 14′-9″

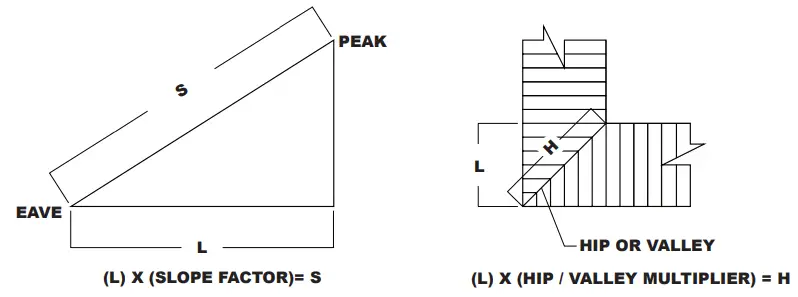

Example #2 – Determining Hip or Valley Length
- (L) X (SLOPE FACTOR)= S
- (L) X (HIP / VALLEY MULTIPLIER) = H
