0001128MU000 Jackson Roof Bars
Instruction Manual

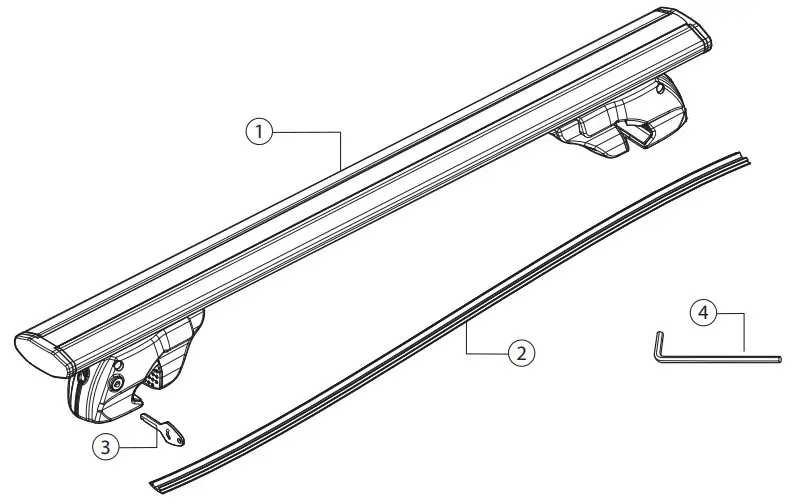

Verify all components before assembling
| N | Components (included) | Q | N | Spare Parts (Made to order) | Q | Code |
| 1 |  | 2 | 2 |  | 2 | 7.00008E+11 |
| 2 | | 1 | 3 |  | 2 | 7.00008E+11 |
| 3 | | 2 | 4 |  | 1 | 7.00025E+11 |
| 4 | | 1 | 5 |  | 4 | 7.00026E+11 |
NO POWER TOOLS!
Ensure to read all the warnings and warranty information contained in the leaflet joint to these instructions!

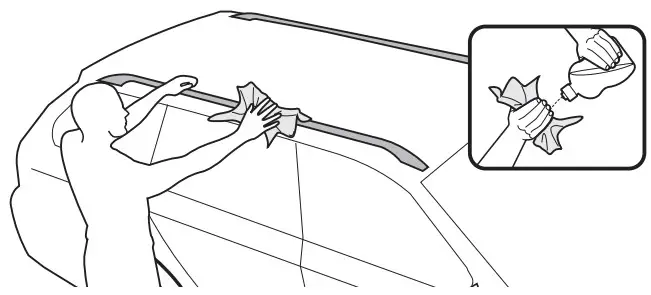

Use a soft cloth to clean the vehicle’s raised rails.

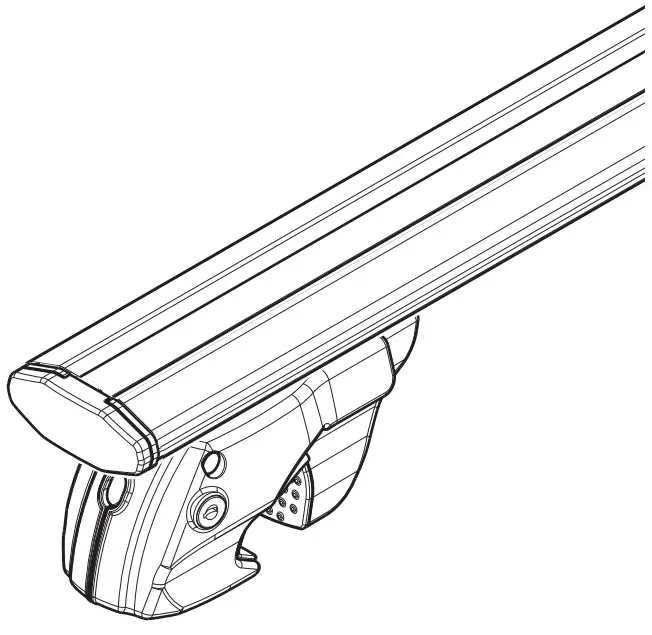

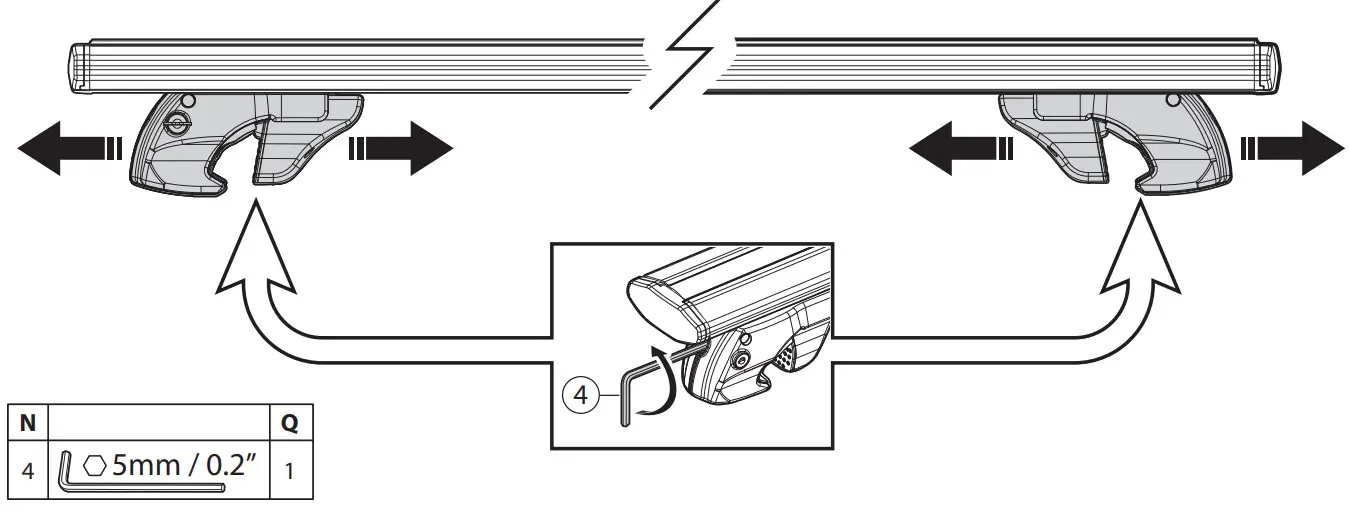

- Insert the Allen wrench into the hole on the front of the foot and, when it fits the screw head, turn it anti clockwise to expand the jaw.

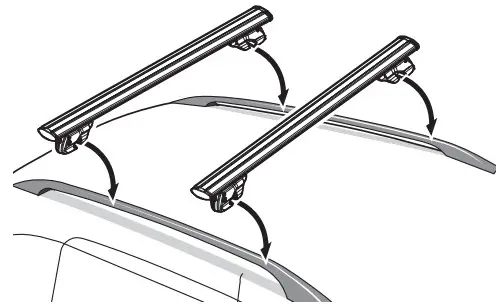

- Place the bars on the roof rails.

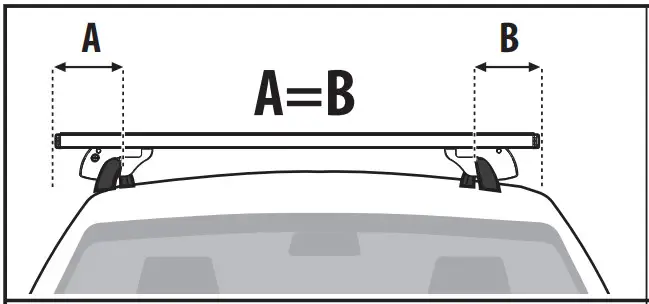

Ensure that the bar is perfectly centered by checking the extremities from the front and the rear of the vehicle.

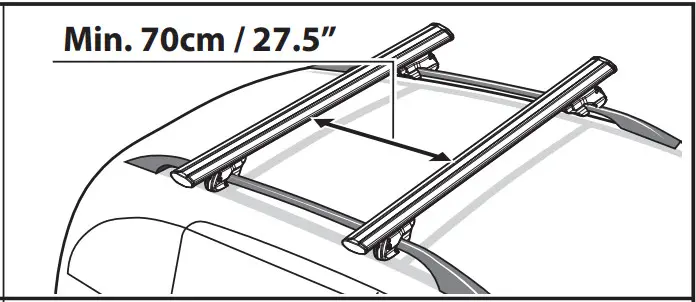

Check the distance in between the bars to be 70cm / 27.5” at least.

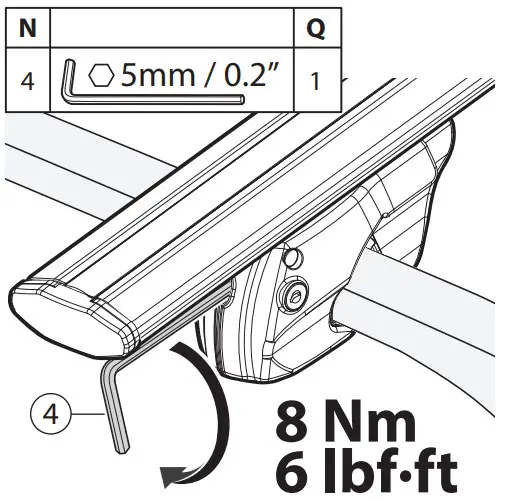

- Insert the Allen wrench into the hole on the front of the foot and turn clockwise to tighten the jaw. Fully tighten the clamp to the rail. Ensure that you have a tight fit, and that the bar is perpendicular to the rail.

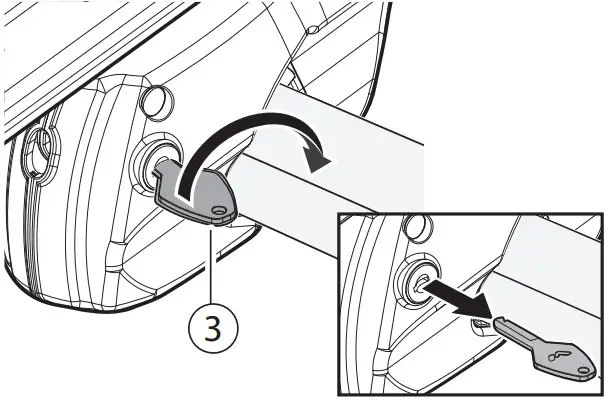

Turn the key clockwise to insert the anti-theft lock in the foot, and then remove the key.

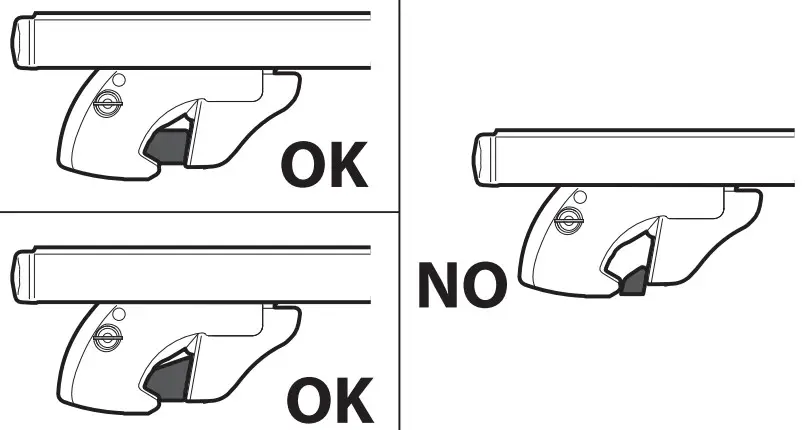

To check the correct positioning of the jaw, the rail edge should lean on the outer side of the jaw. For a correct installation, hold the jaw pushed up toward the rail while turning the Allen key (no.3 above).
Test the anchoring: the crossbars should not move. Tighten more if necessary.

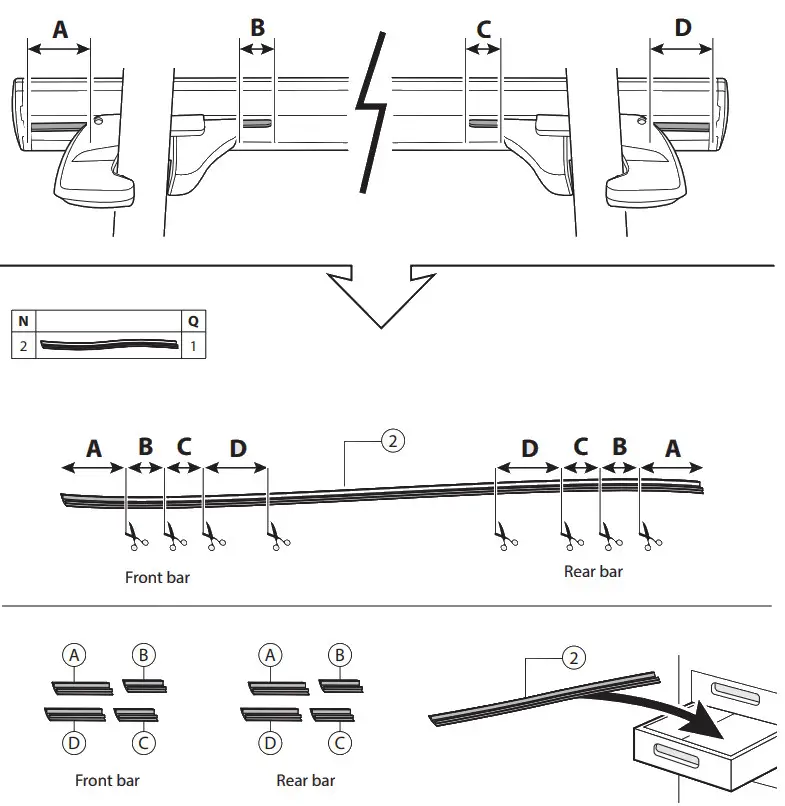

- Cut the rubber profile of the same size as the empty profile slots on the lower side of the bar.

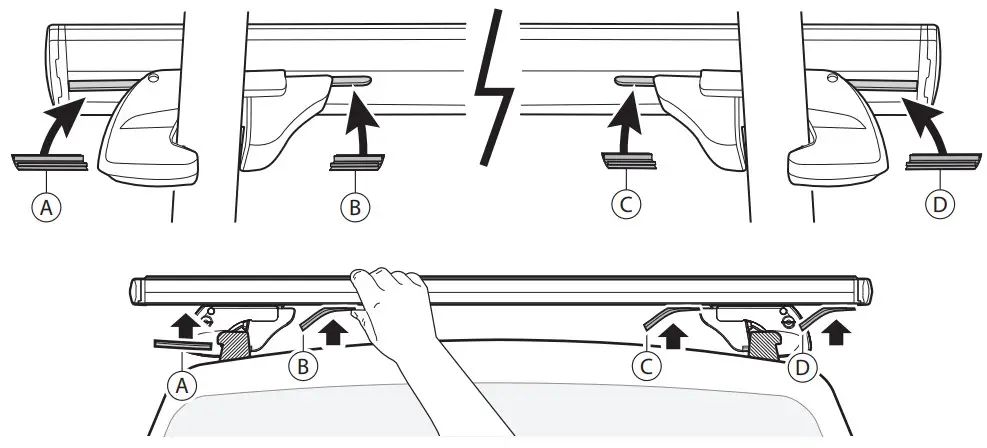

- Insert the previously cut rubber profiles in the grooving on both sides of the foot. Ensure you completely close both groovings in order to avoid any whistles while driving.

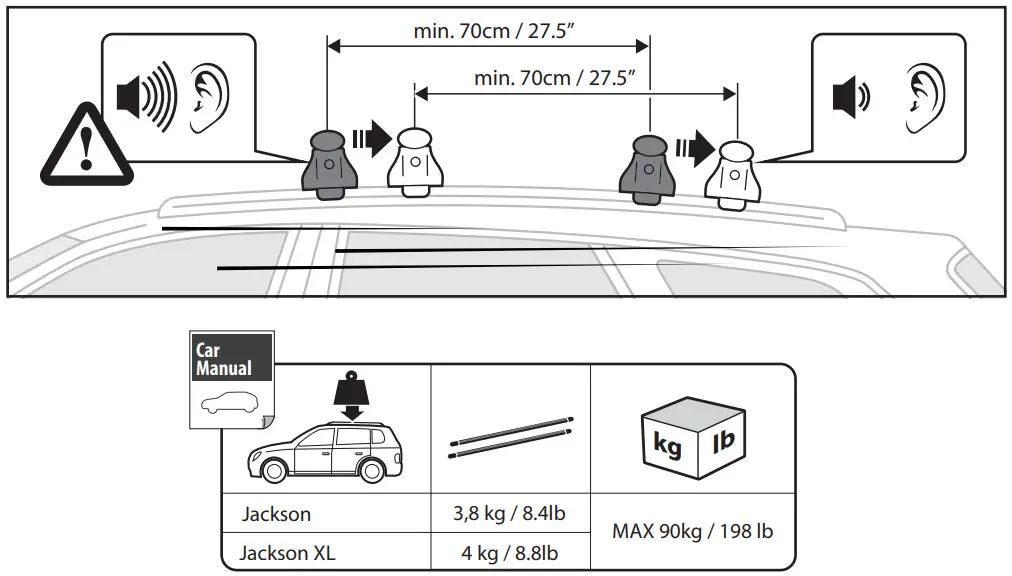

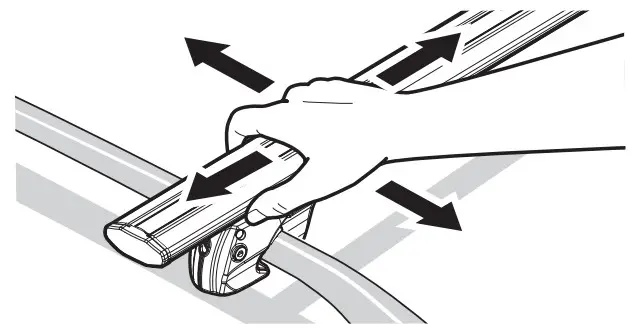

In case of whistling while driving, in order to reduce such noise, slightly move both bars toward the rear of the vehicle, keeping a minimum distance of 70cm – 27.5” between the two crossbars.
Ensure that the bar is perfectly centered by checking the extremities from the front and the rear of the vehicle.
Check the distance in between the bars to be 70cm / 27.5” at least.
Turn the key clockwise to insert the anti-theft lock in the foot, and then remove the key.
To check the correct positioning of the jaw, the rail edge should lean on the outer side of the jaw. For a correct installation, hold the jaw pushed up toward the rail while turning the Allen key (no.3 above).
Test the anchoring: the crossbars should not move. Tighten more if necessary.
In case of whistling while driving, in order to reduce such noise, slightly move both bars toward the rear of the vehicle, keeping a minimum distance of 70cm – 27.5” between the two crossbars.
Ensure to read all the warnings and warranty information contained in the leaflet joint to these instructions!

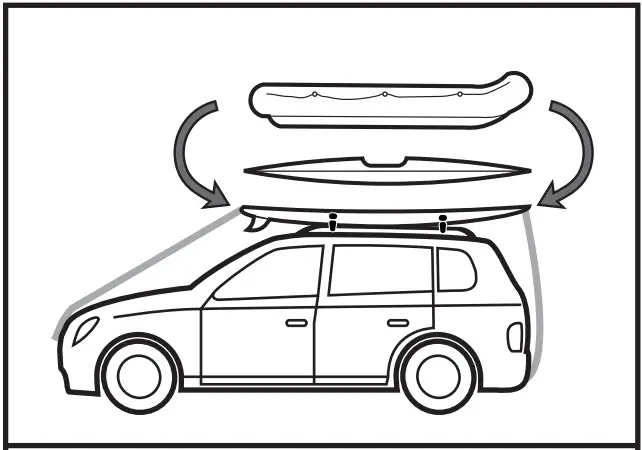

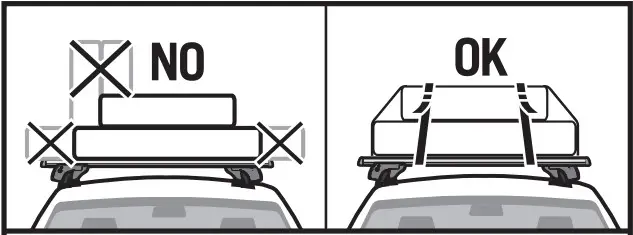

Load must be uniformly distributed with the lowest possible center of gravity. Load should not substantially extend beyond the loading surface of the roof rack. Ensure load stays within the perimeter delimited by the rack feet attached to the rails.

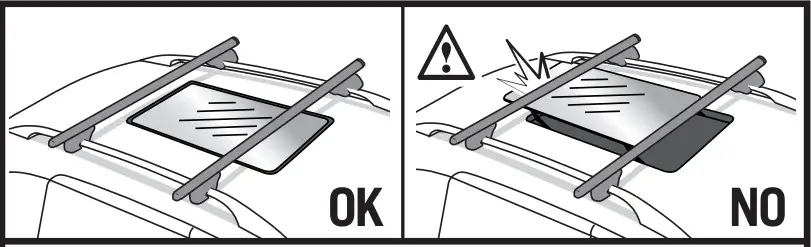

Do not open the sunroof while the bars are still mounted on the roof of the vehicle.
Always remove the roof bars before running your vehicle through a car wash.
Any load extending over the windshield (except roof baskets) must be secured to both the front and rear of the vehicle, in addition to the rack. Failure to do so may result in property damage, personal injury or death.

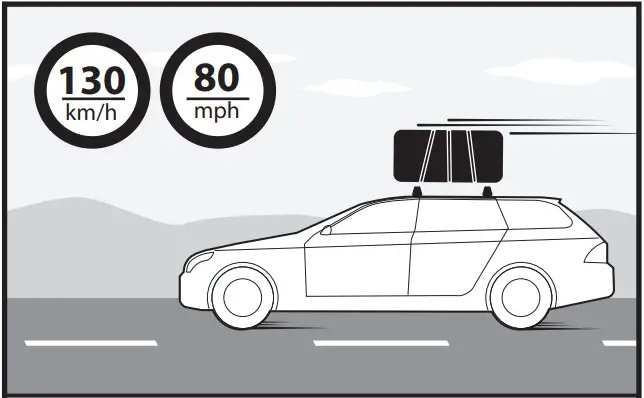

Do not exceed a speed of 130 km/h (80mph).

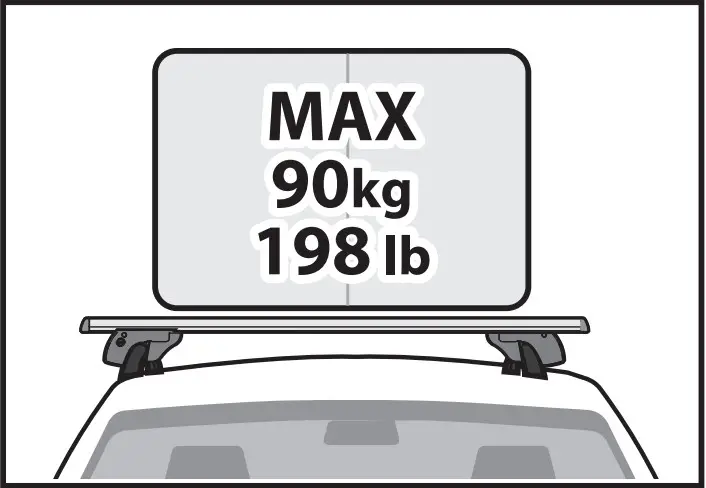

Do not exceed the maximum load specified for the roof rack, accessory rack or the maximum load recommended by the vehicle manufacturer. Max roof load = weight of the complete roof rack system + weight of the load

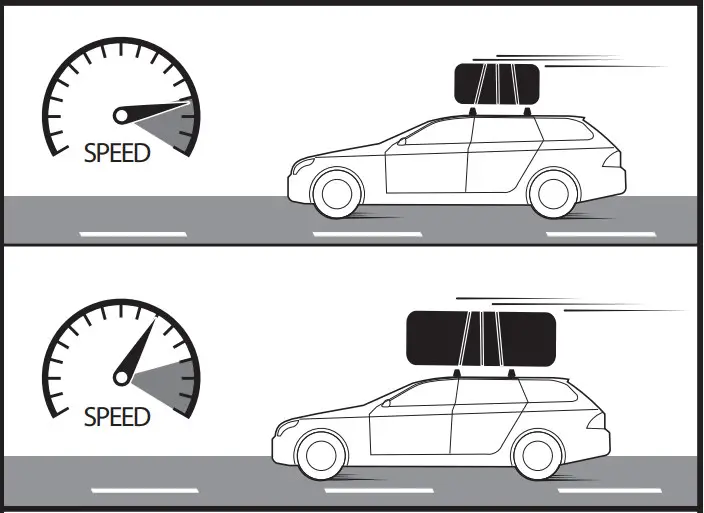

Adjust the speed according to the load.

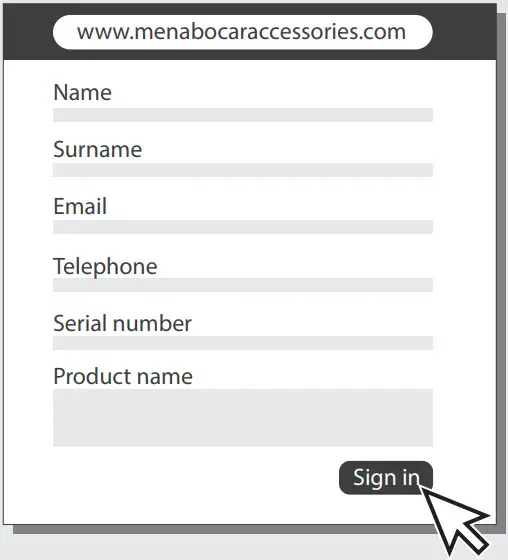

Product registration US/CA/MEX:
MENABO USA INC.
18 Bridge Street, Unit 2A, Brooklyn, NY, 11201 – U.S.A
MENABO CANADA INC.
1710 Transcanada Hwy. – Dorval, QC. H9P 1H7 – Canada
E-mail: [email protected]
www.menabocaraccessories.com
Cod.Istr. 5000319MU001
Data: 21/10/2020
Made in Italy
