CA500LR Remote
Controlled Relay
User Manual
CA500LR Remote Controlled Relay
Remote Controlled Relay PNI CA500LR for controlling 1 or 2 garage doors, gates, bariers
Technical specifications
- Sensitivity: -105dBm
- Communication frequency: 433MHz
- Transmission power; 0.1W
- Power supply: DC 12V ≤10mA
- Channels: 2
- NO/NC (Normal Open/Normal Close) command no voltage, 10A max.
- Working modes:relay NO/NC manual, self-closing, dual
- Operating temperature: -26 ~ +60℃
- Compatible with the remote controls: PT2262, SC2260, EV1527

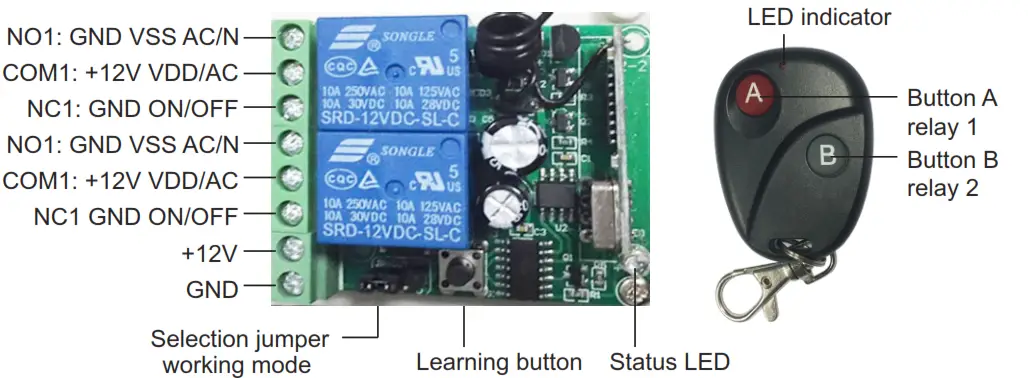

Overview
Working modes
- press A or B on the remote; the relay closes and remains closed untill you press the button again (doors work individually) Used to turn ON and OFF a lightbulb for example.
- press and hold A or B to open the door/lock/gate, when you release the button the relay returns to its initial state ( doors work individually). Used for magnetic locks, gates etc.
- this mode can be used only if you connected 2 different doors (A and B) to the relays: press button A to open door A, when you press button Bdoor A will close and door B will open and stay open untill you open door A or power is cut off. In this mode the relays/doors are dependent on each other.
Selecting working mode:
- cut off the power to the relay;
- place the jumper in corresponding position for the desired working mode;
- connect back the power.
Learning the remote: short press learning button. The LED will lit. Press button A on the remote. The LED will blink red 3 times then stays lit to confirm learning of the button A for commanding the first relay. LED stays lit. Press button B on the remote. The LED-ul will blink 3 times then it turns off to confirm learning. Repeat procedure to learn secondary remotes.
Erasing the remotes: press and hold the learning button untill the LED turns off. Release the button. The LED will blink 3 times to confirm erasing.
EU Simplified Declaration of Conformity
SC ONLINESHOP SRL declares that Remote controlled relay PNI CA500LR complies with the Directive RED 2014/53/UE. The full text of the EU declaration of conformity is available at the following Internet address: https://www.mypni.eu/products/8325/download/certifications
