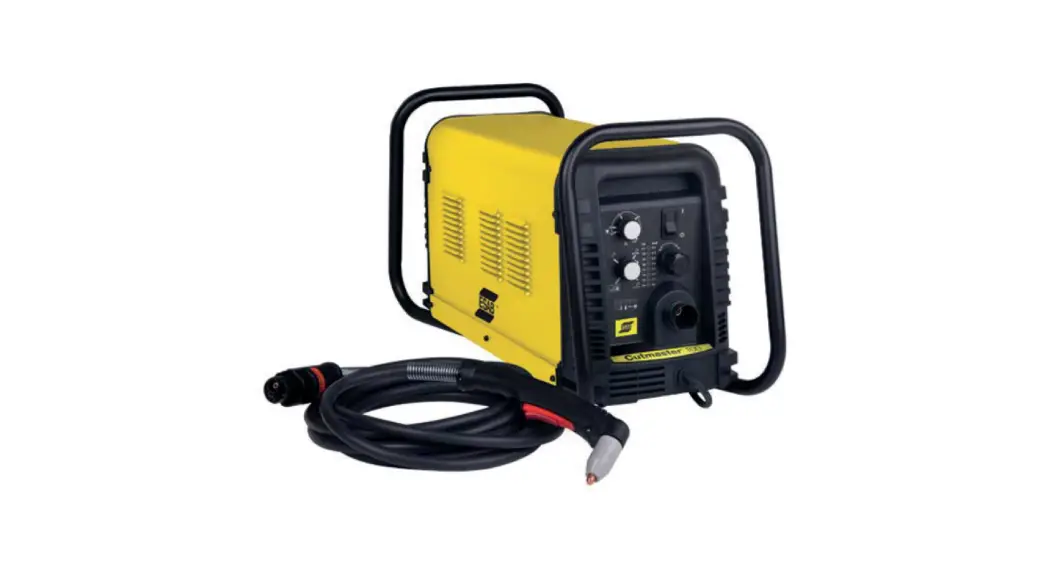

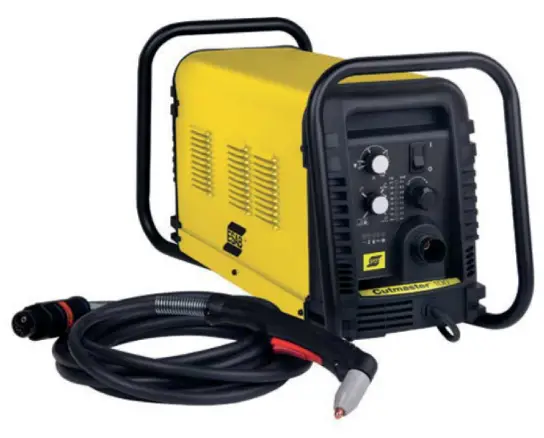

Cutmaster 100 Plasma Cutter
ESAB Cutmaster 120
Instruction Manual
0464 524 060 GB 20210909
Spare parts list
| Ordering no. | Product | Notes |
| 0559 117 304 | ESAB Cutmaster 100 6.1 m (20 ft) SL100 400V 3ph | Europe, CE |
| 0559 117 314 | ESAB Cutmaster 100 15.2 m (49 ft) SL100 400V 3ph | Europe, CE |
| 0559 119 304 | ESAB Cutmaster 120 6.1 m (20 ft) SL100 400V 3ph | Europe, CE |
| 0559 119 314 | ESAB Cutmaster 120 15.2 m (49 ft) SL100 400V 3ph | Europe, CE |
Spare parts may be ordered through your nearest ESAB dealer, see esab.com. When ordering, please state product type, serial number, denominations, and ordering numbers according to the spare parts list. This facilitates dispatch and ensures correct delivery.
Maintenance and repair work should be performed by an experienced person, and electrical work only by a trained electrician. Use only recommended spare parts.
Rights reserved to alter specifications without notice.

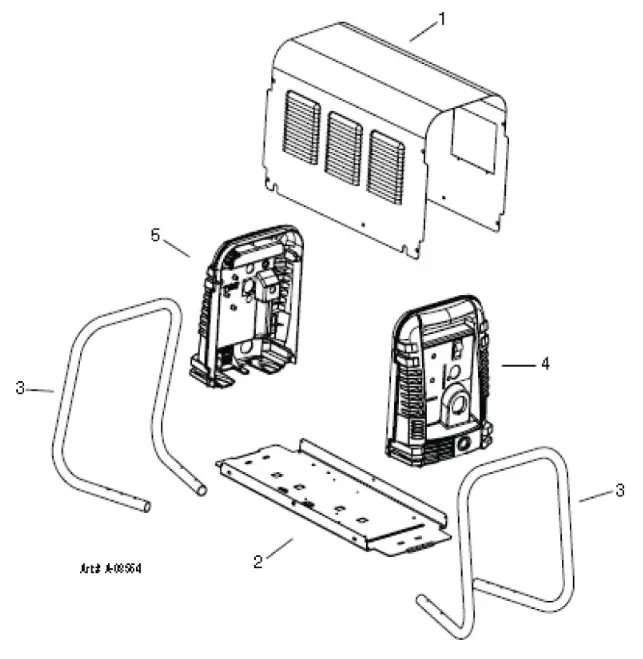

SPARE PARTS
Cutmaster 100 and 120
| Item | 100 | 120 | Ordering no. | Denomination | Notes | C |
| 1 | 1 | 9-0258E | Cover with labels | |||
| 1 | 9-0259E | Cover with labels | ||||
| 2 | 1 | 1 | 9-0186 | Base enclosure assembly | ||
| 3 | 2 | 2 | 9-0121 | Tube, roll handle | ||
| 4 | 1 | 9-0229E | Front panel | |||
| 1 | 9-0230E | Front panel | ||||
| 5 | 1 | 1 | 9-0101 | Rear panel |

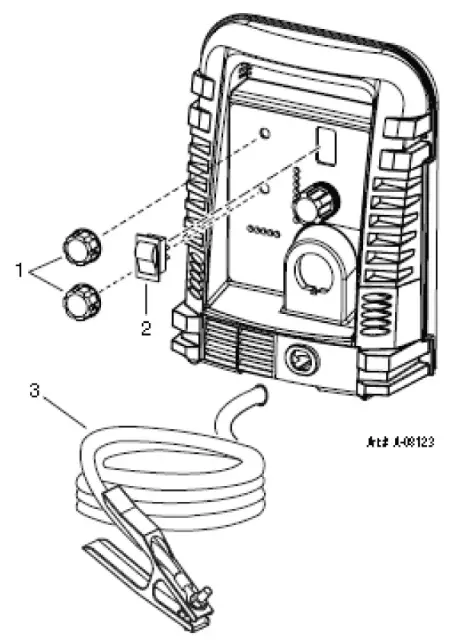

Cutmaster 100 and 120
| Item | 100 | 120 | Ordering no. | Denomination | Notes | C |
| 1 | 2 | 2 | 9-8527 | Output current control and function control knobs | ||
| 2 | 1 | 1 | 9-0109 | Toggle — ON/OFF Switch | SW1 | |
| 3 | 1 | 1 | 9-0189 | Work cable with clamp | 6.1 m (20ft) |

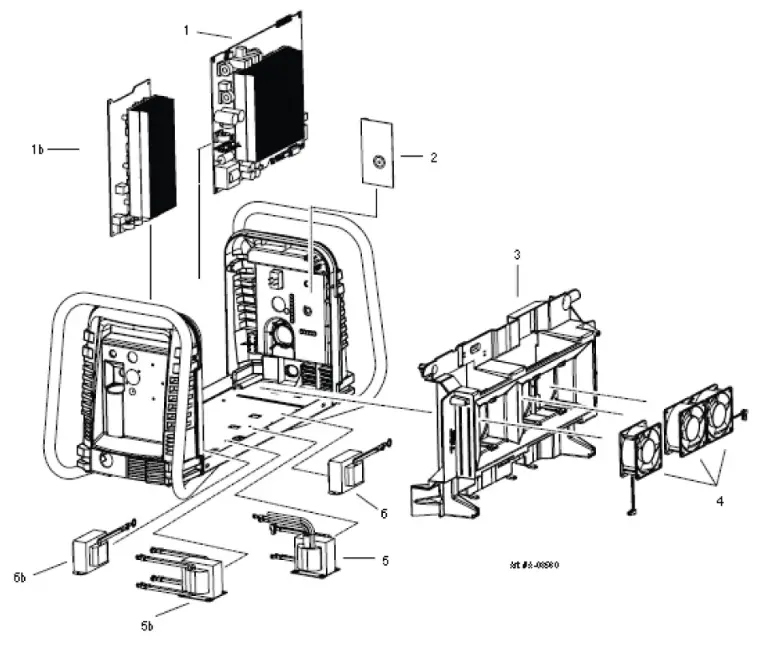

Cutmaster 100 and 120
| Item | 100 | 120 | Ordering no. | Denomination | Notes | C |
| 1 | 1 | 9-0108 | Main PCB assembly | PCB 1 | ||
| 1 | 9-0123 | Main PCB assembly | PCB 1 | |||
| 1 b | 1 | 9-0194 | Main PCB assembly 40 Amp | PCB 5 | ||
| 1 | 9-0122 | Main PCB assembly 50 Amp | PCB 5 | |||
| 2 | 1 | 1 | 9-0113 | Logic PCB | PCB 3 | |
| 3 | 1 | 1 | 9-0190 | Centre chassis molded plastic | ||
| 4 | 3 | 3 | 9-0232 | Fan | MOT 1-3 | |
| 5 | 1 | 9-0106 | Transformer, main | T 1 | ||
| 1 | 9-0119 | Transformer, main | T 1 | |||
| 5b | 1 | 9-0196 | Transformer 60 Amp | T 2 | ||
| 1 | 9-0117 | Transformer 60 Amp | T 2 | |||
| 6 | 1 | 1 | 9-0105 | Inductor, output | L 1 | |
| 6b | 1 | 1 | 9-0195 | Inductor, output 50 Amp | L 2 | |
| 1 | 1 | 9-0249 | Clamp-On Wire harness ferrite filter |

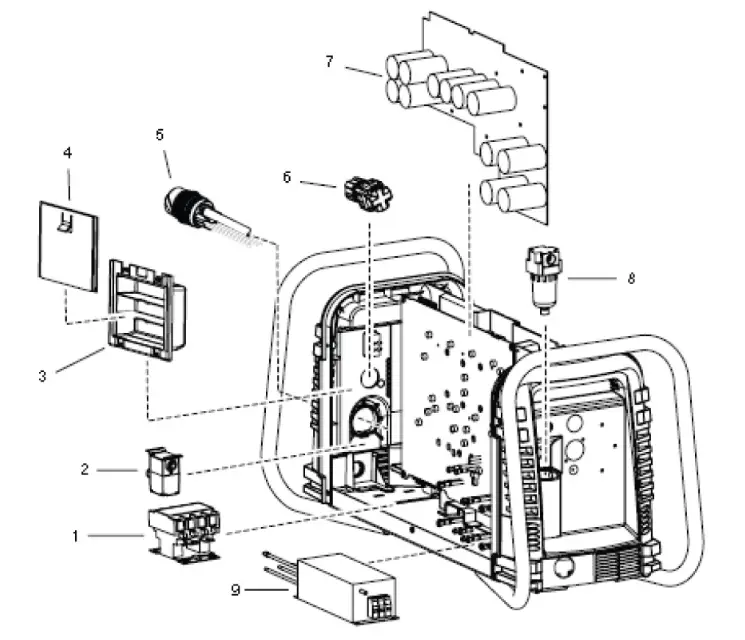

Cutmaster 100 and 120
| Item | 100 | 120 | Ordering no. | Denomination | Notes | C |
| 1 | 1 | 1 | 9-8587 | Contactor, 4 pol | W 1 | |
| 2 | 1 | 1 | 9-0114 | Solenoid | 12V | SOL 1 |
| 3 | 1 | 1 | 7-3267 | Spare part box | ||
| 4 | 1 | 1 | 7-3266 | Spare part box cover | ||
| 5 | 1 | 1 | 9-0161 | Console quick disconnect | ||
| 6 | 1 | 1 | 9-0115 | Regulator with knob and mounting nut | ||
| 1 | 1 | 9-0250 | Pressure switch | |||
| 7 | 1 | 9-0481 | Input capacitors PCB assembly | PCB 2 | ||
| 1 | 9-0482 | Input capacitors PCB assembly | 400 V CE | PCB 2 | ||
| 8 | 1 | 1 | 9-0116 | Filter auto drain | ||
| 9 | 1 | 1 | 9-0253 | 3 Phase Input line EMI filter | ||
| 1 | 1 | 9-0111 | Power cable strain relief | |||
| 1 | 1 | 9-0216 | Input power cable | 380/400/415V |
