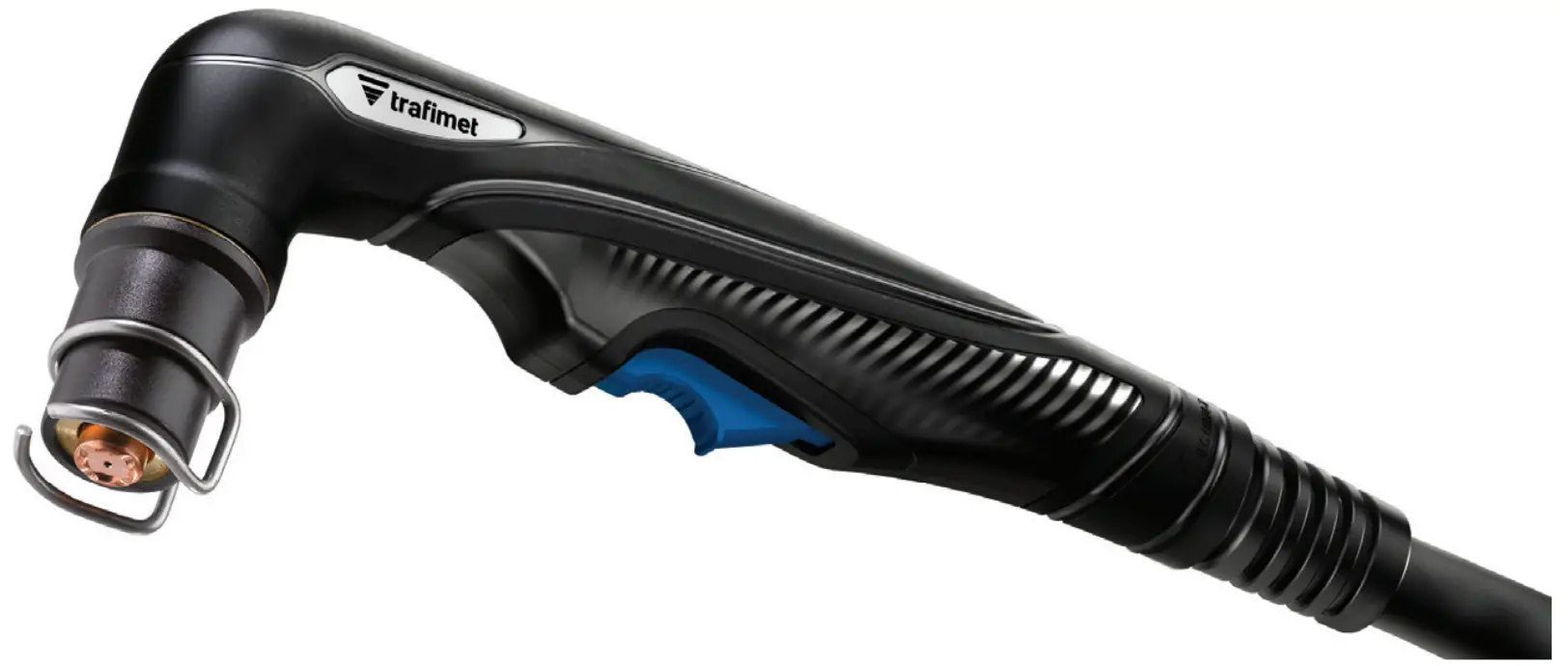

trafimet Exprescut A81 Plasma Cutting

Contents hide

1 PLASMA CUTTING

1.1 TECHNICAL DATA

1.2 STANDARD

2 Documents / Resources

2.1 References

3 Related Posts

PLASMA CUTTING

CODE
PAA106M-000-WA3	6 m	19.7’	1/4 GAS
PAA106M-071-WA3	6 m	19.7’	3/8 GAS
PAA106M-004-WA3	6 m	19.7’	CENTRAL 004
PAA106M-304-WA3	6 m	19.7’	TRAFIMECTOR® 304

TECHNICAL DATA
	EXPRESCUT A81
	0,6 kg	1,32 lb
	500
	5 bar
	155 l/min
	80 A
	60 A
	20-25mm	25/32” – 1”

004

CENTRAL ADAPTOR
STANDARD TRAFIMET CONFIG.

CODE

CONTACT

DRAG

GOUGING

REF

CV0026

stand off guide

25,5 mm

•

CV0028

stand off guide

20,5 mm

•

CV0033

stand off guide

26 mm

•

CV0051

stand off guide

24,3 mm

31 mm

•

CV0201

ceramic stand ofguide

30 mm

•

PC0115

nozzle

35,4 mm

•

PD0105-10

50 A

1,0 mm

.040”

13,3 mm

•

PD0105-12

80 A

1,2 mm

.047”

13,3 mm

•

PD0106-12

80 A

1,2 mm

.047”

25,8 mm

•

PE0107

diffuser

8,2 mm

•

PR0109

electrode

27 mm

•

PR0115

electrode

39,5 mm

•

FH0560

air tube

28 mm

•

FH0561

long air tube

40 mm

•

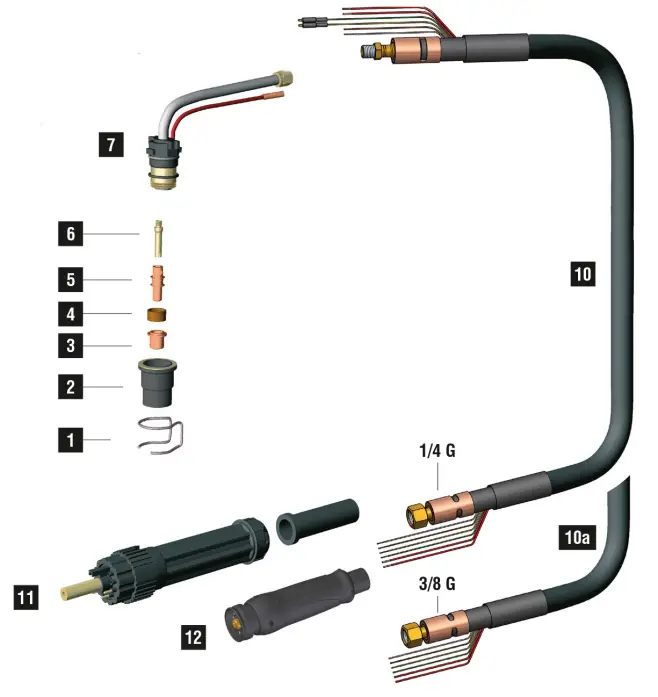

	CODE
7	EA0125	O-ring Ø 15,6 x 1,78 mm	10

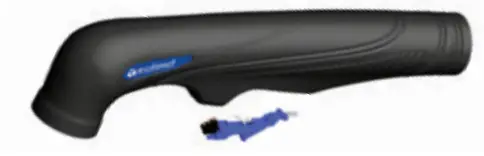

7	PF0140	A81 torch head	1

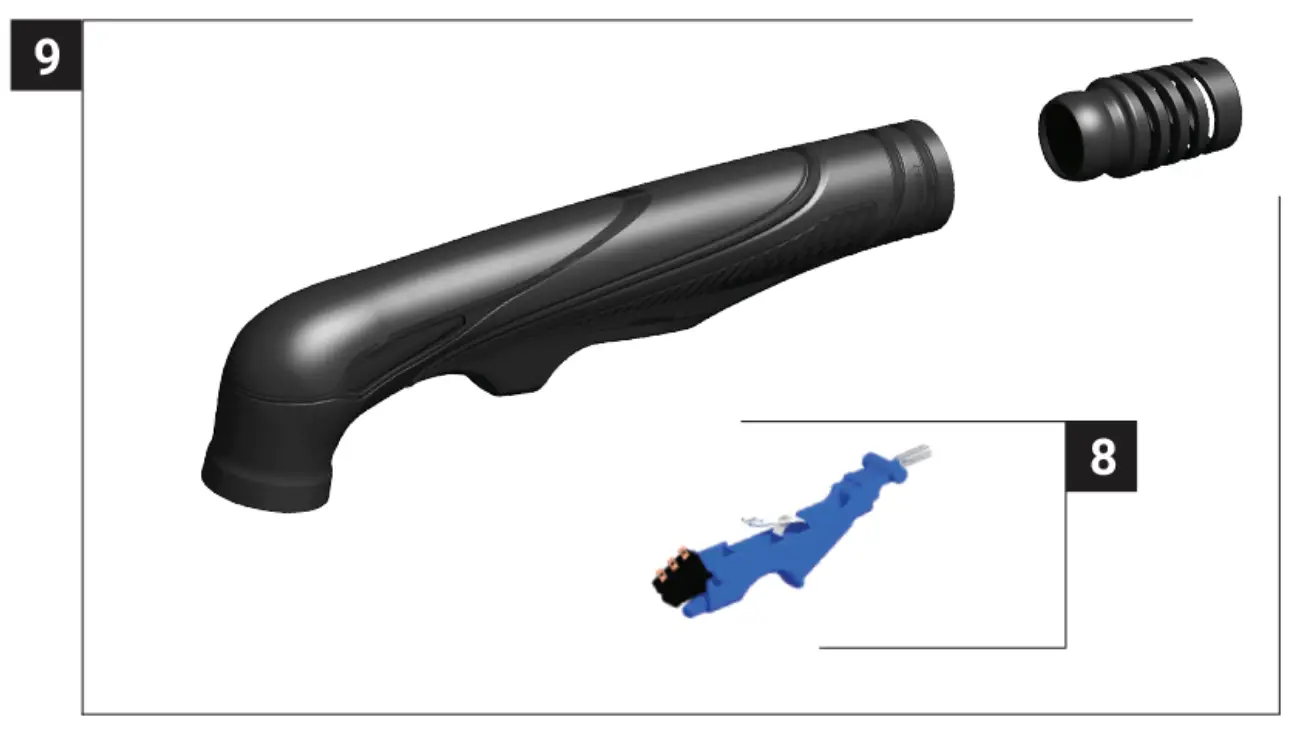

8	TP0310	trigger kit	1

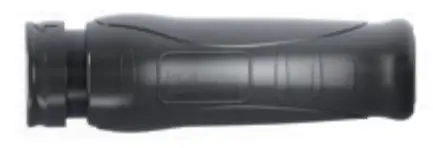

9	TP0303	handle kit	1
9	BW0424	spring joint	1

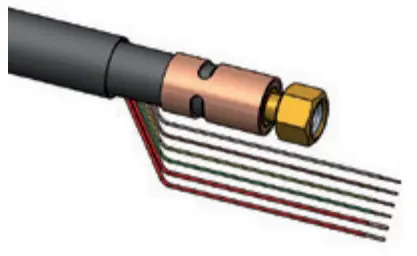

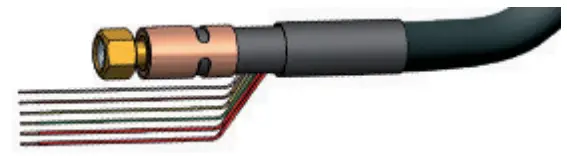

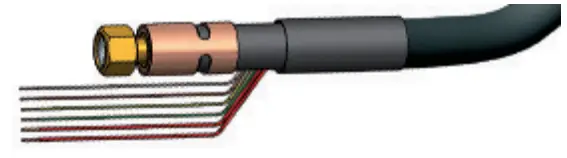

10	PH4003	coaxial cable – 6 m / 19.7’ – 1/4 G (no pin)	1

	CODE

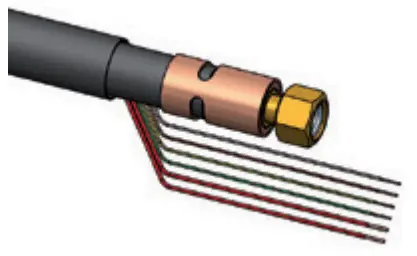

10a	PH4009	coaxial cable – 6 m / 19.7’ – 3/8 G (no pin)	1
11	BW0147	cable support	10

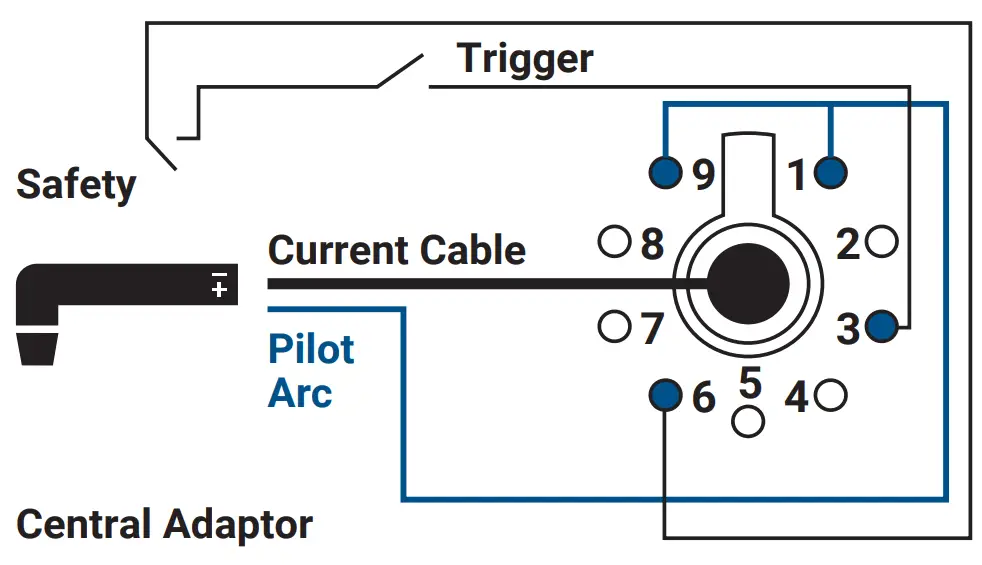

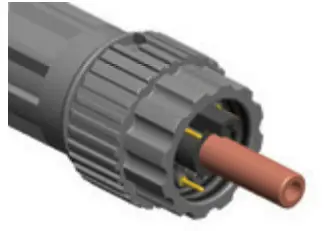

11	FY0023	plasma central adaptor – 5 pins	1

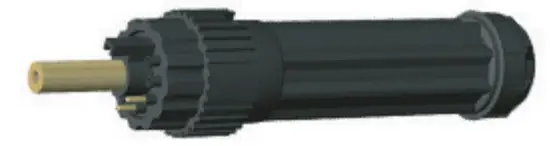

12	FY0090	TRAFIMECTOR® central adaptor – torch side	1

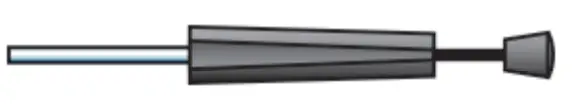

	EA0254	pin extractor for central adaptor	1

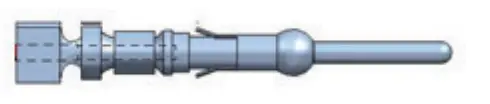

	PT0202	male spring pins kit (5 pcs)	1
