Welcome

Thank you for choosing IMOU.
We are devoted to providing you easy smart home products.
If you have problems using the product, please contact our service team before returning your product.

Our service mail: [email protected]

Frequently asked questions can be found at imoulife.com/support/help

Package Content

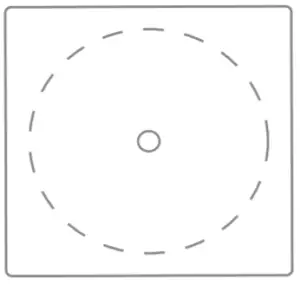

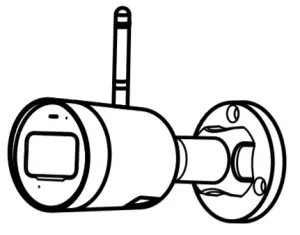

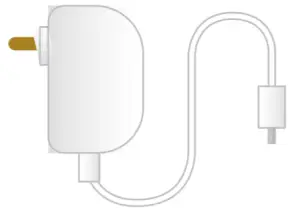

Camera x1	Positioning Map x1	Power Adapter x1

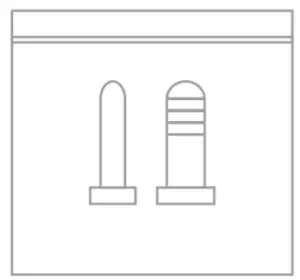

Quick Start Guide x1	Screw Package x1	Waterproof Connector x1

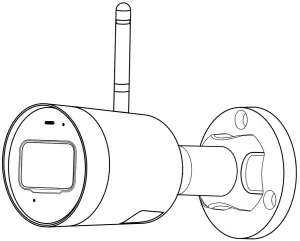

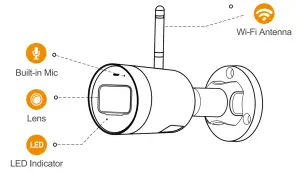

Camera introduction

Note: Press and hold the reset button for 1 Os to reset the camera.

LED Status	Device Status
Off	Power off/LED turned off Rebooting after reset
Red light on	Booting Device malfunction
Green light flashing	Waiting for network
Green light on	Waiting for network
Red light flashing	Operating properly
Green and red light	Network connection failed
flashing alternately	Firmware updating

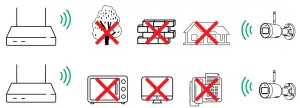

Tips

To ensure the best possible wireless performance, please make sure there are no obstacles and electromagnetic interference between the camera and router.

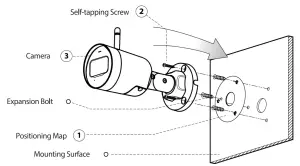

Ceiling Mounting

Troubleshooting

Probl em	Solution
Cannot set up camera	Ensure your mobile device and the camera are within range of your Wi-Fi router. Ensure the LED indicator on the camera isflashing green before beginning setup.
The APP says “Failed to configure device network”	Reset your Camera and connect it again. Some cameras only support 2.4GHz, while some routers have dual band, 2.4G/5G. Make sure you are configure device network” connecting 2.4GHz only.
The app says “Failed to bind”	The camera is already connected to Wi-Fi, but the router is: Not connected to Internet Poor network status The Wi-Fi signal is not stable due to obstacles or electronic interference
No picture/ signal	Ensure the LED indicator on the camera is flashing steady green. See ‘LED Status’ section for details Ensure the camera is properly connected to power using the included USB power adapter. Try repositioning the camera, router, or both to improve signal strength.
Picture is not clear	Check the Camera lens for dirt, dust spider webs. Clean the lens with a soft clean cloth Re move the vinyl cover on the camera lens.
No audio	Ensure audio function on camera is turned on. Ensure audio is turned up on viewing device.
Human detection not working	Ensure you have enabled “Human Detection” in the Device Settings screen of the lmou LifeApp.
Camera stuck downwards	Turn off Camera Shielding in Device Settings on the lmou Life app.
Phone is not reading QR code	Clean the camera lens of your Smartphone Ensure that there is enough light on the QR code Don’t hold the QR code too close to the camera
