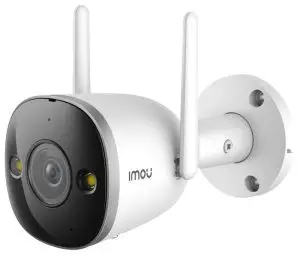

Imou Ipc-f22fp Bullet 2e Outdoor Security Wifi Camera User Guide

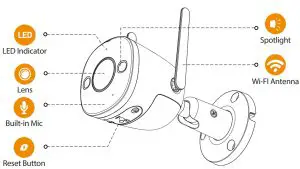

LED Status

• Powered off/LED turned off
• Rebooting after reset

Red light on

• Booting
• Device malfunction

Green light flashing

• Waiting for network

Green light on

• Green light on

Red light flashing

• Network connection failed

Green and red light flashing alternately

• Firmware updating

• Ensure your mobile device and the camera are within range of your Wi-Fi router.
• Ensure the LED indicator on the camera isflashing green before beginning setup.

• Reset your Camera and connect it again.
• Some cameras only support 2.4GHz, while some routers have dual band, 2.4G/SG. Make sure you are connecting 2.4GHz only.

• Not connected to Internet
• Poor network status

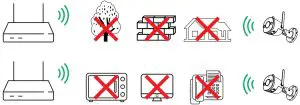

• The Wi-Fi signal is not stable due to obstacles or electronic interference

• Ensure the LED indicator on the camera is flashing steady green. See ‘LED  Status’ section for details if otherwise.
• Ensure the camera is properly connected to power using the included USB power adapter.
• Try repositioning the camera, router, or both to improve signal strength.

• Check the camera lens for dirt, dust, spider webs. Clean the lens with a soft, clean cloth.
• Remove the vinyl cover on the camera lens.

• Ensure audio function on camera is turned on.
• Ensure audio is turned up on viewing device.

• Ensure you have enabled “Human Detection” in the Device Settings screen of the Imou LifeApp.

• Turn off Camera Shielding in Device Settings on the Imou Life app.

• Clean the camera lens of your Smartphone

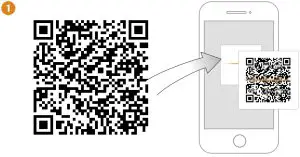

• Ensure that there is enough light on the QR code
• Don’t hold the QR code too close to the camera
