IMOU IPC B46LN White Wireless Outdoor Security Camera - Stay Close With What You Care

Cell 2
Wire-Free Smart Security Camera
Rev 001.001

IMOU IPC B46LN White Wireless Outdoor Security Camera - Cover

Cell 2 provides 4 MP live monitoring to see clearly what is happening in and around your home. Its rechargeable-battery can maintain you half a year security with only 1 time fully charge. Human detection technology enables the camera to intelligently detect human motion. Ensuring you are only alerted when a person, and not a stray cat, approaches. it supports four night vision modes for clear-as day clarity even in pitch dark.

4 MP QHD Video
More details presented than 1080p
100% Wire-Free
Free of network cabling and power wiring
Flexible Power Supply
5 VDC 1A Power Supply Rechargeable Battery Power
Smart Color Night Vision
Support four-mode night vision for clear-as day clarity even in pitch dark
Active Deterrence
Scare away unwelcome visitors with built-in spotlight and siren
Wi-Fi Connection
Dual-band 2.4 GHz & 5 GHz
PIR Detection
High quality passive IR detector for reducing false alerts
Two-way Talk
Real-time talk with people in front of the camera
Privacy Mode
Device goes to sleep to protect your personal privacy
Human Detection
Quickly find human targets in you home
IP65
Weatherproof for outdoor conditions
Multiple Storage Methods
Supports Cloud Storage or Micro SD card (up to 128 GB)

Stay Close With What You Care

IMOU IPC B46LN White Wireless Outdoor Security Camera - Stay Close With What You Care

Imou Cloud service provides you an instant interaction with what you care about. You can record daily videos and playback anytime, anywhere.

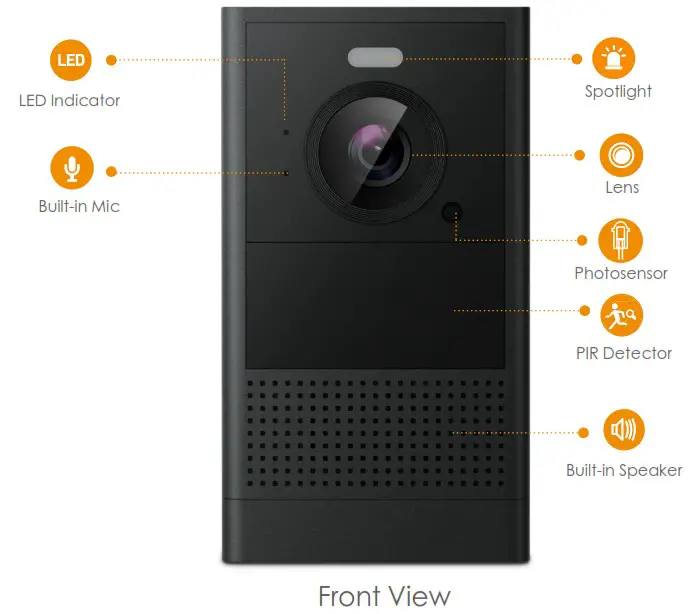

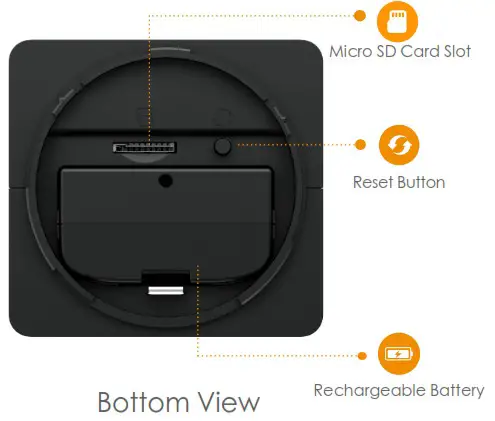

IMOU IPC B46LN White Wireless Outdoor Security Camera - Product Overview FrontIMOU IPC B46LN White Wireless Outdoor Security Camera - Product Overview Bottom View

Specifications

Camera
1/2.9″4 Megapixel Progressive CMOS
4 MP (2560 x 1440)
B/W Night Vision: 10 m(33 ft) Distance
Color Night Vision:5 m(16.5 ft) Distance
2.8 mm Fixed Lens, F2.0
Field of View : 110°(H), 61°(V), 130°(D)

Video&Audio
Video Compression : H.265/H.264
Up to 15 fps Frame Rate
16x Digital Zoom
Built-in Mic & Speaker, 110 dB Siren
Built-in Spotlight

Notice Management
PIR Detection
Human Detection

Network
Wi-Fi: Dual-band 2.4 GHz & 5 GHz
IEEE802.11b/g/n/ac
Imou App: iOS, Android

Auxiliary Interface
Micro SD Card Slot (up to 128 GB)
Built-in Mic & Speaker
Micro USB Power Port
Reset Button

General
Rechargeable Battery Power
Working Environment:­20 to +50 (­4 to +122 ), Less Than 95% (RH)
Dimensions: 109 mm x 61 mm x 57 mm (4.29″ x 2.4″x 2.24″) IP65
Weight: 313.7 g (0.69 lb) CE, FCC, IC

What’s in the box

  • 1x Camera
  • 1x Quick Start Guide
  • 1x Mounting Template
  • 1x Mounting Bracket
  • 1x Screw and Anchor
  • 1x Mounting Plate
  • 1x Charging Cable
