Tribit Bts52 Stormbox Blast Wireless Party Speaker User Manual

Tribit BTS52 Stormbox Blast Wireless Party Speaker User Manual

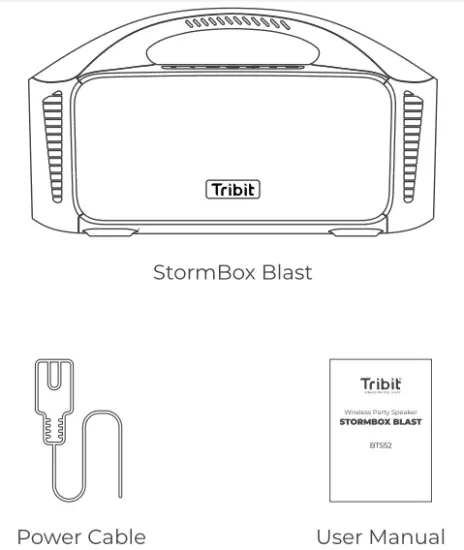

Packing List

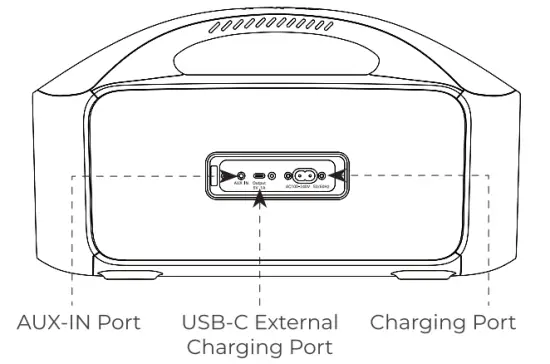

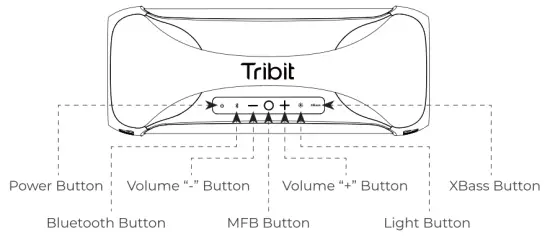

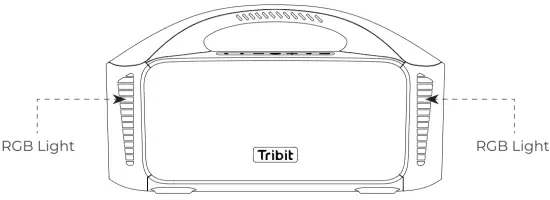

Product Introduction

How to Charge

1. How to charge the speaker:
   Connect the speaker with one end of the provided power cord, and
   plug the other end into a power outlet.

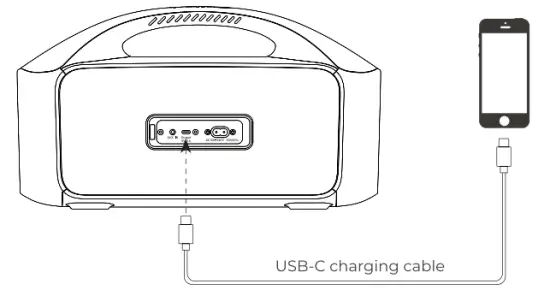

2. How to charge other devices through the speaker:
   Connect the speaker and other devices with the USB-C charging cable.

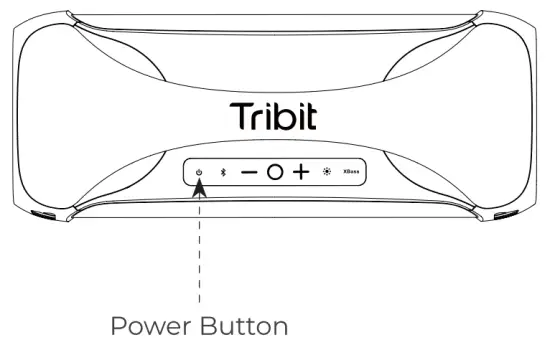

Button Control

1. Power ON/OFF


	Short Press	Turn ON	The white lip hit of the power indicator light is always on. In the low power state, the red light of the power indicator light flashes. In the charging state, the red light of the power indicator light is always on; after full charge, the red light of the power indicator light is off.
	Short Press	Turn OFF	All lights are off
	Long Press for Bs	Forced Shutdown	All lights are off.

When the Storm Box Blast cannot work normally due to unknown reasons, long press the power button for 8S to achieve forced shutdown and then restart the StormBox Blast.

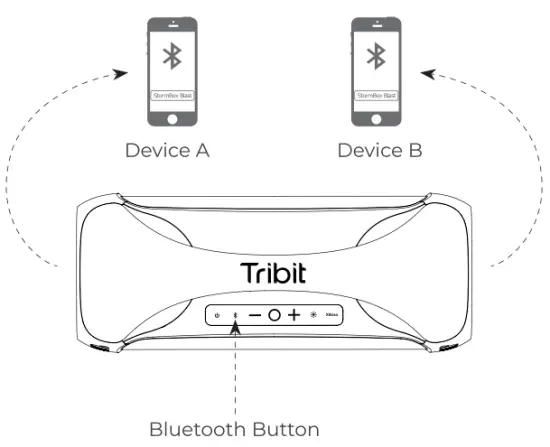

Bluetooth Connection

Short Press

Enter Bluetooth pairing mode

Bluetooth indicator light flashes quickly

StormBox Blast:

• Automatically connects back to 1 paired device;
• Connects 2 devices at the same time;
• Memorizes 8 Bluetooth devices;
• When two devices are simultaneously connected to the StormBox Blast, device A needs to pause the playback and then device B can play.

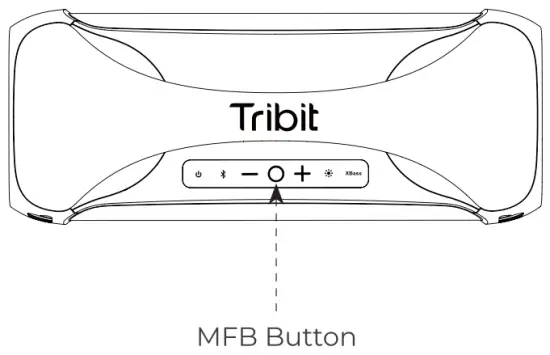

Multifunctional Button (MFB)

	Short Press	Play/Pause
	Short Press Twice Continuously	Next Track
	Short Press Three Times Continuously	Previous Track

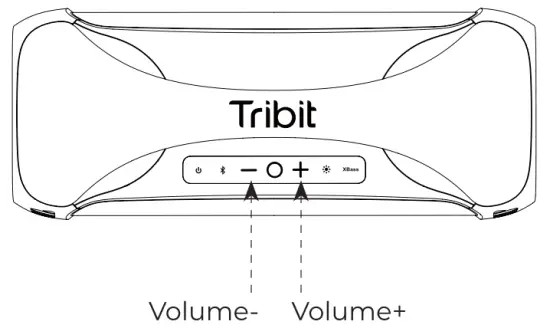

Volume Adjustment

	Short Press	Increase the volume
	Long Press	Keep increasing the volume
	Short Press	Decrease the volume
	Long Press	Keep decreasing the volume

Lighting Atmosphere Effect

Short Press

Switch/turn off the lighting effect mode

Lighting effect indicator white light is always on/ off

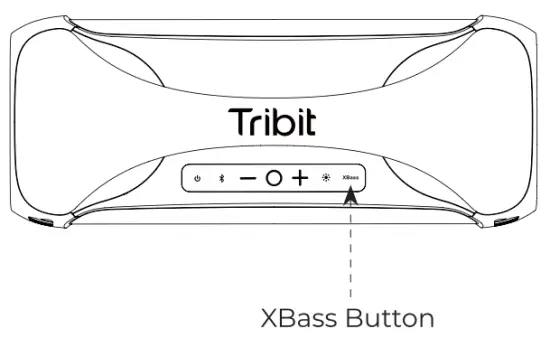

XBass Function

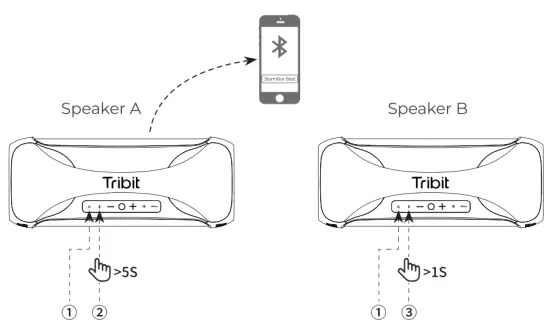

Stereo Mode

1. Please make sure that the two speakers are turned on.
2. Long press the Bluetooth button of the speaker A for ‘is to enter the Stereo Mode pairing ( Note: this speaker will be regarded as the main speaker );
3. Short press the Bluetooth button of the speaker B to enter the pairing mode ( Note: this speaker will be regarded as a secondary speaker )
4. When you hear the prompt sound “stereo mode”, the pairing is successful and the speaker A & speaker B enter the Stereo Mode. At this time, the main speaker will broadcast “left channel” and the secondary speaker will broadcast “right channel”

Warm Tip: For Stereo Mode, you need to have two Tribit StormBox Blast speakers.

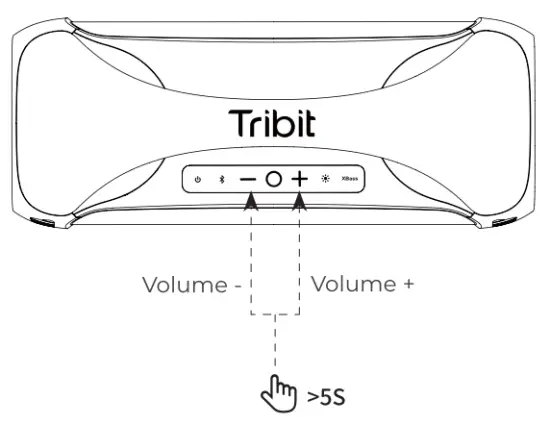

Reset

If the speaker has abnormal conditions, you can try to reset the Blast ( Note: long press the “volume +”and “volume -” buttons at the same time for 5 seconds ). After resetting, the historical pairing information will be cleared, and you need to re-pair the Blast with the device before use.

Product Specifications

Customer Support

• 18-month warranty
• For more services, please visit: Email: [email protected]

Safety Precautions

• Do not place the speaker in a place where it is easy to fall.
• Do not disassemble, repair or modify this product by yourself.
• Keep the speaker away from extreme temperatures
• Do not use the speaker in an outdoor thunderstorm environment
• Do not use any corrosive cleaners or other chemical solutions to clean the speaker.

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to Operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does ca use harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consults the dealer or an experienced radio/TV technician for help.

This device complies with part 1’5 of the FCC rules. Operation is subject to the following two conditions (1)this device may not ca use harmful interference, and (2) this device must accept any interference received, including interference t hat may ca use undesired operation.

IC Caution

This device complies with Industry Canada licence- exem pt RSS standard(s).

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may ca use undesired operation of the device.

Hereby, Thousandshores Deutschland GmbH declares that the radio equipment type Wireless Party Speaker BTS52 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration conformity is available at the following internet address: http://files.tribit.com/bts52-uk-doc.pdf.
