Tribit BTS12 Portable Wireless Speaker User Manual

Packing List

• StormBox Micro 2

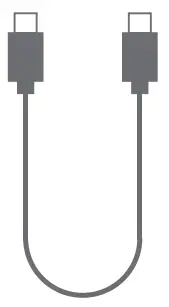

• USB-C charging cable

• User Manual

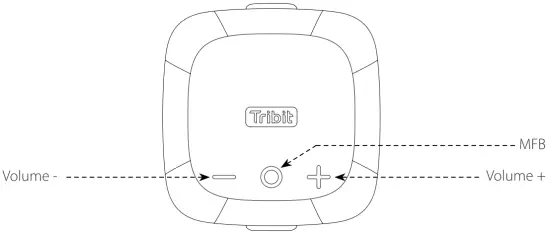

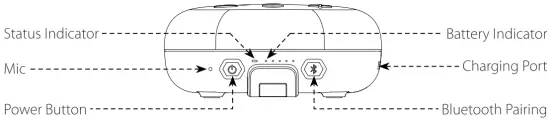

Product Illustration

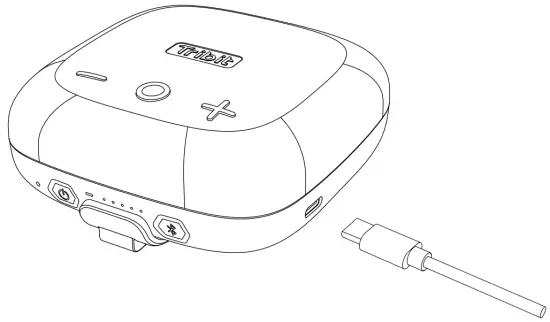

Charging

• Connect this speaker to a 5V power outlet via the providing USB-C charging cable.
• Charge other devices: Connect the speaker with your USB-enabled device via a USB-C charging cable

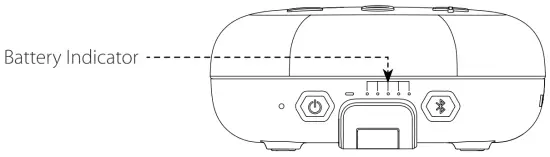

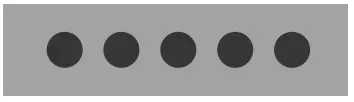

• Battery Indicator


  	Red indicator is flashing	Low battery
  	White. indicator is flashing	Charging
  	All indicators turn off	Full charged

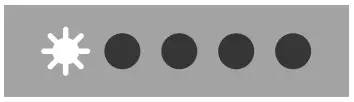

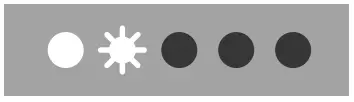

• Indicator Instruction


  0-30%	30-50%	50-70%	70-80%	80-100%	Full changed

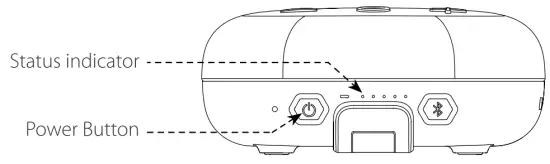

Button

• Power on/off


  	Short Press	Power on		Blue indicator is flashing
  	Short Press	Power off		All indicators turn off
  	Press and hold it for 8s	Reset		Blue indicator is flashing

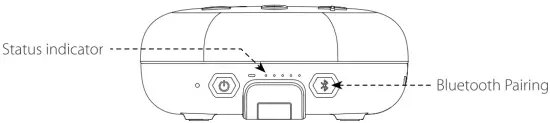

• Bluetooth Connection


  	Press and hold it for 1s	Enters pairing mode		Blue indicator is flashing	Pairing status
  	Press and hold it for 10s	Factory reset		Bluetooth indicator is steadily on	Successfully Connected

  The StormBox Micro 2 Speaker will automatically connect to the last paired device again if available. If it fails, the speaker will enter to pairing mode.
  The speaker can remember up to 8 paired Bluetooth devices.
  Better still, it can connect to 2 devices simultaneously at a time.

• Conversion between 2 Connected Devices
  1. Pause the playback of the current device
  2. Play the audio file of the other device

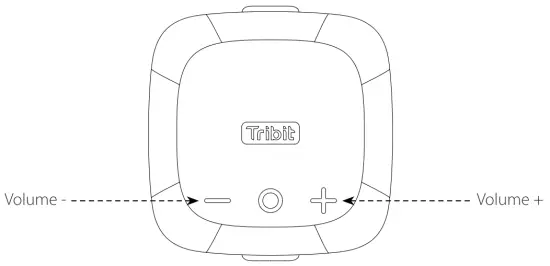

• Volume Adjustment


  	Short Press	Decrease volume
  	Keep it pressed for seconds	Continuously decrease volume
  	Short Press	Increase volume
  	Keep it pressed for seconds	Continuously increase volume

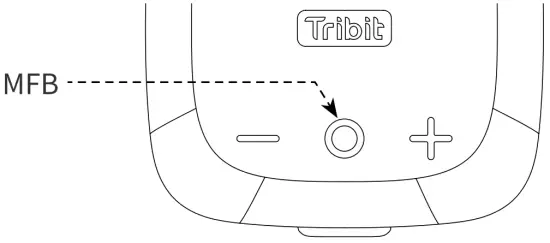

• Multifunctional Button (MFB)


  Music Mode	Short press	Play /Pause
  	Double Press	Next Track
  	Press it for 3 times	Previous Track
  	Press and hold it for 1s	Activate Siri
  Conversation Mode	Short press	Answer / End phone call
  	Press and hold it for 1s	Reject Phone call
  	Short press	Pause the current call and answer the incoming call
  	Short press	Switch between two phone calls

Party Mode

1. Make sure both two speakers are turned on.

2. Long press the Bluetooth button of speaker A for 3s to enter the party mode pairing. (Note: this speaker will be regarded as the main speaker)
3. Long press the Bluetooth button of speaker B for 1 s to enter the pairing mode.
   (Note: this speaker will be regarded as a secondary speaker). When you hear the prompt tone” party mode’ the speaker A and B successfully enter the party mode.
   Note: The function of party mode can be realized only when you have 2 Tribit StormBox Micro 2 speakers.

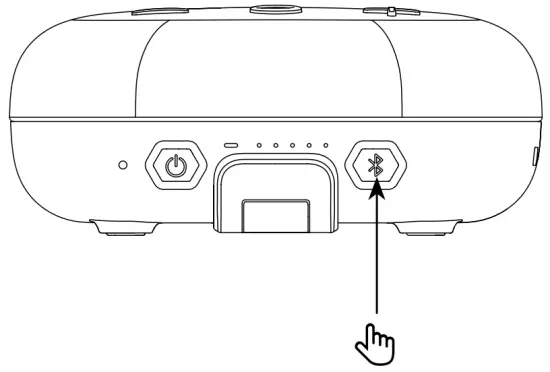

Stereo Mode

1. Make sure both two speakers have entered party mode.

2. Short press the Bluetooth button on any of the two speakers.
3. Release the buttons when you hear the voice of Stereo Mode. One speaker will sound “Left” and the other will sound “Right’ and then the stereo mode is activated.
   Note: The function of stereo mode can be realized only when you have 2 Tribit StormBox Micro 2 speakers.

Conversion between Party Mode and Stereo Mode

Short press the Bluetooth button on any of the two speakers.

Disable the Party Mode or Stereo Mode

Press and hold the Bluetooth button for 5s on any of th+ two speakers, then both will re-enter Bluetooth pairing mode.

Specifications

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-able protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

IC Caution

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
