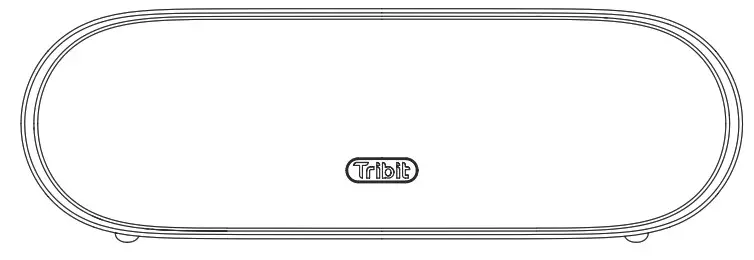

Tribit Bts35 Xsound Mega Portable Wireless Speaker User Manual

Tribit X Sound Mega
Portable Wireless Speaker
BTS35

User Manual

Safety Precautions

• Avoid dropping.
• Do not disassemble or repair the speaker.
• Avoid extrame temperatures.
• Do not use the device outdoors during thunderstorms.
• Do not use any corrosive cleanser/oil to clean.

Specification

Bluetooth version: 5.0
Support: A2DP, AVRCP, HFP, HSP
Output power: 30W
Frequency response: 60HZ~20KHz
Frequency band: 2.402GHz~2.480GHz
Maximum transmission power: ≤ 6dBm
Battery: (3.65V 4000mAh*2 ) / 29.2Wh
Music play time: Up to 20hours ( varies volume level and music files )
Charge time: 4H @ 5V/2A
Waterproof: IPX7
Dimensions: 250mm x 87mm x 80mm
Weight: 1020g

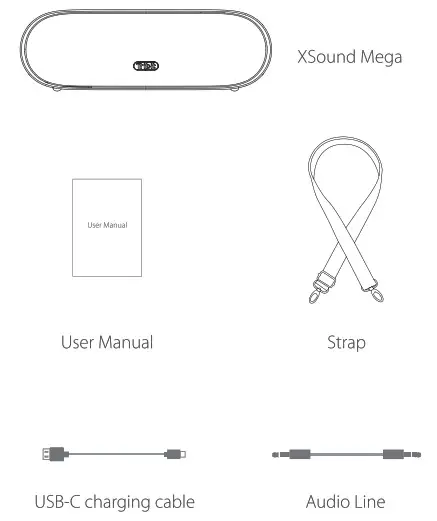

What’s in the Box

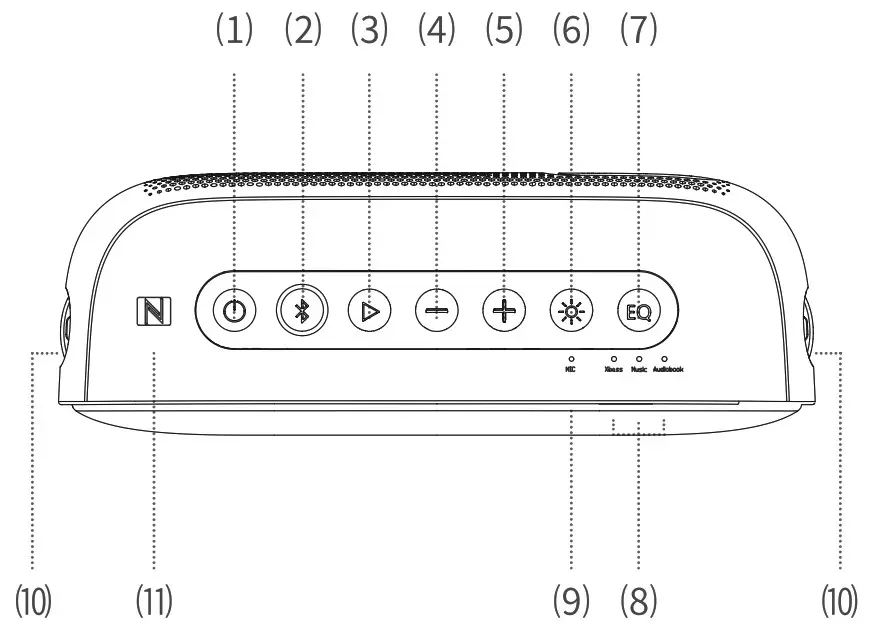

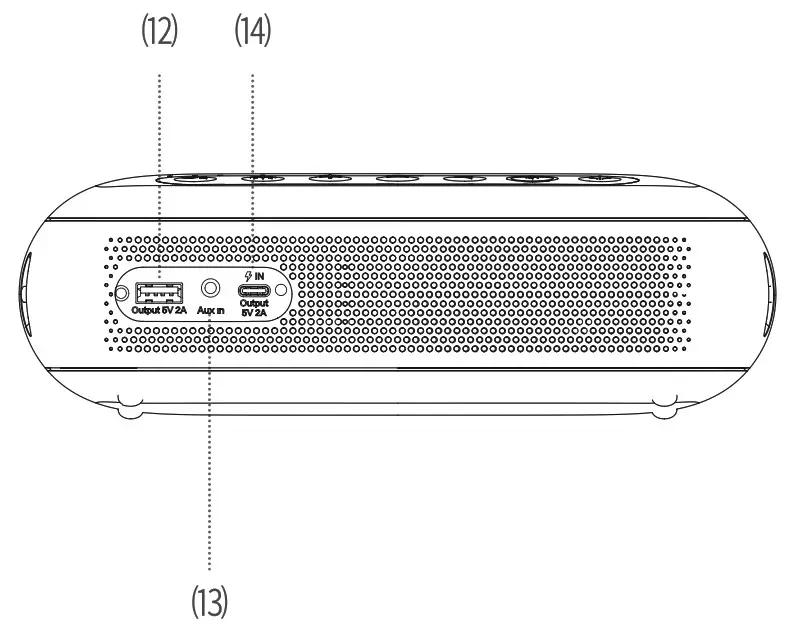

Overview

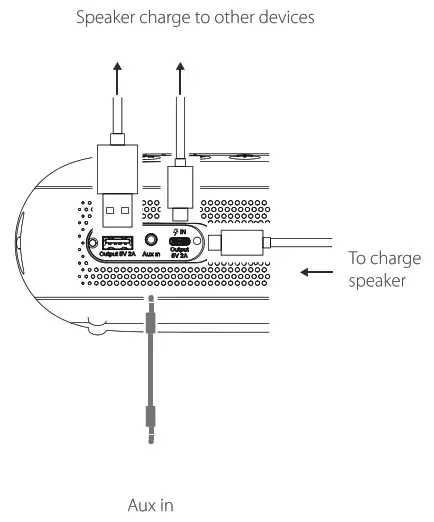

Connections

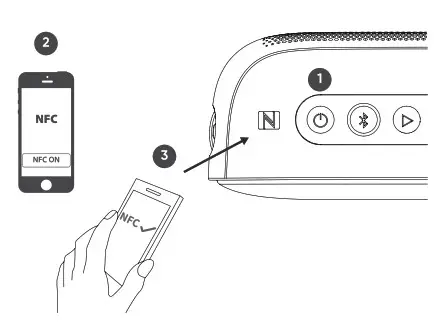

Bluetooth Pairing

1. Make sure the speaker is on.
2. Open NFC in your phone.
3. The NFC area on the phone needs to be close to the NFC area on the speaker. The phone will automatically recognize the speaker and request pairing. Click “agree” to complete pairing.

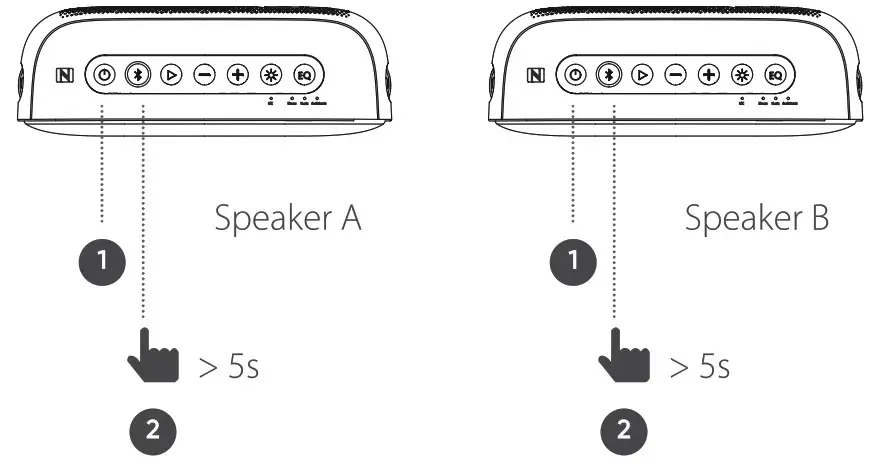

Broadcast Mode

1. Make sure both speakers are on, and connect speaker A to device;
2. Press the Bluetooth buttun both speakers for 5s to enter Broadcast pairing mode, and speaker B will connect to speaker A automatically, the Broadcast Mode is on.
3. If you want to connect multiple speakers to the group, press the button 5S, the speaker will connect to speaker A automatically.

Button Controls

Function	Button	Operation
Power ON /OFF		Press the button to turn on / off the speaker
Pair Bluetooth Device		Press the button to manually enter bluetooth pairing mode
Broadcast mode		Press and hold the button Ss to enter Broadcast mode
Disconnect Broad- cast mode		Press and hold the button Ss to disconnect Broadcast mode
Play / Pause		Press once the button
Next track		Double press the button
Previous track		Press the button for 3 times
Voice dial function		Press and hold the button for 2s to activate ( your device must support this function )
Answer/end the incoming call		Press once the button
Reject an incoming call		Press and hold the button for 2s
Volume Down		Press the button to decrease the volume level
Volume Up		Press the button to increase the volume level
Light adjustment		Press the button to switch or turn off the light
EQ mode		Press the button to switch Music mode, Bass mode, and Audiobook mode

Indicators

Indicator	Light	Status
Power indicator	White indicator keep sturdily on	Power on
	Red indicator flashes quickly	Battery low
	Red indicator keep sturdily on	Charging ( Red indicator will power off when battery full )
Bluetooth indicator	Blue indicator flashes quickly	Bluetooth pairing mode
	Blue indicator flashes slowly	Bluetooth reconnecting
	Blue indicator keep sturdily on	Connected
	White indicator flashes quickly	Broadcast pairing mode
EQ indicators	Xbass indicator keep sturdily on	Bass mode is on
	Music indicator keep sturdily on	Music mode is on
	Audiobook indicator keep sturdily on	Audiobook mode is on

Reset

If this speaker has any problem, you can try to press and hold “Volume +” and “Volume -” buttons simultaneously for 5s to reset this spaeker and remove the old pairing in your Bluetooth device, and then pair again.

Customer Service

• 18-month limited warranty
• For FAQS and more information, please visit: Email: [email protected]

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
