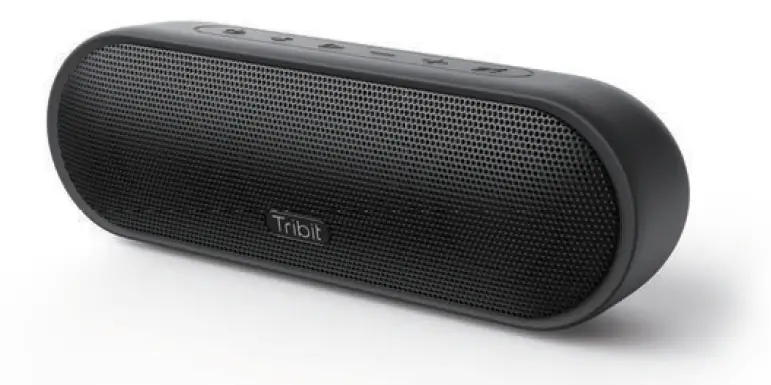

Tribit IC-BTS25 Portable Wireless Speakers
Safety Precautions
- Avoid dropping the speaker on the floor.
- Do not try to disassemble or repair the speaker unless you are a technician.
- Do not submerge the speaker in water.
- Never expose the speaker to extreme high or low temperatures.
- Stop use immediately if thunderstorm happens.
- Do not clean its surface with any corrosive cleanser or other chemical solutions.
Specifications
- Bluetooth version: V4.2
- Bluetooth profile: A2DP, AVRCP, HFP, HSP
- Driver: 2 x <l>45mm Passive radiator
- Output power: 2 x 12W
- Signal-to-noise ratio • 80d8
- Frequency response: 80-20KHz
- Battery: 7.4V / 2200mAh
- Music play time: Up to 20 hours I varies by volume level and music files)
- Charging time: 4 hours@SV/1.SA
- Dimensions: 65xl98x68 mm/ 2.56×7.79×2.68 in
- Weight: 595g / 20.98oz

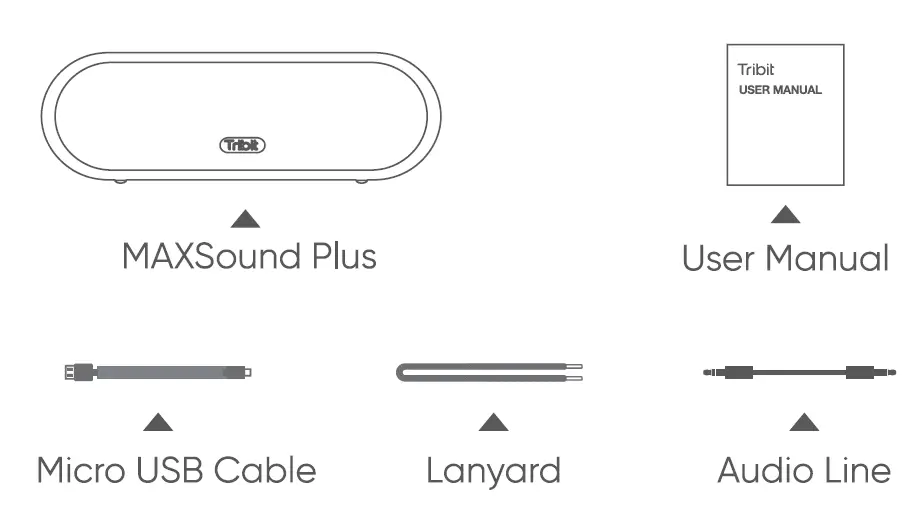

What’s in the Box

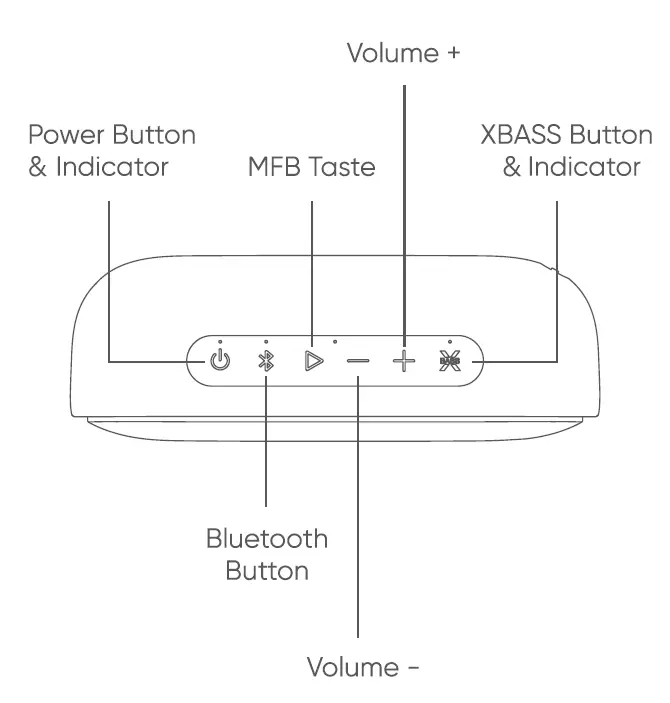

Overview Buttons & Indicators

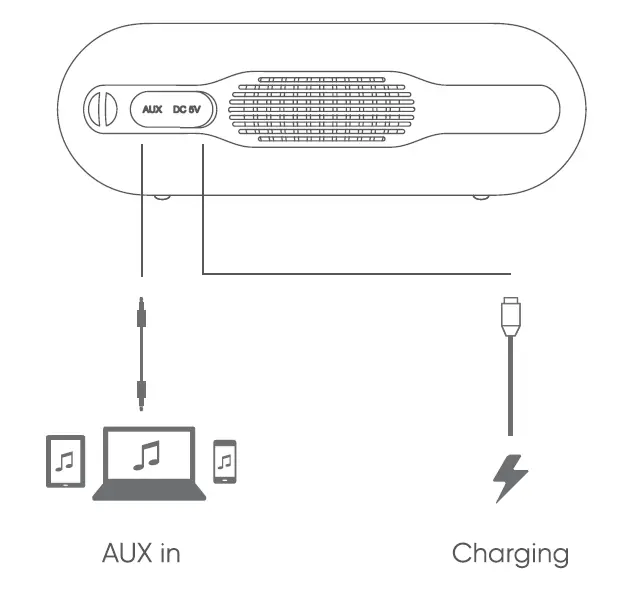

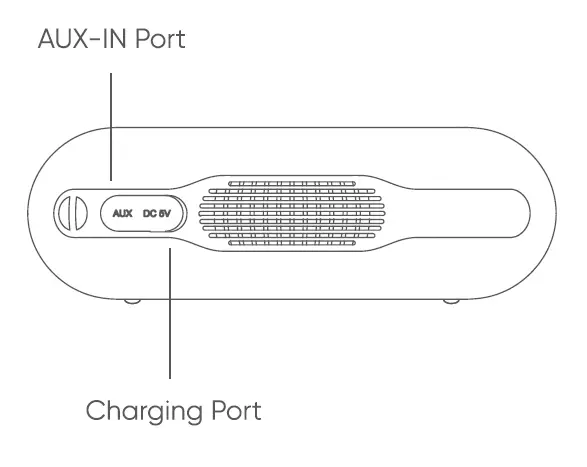

Connections

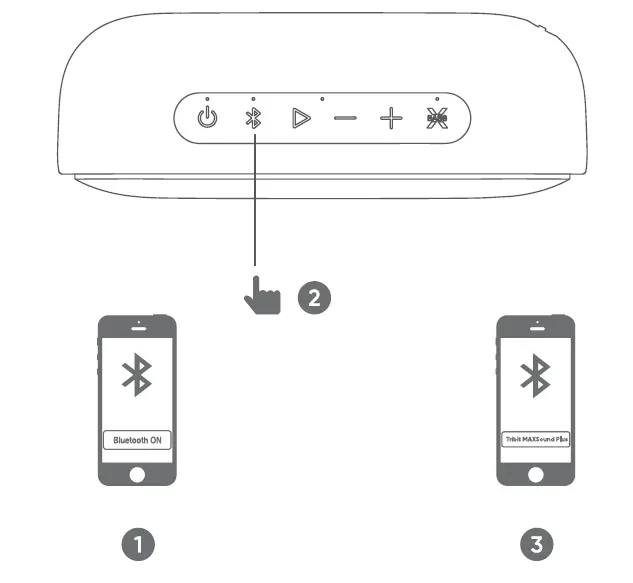

Bluetooth Pairing
| Function | Button | Operation |
| Power ON/OFF | Power Button | Press the button to turn on / off the speaker |
| Pair a Bluetooth Device | Bluetooth Button | Press the button to manually enter pairing mode |
| Volume Up | Volume+ | Press the button to increase the volume level |
| Volume Down | Volume- | Press the button to decrease the volume level |
| Play/pause | MFB | Press once the button |
| Next track | MFB | Double press the button |
| Previous track | MFB | Press the button for3times |
| Answer/end the incoming call | MFB | Press once the button |
| Reject an incoming call | MFB | Press and hold the button for 2s |
|
Voice dial function |
MFB | Press and hold the button for 2s to activate ( your device must support this function) |
| XBASS | XBASS | Press the button to switch Bass and normal mode |
Indicators
| indicator | Status |
| Power indicator | Blue indicator I Reconnection flashes slowly made |
|
Power indicator | Blue indicator flashes quickly | Bluetooth pairing mode |
| Blue indicator keeps sturdily on | Connected | |
|
Red light is always on | Charging/ battery <15% battery<2% prompts automatic shutdown | |
| Green light is always a | Battery full | |
| Power display | Mobile phone display | |
| XBASS indicator | White indicator lights up | Bass mode is activated |
Reset
If this speaker has any problem, you can try to press and hold Volume + and Volume – buttons simultaneously for Ss to reset this speaker and remove the old pairing in your Bluetooth device, and then pair again.
Customer Service
- 18-month limited warranty
- For FAQS and more information, please visit:
- Email: [email protected]
- www.tribitaudio.com ( QR code ) facebook QR code
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment hos been tested and found to comply with the limits for a Closs B digital device, pursuant to Port 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which con be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into on outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio / TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
