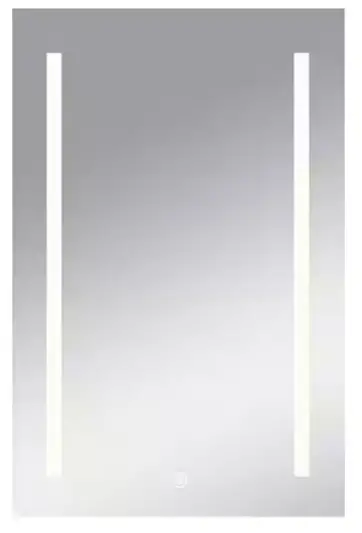

Interbath ITBBGMCB3020L Rectangular Black Aluminum Surface Mount Left Medicine Cabinet
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed, including the following:
- WARNING: To reduce the risk of burns, fire, electric shock or injury to persons. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer. Never drop or insert any object into any opening. Do not use outdoors.
- WARNING: Risk of electric shock. Connect this furnishing to a properly grounded circuit only. See grounding instructions.
- CAUTION: Maximum shelf load 34Ibs/15.4kg
ELECTRIC CONNECTIONS
ALL WIRING SHOULD BE DONE BY A QUALIFIED LICENCED ELECTRICIAN.
WARNING: Shut off power before wiring the cabinet.
Requires 120 VAC 20 Amp GFI protected Circuit.
GROUNDING INSTRUCTIONS
CAUTION: This product must be connected to a grounded metal permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the product.
WARNING: An Electrical option cabinet must be wired to a 20 Amp GFI (Ground Fault Interrupter) protected circuit when used in bathrooms and all other locations
required by the National Electric Code.

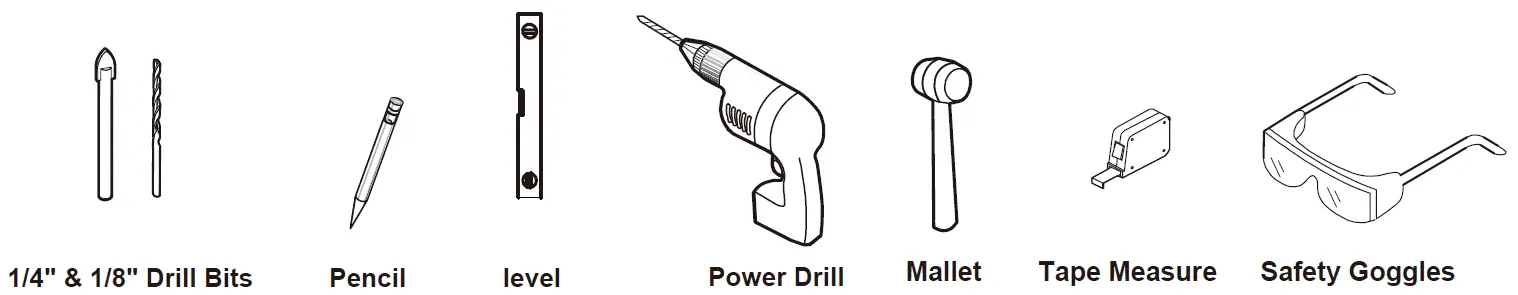

HARDWARE AND TOOLS

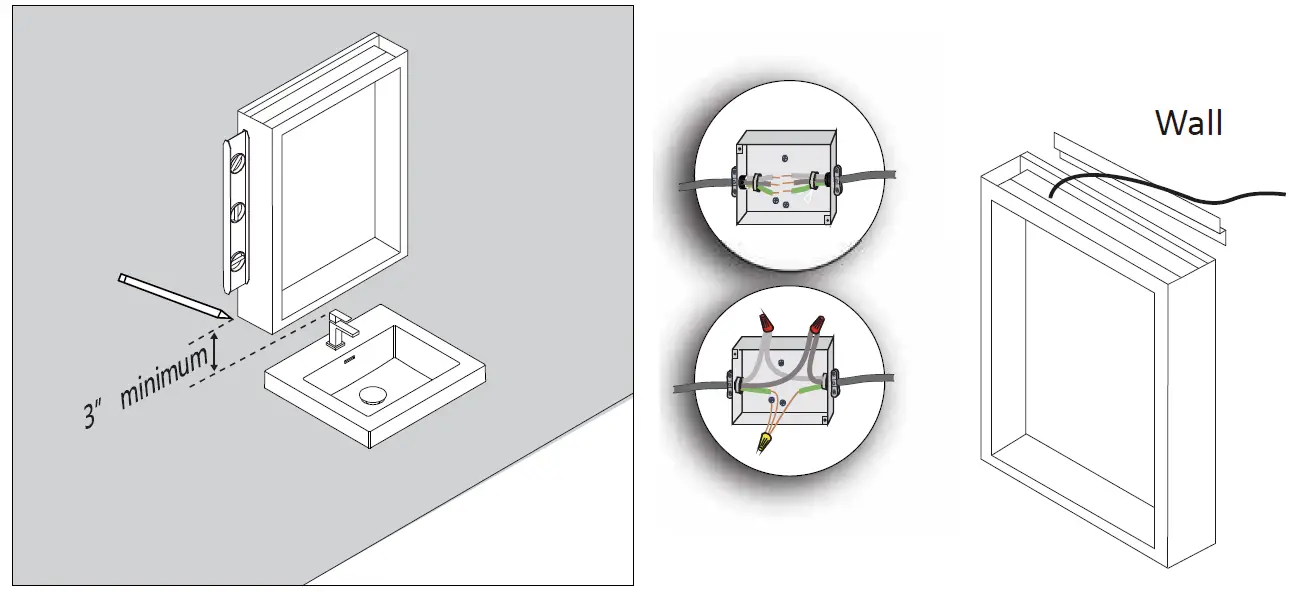

STEP 1 Level and mark the cabinet’s location on the wall.

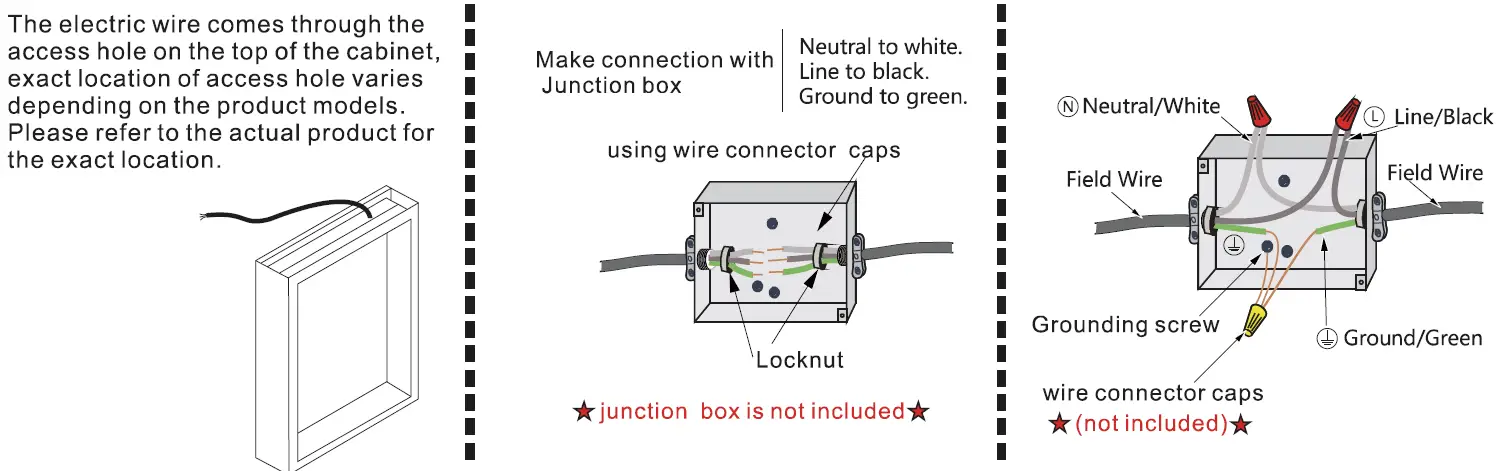

Connect the wire to Junction Box inside the wall.
STEP 2

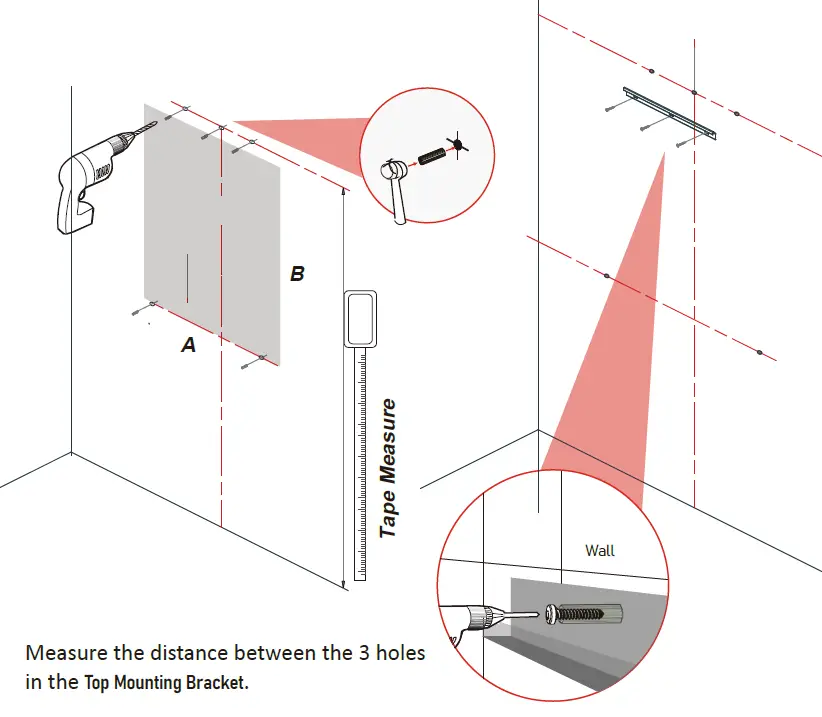

Fix Top Mounting Bracket on the Wall
STEP 3
Hanging the Cabinet on the top mounting bracket. Make sure top brackets are locked in the grooves.
STEP 4

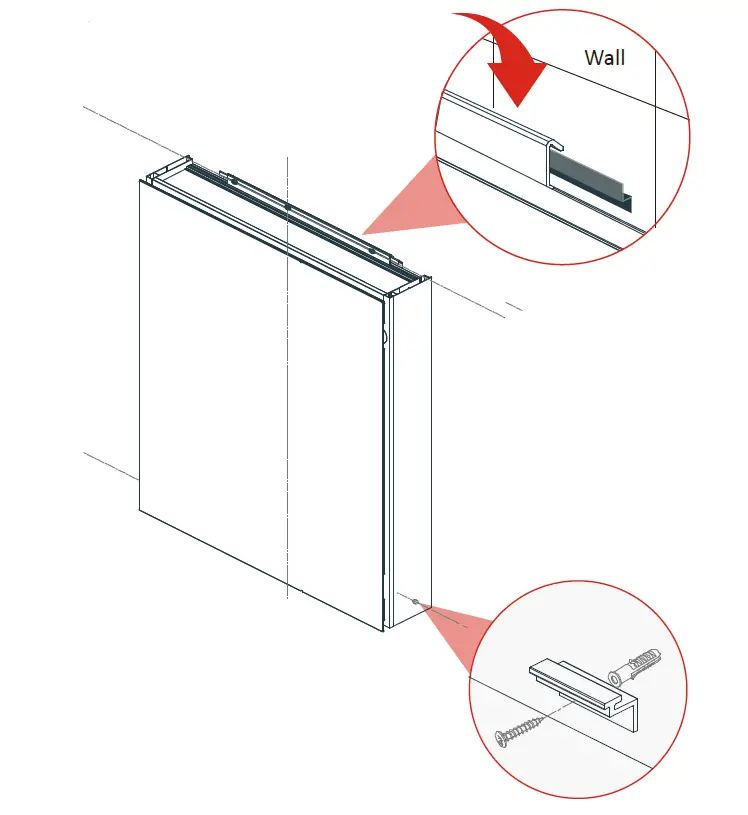

Move the cabinet to the right position and screw in the bottom supporting bracket and fix it.
STEP 5

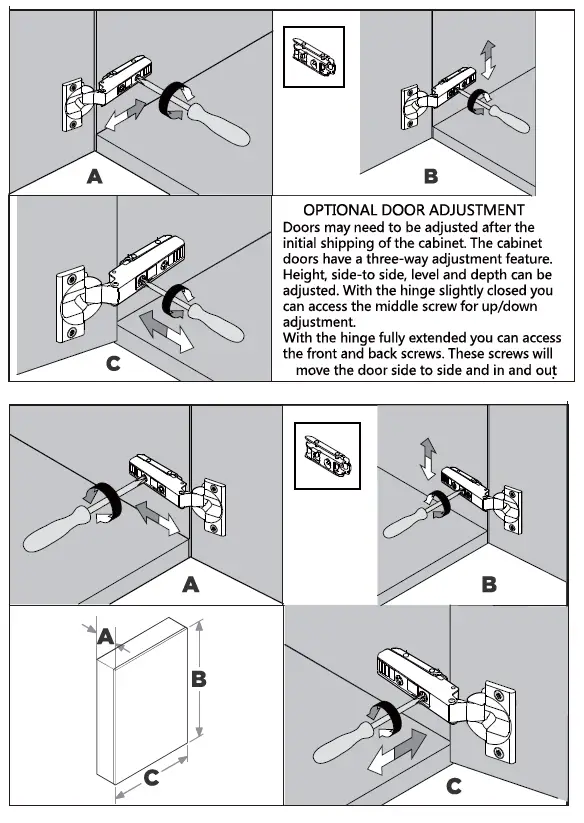

Optional Door Adjustment
STEP 6
Insert clear snap in shelf clips into holes on the sides of the cabinet.
Install the glass shelf.
Adjust the height according to your preference.

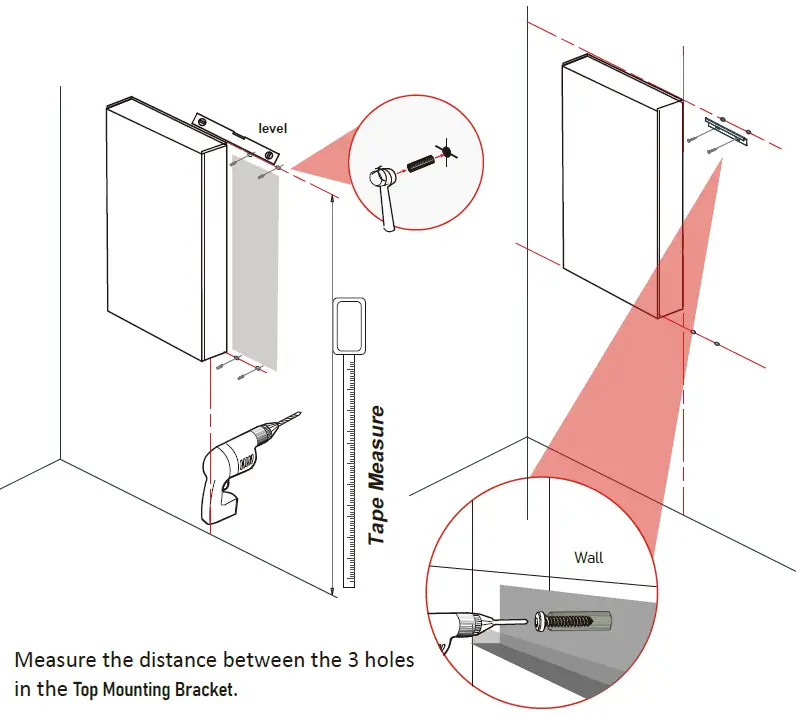

Fix Top Mounting Bracket on the Wall

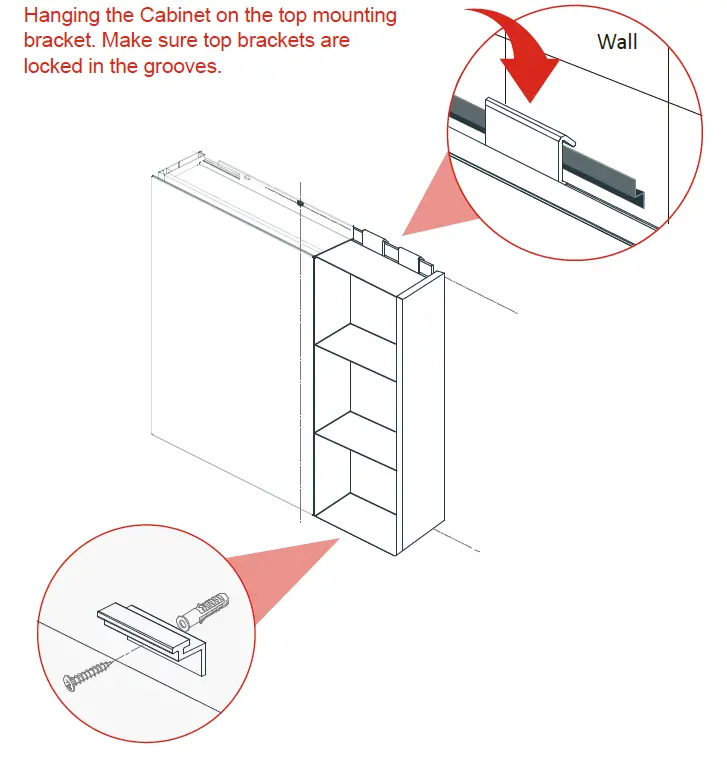

Hanging the Cabinet on the top mounting bracket. Make sure top brackets are locked in the grooves.
