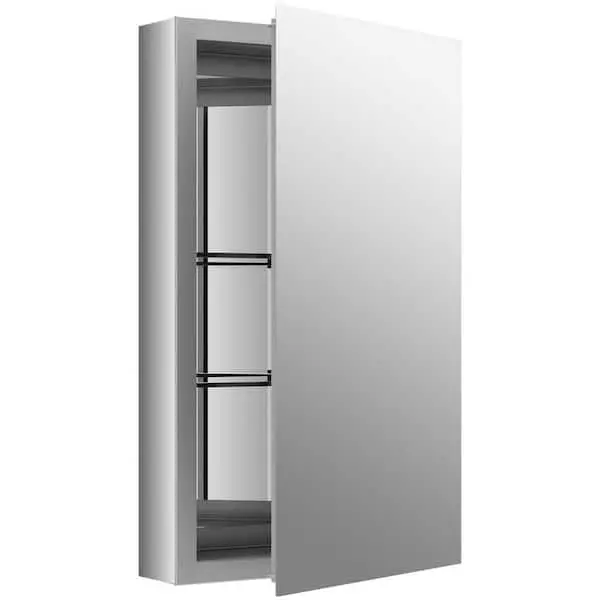

THE HOME DEPOT MC508B Aluminum Medicine Cabinet

List of Parts

• Cabinet X1

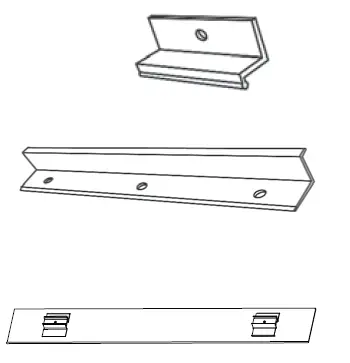

• Top Bracket X2
• Bottom Bracket X1
• Side Miror X2

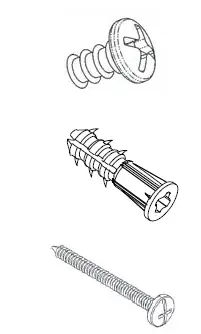

1. Side Mirror Screwv X4
2. Wall Anchor X5
3. Mounting Screw X5

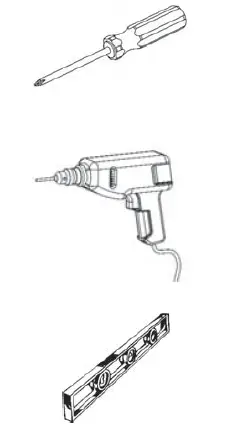

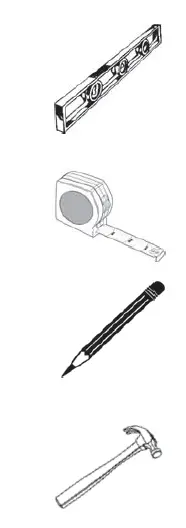

Tools Needed

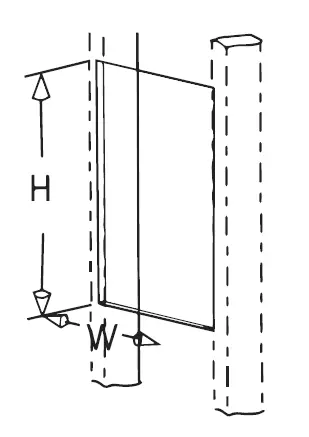

Rough Wall Opening

Use a 1/4 in. (6 mm) drill bit for drywallanchor installation. Use a 1/8 in. (3mm)drill bit for direct stud installation.
NOTE: If installing into a material otherthan drywall or into stud, consult aprofessional for proper installation.

Step 1

Measure and mark two bottom mounting holes on the wall corresponding to the pre-drilled hole locations in the bottom mounting bar.

Draw horizontal line connecting the two bottom marked location.the line should to be level. adjust to level if necessary.

Use a 1/4 in. (6 mm) drill bit for drywall anchor installa­tion. Use a 1 /8 in. (3mm) drill bit for direct stud installation.
NOTE: If installing into a material other than drywall or into stud, consult a pro­fessional for proper instal­lation.

Step 2

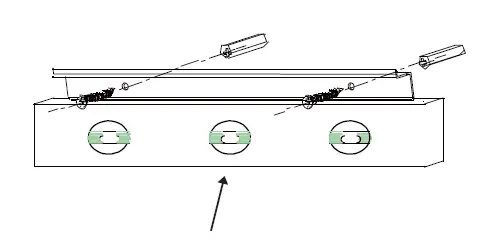

Attach the bottom mounting bar hanger to the wall with two mountin screws from the hardware pack.

Step 3

Install the top bar hanger with the same way as the bottom bar hanger.

Put the cabinet on the bottom bar hanger and hold the cabinet, please make sure that the hanger must mach the track from the bottom board of the cabinet

RECESS MOUNT INSTRUCTIONS

NOTE: Rough opening is not an exact measurement. The extra space allows cabinet to be inserted into the opening. Add shims to level and tighten space if necessary. Additional framing might be required.

STEP 1

NOTE: Before cutting the rough opening, check for pipes, electrical cables, or heating ducts. If it is required to remove part of stud, make sure that the wall is not a load bearing wall.
Prepare the opening in the wall for the cabinet body. Make sure that there is support on both sides of the opening to attach the cabinet body , as shown.
NOTE: The cabinet height should be a minimum 2 in. above the faucet.

STEP 2

Position the cabinet body in the rough wall opening. Make sure that the cabinet body flange covers the wall opening uniformly.
Secure both sides of the cabinet body to the wall supports using mounting screws .
NOTE: The cabinet body must be level for the door to work properly.

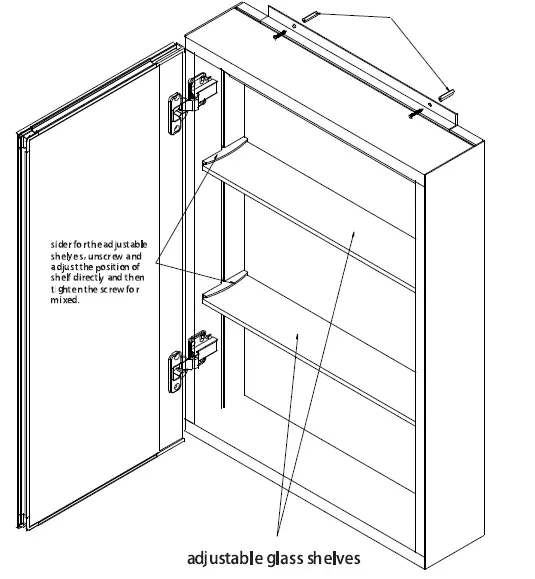

SHELF ADJUSTMENT

For your convenience, adjustable shelves have been pre-installed. In order to adjust shelf location:

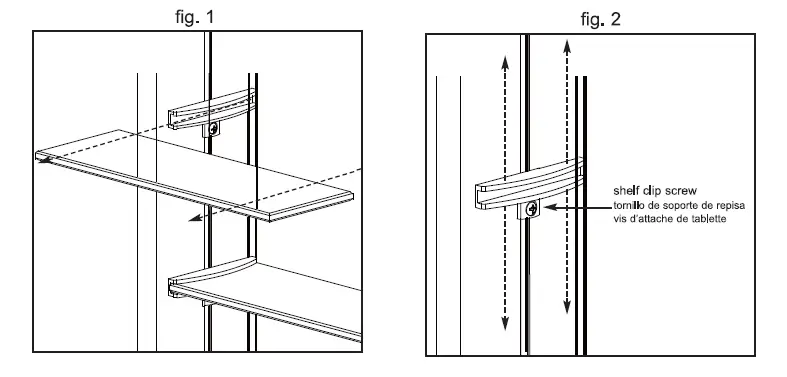

1. Carefully slide the shelf out from shelf clips. See fig.1.
2. Loosen each shelf clip screw (two for each shelf) and slide to the desired location.See fig 2.
3. Carefully slide the shelf into the shelf clips making sure shelf is level and retighten shelf clip screws

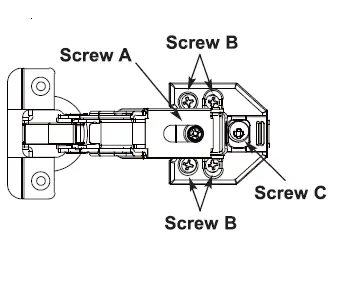

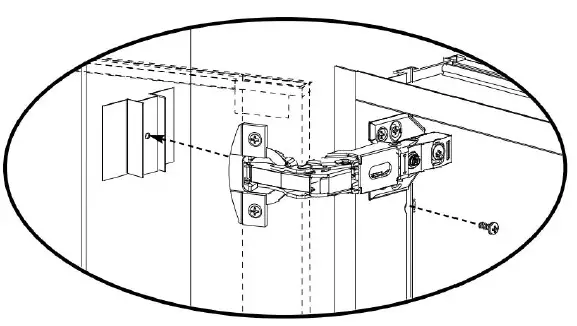

HINGE ADJUSTMENT

SIDE-TO-SIDE:

The door is adjustable side to side by turning screw A clockwise or counterclockwise.

UP-DOWN:

• Loosen screw Bon both top and bottom of the hinge plate. Raise or
• lower door to the desired position and re-tighten both screws.

IN-OUT:

Loosen screws Con both top and bottom hinges. Move the door in or out to desired position and re-tighten
