709-BTP3 Seelevel II Tank Monitor with Bluetooth

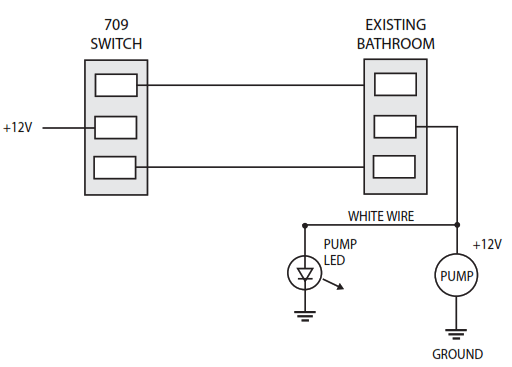

3-WAY SWITCH WIRING DIAGRAM

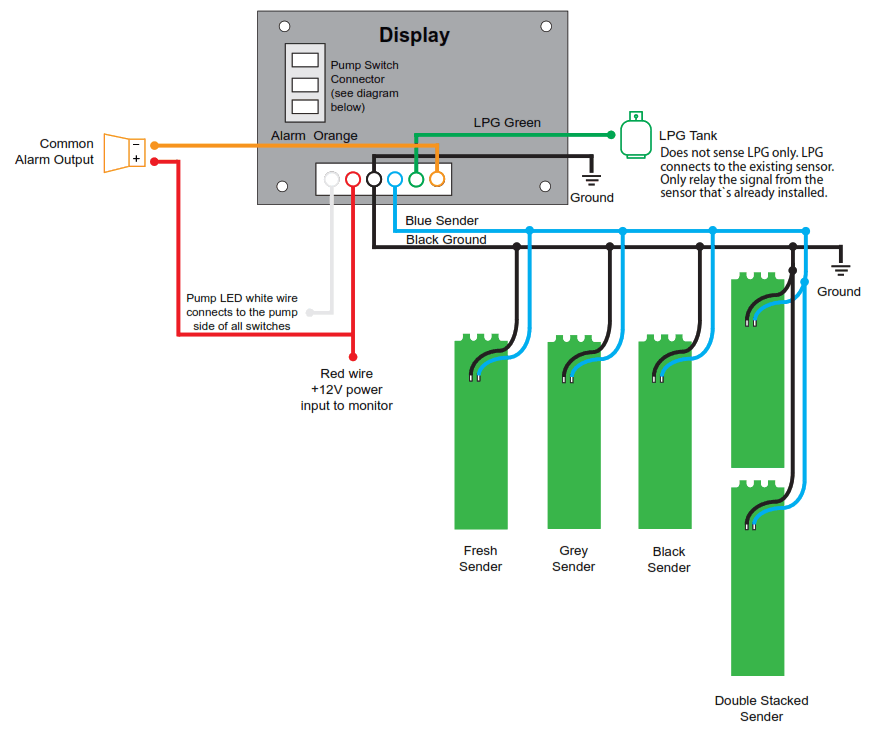

WARNING: All power circuits must be fused. If a fuse is not provided with the system then it is the installer’s responsibility to install a fuse with the maximum rating of 7.5 amps. A relay is required if more than 7.5 amps needed for the pump. WARNING: If the common alarm device exceeds the maximum rating of 1 amp a relay should be used. Double Stacked Sender
