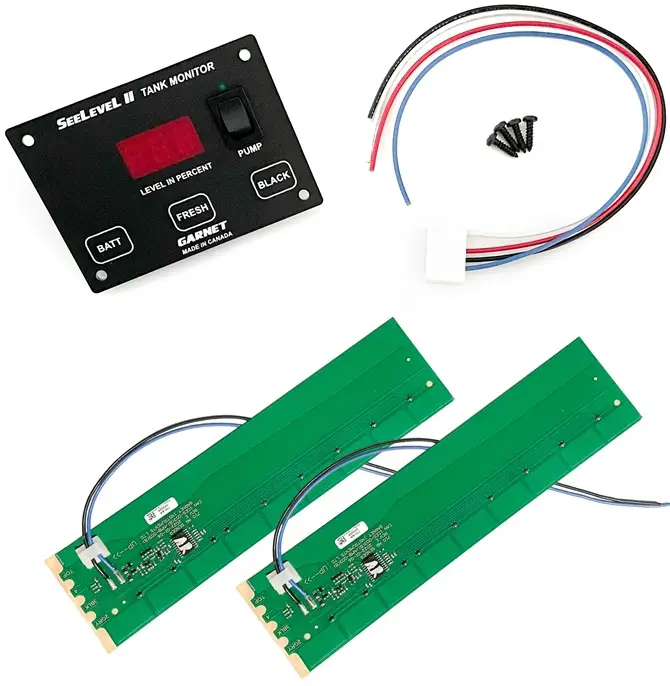

SEELEVEL 709-2P Tank Monitor System Instructions
Pigtail Wires
| Pin | Color | Function |
| 1 | White | Pump LED |
| 2 | – | |
| 3 | Red | +12V |
| 4 | Black | Ground |
| 5 | Blue | Tank Senders |
| 6 | – |

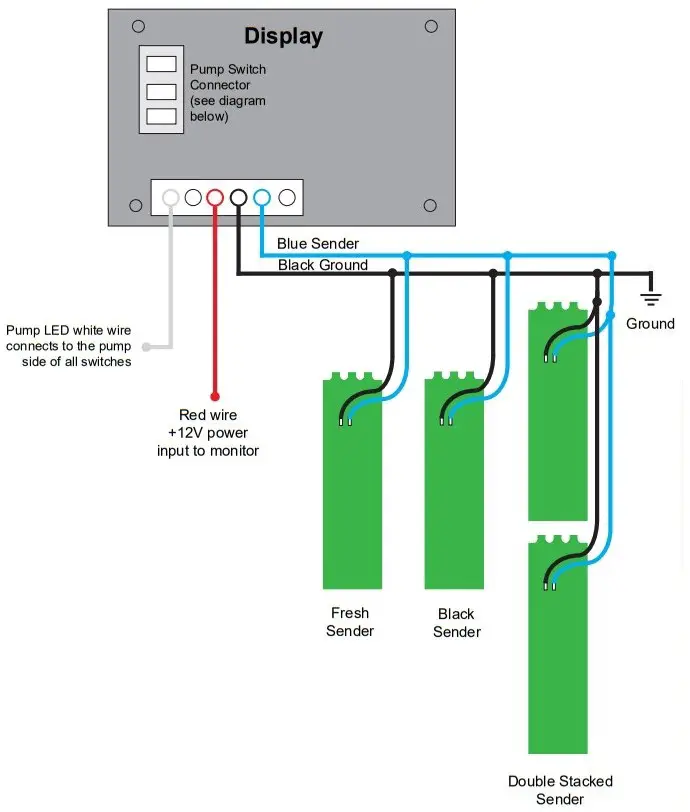

Wiring Instructions
3-WAY SWITCH WIRING DIAGRAM
WARNING: The pump wiring must be fused at 10 amps. If a fuse is not provided with the system then it is theinstaller’s responsibility to install a fuse. The pump switch is rated for a maximum of 10 amps. The use of a relay is required if more than 10 amps is needed for the pump
