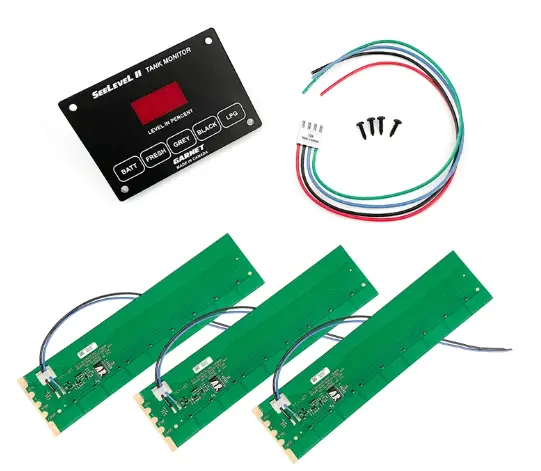

Garnet Instruments 709-N2K NLP SeeLeveL II Tank Monitor Instructions

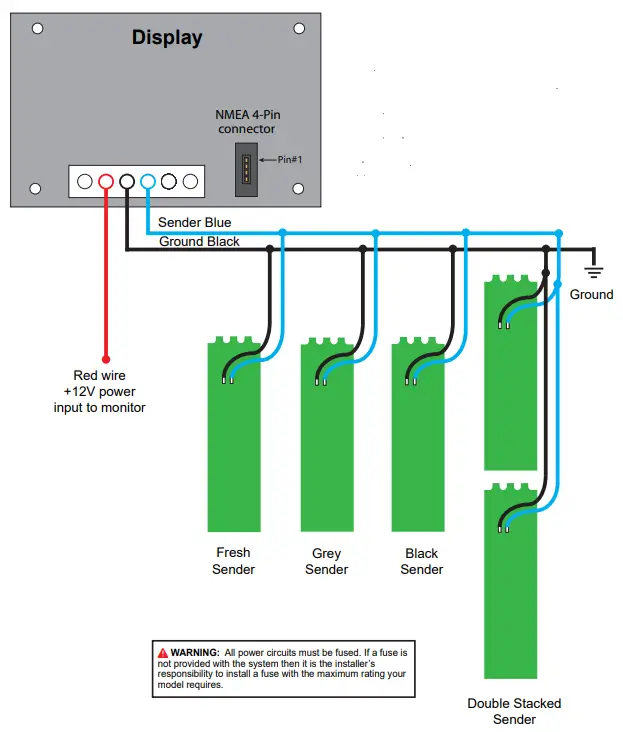

Pigtail Wires
| Pin | Color | Function |
| 1 | – | – |
| 2 | Red | +12V |
| 3 | Black | Ground |
| 4 | Blue | Tank Senders |
| 5 | ||
| 6 |
NMEA Pinout
| Pin | Signal Description |
| 1 | +Voltage |
| 2 | CAN-Hi |
| 3 | CAN-Lo |
| 4 | -Voltage |
WARNING: All power circuits must be fused. If a fuse is not provided with the system then it is the installer’s responsibility to install a fuse with the maximum rating your model requires.
