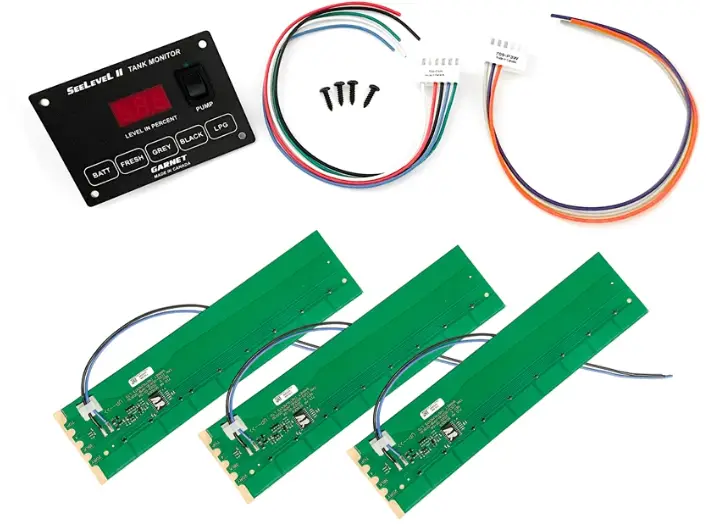

Garnet Instruments 709-P3W SeeLeveL II Tank Monitor

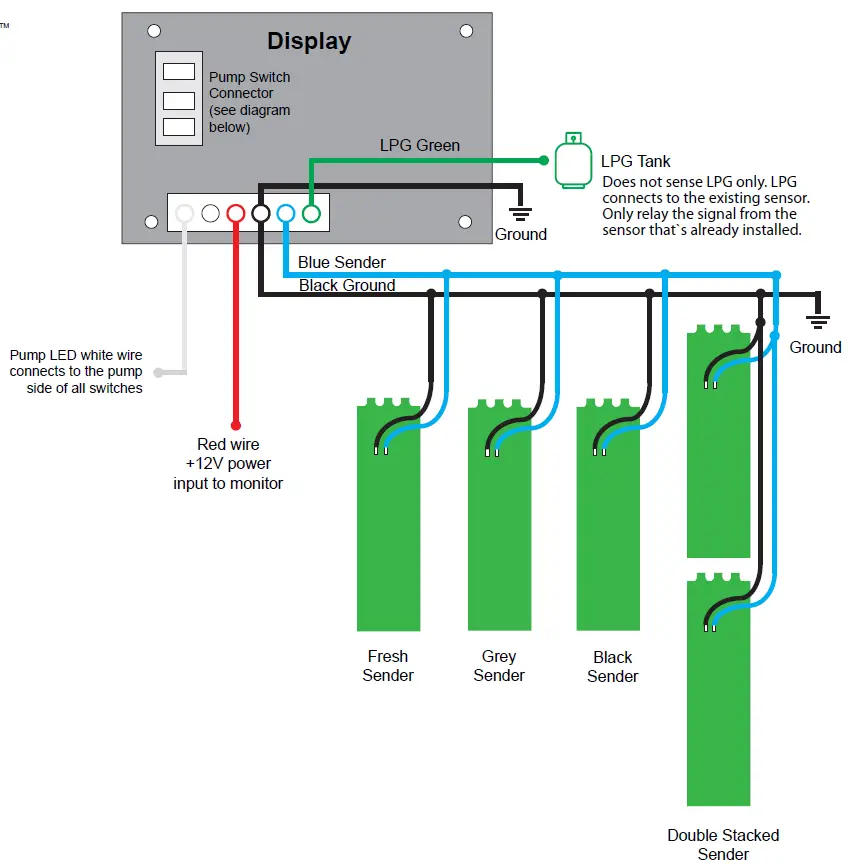

Display

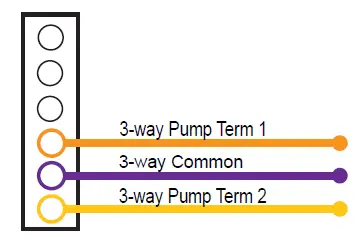

Pigtail B (6-pin)

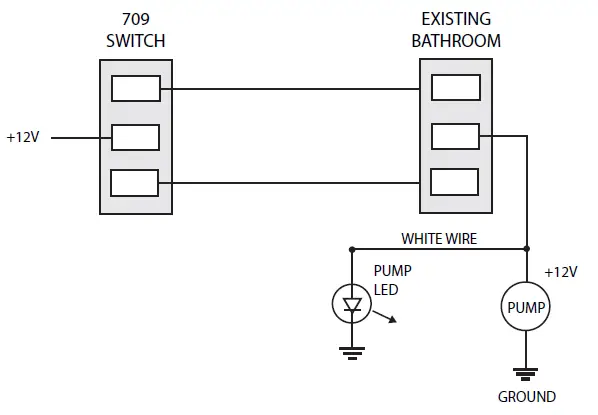

3-WAY SWITCH WIRING DIAGRAM
WARNING: All power circuits must be fused.
If a fuse is not provided with the system then it is the installer’s responsibility to install a fuse with a maximum rating of 10 amps. A relay is required if more than 10 amps needed for the pump.
