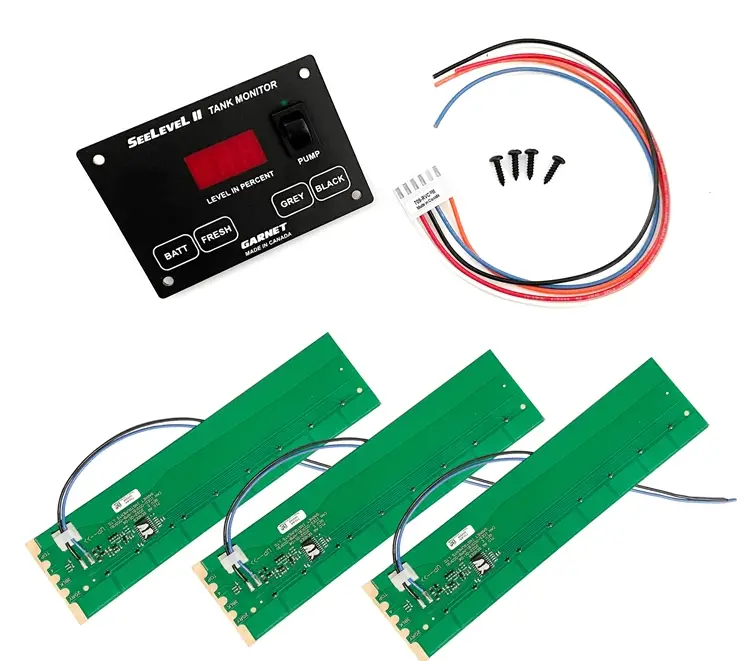

Garnet Instruments 709-RVC PM SeeLeveL II Tank Monitor

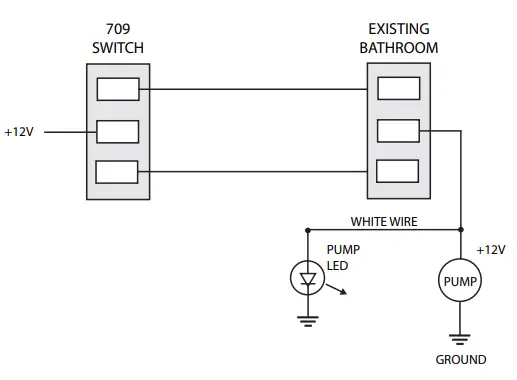

3-WAY SWITCH WIRING DIAGRAM
Display
WARNING: All power circuits must be fused. If a fuse is not provided with the system then it is the installer’s responsibility to install a fuse with a maximum rating of 7.5 amps. A relay is required if more than 7.5 amps are needed for the pump.
WARNING: If the common alarm device exceeds the maximum rating of 1 amp a relay should be used.
