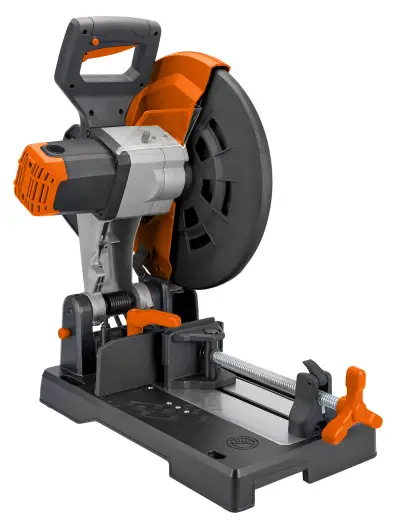

BNCE-130 CUTTING EDGE SAW™
BN PRODUCTS-USA, LLC.TM
3450 Sabin Brown Road
Wickenburg, AZ 85390 (800) 992-3833
www.bnproducts.com

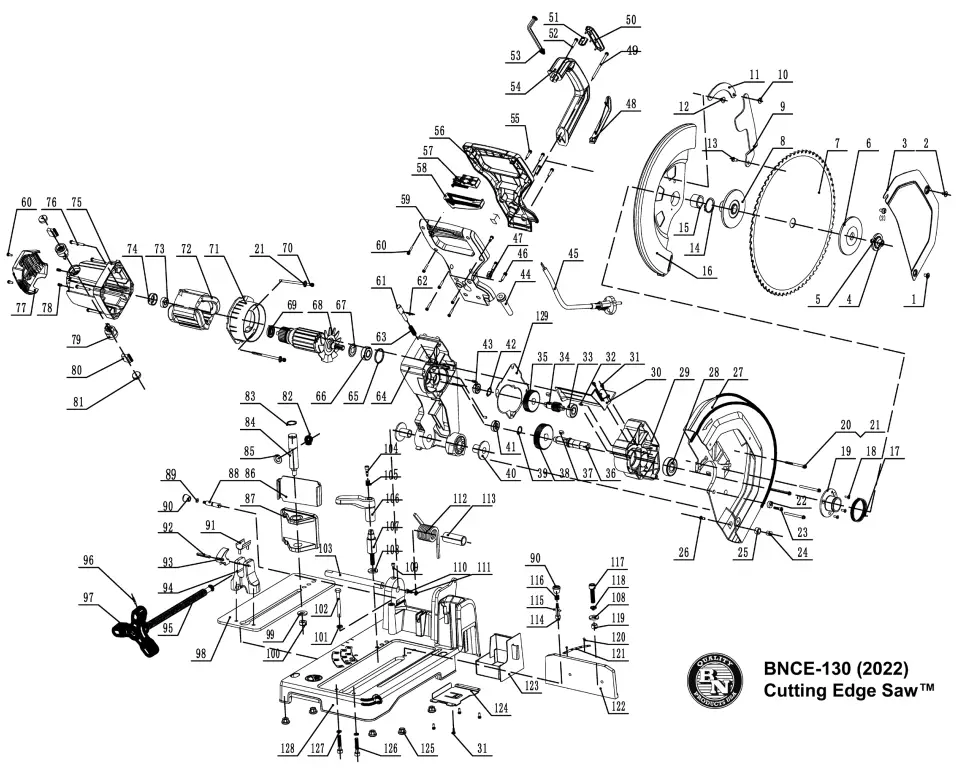

PRODUCT PARTS GUIDE
| Ref No. | Part No. | Parts Name | Qty |
| 1 | 101301 | Cross Recessed Pan Head Screw With Step M6*8 | 1 |
| 2 | 101302 | Cross Recessed Pan Head Screw M6*8 | 2 |
| 3 | 101303 | Side Protecting Cover Of Fixed Cover | 1 |
| 4 | 101304 | Hexagon Screw M10*25 | 1 |
| 5 | 101305 | Flange | 1 |
| 6 | 101306 | Outer Flange Of Blade | 1 |
| 7 | RB-BNCE-130 | Blade | 1 |
| 8 | 101308 | Inner Flange Of Blade | 1 |
| 9 | 101309 | Main Connecting Rod | 1 |
| 10 | 101310 | Connecting Screw Of Linkage 1 | 1 |
| 11 | 101311 | Small Connecting Rod | 1 |
| 12 | 101312 | Connecting Screw Of Linkage 2 | 1 |
| 13 | 101313 | Connecting Screw Of Linkage 3 | 1 |
| 14 | 101314 | Srap Ring Φ38 | 1 |
| 15 | 101315 | Movable Guard Sleeve | 1 |
| 16 | 101316 | Movable Guard | 1 |
| 17 | 101317 | Reset Spring | 1 |
| 18 | 101318 | Cross Recessed Countersunk Head Screws M5*12 | 3 |
| 19 | 101319 | Front Cover | 1 |
| 20 | 101320 | Cross Recessed Pan Head Screw M5*60 | 4 |
| 21 | 101321 | Spring Washerφ5 | 4 |
| 22 | 101322 | Bearing 606 | 1 |
| 23 | 101323 | Cross Recessed Pan Head Screw M6*16 | 1 |
| 24 | 101324 | Bushing Of Anti-Vibration Pillar | 1 |
| 25 | 101325 | Anti-Vibration Pillar | 1 |
| 26 | 101326 | Cross Recessed Pan Head Screw M5*12 | 1 |
| 27 | 101327 | Fixed Guard | 1 |
| 28 | 101328 | Bearing 6204 | 1 |
| 29 | 101329 | Gear Housing | 1 |
| 30 | 101330 | Protection Cover | 1 |
| 31 | 101331 | Cross Recessed Pan Head Screw M4*12 | 2 |
| 32 | 101332 | Anti-Vibration Pin Φ5*8 | 3 |
| 33 | 101333 | Bearing 6200 | 1 |
| 34 | 101334 | Level 2 Small Gear | 1 |
| 35 | 101335 | Level 1 Big Gear | 1 |
| 36 | 101336 | Spindle | 1 |
| 37 | 101337 | Woodruff Key 4*13 | 2 |
| 38 | 101338 | Level 2 Big Gear | 1 |
| 39 | 101339 | Srap Ring Φ18 | 1 |
| 40 | 101340 | Bearing Bush | 2 |
| 41 | 101341 | Bearing 6001 | 1 |
| 42 | 101342 | Srap Ring Φ16 | 1 |
| 43 | 101343 | Bearing 6000 | 1 |
| 44 | 101344 | Cord Armour | 1 |
| 45 | 101345 | Cable | 1 |
| 46 | 101346 | Cross Recessed Pan Head Tapping Screw St4*14 | 2 |
| 47 | 101347 | Cord Clip | 1 |
| 48 | 101348 | Side Cover Of The Handle | 1 |
| 49 | 101349 | Cross Pan Head Screw M5*80 | 1 |
| 50 | 101350 | Top Cover Of The Handle | 1 |
| 51 | 101351 | Rubber Cover | 1 |
| 52 | 101352 | Cross Pan Head Screw M5*25 | 1 |
| 53 | 101353 | Hexagon Wrench | 1 |
| 54 | 101354 | Handle | 1 |
| 55 | 101355 | Cross Recessed Pan Head Screw M5*25 | 4 |
| 56 | 101356 | Upper Handle | 1 |
| 57 | 101357 | Switch | 1 |
| 58 | 101358 | Switch Button | 1 |
| 59 | 101359 | Down Handle | 1 |
| 60 | 101360 | Cross Recessed Pan Head Tapping Screw St4.2*14 | 6 |
| 61 | 101361 | Self-Lock Pin | 1 |
| 62 | 101362 | Elastic Cylindrical Pin Φ4 | 1 |
| 63 | 101363 | Reset Spring Of Elastic Cylindrical Pin | 1 |
| 64 | 101364 | Arm | 1 |
| 65 | 101365 | O Ring Φ35*1.5 | 1 |
| 66 | 101366 | Bearing 6202 | 1 |
| 67 | 101367 | Anti-Dust Washer | 1 |
| 68 | 101368 | Armature | 1 |
| 69 | 101369 | Creepage Ring | 1 |
| 70 | 101370 | Cross Recessed Pan Head Tapping Screw St5*100 | 2 |
| 71 | 101371 | Baffle Ring | 1 |
| 72 | 101372 | Stator | 1 |
| 73 | 101373 | Bearing 629 | 1 |
| 74 | 101374 | Bearing Sleeve 629 | 1 |
| 75 | 101375 | Housing | 1 |
| 76 | 101376 | Cross Recessed Pan Head Screw M5*40 | 4 |
| 77 | 101377 | Rear Cover | 1 |
| 78 | 101378 | Hexagon Screw M5X8 | 2 |
| 79 | 101379 | Carbon Brusher Holder | 2 |
| 80 | 101380 | Carbon Brusher | 2 |
| 81 | 101381 | Carbon Brusher Cap | 2 |
| 82 | 101382 | Split Pin | 1 |
| 83 | 101383 | Srap Ring Φ22 | 1 |
| 84 | 101384 | Rod Pin | 1 |
| 85 | 101385 | Flat Washer Φ25Φ12*3 | 2 |
| 86 | 101386 | V Jaw | 1 |
| 87 | 101387 | Movable Jaw | 1 |
| 88 | 101388 | Pin | 1 |
| 89 | 101389 | O Ring 5*1.5 | 1 |
| 90 | 101390 | Pin Cap | 1 |
| 91 | 101391 | Rod Washer | 1 |
| 92 | 101392 | Elastic Cylindrical Pinφ6*40 | 1 |
| 93 | 101393 | Quick Release Nut | 1 |
| 94 | 101394 | Rod Support | 1 |
| 95 | 101395 | Rod | 1 |
| 96 | 101396 | Elastic Cylindrical Pinφ5*30 | 1 |
| 97 | 101397 | Rod Handle | 1 |
| 98 | 101398 | Base Plate | 1 |
| 99 | 101399 | Flat Washer Φ25Φ10*1.5 | 1 |
| 100 | 101400 | Hexagon Fix Srew M10 | 1 |
| 101 | 101401 | Hexagon Screw M10 | 1 |
| 102 | 101402 | Outer Hexagon Screw M8X55 | 1 |
| 103 | 101403 | Main Arm Spindle | 1 |
| 104 | 101404 | Fixed Screw | 1 |
| 105 | 101405 | Spring | 1 |
| 106 | 101406 | Quick Release Handle | 1 |
| 107 | 101407 | Wrench Screw | 1 |
| 108 | 101408 | Plain Washer Φ10 | 1 |
| 109 | 101409 | Hexagon Screw M5*12 | 1 |
| 110 | 101410 | Hexagon Screw M6*12 | 1 |
| 111 | 101411 | Spring Washerφ6 | 1 |
| 112 | 101412 | Torsional Spring | 1 |
| 113 | 101413 | Torsional Spring Sleeve | 1 |
| 114 | 101414 | Auxiliary Pin | 1 |
| 115 | 101415 | Elastic Cylindrical Pinφ4*22 | 1 |
| 116 | 101416 | Auxiliary Pin Spring | 1 |
| 117 | 101417 | Hexagon Screw M10*40 | 1 |
| 118 | 101418 | Spring Washerφ10 | 1 |
| 119 | 101419 | Angle Plate Sleeve | 1 |
| 120 | 101420 | Rivet | 2 |
| 121 | 101421 | Ruler In Angle Plate | 1 |
| 122 | 101422 | Angle Plate | 1 |
| 123 | 101423 | Dust Collecting Box Set | 1 |
| 124 | 101424 | Dust Collecting Box Deck | 1 |
| 125 | 101425 | Rubber Holder | 5 |
| 126 | 101426 | Hexagon Screw M8*35 | 2 |
| 127 | 101427 | Spring Washerφ8 | 2 |
| 128 | 101428 | Plate | 1 |
| 129 | 101429 | Paper Washer | 1 |
